1922–1964 Johnson Outboard Service Manual (10th Ed) PDF DOWNLOAD

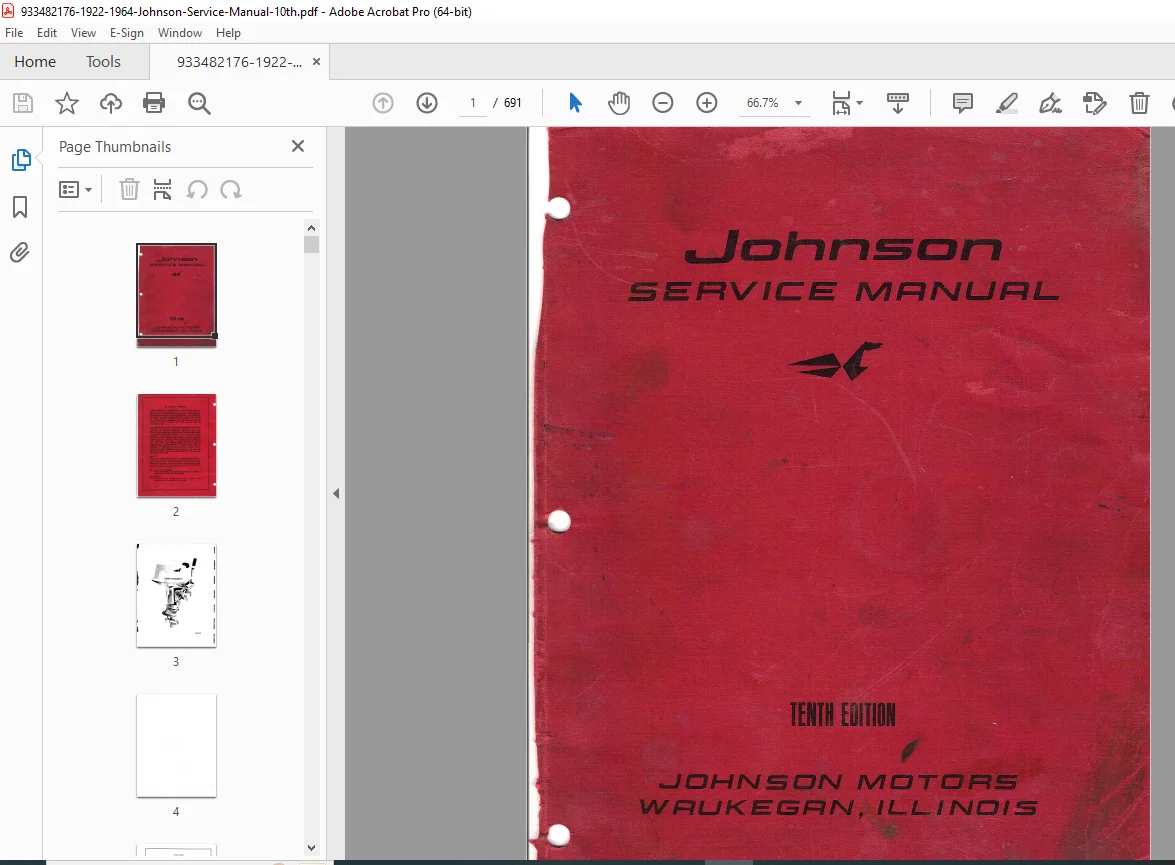

This is the official Johnson Motors Service Manual – Tenth Edition, published by Johnson Motors, Waukegan, Illinois, covering Johnson outboard models from 1922 through 1964.

A must-have master reference for collectors, restorers, and marine mechanics working on classic Johnson outboards.

Table of Contents

🔹 Major Sections

• Magneto – Pages 1 to 78

• Carburetion – Pages 79 to 184

• Powerhead – Pages 185 to 364

• Lower Unit – Pages 365 to 490

• Electrical – Pages 491 to 564

• Miscellaneous – Pages 565 to 606

📊 Johnson Motor Specifications (1922–1964)

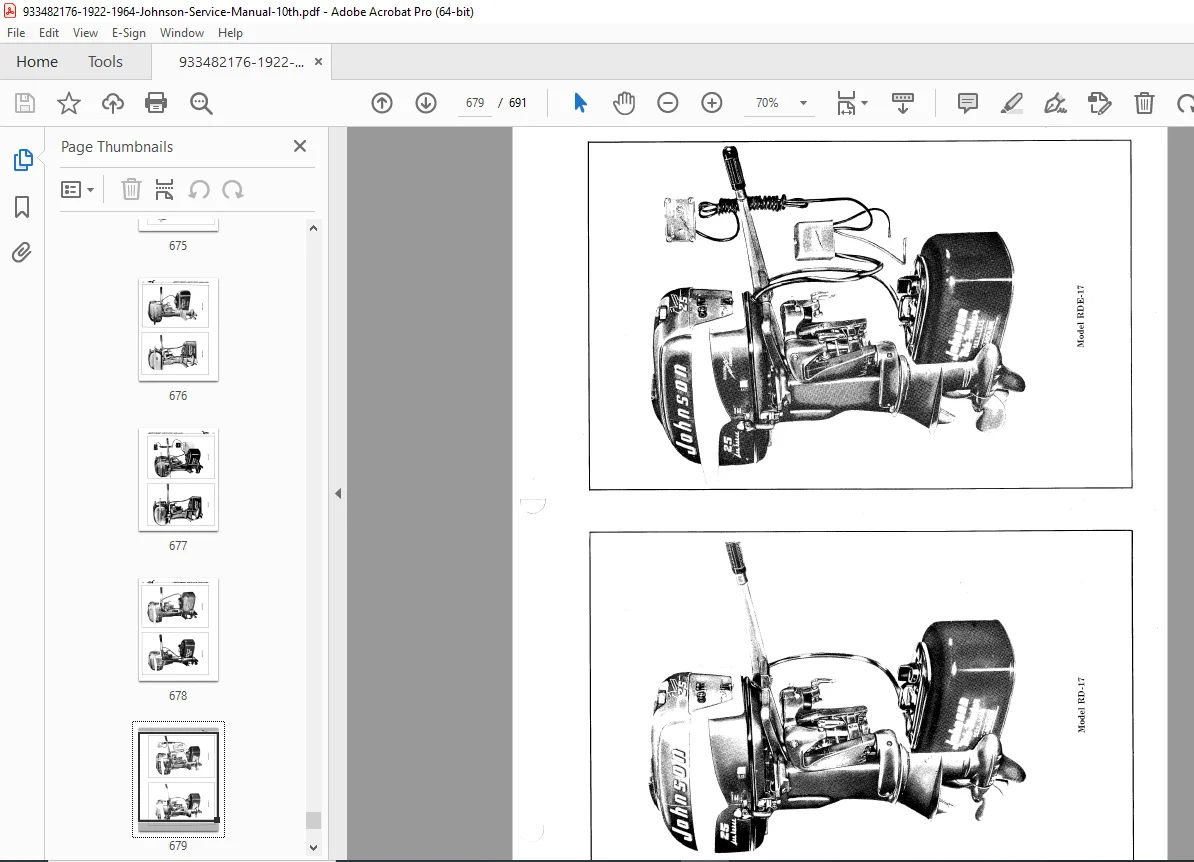

Pages 9–12 contain extensive motor specifications charts including:

• Model designation

• Year

• Original list price

• Bore & stroke

• Horsepower

• RPM

• Gas tank capacity

• Spark plug type

• Piston displacement

• Weight

This section alone is extremely valuable for identifying and restoring vintage Johnson outboards.

⚙️ Magneto Section

The Magneto section includes:

• Basic magneto construction principles

• Ignition testing equipment

• Spark plug specifications

• Detailed armature plate diagrams

• Flywheel removal procedures

• Breaker cam & breaker point service

• Primary and secondary coil diagrams

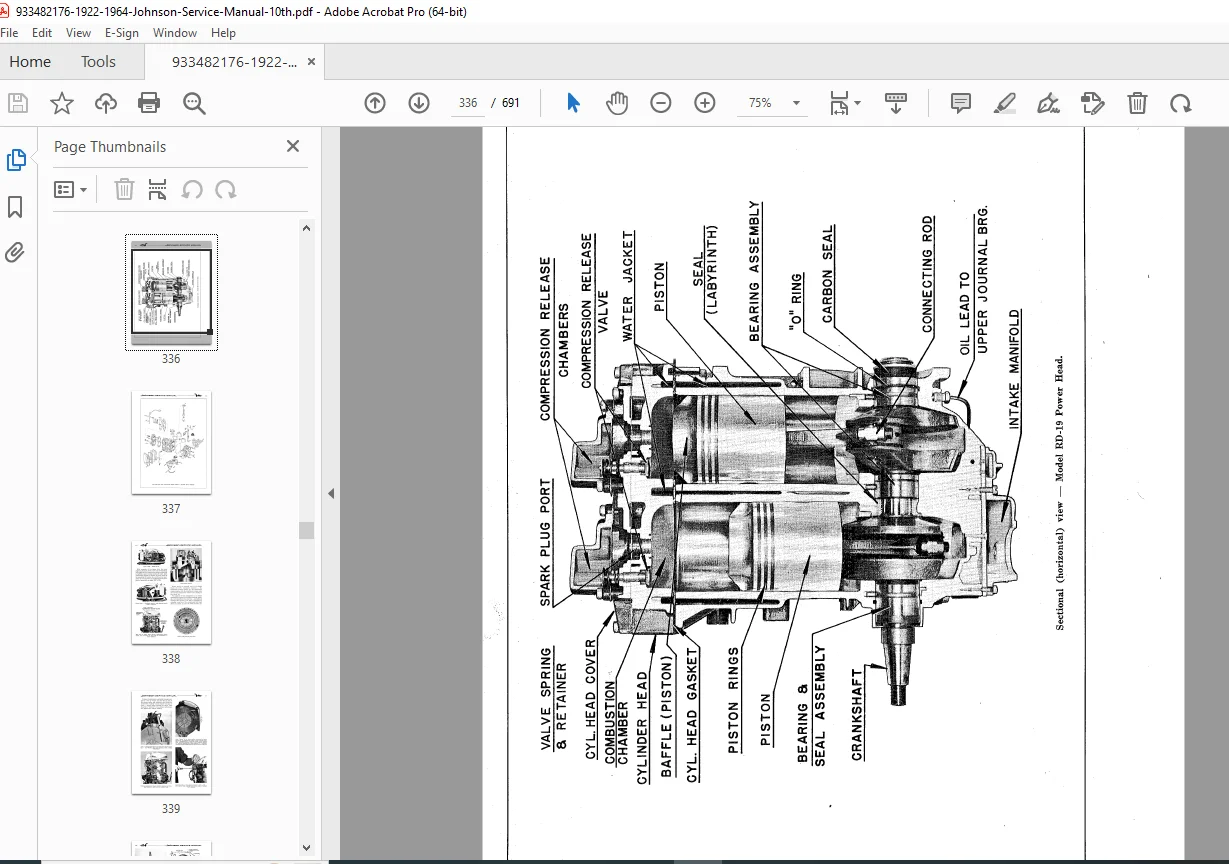

• Cross-sectional ignition coil illustrations

• Step-by-step servicing and repair guidance

Illustrations include:

• Armature plate installations

• Flywheel removal with puller

• Magnet pole layout

• Breaker cam alignment diagrams

• Ignition coil wiring schematics

🛠️ What This Manual Covers

✔ Complete ignition/magneto service
✔ Carburetor overhaul procedures
✔ Powerhead internal servicing
✔ Lower unit maintenance & repair
✔ Electrical troubleshooting
✔ Factory torque and service specifications
✔ Detailed diagrams and mechanical illustrations
✔ Vintage model identification reference

📄 File Details

👨‍🔧 Ideal For

• Antique outboard collectors

• Johnson restoration specialists

• Marine mechanics servicing classic engines

• Vintage boating enthusiasts

• Outboard identification and reference research

Restore your classic Johnson outboard the right way—with original factory specifications, magneto diagrams, and overhaul procedures from the official 10th Edition manual. Instant download—bring your vintage motor back to life today.
