1966 Dodge Charger 426 Hemi Supplement Manual

Description

1966 Dodge Charger 426 Hemi Supplement Manual – PDF DOWNLOAD

Customer Support: [email protected]

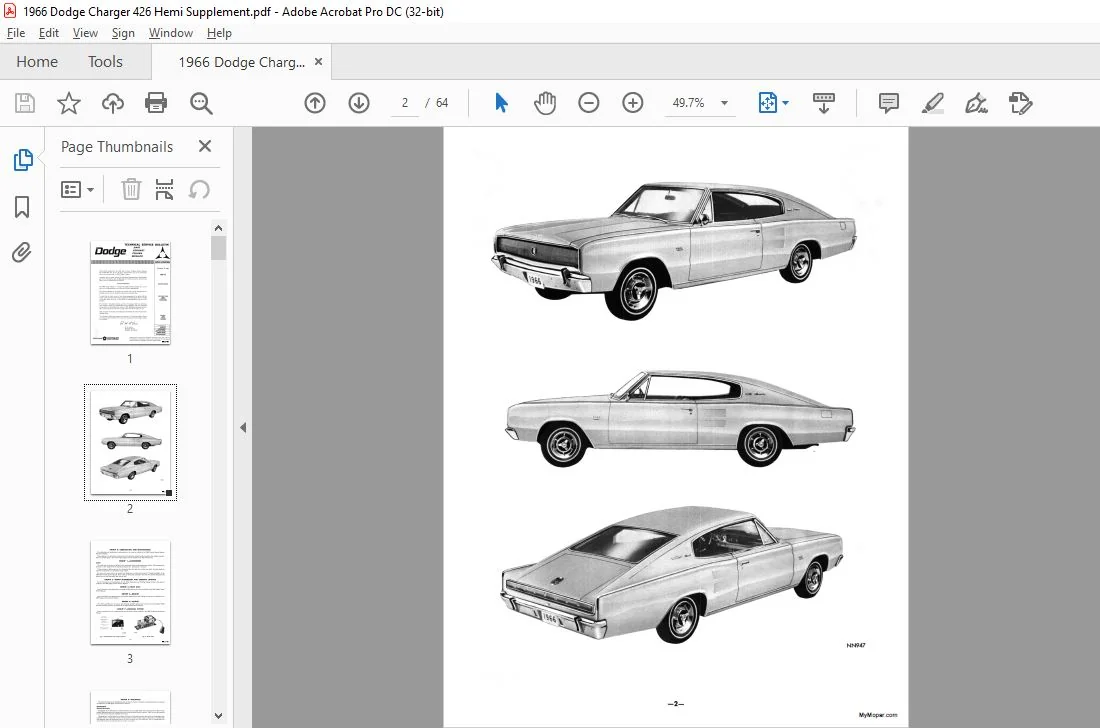

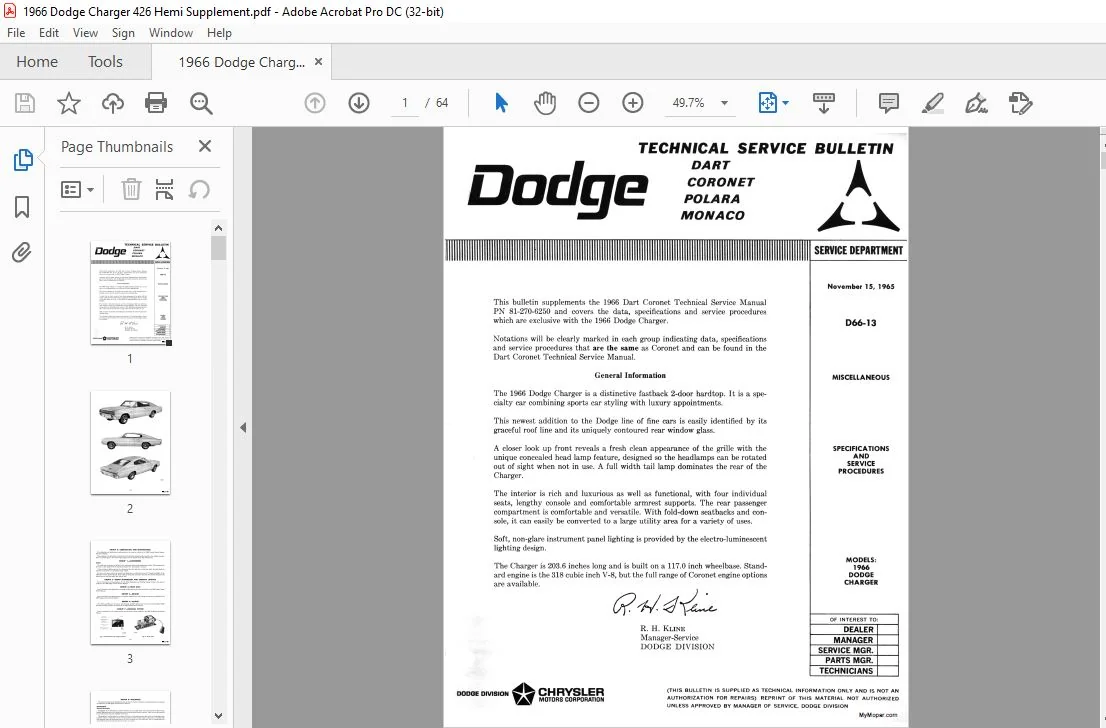

Image Preview:

Description:

1966 Dodge Charger 426 Hemi Supplement Manual – PDF DOWNLOAD

• The fuel, temperature and oil pressure gauges operate on the constant applied voltage principle through a voltage limiter integral with the fuel gauge. Test and service diagnosis are the same as those outlined in the 1966 Monaco- Polara Service Manual. All gauge wires are connected directly to the respective gauges instead of being connected to a multiple connector and routed through a printed circuit board.
• Voltage limiter The voltage limiter can be tested in the vehicle or with the instrument cluster removed. To quickly test the voltage limiter in the vehicle, connect one lead of a voltmeter or test light to the temperature sending unit and the other lead to a good ground. Leave the sending unit lead wire attached to the sending unit. Turn the ignition switch to the “ON” position. A fluctuating voltmeter or a flashing light indicates the voltage limiter is operating.
• To test the voltage limiter out of the vehicle, connect a jumper wire from the positive post of a 12 volt test battery, to the “I” terminal of the fuel gauge. Connect another jumper wire from the battery negative terminal to the instrument cluster housing. Connect the negative lead of a voltmeter to the battery negative terminal. Touch the positive lead of the voltmeter to the “I” terminal of the fuel gauge. A reading of 12 volts should be shown on the voltmeter. Move the positive lead of the voltmeter to the “A” terminal of the fuel gauge.
• A fluctuating reading between 0 and 7 volts should be shown on the voltmeter. The same reading should be shown at the “S” terminal of the fuel gauge. Any other readings indicate the voltage limiter is not functioning and the fuel gauge should be replaced.

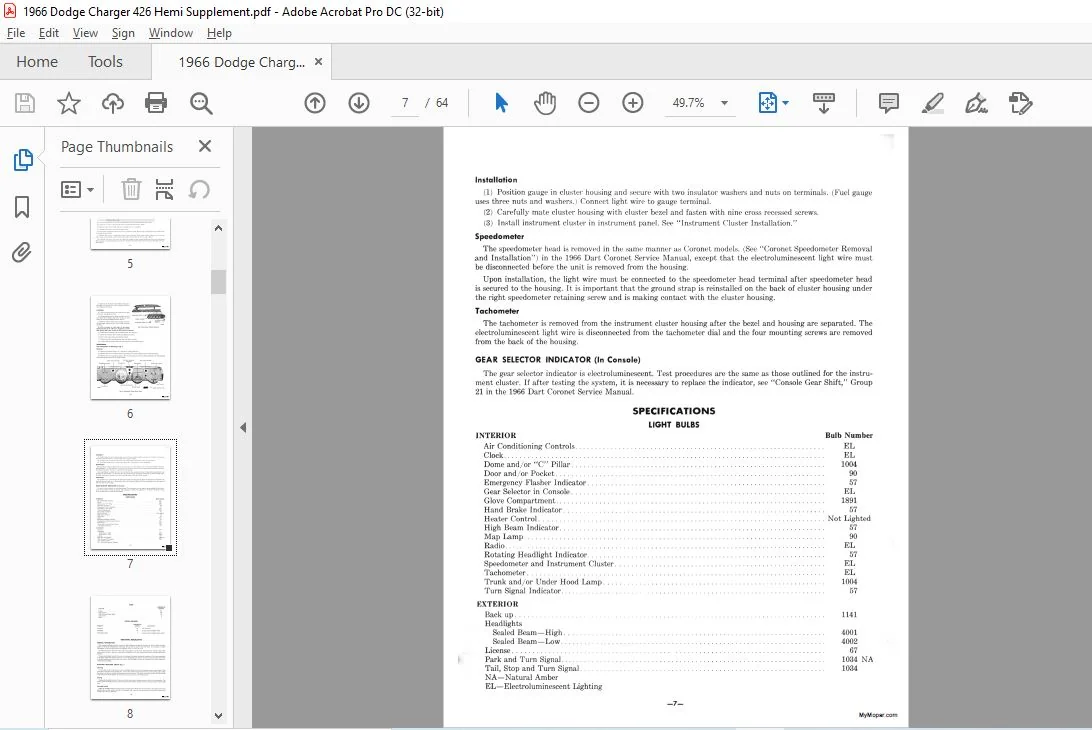

Table Of Contents:

1966 Dodge Charger 426 Hemi Supplement Manual – PDF DOWNLOAD

INTERIOR Bulb Number
Air Conditioning Controls . . . . . . . . . . . . . . . . . . . . . . . EL
Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EL
Dome and/or “C” Pillar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1004
Door and/or Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Emergency Flasher Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Gear Selector in Console. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove Compartment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hand Brake Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heater Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Beam Indicator.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EL
Rotating Headlight Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Speedometer and Instrument Cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EL
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EL
Trunk and/or Under Hood Lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1004
Turn Signal Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
EXTERIOR
Back u p . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1141
Headlights
Sealed Beam-High . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4001
Sealed Beam-Low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4002
License. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Park and Turn Signal.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1034 NA

Please Note:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
