1983-1984 Honda VF750F V45 Interceptor VF750F 750 Interceptor Parts Manual – PDF DOWNLOAD
Description
1983-1984 Honda VF750F V45 Interceptor VF750F 750 Interceptor Parts Manual – PDF DOWNLOAD
FILE DETAILS:
1983-1984 Honda VF750F V45 Interceptor VF750F 750 Interceptor Parts Manual – PDF DOWNLOAD
Language :English
Pages :86
Downloadable : Yes
File Type : PDF

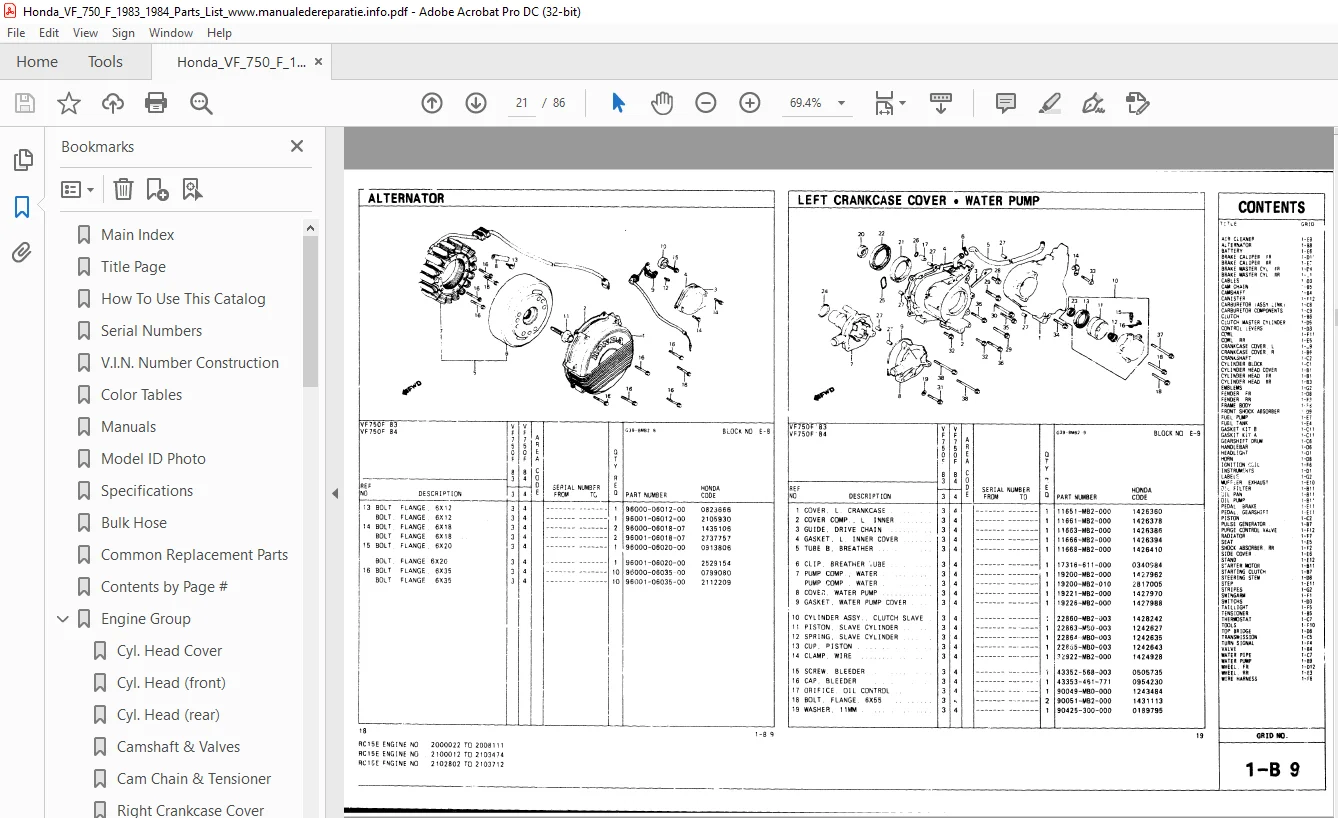

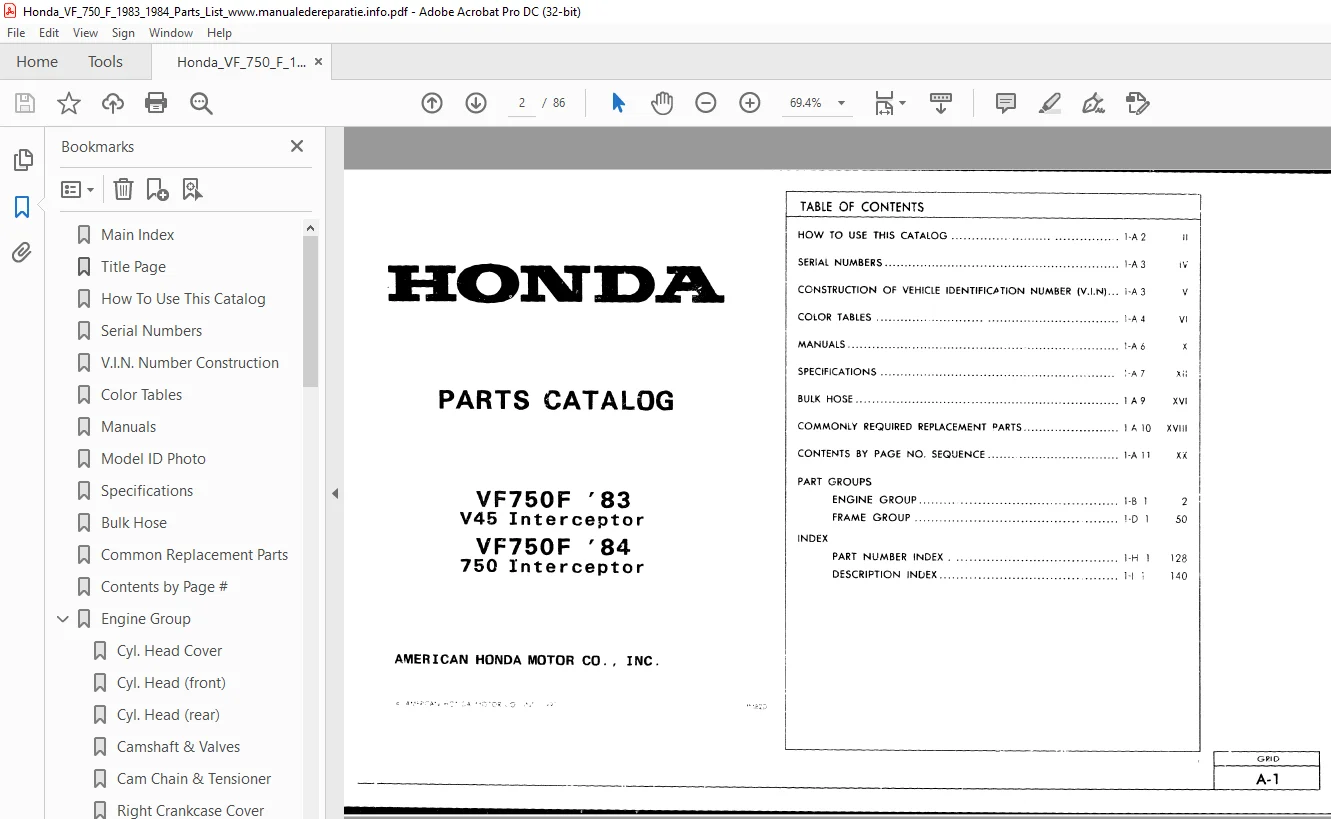

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
1983-1984 Honda VF750F V45 Interceptor VF750F 750 Interceptor Parts Manual – PDF DOWNLOAD
All illustrations are representative only and do not rescessarily correspond exactly to the actual part “NI” signifies the part is not illustrated.
part number
Abbreviations
ASSY
Assembly
MPH
Miles Per Hour
COMP
Complete
L100L
Link (10 links)
R
Right
A.C
Alternating Curren:
!
teft
DC
Direct Current
STD
Standard
IN
inlet
MM
Milimeter
Ex
Exhaust
G
Gram
FR
Front
7 227
Tooth
RR
a
Ampere
HEX
Rear
Hexagonal
Vol
AM.
Attaching Mark
W крн
Watt
TM
Transcript Mark
Kometer Per
C.DI
Capacitive
Hour
Discharge
Ignition
Decision for ‘R’ or ‘L’.
Ror the description of a part stans for the Right hand side or the left hand side which is decided by the forward direction of travel of the vehicle
- Model applicatic for the various models listed within the catalog. Single model applications will not require this section.
- Model Year Guide-A guide to the part application (prior to 1976 the guide reference is the model designation ie. KO, K! etc.. For 1976 and above the guide reference is the last digit of the model year ie. 1976 = 6; 1977 = 7; 1985 = 5 etc..). Other unique designations may be used in catalogs listing different models.
Note: Sume models may be controlled by one serial number only.
- Quantity required per unit as speciied.
- A. ‘AR’ in place of the quantity indicates AS RE- QUIRED
- B. Parenthesis in the quantity required column indicates cptional’. (only the open parenthe is will appear if the quantity required is over $1.
All parts are classified into two groups consisting of ‘GENERAL PARTS’ and ‘STANDARD PARTS’. All parts are numbered in accordance with system described below:
General Parts
Example:
Fork comp. Fr. Part No. 51105-GRI-700ZA
Function No…
…51
Component No…
.105
Parts Classification No.
.-GRI-
Classification No……
Color Code……
700
ZA
Example:
Screw, Pan 4 x 20 Part No. 93500-04020-IA
Function No…
Type No……
Dimensions…..
ISO Standard Designation.
93
..500
-04020-
A
Chemical Surface Treatment.
The color code at the end of a General Part’s pcrt number indicate the color. However, color codes such as ZA, ZB, ZC onward except ZZ, do not indicate the color directly but refer to the notes in the Description Column of this Pars Catalog Microfiche. If the color description is not inc.ated in the description, refer to the color table.
TABLE OF CONTENTS:
1983-1984 Honda VF750F V45 Interceptor VF750F 750 Interceptor Parts Manual – PDF DOWNLOAD
Main Index 0
Title Page 2
How To Use This Catalog 3
Serial Numbers 4
V I N Number Construction 4
Color Tables 5
Manuals 7
Model ID Photo 8
Specifications 8
Bulk Hose 10
Common Replacement Parts 11
Contents by Page # 12
Engine Group 13
Cyl Head Cover 13
Cyl Head (front) 13
Cyl Head (rear) 15
Camshaft & Valves 16
Cam Chain & Tensioner 17
Right Crankcase Cover 18
Clutch 18
Pulse Generator 19
Starter Clutch 19
Alternator 20
Left Crankcase Cover 21
Water Pump 21
Starter Motor 23
Oil Filter, Pan, Pump 23
Cylinder Block 25
Crankshaft & Piston 26
Transmission 29
Gearshift Drum 30
Water Pipes 31
Thermostat 31
Carburetor (assy link) 32
Carburetor (component parts) 33
Gasket Kits 35
Frame Group 37
Headlight 37
Instruments 37
Control Levers, Switches, Cables 39
Front Brake Master Cyl 40
Clutch Master Cyl 41
Handlebars & Top Bridge 42
Steering Stem & Horn 44
Front Fender 44
Front Shocks 45
Front Brake Calipers 47
Front Wheel 48
Rear Brake Master Cyl 49
Rear brake Caliper 50
Rear Wheel 51
Fuel Tank 52
Seat & Rear Cowl 53
Side Covers & Battery 54
Fuel Pump 55
Air Cleaner 57
Exhaust System 58
Brake Pedal & Gearshift Pedal 59
Footpegs 59
Sidestand & Centerstand 60
Swingarm 61
Rear Shock 62
Pro-Link Suspension 62
Rear Fender 63
Turn Signals 64
Taillight 65
Wiring Harness & Ignition Coils 66
Radiator 67
Frame Parts & Fasteners 68
Toolkit 70
Front Fairing & Cowl 71
Emissions Canister 72
Purge Control Valve 72
Stripes, Emblems, Labels 74
Part Number Index 76
Description Index 82
