1985 BMW 633CSi Electrical Troubleshooting Manual

Description

1985 BMW 633CSi Electrical Troubleshooting Manual – PDF DOWNLOAD

Customer Support: [email protected]

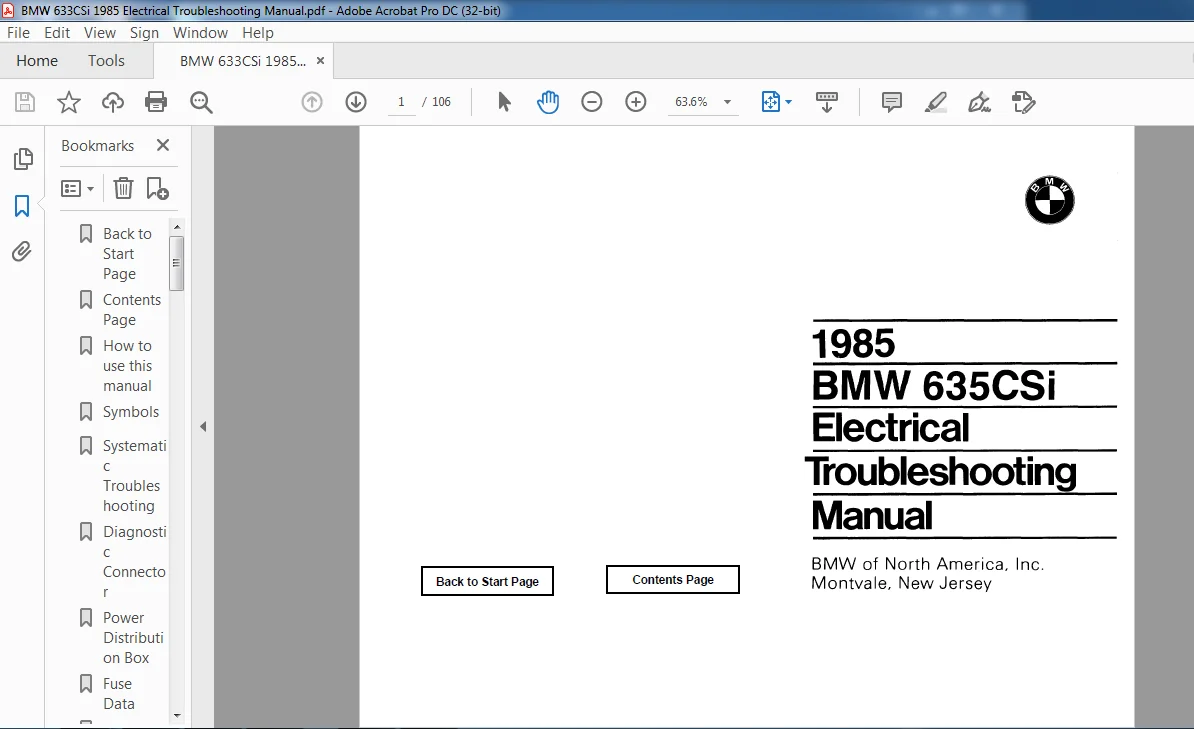

IMAGE PREVIEW:

DESCRIPTION:

1985 BMW 633CSi Electrical Troubleshooting Manual – PDF DOWNLOAD

• The purpose of this manual is to show electrical schematics in a manner that makes electrical troubleshooting easier. Electrical components which work together are shown together on one schematic.

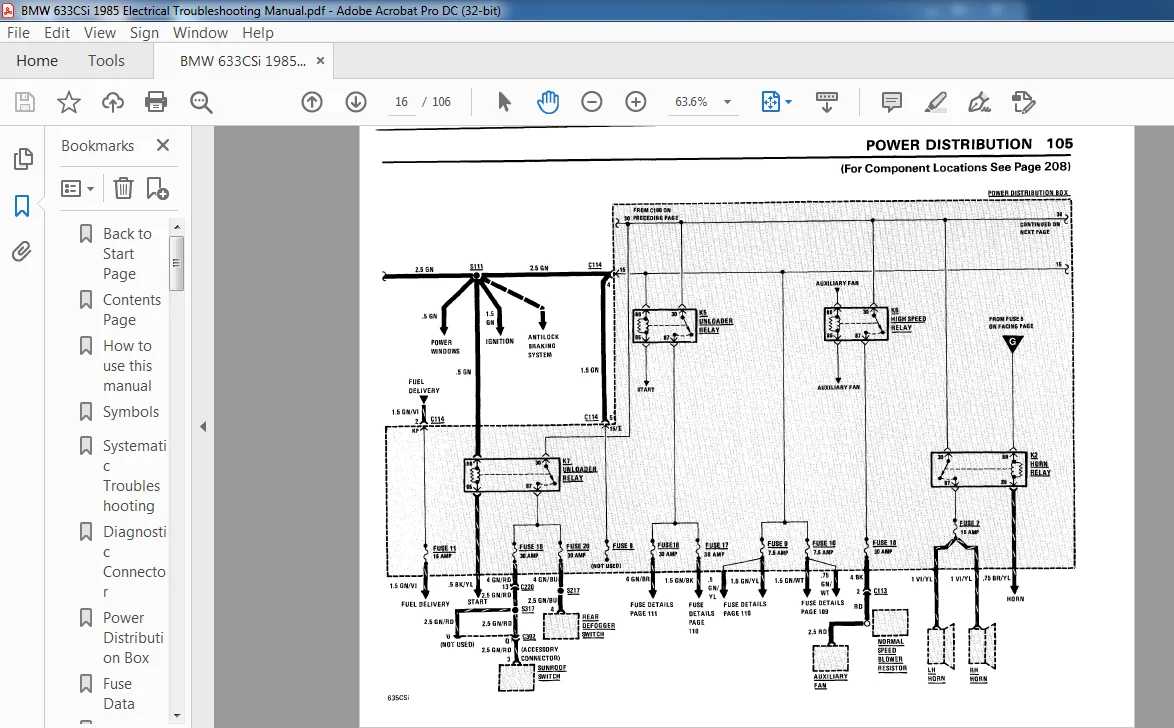

• The Wiper-Washer schematic, for example, shows all of the electrical components in one diagram. At the top of the page is the fuse (positive) that powers the circuit. The flow of current is shown through all wires, connectors, switches, and motors to ground (negative) at the bottom of the page. Within the schematic, all switches and sensors are shown “at rest,” as though the Ignition Switch were off.
• For identification, component names are underlined and placed next to or above each component. Notes are included, describing how switches and other components work. The power distribution schematic shows the current feed through all the connections from the B attery and Alternator to each fuse and the Ignition and Light Switches. If the Power Distribution schematic is combined with any other circuit schematic, a complete picture is made of how that circuit works.
• The Ground Distribution schematics show how several circuits are connected to common grounds. All wiring between components is shown exactly as it exists in the vehicle; however, the wiring is not drawn to scale. To aid in understanding electrical operation, wIrIng inside complicated components has been simplified. The “Solid State” label designates electronic components.

TABLE OF CONTENTS:

1985 BMW 633CSi Electrical Troubleshooting Manual – PDF DOWNLOAD

Back to Start Page ..........................................  0
Contents Page................................................  3
How to use this manual ......................................  4
Symbols......................................................  5
Systematic Troubleshooting ..................................  7
Diagnostic Connector......................................... 10
Power Distribution Box....................................... 11
Fuse Data.................................................... 12
Accessory Connector.......................................... 14
Power Distribution........................................... 15
Fuse Details................................................. 19
Light Switch details......................................... 24
Charging System ............................................. 25
Start........................................................ 26
Block Diagram For Engine Controls............................ 28
Fuel Control/ Ignition....................................... 30
Fuel Delivery/ Fuel Control.................................. 31
Fuel Delivery/ Fuel Control/ Idle Speed Control.............. 32
Ignition Key Warning/ Seatbelt Warning ...................... 33
On- Board Computer........................................... 34
Speedometer/ Gauges/ Warning Indicators...................... 36
Gauges/ Warning Indicators................................... 37
Warning Indicators........................................... 38
Service Interval Indicator................................... 39
Wiper/ Washer................................................ 40
Active Check Control......................................... 41
Brake Lining Warning ........................................ 44
Interior Lights.............................................. 45
Headlights/ Fog Lights....................................... 46
Lights: Turn/ Hazard Warning ................................ 48
Lights: Front Park/ Tail/ Underhood.......................... 50
Lights: Rear Marker License.................................. 51
Lights: Trunk Light.......................................... 51
Stoplights/ Cruise Control................................... 52
Lights: Dash/ Transmission Range/ RH Visor................... 54
Lights: Dash/ Transmission Range............................. 55
Back Up Lights............................................... 56
Cigar Lighter/ Glove Box Light/ Auto- Charging Flashlight.... 57
Horn......................................................... 58
Heated Door Lock ............................................ 58
Rear Defogger................................................ 59
Power Windows................................................ 60
Central Locking ............................................. 62
Power Mirrors................................................ 64
Radio/ Power Antenna......................................... 65
Auxiliary Fan ............................................... 66
Heater/ Air Conditioning .................................... 67
Sunroof...................................................... 70
Antilock Braking System (ABS)................................ 71
Power Seats.................................................. 73
Windshield Washer Jet Heaters................................ 75
Ground Distribution.......................................... 76
Index- Splice Locations ..................................... 80
Splice Locations For Front Harness........................... 81
Splice Locations For Middle Harness.......................... 82
Splice Locations For Engine Harness.......................... 83
Splice Locations Rear Harness................................ 84
Component Locations.......................................... 86
Connector Views..............................................102
