1990-1991 CHRYSLER LASER TALON ECLIPSE SERVICE MANUAL

Description

1990-1991 CHRYSLER LASER TALON ECLIPSE SERVICE MANUAL – PDF DOWNLOAD

Need help? Contact: [email protected]

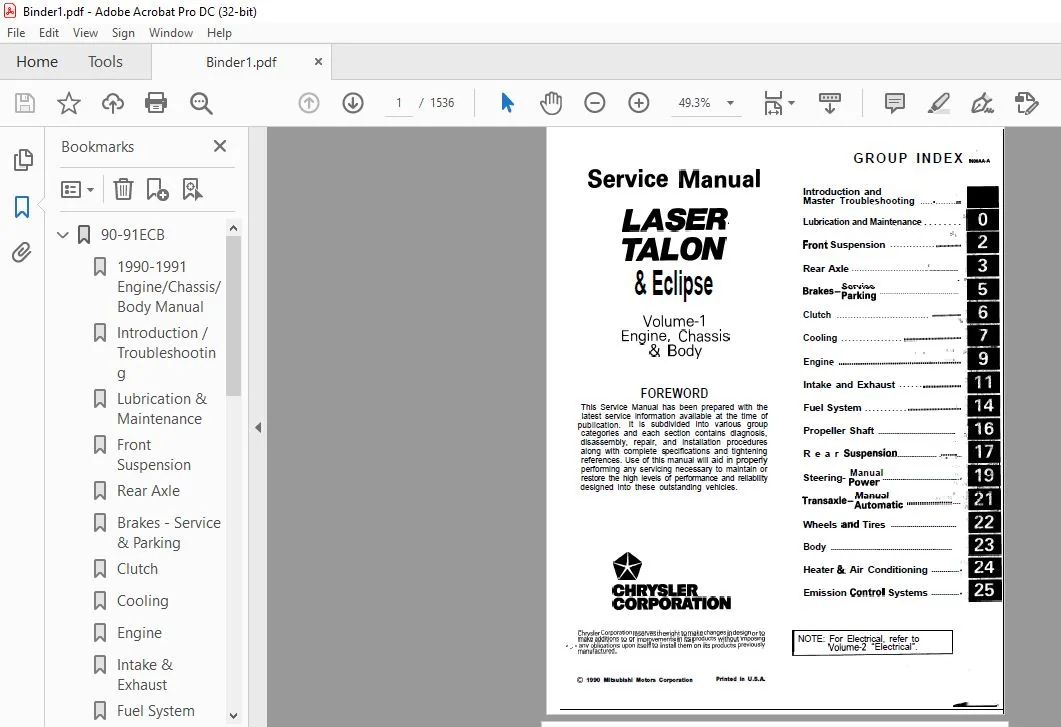

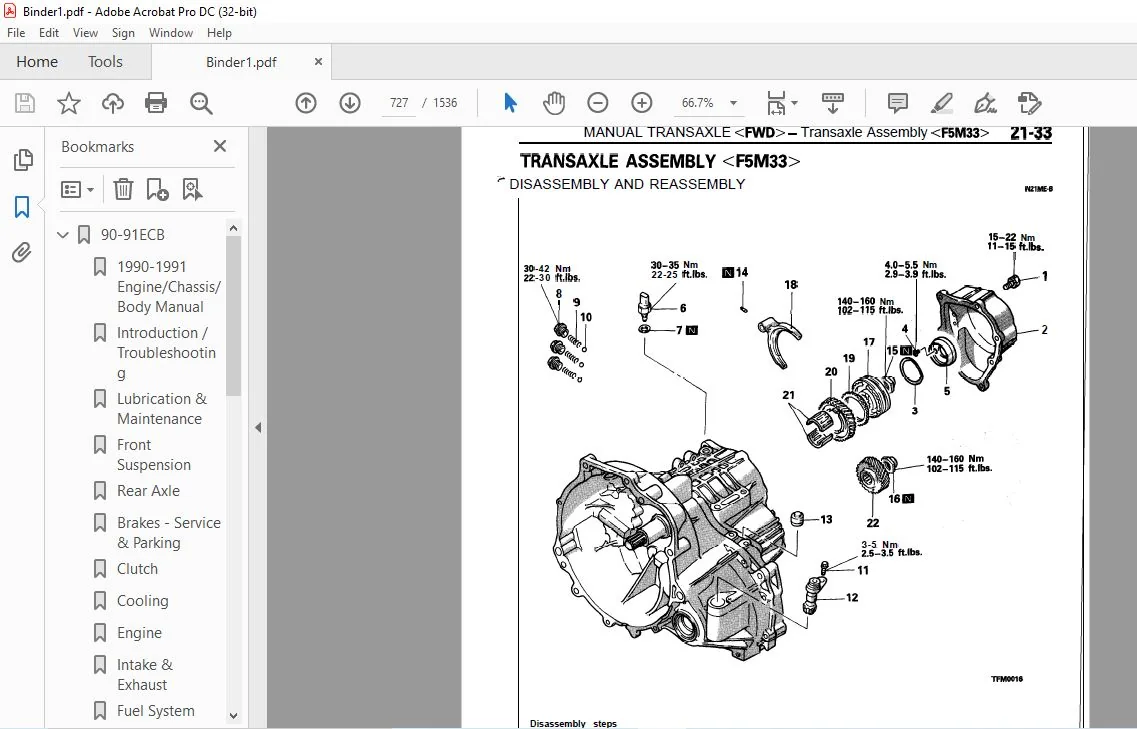

IMAGE PREVIEW:

DESCRIPTION:

1990-1991 CHRYSLER LASER TALON ECLIPSE SERVICE MANUAL – PDF DOWNLOAD

• CONTENTS The preceding page contains GROUP INDEX which lists the group title and group number. PAGE NUMBERS All page numbers consist of two sets of digits separated by a dash.
• The digits preceding the dash identify the number of the group. The digits following the dash represent the consecutive page number within the group. The page numbers can be found on the top left or right of each page. TEXT Unless otherwise specified, each service procedure covers all models. Procedures covering specific models are identified by the model codes, or similar designation (engine type, transaxle type, etc.).
• A description of these designations is covered in this unit under “VEHICLE IDENTIFICATION”. TROUBLESHOOTING Troubleshootings are classified into master troubleshooting and group troubleshooting and located as follows: The master troubleshooting is prepared when the trouble symptom relates to two or more groups and given in MASTER TROUBLESHOOTING.
• The group troubleshooting guide is prepared for causes of problems related to that individual group only; a troubleshooting guide is prepared for each appropriate group. LIMIT -9 Shows the standard for judging the quality of a part – or assembly on inspection and,means the maximum or minimum value within which the part or assembly must be kept functionally or in strength.
• It is a value established outside the range of standard value. Removal steps : The numbers before part name correspond to numbers in the illustration, and indicate the order of removal. Disassembly steps : The numbers before part name correspond to numbers in the illustration, and indicate the order of disassembly.
• Installation steps : This is provided if installation cannot’be made in the reverse order of “Removal steps “; omitted if installation in the reverse order of “Removal steps” k possible. Reassembly steps : This is .provided if reassembly cannot be made rL+ . . in the reverse order of “Disassembly steps” ; omitted if reassembly in the reverse order of “Disassembly steps” is possible.
• SERVICE PROCEDURES The service steps are arranged in numerical order and attentions to be paid in performing vehicle service are described in detail in SERVICE POINTS. .IVL , -….- ce : Removal l 4 :
• Installation DEFINITION OF TERMS STANDARD VALUE Indicates the value used as the standard for judging the quality of a part or assembly on inspection or the value to which the part or assembly is corrected and adjusted. It is given by tolerance.

TABLE OF CONTENTS:

1990-1991 CHRYSLER LASER TALON ECLIPSE SERVICE MANUAL – PDF DOWNLOAD

90-91ECB....................................   1
	1990-1991 Engine/Chassis/Body Manual....   1
	Introduction / Troubleshooting..........   2
	Lubrication & Maintenance...............  35
	Front Suspension........................  49
	Rear Axle............................... 103
	Brakes - Service & Parking.............. 141
	Clutch.................................. 231
	Cooling................................. 249
	Engine.................................. 285
	Intake & Exhaust........................ 423
	Fuel System............................. 455
	Propeller Shaft......................... 597
	Rear Suspension......................... 611
	Steering................................ 649
	Transaxle - M/T & A/T................... 695
	Wheels & Tires..........................1039
	Body....................................1045
	Heaters & Air Conditioning..............1145
	Emission Control Systems................1197
90-91EL.....................................1217
	1990-1991 Electrical Manual.............1217
	Fusible Link/Fuse Location..............1218
	Inspection Terminal.....................1219
	Grounding Location......................1220
	Diode Location..........................1222
	Junction Block..........................1224
	Centralized Junction....................1225
	Inspection Of Harness Connector.........1229
	Troubleshooting.........................1232
	Configuration Diagrams..................1241
	Circuit Diagrams........................1259
	Engine Electrical.......................1357
	Chassis Electrical......................1401
