1992 Subaru Legacy Fuel Injection Service Manual PDF DOWNLOAD

Original price was: $120.00.Current price is: $26.95.

Official 1992 Subaru Legacy factory service manual section PDF focusing on fuel injection systems (SPFI & MPFI, including turbo). 109 pages of detailed ECU control unit I/O signal tables, voltage specifications, sensor diagnostics, injector controls, and troubleshooting data. Includes connector pinouts (B106, B126, B127) with readings for crank/cam sensors, throttle, O2, knock, and more. Instant download โ€“ must-have for electrical repairs on 1992 Subaru Legacy models.

Buy now
Category: Tags: Vendor: TechnicianPDFs
โšก
Instant PDF Download
Available immediately
๐Ÿ’พ
Save to Your Device
Download & keep forever
๐Ÿ›ก๏ธ
Antivirus Scanned
100% virus-free
๐ŸŒ
Trusted Worldwide
175,000+ customers

Description

1992 Subaru Legacy Fuel Injection Service Manual PDF DOWNLOAD

Description

This 1992 Subaru Legacy Fuel Injection Service Manual PDF is an authentic factory section (2-7) from the official Subaru service manual, covering both SPFI (Single Point Fuel Injection) and MPFI (Multi Point Fuel Injection) systems, including turbocharged models. At 109 pages, it delivers precise diagnostic information with comprehensive ECU control unit I/O signal tables โ€“ ideal for mechanics, restorers, and DIY enthusiasts troubleshooting electrical, sensor, or fuel delivery issues on the 1992 Subaru Legacy (first-generation BC/BF/BJ chassis).

Whether diagnosing no-start conditions, checking sensor outputs, verifying injector operation, or testing relays and grounds, this 1992 Subaru Legacy service manual PDF provides factory-exact voltage specifications, connector layouts, and notes for accurate multimeter testing.

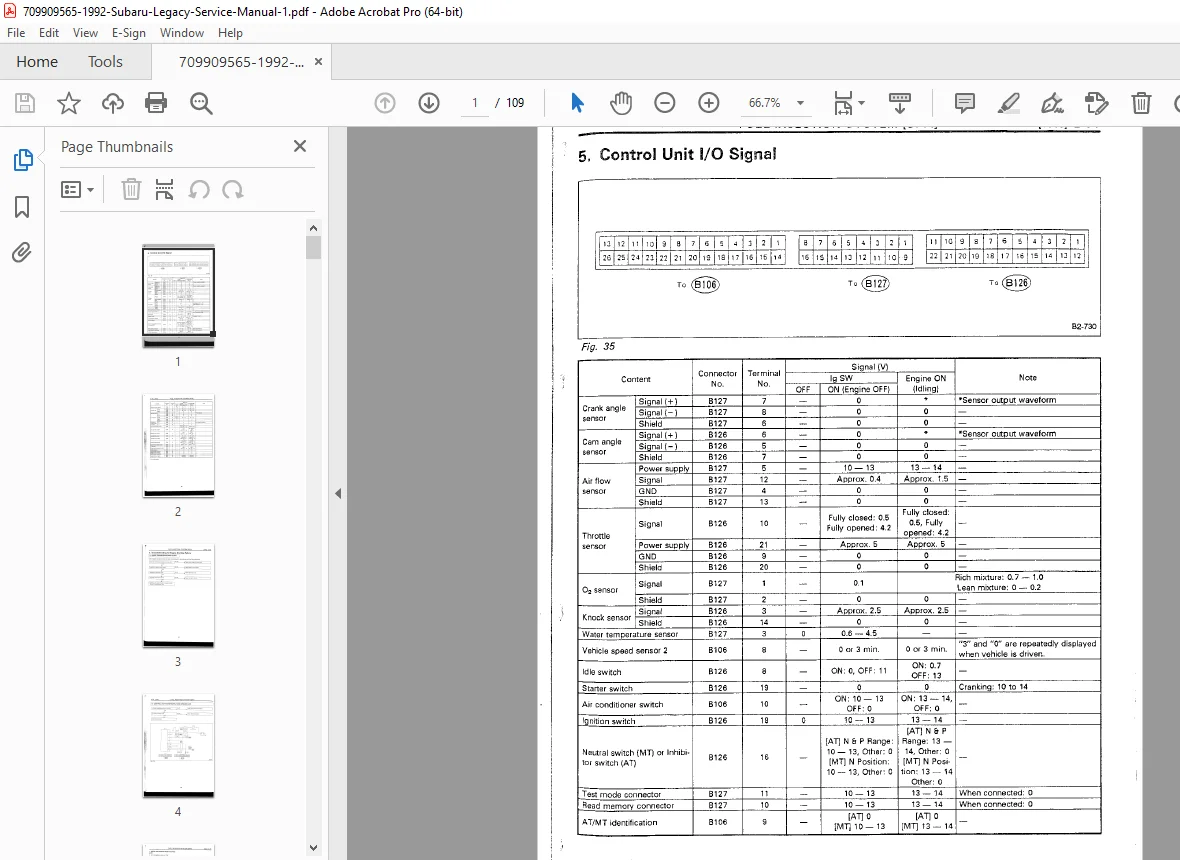

Key Diagnostic Highlights โ€“ Control Unit I/O Signals:

Input Signals Table (Connectors B126, B127, B106):

ContentConnector No.Terminal No.Ig SW OFF (V)Engine ON (Idling) (V)Note
Crank angle sensor Signal (+)B1277โ€”*Sensor output waveform
Crank angle sensor Signal (-)B127800
Crank angle sensor ShieldB127600
Cam angle sensor Signal (+)B1266โ€”*Sensor output waveform
Cam angle sensor Signal (-)B126500
Cam angle sensor ShieldB126700
Air flow sensor Power supplyB127510โ€“1313โ€“14
Air flow sensor SignalB12712Approx. 0.4Approx. 1.5
Air flow sensor GNDB127400
Throttle sensor SignalB12610Fully closed: 0.5Fully open: 4.2
Throttle sensor Power supplyB12621Approx. 5Approx. 5
Throttle sensor GNDB126900
Oโ‚‚ sensor SignalB12710.1Rich: 0.7โ€“1.0 Lean: 0โ€“0.2
Knock sensor SignalB12614Approx. 2.5Approx. 2.5
Water temperature sensor SignalB12730.6โ€“4.5 (varies by temp)
Vehicle speed sensor 2 SignalB10680 or โ‰ˆ5Alternating 0/5 when driving
Idle switch SignalB1268ON: 0.7 OFF: 13
Neutral/Inhibitor switchB12616N/P: 13โ€“14 Other: 0Varies by AT/MT

Output & Power Signals Table (Continued):

ContentConnector No.Terminal No.OFF (V)ON (Engine OFF) (V)Engine ON (Idling) (V)Note
Fuel injector PowerB10613Approx. 0.210โ€“1313โ€“14
By-pass air control solenoid (+)B10611โ€”0*ECU waveform
Fuel pump relay controlB1061โ€”ON: โ‰ˆ0.7 OFF: 10โ€“13โ‰ˆ0.8
A/C cut relay controlB10616โ€”ON: 0 OFF: 10โ€“13Varies
Radiator fan controlB1067โ€”ON: 0 OFF: 10โ€“13Varies
Purge control solenoid valveB1063โ€”ON: 0 OFF: 10โ€“13Varies
CHECK ENGINE lightB10619โ€”Light ON: 0 OFF: 10โ€“13Varies
GND (various systems)MultipleVarious000

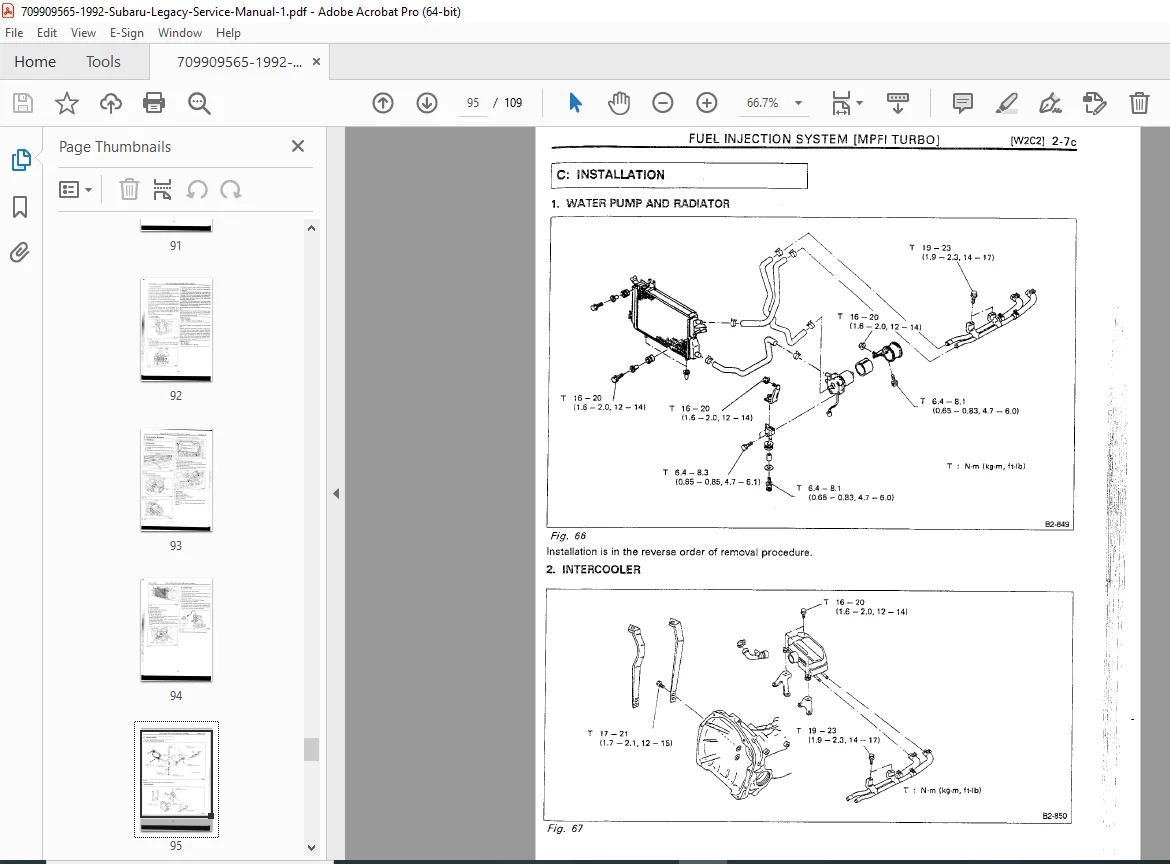

Additional coverage includes MPFI turbo system details (supercharging pressure regulation, components, etc.) and related diagnostics.

File Details:

  • Manual Name: 1992 Subaru Factory Service Manual โ€“ Fuel Injection System (SPFI & MPFI/Turbo) Section 2-7
  • Models Covered: 1992 Subaru Legacy (all variants, including turbo)
  • Year: 1992
  • PDF Quality: High-resolution scanned factory document with crisp tables and text
  • Total Pages: 109

Stop guessing with generic diagrams โ€“ download this 1992 Subaru Legacy ECU pinout diagram PDF instantly and get factory-accurate specs to diagnose and repair fuel injection issues quickly, saving hours of frustration and costly shop visits!
