1995 Land Rover Range Rover Classic Repair Operation Times Manual LRL0175 – PDF DOWNLOAD

Description

1995 Land Rover Range Rover Classic Repair Operation Times Manual LRL0175 – PDF DOWNLOAD

FILE DETAILS:

1995 Land Rover Range Rover Classic Repair Operation Times Manual LRL0175 – PDF DOWNLOAD

Language : English
Pages : 177
Downloadable : Yes
File Type : PDF
Size: 3.07 MB

DESCRIPTION:

1995 Land Rover Range Rover Classic Repair Operation Times Manual LRL0175 – PDF DOWNLOAD

INTRODUCTION:

The time allowances given in this manual are the result of careful analysis of the repair operations
covered. They reflect the time that a skilled technician, working in an efficiently run Dealership,
should take to perform the operation.

• The times are calculated to the procedures laid down in the
  relevant Repair Manual, using standard and special tools or equipment as applicable. Although
  specialist skills are not required to complete an operation within the published time, product
  knowledge and training is a requirement.
• Where applicable the times have been rationalised to
  reflect the longest time taken to perform an operation an any derivative in a particular model range.

In addition, the times include generous allowances to cover the following;

* Time taken in performing preparatory tasks, e.g. opening and closing bonnet, fitting and
removing wing covers, the use of jacks and lifts, draining and refilling fluids and cleaning where
necessary.
* Time taken to receive work instructions, evaluate the operation, obtain and return special tools,
collect parts, perform final quality checks and carry out associated clerical work.
* Time taken to change over and adjust ancillary equipment displaced during the operation.
Times allowance DO NOT include
* Time taken freeing seized parts.
* Time taken removing rusted or broken fixings.
* Time taken removing extras of special fitments.
* Inaccessibility through damage allowance.

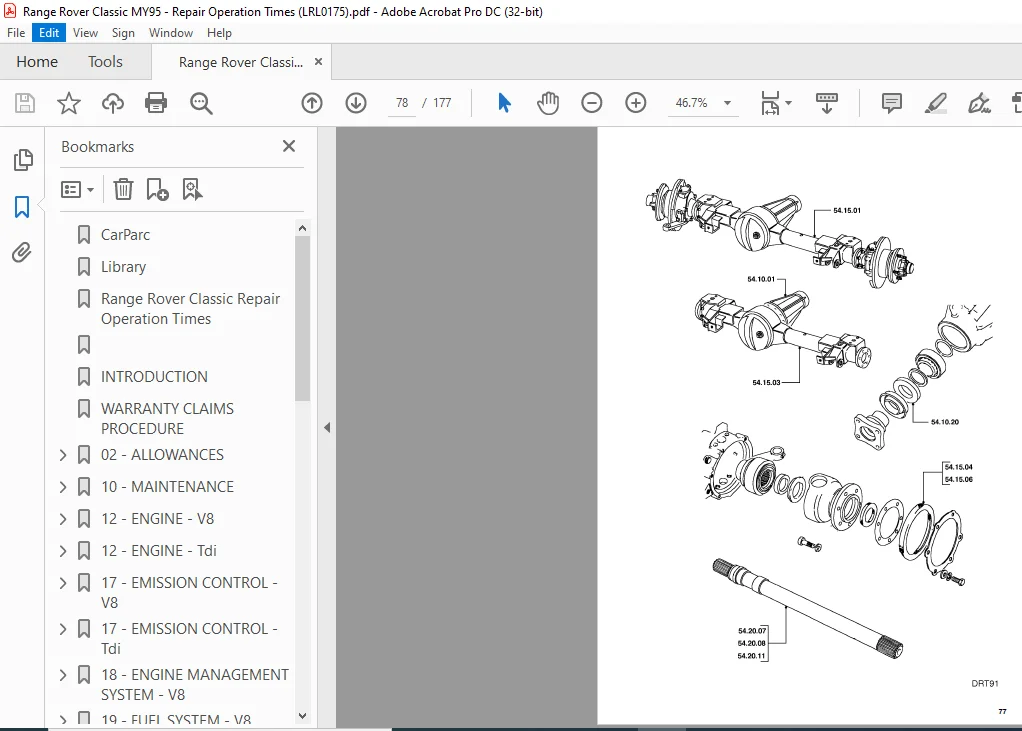

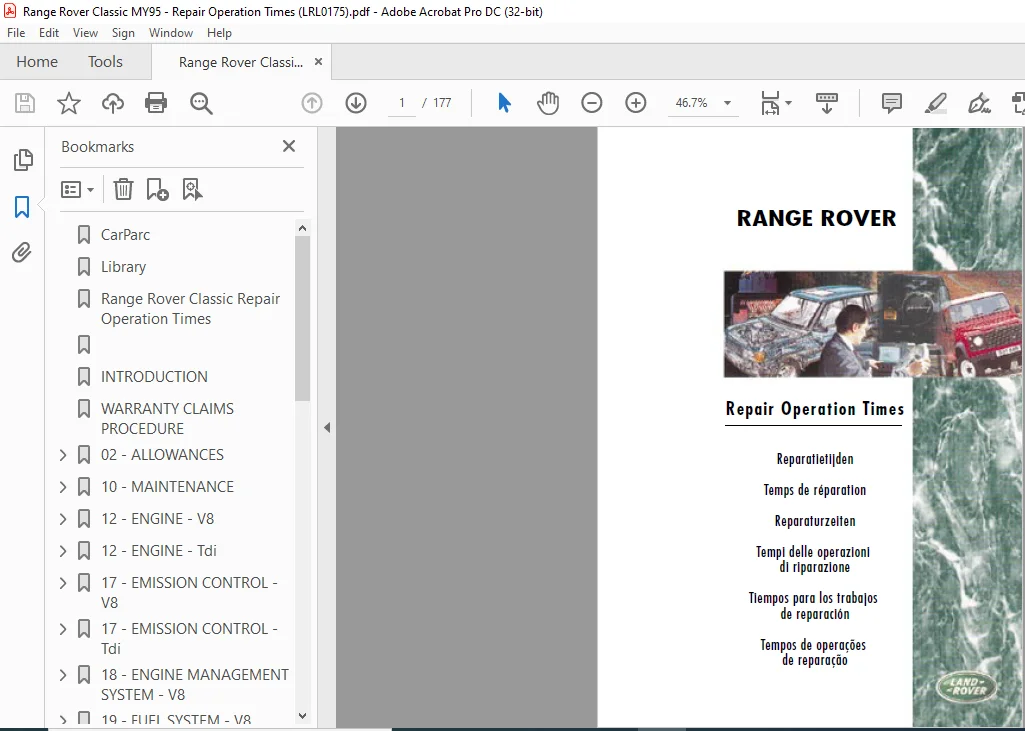

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

1995 Land Rover Range Rover Classic Repair Operation Times Manual LRL0175 – PDF DOWNLOAD

CarParc 0
Library 0
Range Rover Classic Repair Operation Times 2
0
INTRODUCTION 4
WARRANTY CLAIMS PROCEDURE 5
02 – ALLOWANCES 7
02 02 FIXED ALLOWANCES 7
10 – MAINTENANCE 8
10 10 SERVICE INTERVAL SCHEDULES 8
12 – ENGINE – V8 9
12 10 AUXILIARY, DISTRIBUTOR & FUEL PUMP DRIVES 9
12 13 CAMSHAFT 9
12 17 CONNECTING RODS & PISTONS (Includes, glaze break & measure cylinder bores where applicable) 9
12 21 CRANKSHAFT 11
12 25 CYLINDER BLOCK 11
12 29 CYLINDER HEAD 13
12 41 ENGINE ASSEMBLY 15
12 45 ENGINE MOUNTINGS 15
12 53 FLYWHEEL & DRIVE PLATE 17
12 60 LUBRICATION SYSTEM 17
12 65 TIMING GEARS, CHAINS, TENSIONERS & GUIDES 19
12 – ENGINE – Tdi 21
12 13 CAMSHAFT 21
12 17 CONNECTING RODS & PISTONS (Includes, glaze break & measure cylinder bores where applicable) 21
12 21 CRANKSHAFT 21
12 25 CYLINDER BLOCK 21
12 29 CYLINDER HEAD 23
12 30 CYLINDER HEAD continued 23
12 41 ENGINE ASSEMBLY 25
12 45 ENGINE MOUNTINGS 25
12 53 FLYWHEEL & DRIVE PLATE 27
12 60 LUBRICATION SYSTEM 27
12 65 TIMING GEARS, CHAINS, TENSIONERS & GUIDES 29
17 – EMISSION CONTROL – V8 31
17 10 CRANKCASE CONTROL SYSTEMS 31
17 15 EVAPORATIVE LOSS CONTROL SYSTEMS 31
17 50 CATALYST 31
17 – EMISSION CONTROL – Tdi 33
17 10 CRANKCASE CONTROL SYSTEMS 33
17 45 EXHAUST GAS RECIRCULATION SYSTEM (EGR) 33
17 50 CATALYST 33
18 – ENGINE MANAGEMENT SYSTEM – V8 35
18 20 IGNITION SYSTEM 35
19 – FUEL SYSTEM – V8 37
19 10 AIR CLEANERS AND HOSES 37
19 20 CONTROLS 37
19 22 ELECTRONIC FUEL DISTRIBUTION EQUIPMENT 37
19 25 FUEL FILTERS 37
19 45 FUEL PUMP 39
19 50 FUEL SYSTEM 39
19 55 FUEL TANK (Operations include drain fuel where applicable) 39
19 60 INJECTORS & HEATER/GLOW PLUGS 39
19 70 VENTURI/AIR INTAKE 39
19 75 CRUISE CONTROLS 41
19 90 DIAGNOSIS 41
19 – FUEL SYSTEM – Tdi 43
19 10 AIR CLEANERS AND HOSES 43
19 20 CONTROLS 43
19 22 ELECTRONIC FUEL DISTRIBUTION EQUIPMENT 43
19 25 FUEL FILTERS 43
19 30 FUEL INJECTION PUMP (DIESEL) 43
19 42 TURBOCHARGERS 45
19 43 FUEL PIPES & HOSES (DIESEL) 45
19 45 FUEL PUMP 45
19 50 FUEL SYSTEM 47
19 55 FUEL TANK (Operations include drain fuel where applicable) 47
19 60 INJECTORS & HEATER/GLOW PLUGS 47
19 75 CRUISE CONTROLS 49
19 90 DIAGNOSIS 49
26 – COOLING SYSTEM – V8 51
26 10 COOLANT & SYSTEM 51
26 15 EXPANSION TANKS 51
26 25 FAN BLADES & PULLEYS 51
26 30 HOSES & PIPES 53
26 40 RADIATOR 53
26 45 THERMOSTAT 53
26 50 WATER PUMP 53
26 – COOLING SYSTEM – Tdi 55
26 10 COOLANT & SYSTEM 55
26 15 EXPANSION TANKS 55
26 25 FAN BLADES & PULLEYS 55
26 30 HOSES & PIPES 55
26 40 RADIATOR 55
26 45 THERMOSTAT 55
26 50 WATER PUMP 55
30 – MANIFOLD & EXHAUST SYSTEM – V8 57
30 10 EXHAUST SYSTEM 57
30 15 MANIFOLDS 57
30 20 MOUNTINGS 57
30 – MANIFOLD & EXHAUST SYSTEM – Tdi 59
30 10 EXHAUST SYSTEM 59
30 15 MANIFOLDS 59
30 20 MOUNTINGS 59
33 – CLUTCH 61
33 10 CLUTCH ASSEMBLY (Operations include check/adjust throw out stop clearance where necessary) 61
33 15 HYDRAULIC SYSTEM 61
33 20 MASTER CYLINDER 61
33 25 MECHANICAL LINKAGE & RELEASE (Operations include check/adjust throw out stop clearance where necessary) 61
33 30 PEDAL ASSEMBLIES 61
33 35 SLAVE CYLINDER 61
37 – GEARBOX – SYNCHROMESH 63
37 20 GEARBOX ASSEMBLY 63
41 – TRANSFER GEARBOX 65
41 20 TRANSFER GEARBOX 65
44 – GEARBOX – AUTOMATIC 67
44 15 CONTROLS & LINKAGE 67
44 17 CONVERTER, HOUSING & PRIMARY DRIVE 69
44 20 GEARBOX ASSEMBLY & CASINGS 69
44 22 GOVERNOR 71
44 24 LUBRICATION SYSTEM 71
44 28 PARKING BRAKE/PARK LOCK 71
44 30 PRESSURE & ADJUSTMENT CHECKS 71
44 32 PUMPS 71
44 36 SHAFTS & GEARS 71
44 40 VALVE BODIES 71
44 90 DIAGNOSIS 71
47 – DRIVE SHAFTS 73
47 15 PROPELLER SHAFT 73
51 – REAR AXLE & FINAL DRIVE 75
51 10 AXLE (HALF) SHAFTS 75
51 11 AXLE (HALF) SHAFTS (Vehicle fitted with Anti-lock Braking System) 75
51 15 DIFFERENTIAL ASSEMBLY 75
51 16 DIFFERENTIAL ASSEMBLY (Vehicle fitted with Anti-lock Braking System) 75
51 20 OIL SEALS & GASKETS 75
51 25 REAR AXLE & FINAL DRIVE UNIT 75
51 26 REAR AXLE & FINAL DRIVE UNIT (Vehicle fitted with Anti-lock Braking System) 75
51 27 REAR AXLE & FINAL DRIVE UNIT (Vehicle fitted with Air Suspension System) 75
54 – FRONT AXLE & FINAL DRIVE 77
54 10 DIFFERENTIAL ASSEMBLY 77
54 11 DIFFERENTIAL ASSEMBLY ( Vehicle fitted with Anti-lock Braking System) 77
54 15 FRONT AXLE ASSEMBLY 77
54 16 FRONT AXLE ASSEMBLY (Vehicle fitted with Anti-lock Braking System) 77
54 17 FRONT AXLE ASSEMBLY (Vehicle fitted with Air Suspension System) 77
54 20 SHAFTS 77
54 21 SHAFTS (Vehicle fitted with Anti-lock Braking System) 77
57 – STEERING 79
57 10 POWER STEERING RACK/BOX ASSEMBLY 79
57 15 POWER STEERING OIL SYSTEM 79
57 20 POWER STEERING PUMP 79
57 40 STEERING COLUMN 81
57 41 STEERING COLUMN (Vehicle fitted with S R S – Air Bag) 81
57 50 STEERING IDLER/RELAY UNIT 81
57 55 STEERING RODS 81
57 60 STEERING WHEEL 81
57 61 STEERING WHEEL (Vehicle fitted with S R S – Air Bag) 81
57 65 WHEEL ALIGNMENT 81
60 – FRONT SUSPENSION 83
60 10 ANTI ROLL BARS/STABILISERS 83
60 16 BALL JOINTS & SWIVELS (Vehicle fitted with Anti-lock Braking System) 85
60 20 ROAD SPRINGS 87
60 21 AIR SPRINGS 87
60 25 HUBS & DRIVE FLANGES 87
60 26 HUBS & DRIVE FLANGES (Vehicle fitted with Anti-lock Braking System) 87
60 30 SUSPENSION DAMPERS & STOP RUBBERS 89
60 35 SUSPENSION ARMS/WISHBONES & BEAMS 89
60 36 HEIGHT SENSORS 89
60 50 AIR SUSPENSION 91
60 90 DIAGNOSIS 91
64 – REAR SUSPENSION 93
64 15 HUBS 93
64 16 HUBS (Vehicle fitted with Anti-lock Braking System) 93
64 20 ROAD SPRINGS 95
64 21 AIR SPRINGS 95
64 30 SUSPENSION DAMPERS & STOP RUBBERS 95
64 35 SUSPENSION LINKS & ARMS 97
64 36 HEIGHT SENSORS 97
70 – BRAKES 99
70 12 DISCS & DRUMS (Does not include check new disc(s) for runout) 99
70 15 HOSES & CONNECTORS 101
70 25 HYDRAULIC SYSTEM 101
70 30 MASTER CYLINDER 103
70 35 MECHANICAL LINKAGE 103
70 40 SHOES & PADS 103
70 45 TRANSMISSION BRAKE 103
70 50 VACUUM SYSTEM 103
70 55 WHEEL/BRAKE CALIPERS 105
70 65 ANTI-LOCK BRAKING SYSTEM (A B S ) 107
70 90 DIAGNOSIS 107
76 – BODY 109
76 10 BODY – GENERAL 109
76 11 BODY – GENERAL (cont ) 111
76 13 BODY TRIM INTERIOR 111
76 16 BONNET & LOCK 113
76 22 BUMPERS & OVERRIDERS/UNDERRIDERS (for finishing unpainted parts see PAINT REFINISHING TIMES Section 79J- Flat & Repaint 115
76 25 CONTROL PANELS & CONSOLES 117
76 28 DOORS 119
76 31 DOOR GLASSES, FRAMES & SEALS (for electrically operated window mechanisms – see 86 25) 119
76 34 DOOR INTERIOR TRIM & FINISHERS 121
76 37 DOOR LOCKS & LATCHES (for electrically operated locks – see 86 26) 123
76 40 DOOR SEALS, CHECK STRAPS & STAYS 125
76 43 EXTERIOR FINISHERS & MOULDINGS 125
76 46 FASCIA 127
76 49 FLOOR COVERINGS 127
76 52 GLOVE BOX 127
76 55 GRILLES 127
76 58 HANDLES, PULLS & COAT HANGERS 129
76 64 HEADLININGS 129
76 67 PARCEL & ASHTRAYS 129
76 73 SEAT BELTS & RESTRAINT SYSTEMS 131
76 74 SUPPLEMENTARY RESTRAINT SYSTEM (AIR BAG) 133
76 76 SILLS, TREAD PLATES 133
76 81 WINDSCREEN & BODY GLASSES 135
76 84 SLIDING & SUNROOFS (Electrically operated) 137
78 – SEATS 139
78 10 ACCESS – (REMOVE & REFIT SEAT ASSEMBLIES) 139
78 30 CUSHIONS – FRONT SEATS 139
78 40 CUSHIONS – REAR & OCCASIONAL SEATS 139
78 50 HEAD RESTRAINTS – FRONT & REAR SEATS 139
78 55 FINISHERS & TRIMS 139
78 70 SLIDES & CONTROLS – ELECTRIC 141
78 80 SLIDES & CONTROLS – MANUAL 141
78 85 SEAT FRAMES & FIXINGS 143
78 90 SQUABS – FRONT & REAR SEATS 143
80 – HEATING & VENTILATION 145
80 10 CONTROLS 145
80 20 HEATER UNIT 145
80 25 PIPES & HOSES 145
82 – AIR CONDITIONING 147
82 10 COMPRESSOR & DRIVE 147
82 15 CONDENSER 147
82 17 LIQUID RECEIVER/DRIER (ACCUMULATOR) 147
82 20 CONTROLS 147
82 25 COOLING UNIT 147
82 30 TESTING AND CHARGING 147
84 – WINDSCREEN WIPERS & WASHERS 149
84 10 WINDSCREEN WASHERS 149
84 15 WINDSCREEN WIPERS 149
84 20 HEADLAMP WASHERS 149
84 30 REAR SCREEN WASHER 151
84 35 REAR SCREEN WIPER 151
86 – ELECTRICAL 153
86 10 ALTERNATOR & CONTROL UNIT 153
86 15 BATTERY 153
86 25 ELECTRICALLY OPERATED WINDOWS 155
86 26 ELECTRICALLY OPERATED DOOR LOCKS 157
86 30 HORNS 157
86 40 LAMPS – EXTERIOR (Operations do not include headlamp alignment) 159
86 41 LAMPS – EXTERIOR continued (Operations do not include headlamp alignment) 159
86 45 LAMPS – INTERIOR 161
86 46 LAMPS – INTERIOR continued 161
86 50 AUDIO 163
86 55 RELAYS & FLASHERS UNITS 165
86 60 STARTER MOTOR 165
86 65 SWITCHES & CIGAR LIGHTERS 167
86 70 WIRING & FUSES 169
86 77 ALARM UNITS & MODULES 171
88 – INSTRUMENTS 173
88 15 CLOCK 173
88 20 INSTRUMENT PANEL 173
88 25 OIL, COOLANT & FUEL GAUGES 173
88 30 SPEEDOMETER & TACHOMETER 173
PROCEDURE FOR REVIEW OF MECHANICAL REPAIR OPERATION TIME 176
