1996 Mazda B3000 Pickup Truck Service Manual – PDF DOWNLOAD

Description

1996 Mazda B3000 Pickup Truck Service Manual – PDF DOWNLOAD

FILE DETAILS:

1996 Mazda B3000 Pickup Truck Service Manual – PDF DOWNLOAD

Language : English
Pages : 1441
Downloadable : Yes
File Type : PDF

DESCRIPTION:

1996 Mazda B3000 Pickup Truck Service Manual – PDF DOWNLOAD

INTRODUCTION:

It is the purpose of this repair information system to help professional automotive technicians maintain top vehicle performance and correct driveability problems related to today’s high tech vehicles.

• Because of the limited amount of space allowable, our titles have been condensed to fit into the menus. An alphabetical designation has been added to the front of each title to allow the titles to be displayed in a way that reflects their respective order of use.
• References to the titles in some of the diagnostic flow charts sometimes will not correlate with the titles in the menu. If not, refer to the ELECTRONIC MENU CROSS-REFERENCE table.
• Because of this we recommend that you read the rest of these
  INTRODUCTION paragraphs to better understand why the information is
  presented in this new format.
• The A – ENGINE/VIN ID article will help you identify the
  vehicle and its systems. It will also explain the VIN code and in many
  cases, show its location.
• If you want “TUNE-UP” type information, see D – ADJUSTMENTS AA – USING THIS SECTION (GENERAL HELP for the adjustment procedures. If you are familiar with the procedures, but need a quick way to find the specification, go to C – TUNE-UP SPECS or C – SPECIFICATIONS for the specifications pertaining to the vehicle.
• When diagnosing driveability problems, first go to F – BASIC TESTING. This article is here to help eliminate wasted diagnostic time. If the basic systems are working properly, go to G – TESTS W/CODES.
• If the vehicle still is having a driveability problem or if the vehicle has no self-diagnostic system, go to H – TESTS W/O CODES. This article will help you diagnose the problem by symptom, locate the symptom exhibited by the vehicle, and inspect or test the items which may be causing the problem.
• After finding which specific system or component requires testing, use the I – SYS/COMP TESTS article to tests the systems and components. Also included (when available) are pin voltage charts and sensor range charts. These can be found in J – PIN VOLTAGE CHARTS and K – SENSOR RANGE CHARTS.
• Also included in this section are wiring diagrams and vacuum diagrams. These can be found in L – WIRING DIAGRAMS and M – VACUUM DIAGRAMS.
• When all diagnostic tests have been performed and the problem has been discovered, it may be necessary to replace or overhaul the defective part. This information can be found in the N – REMOVE/INSTALL/OHAUL article.
• The content of each of these articles is outlined below. As a summary of the driveability diagnosis, see ROUTINE OUTLINE in this article.

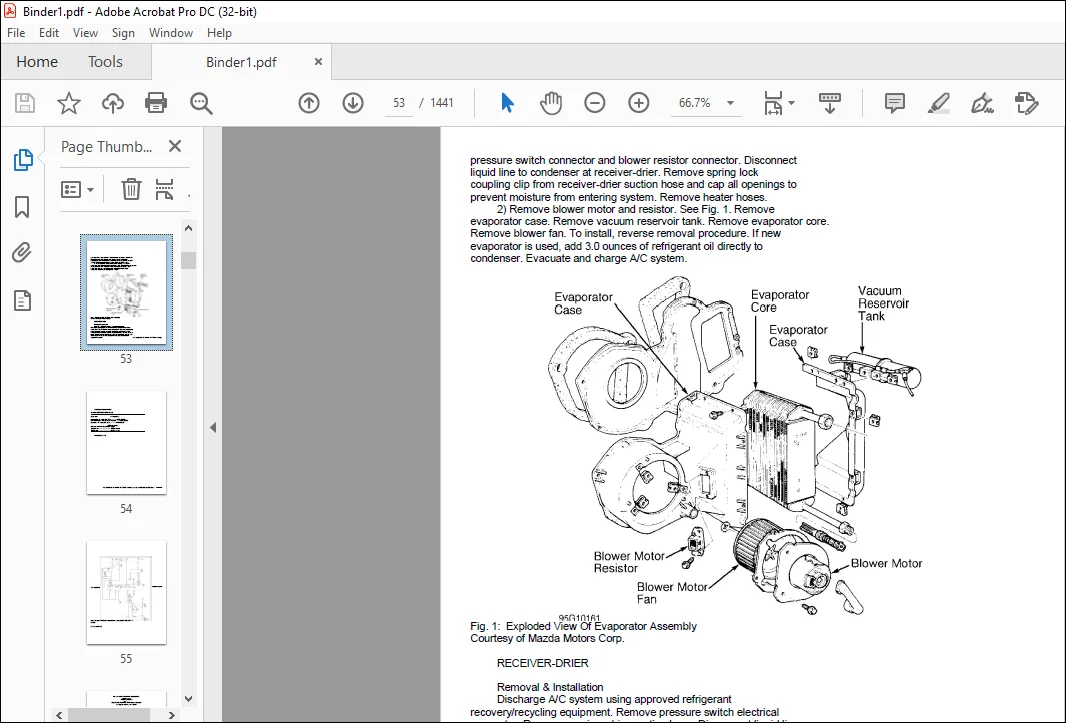

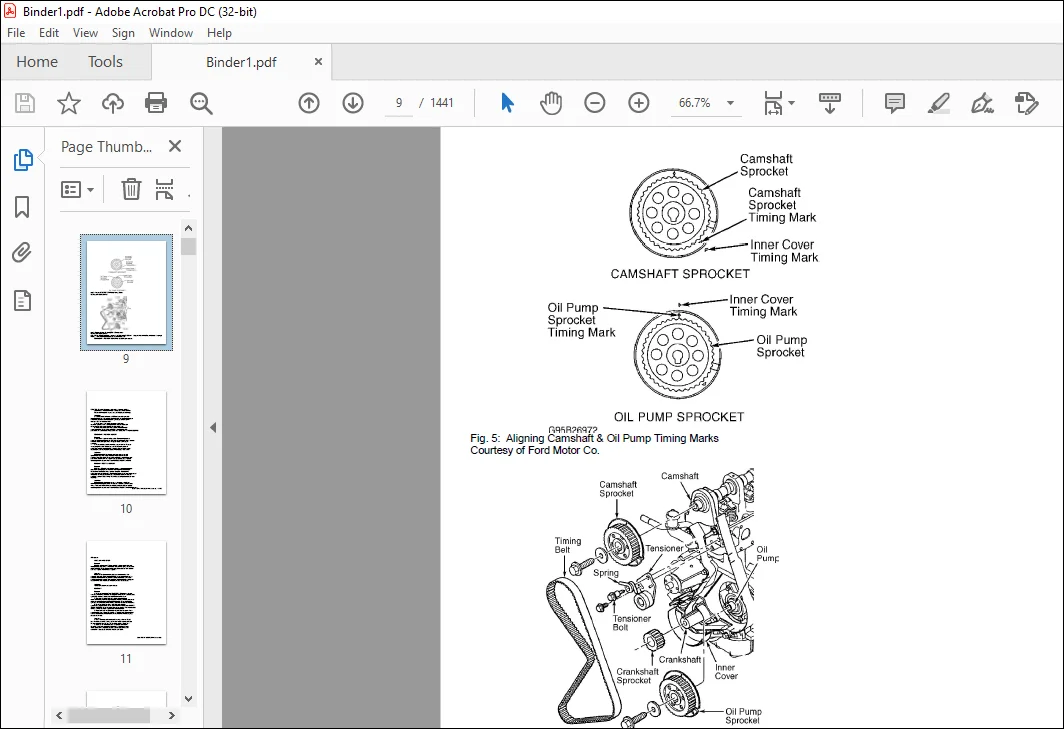

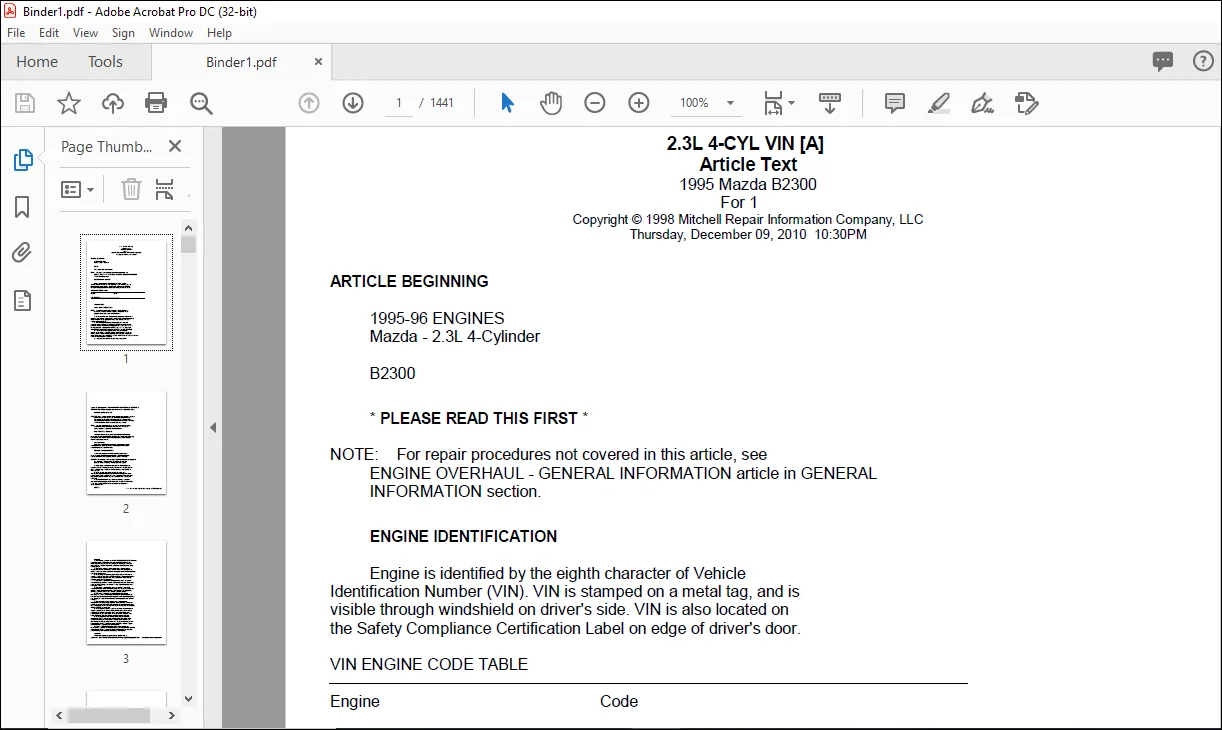

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

1996 Mazda B3000 Pickup Truck Service Manual – PDF DOWNLOAD

2.3L 4-CYL VIN (A)....................................   1
A - Engine-VIN ID.....................................  26
AA - Using This Section (General Help Information)....  31
Abbreviations.........................................  37
AC Heater System - Manual.............................  49
AC System General Servicing...........................  56
AC-Heater System Uniform Inspection Guidelines........  61
Anti Lock Brake Safety Precautions.................... 108
Anti Lock Brake System - Four Wheel................... 110
Anti Lock Brake System - Rear Wheel................... 151
Auto Trans Diagnosis - Ford 4R44E & 4R55E Controls.... 178
B - Emission Application.............................. 256
Brake System Uniform Inspection Guidelines............ 260
Brake System.......................................... 299
Clutch................................................ 309
Compressor Refrigerant Oil Checking................... 315
Compressor Servicing.................................. 321
Computer Relearn Procedures........................... 330
Cooling System Specifications & Drive Belt Routing.... 332
Cruise Control System................................. 336
C-Specifications...................................... 343
D- Adjustments........................................ 349
Differential  - Traction-Lok.......................... 353
Differential & Axle Shafts............................ 360
Door & Trunk Locks - Power............................ 375
Drivetrain Systems Uniform Inspection Guidelines...... 387
Electrical Component Locator.......................... 435
Electrical System Uniform Inspection Guidelines....... 457
Electrostatic Discharge Warning- Basic Information.... 518
Engine Overhaul Procedures -General Information....... 520
Engine Systems Uniform Inspection Guidelines.......... 554
E-Theory-Operation.................................... 678
Exhaust System Uniform Inspection Guidelines.......... 687
F- Basic Testing...................................... 697
Fuses & Circuit Breakers.............................. 703
Gear Tooth Contact Patterns........................... 713
General Cooling System Servicing...................... 716
Generator & Regulator - Except Mitsubishi............. 719
G-Tests With Codes.................................... 725
H- Tests Without Codes................................ 778
Heater System......................................... 785
How to Use System Wiring Diagrams..................... 791
Instrument Panel...................................... 800
I-System and Component Tests.......................... 806
Jacking & Hoisting.................................... 826
J-Pin Voltage Charts.................................. 828
K-Sensor Range Charts................................. 839
L-Wiring Diagrams..................................... 841
Maintenance Information - Fluid Specs & Capacities.... 849
Metric Conversions.................................... 869
Mirrors - Power....................................... 873
M-Vacuum Diagrams..................................... 876
N-Remove-Install-Overhaul............................. 878
Odometer Displays Kilometers-FMVSS Non-Compliance..... 886
Passive Restraint System Inspection................... 888
Power Windows......................................... 926
Pre-Alignment Checks.................................. 933
Riding Height Adjustment.............................. 934
Scheduled Services.................................... 935
Seats - Power......................................... 983
Starter - Reduction Gear.............................. 988
Steering Column Switches.............................. 993
Steering Column.......................................1002
Steering System - Manual Recirculating Ball...........1011
Steering System - Power Recirculating Ball............1018
Steering Uniform Inspection Guidelines................1031
Suspension - Front (2WD)..............................1106
Suspension - Front (4WD)..............................1114
Suspension Uniform Inspection Guidelines..............1124
Symptom Checklist.....................................1199
System Wiring Diagrams................................1213
Tires.................................................1255
Transfer Case Overhaul Borg-Warner - 1354 & 4405......1257
Transmission Removal & Installation - AT..............1296
Transmission Removal & Installation - MT..............1298
Transmission Servicing - AT...........................1304
Transmission Servicing - MT...........................1308
Trouble Shooting-Basic Procedures.....................1310
Waveforms-Injector Pattern Tutorial...................1386
Wheel Alignment Specs and Procedures..................1421
Wheel Alignment Theory & Operation....................1427
Wiper-Washer System...................................1431
