1998 Mitsubishi Carisma Chassis Supplement Service Manual – PDF

Description

1998 Mitsubishi Carisma Chassis Supplement Service Manual – PDF DOWNLOAD

FILE DETAILS:

1998 Mitsubishi Carisma Chassis Supplement Service Manual – PDF DOWNLOAD

Language : English
Pages : 204
Downloadable : Yes
File Type : PDF

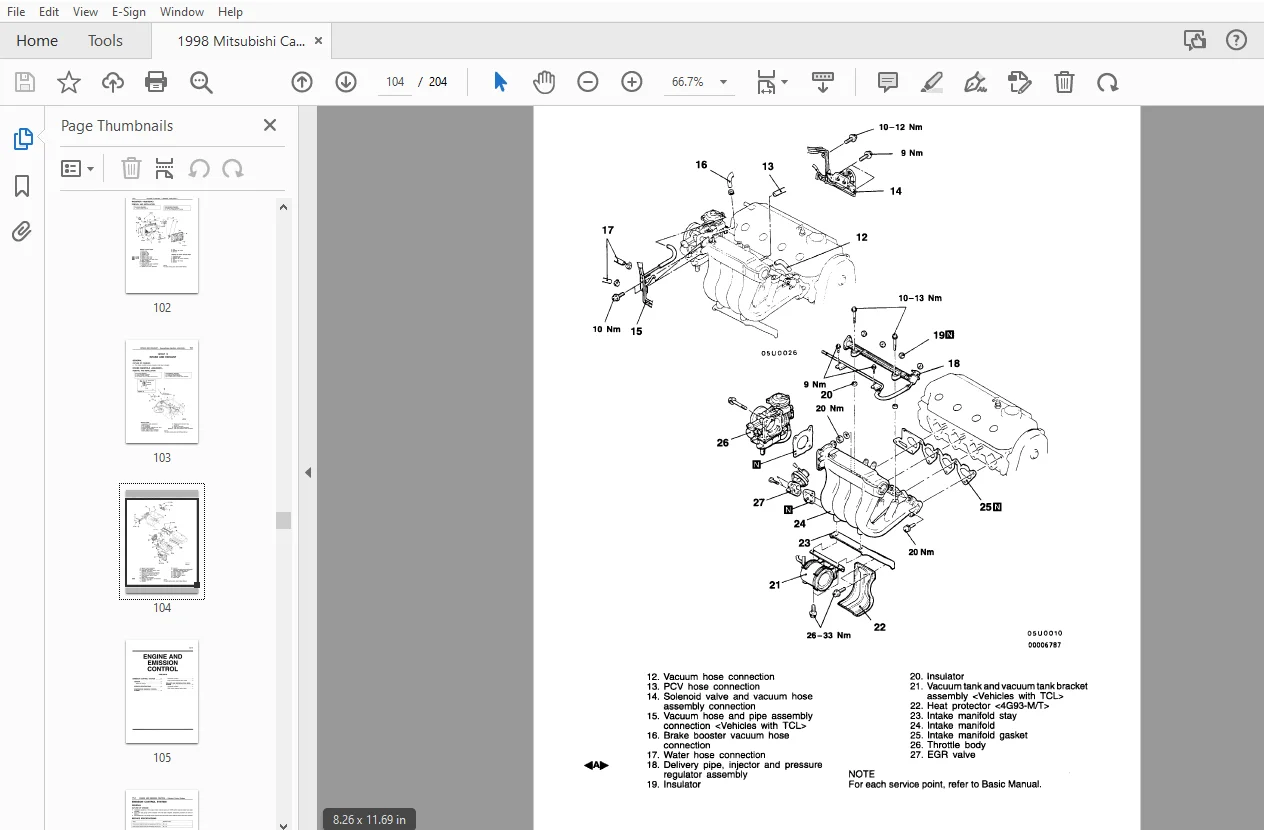

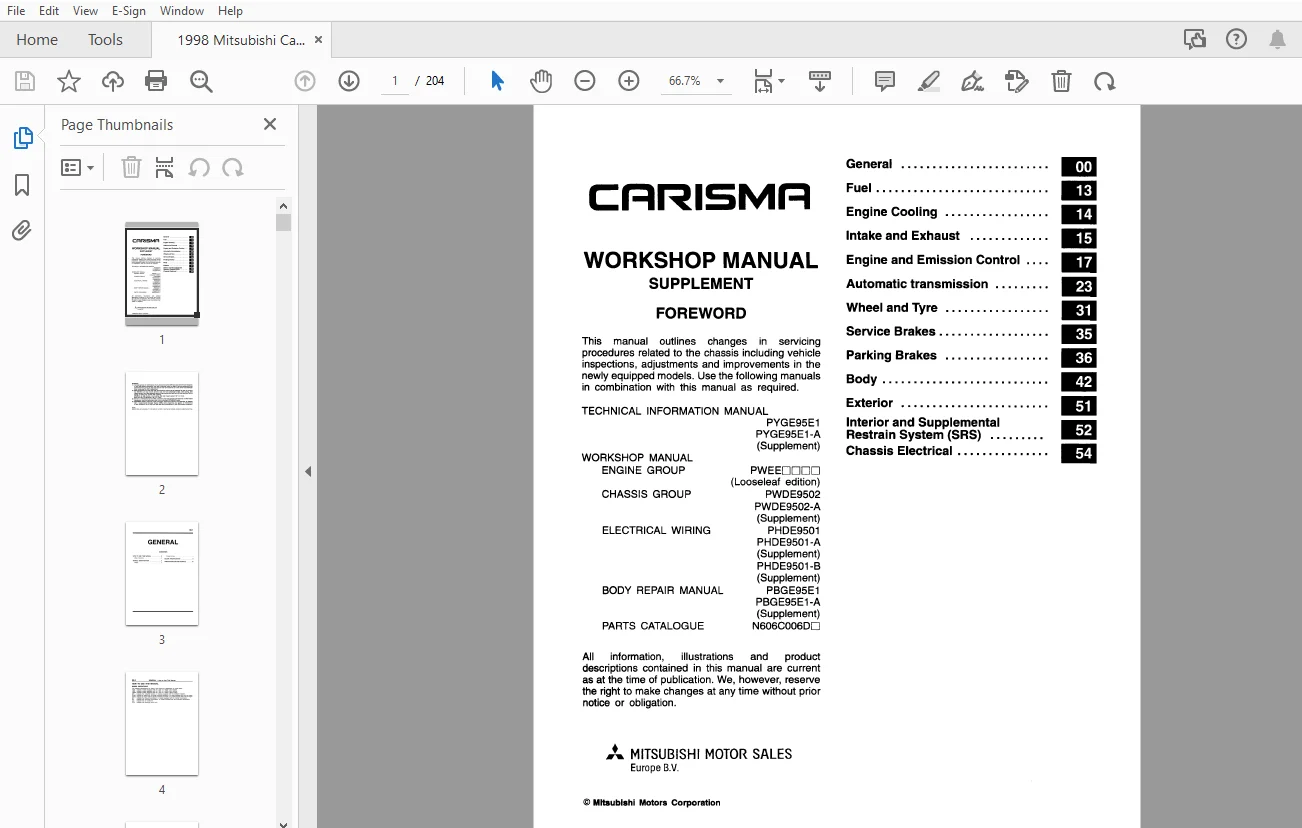

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

1998 Mitsubishi Carisma Chassis Supplement Service Manual – PDF DOWNLOAD

Index........................................................................................  1
	General..................................................................................  3
		How To Use This Manual...............................................................  4
			Model Indication.................................................................  4
		Vehicle Identification...............................................................  5
			Models...........................................................................  5
			Chassis Number...................................................................  6
		Major Specifications.................................................................  7
		Precautions Before Service........................................................... 12
	Fuel..................................................................................... 13
		Multipoint Fuel Injection (MPI)...................................................... 14
			General.......................................................................... 15
				Outline Of Changes........................................................... 15
			General Information.............................................................. 15
			Special Tools.................................................................... 15
			Troubleshooting.................................................................. 16
			On-Vehicle Service............................................................... 82
				Intake Air Temperature Sensor Check.......................................... 82
		Traction Control System (TCL)........................................................ 83
			General.......................................................................... 83
				Outline of Chenge............................................................ 83
			Troubleshooting.................................................................. 83
	Engine Cooling...........................................................................101
		General..............................................................................101
			Outline of Changes...............................................................101
			General Specifications...........................................................101
		Radiator <4G9-SOHC>..................................................................102
			Removal and Installation.........................................................102
	Intake and Exhaust.......................................................................103
		General..............................................................................103
			Outline of Change................................................................103
		Intake Manifold <4G9-SOHC>...........................................................103
			Removal and Installation.........................................................103
	Engine and Emission Control..............................................................105
		Emission Control System..............................................................106
			General..........................................................................106
				Outline of Change............................................................106
			Service Specifications...........................................................106
			Evaporative Emission Control System..............................................107
				Component Location...........................................................107
				Purge Control Solenoid Valve Check...........................................107
			Exhaust Gas Recirculation (EGR) System...........................................108
				Component Location...........................................................108
				EGR Control Solenoid Valve Check.............................................108
	Automatic Transmission...................................................................109
		General..............................................................................110
			Outline of Changes...............................................................110
		Troubleshooting......................................................................110
		On-Vehicle Service...................................................................142
			A/T Control Component Location...................................................142
	Wheel and Tyre...........................................................................143
		General .............................................................................143
			Outline of Chenge................................................................143
			General Specifications...........................................................143
	Basic Brake System.......................................................................144
		General..............................................................................144
			Outline of Chenges...............................................................144
		Special Tools........................................................................144
		Rear Drum Brake......................................................................145
			Removal and Installation.........................................................145
	Anti-Skid Braking System (ABS) <2WD>.....................................................147
		General..............................................................................147
			Outline of Changes...............................................................  0
		Troubleshooting......................................................................147
		On-Vehicle Service...................................................................155
		Hydraulic Unit.......................................................................156
	Parking Brakes...........................................................................158
		General..............................................................................158
			Outline of Changes...............................................................158
		Parking Brake Cable..................................................................158
			Removal and Installation.........................................................158
	Body.....................................................................................159
		General..............................................................................159
			Outline of Changes...............................................................159
		Door.................................................................................159
			Troubleshooting..................................................................159
		Door Lock Switch.....................................................................166
			Removal and Installation.........................................................166
	Exterior.................................................................................167
		General..............................................................................167
			Outline of Change................................................................167
		Moulding.............................................................................167
			Removal and Installation.........................................................167
	Interior and Supplemental Restraint System (SRS).........................................170
		Interior.............................................................................171
			General..........................................................................171
				Outline of Changes...........................................................171
			Seat.............................................................................171
		Supplemental Restraint System (SRS)..................................................174
			General..........................................................................175
			SRS Service Precautions..........................................................175
			Special Tools....................................................................178
			Troubleshooting..................................................................179
			SRS Maintenance..................................................................191
			Post-Collision Diagnisis.........................................................192
			Individual Component Service.....................................................193
			Warning/Caution Labels...........................................................194
			Air Bag Modules..................................................................194
			Side Impact Sensor...............................................................195
			Air Bag Module Disposal Procadures...............................................197
				Undeployed Air Bag Module Disposal...........................................197
				Deployed Air Bag Module Disposal Procedures..................................200
	Chassis Electrical.......................................................................201
		General..............................................................................201
			Outline Changes..................................................................201
		Combination Meters...................................................................201
			Removal and Installation.........................................................201
		Outside Air Temperature Sensor (Vehicles Without Fully Automatic Air Conditioner)....203
		Rear Window Defogger.................................................................204
			Rear Window Defogger Switch......................................................204
