2000 DODGE DAKOTA SERVICE MANUAL – PDF DOWNLOAD

• The 8 1/4 inch axle housings consist of a cast iron center section with axle tubes extending from either side. The tubes are pressed into and welded to the differential housing to form a one-piece axle housing (Fig. 1).
• The axles have a vent hose to relieve internal pressure caused by lubricant vaporization and internal expansion. The axles are equipped with semi-floating axle shafts, meaning vehicle loads are supported by the axle shaft and bearings.
• The axle shafts are retained by C-locks in the differential side gears. The removable, stamped steel cover provides a means for inspection and service without removing the complete axle from the vehicle. The 8 1/4 axle have a date tag and a gear ratio tag. The tags are attached to the differential housing by a cover bolt. The differential case is a one-piece design.
• The differential pinion mate shaft is retained with a threaded pin. Differential bearing preload and ring gear backlash are set and maintained by threaded adjusters at the outside of the differential housing. Pinion bearing preload is set and maintained by the use of a collapsible spacer.
• Axles equipped with a Trac-Loky differential are optional. A Trac-Loky differential has a one-piece differential case, and the same internal components as a standard differential, plus two clutch disc packs. AXLE IDENTIFICATION The axle differential cover can be used for identification of the axle (Fig. 2). A tag is also attached to the cover.

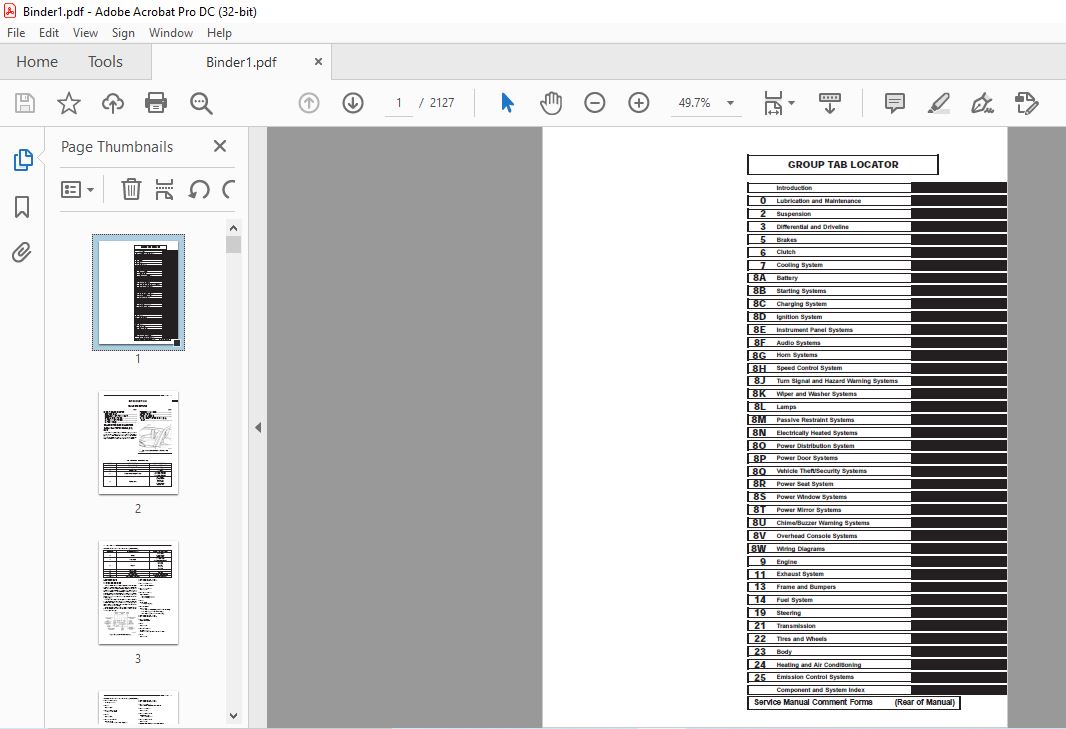

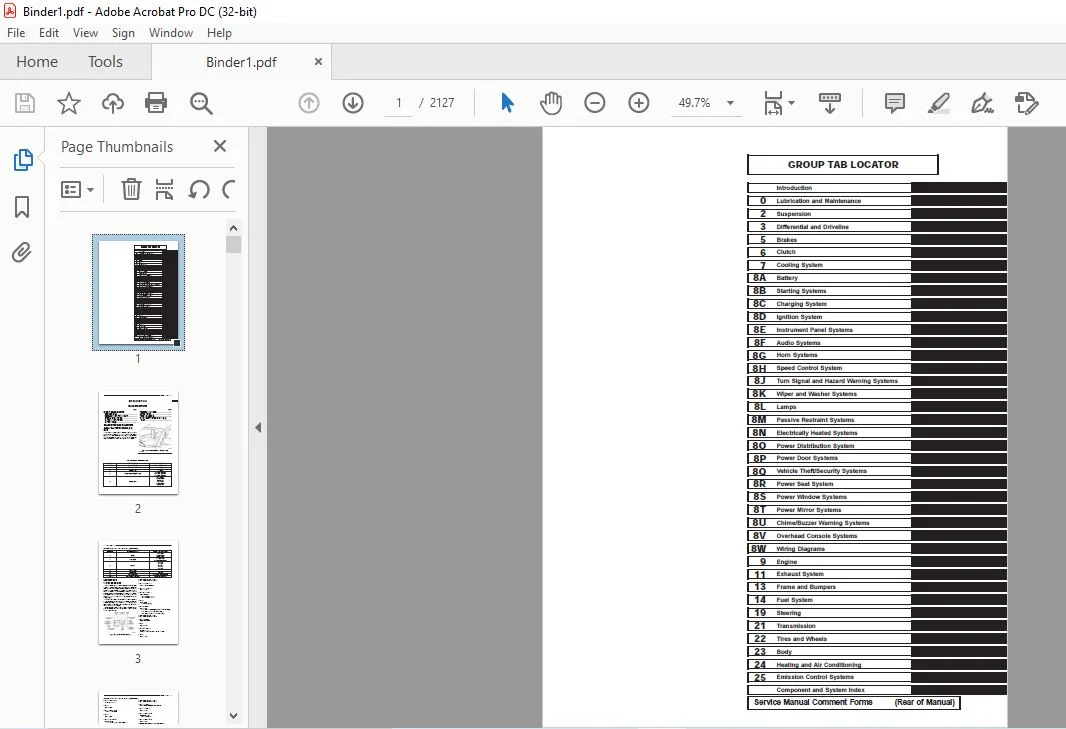

TABLE OF CONTENTS:

2000 DODGE DAKOTA SERVICE MANUAL – PDF DOWNLOAD

Introduction
0 Lubrication and Maintenance
2 Suspension
3 Differential and Driveline
5 Brakes
6 Clutch
7 Cooling System
8A Battery
8B Starting Systems
8C Charging System
8D Ignition System
8E Instrument Panel Systems
8F Audio Systems
8G Horn Systems
8H Speed Control System
8J Turn Signal and Hazard Warning Systems
8K Wiper and Washer Systems
8L Lamps
8M Passive Restraint Systems
8N Electrically Heated Systems
😯 Power Distribution System
8P Power Door Systems
8Q Vehicle Theft/Security Systems
8R Power Seat System
8S Power Window Systems
8T Power Mirror Systems
8U Chime/Buzzer Warning Systems
8V Overhead Console Systems
8W Wiring Diagrams
9 Engine
11 Exhaust System
13 Frame and Bumpers
14 Fuel System
19 Steering
21 Transmission
22 Tires and Wheels
23 Body
24 Heating and Air Conditioning
25 Emission Control Systems
Component and System Index

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
