2001 Chevrolet S10 Pickup Service Manual – PDF DOWNLOAD
Original price was: $89.95.$29.95Current price is: $29.95.
2001 Chevrolet S10 Pickup Service Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
2001 Chevrolet S10 Pickup Service Manual – PDF DOWNLOAD
DESCRIPTION:
2001 Chevrolet S10 Pickup Service Manual – PDF DOWNLOAD
Independent front suspension consists of upper and lower control arms with the steering knuckle mounted between the ball joints. See Fig. 1 . The upper control arm is mounted onto a pivot shaft. The lower control arm is mounted directly onto the frame with pivot bolts. Coil springs are mounted between the lower control arm and a formed seat in the suspension crossmember. Shock absorbers fit between the lower control arm and frame. A stabilizer bar is mounted onto the frame side rails and is connected to the lower control arms.
REMOVAL & INSTALLATION
WHEEL HUB/ROTOR & BEARINGS
Removal
1. Raise and support vehicle. Remove wheel and tire assembly. Remove brake caliper, and wire aside. DO NOT allow brake caliper to hang by brakeline. Remove dust cap, cotter pin, spindle nut and washer. Carefully remove hub/rotor assembly to avoid damage to spindle threads.
2. Remove outer bearing, inner grease seal and inner bearing. Clean bearings, and inspect bearings and races for damage. If races require removal from hub, drive old races from hub using hammer and Wheel Bearing Race Remover (J -291 17-A).
Installation
1. To install, reverse removal procedure. Pack bearings with high-temperature bearing grease. Install NEW grease seal until seal is even with hub surface. Lubricate seal lip and hub cavity with wheel bearing grease.
2. Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS . Adjust wheel bearings. See FRONT WHEEL BEARINGS under ADJUSTMENTS & INSPECTION. Lower vehicle and check wheel aligmnent. See appropriate SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.
TABLE OF CONTENTS:
2001 Chevrolet S10 Pickup Service Manual – PDF DOWNLOAD
02A-FRONT SUSPENSION 2WD 2001.pdf....... 1 02B-FRONT SUSPENSION 4WD 2001 .pdf...... 15 02C-FRONT SUSPENSION 2004.pdf........... 30 02D-REAR SUSPENSION 2001.pdf............ 172 02E-REAR SUSPENSION 2004.pdf............ 206 02F-ELECTRONIC SUSPENSION WIRING.pdf.... 259 03A-2001 FRONT AXLE.pdf................. 279 03A-2004 FRONT DRIVE AXLE.pdf........... 309 03B-2004 REAR DRIVE AXLE.pdf............ 501 03C-2004 LIMITED SLIP.pdf............... 636 03D-DIFFERENTIAL.pdf.................... 659 03E-DIFFERENTIAL RING GEARS.pdf......... 668 03F-2004 WHEEL DRIVE SHAFTS.pdf......... 685 03G-UNIVERSAL JOINTS.pdf................ 738 05A-BRAKES.pdf.......................... 753 05B-ANTILOCK BRAKES.pdf................. 797 05C-2004 DISC BRAKES.pdf................ 815 07-ENGINE COOLING.pdf................... 952 08A-FUSES.pdf........................... 981 08B-STARTER SYSTEM.pdf.................. 993 08C-ALTENATOR.pdf.......................1005 08D-ELECTRICAL COMPONENT LOCATOR.pdf....1022 08E-2004 GAGES.pdf......................1043 08F-INSTRUMENT PANELS.pdf...............1209 08K-WIPER WASHER.pdf....................1256 08L-EXTERIOR LIGHTS.pdf.................1272 08M-AIRBAGS.pdf.........................1273 08P-POWER DOOR LOCKS.pdf................1326 08S-POWER WINDOWS.pdf...................1343 08T--SUNROOF.pdf........................1357 08W1-1994 WIRING.pdf....................1486 08W2-1995 ENGINE 4.3L VIN W.pdf.........1538 08W3-1995 ENGINE 4.3L VIN Z.pdf.........1565 08W4-1997 WIRING.pdf....................1586 08W5-1999 WIRING.pdf....................1640 08W6-2001 WIRING.pdf....................1702 08W7-2004 WIRING.pdf....................1764 8Q-KEYLESS ENTRY.pdf....................1814 09A-2.2L ENGINE 1994.pdf................1826 09B-2.2L ENGINE 2001.pdf................1851 09C-4.3L ENGINE 2001.pdf................1884 09D-4.3L ENGINE2004.pdf.................2305 09E-GM TROUBLE CODES.pdf................3178 09F-COMPUTER RELEARN.pdf................3192 09G-GENERIC TROUBLE CODES.pdf...........3214 19A-STEERING POWER.pdf..................3247 19B-4WD STEERING KNUCKLES.pdf...........3285 19C-STEERING COLUMN.pdf.................3289 21A-AUTO TRANSMISSION SERVICE.pdf.......3302 21B-CLUTCH.pdf..........................3388 21C-MANUAL TRANSMISSION SERVICE.pdf.....3399 21D-TRANSFER CASE REMOVAL.pdf...........3404 21E-NV 1500 MANUAL TRANSMISSION.pdf.....3418 21F-NV 3500 MANUAL TRANSMISSION.pdf.....3494 24A-HVAC.pdf............................3570 24B-AC COMPRESSOR.pdf...................3627
2001 CHEVROLET S10 PICKUP SERVICE MANUAL – PDF DOWNLOAD:

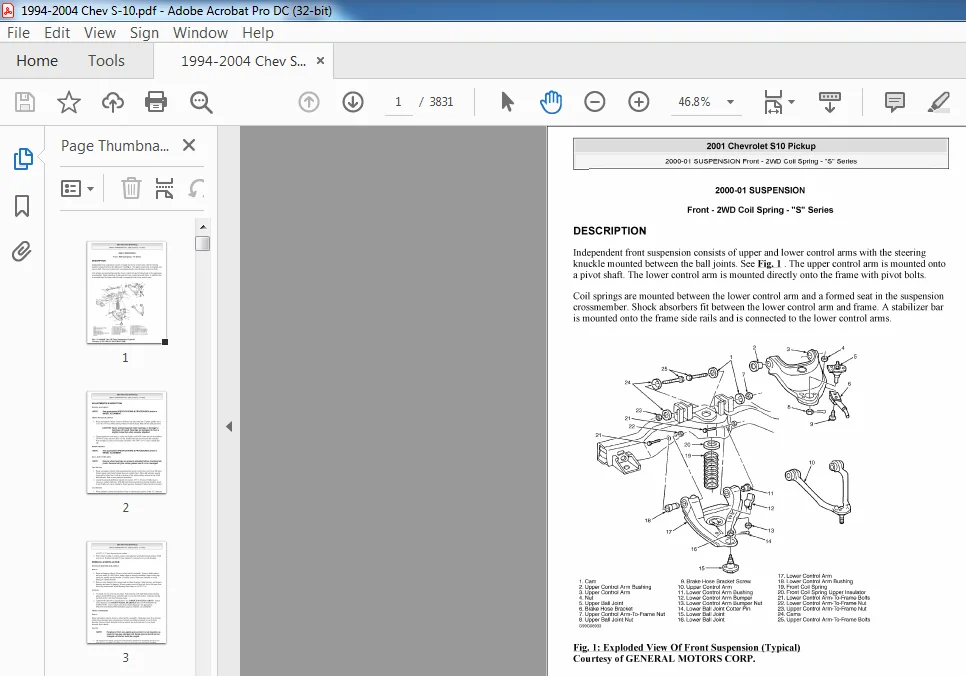

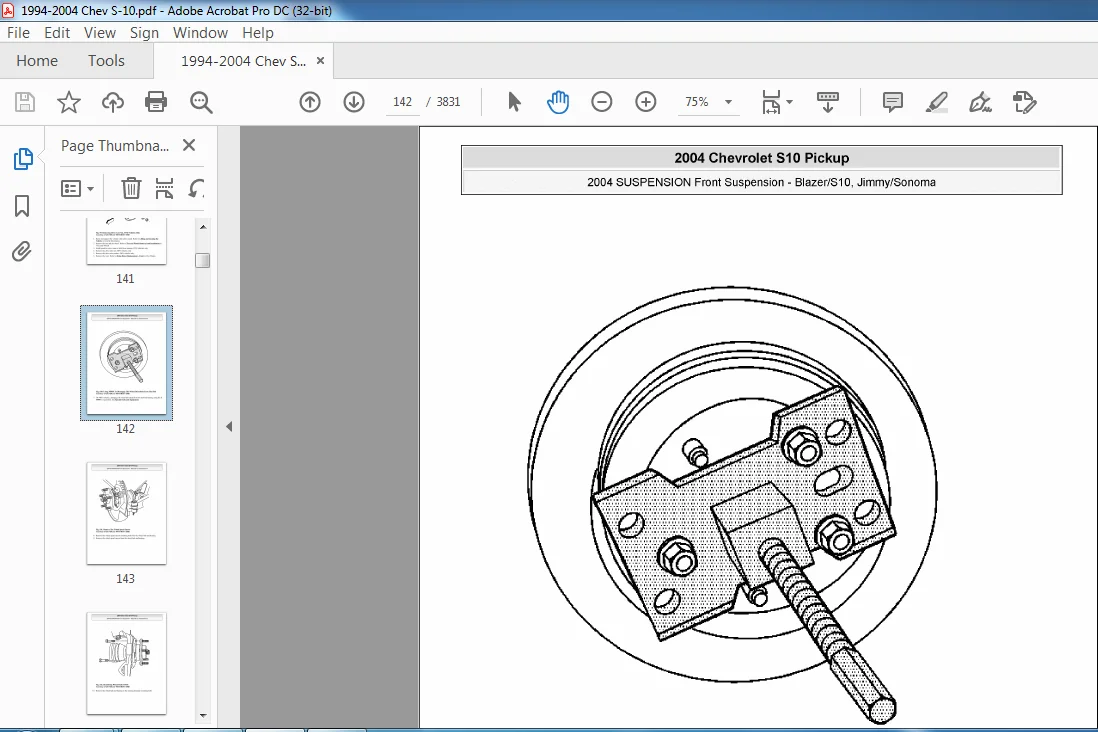

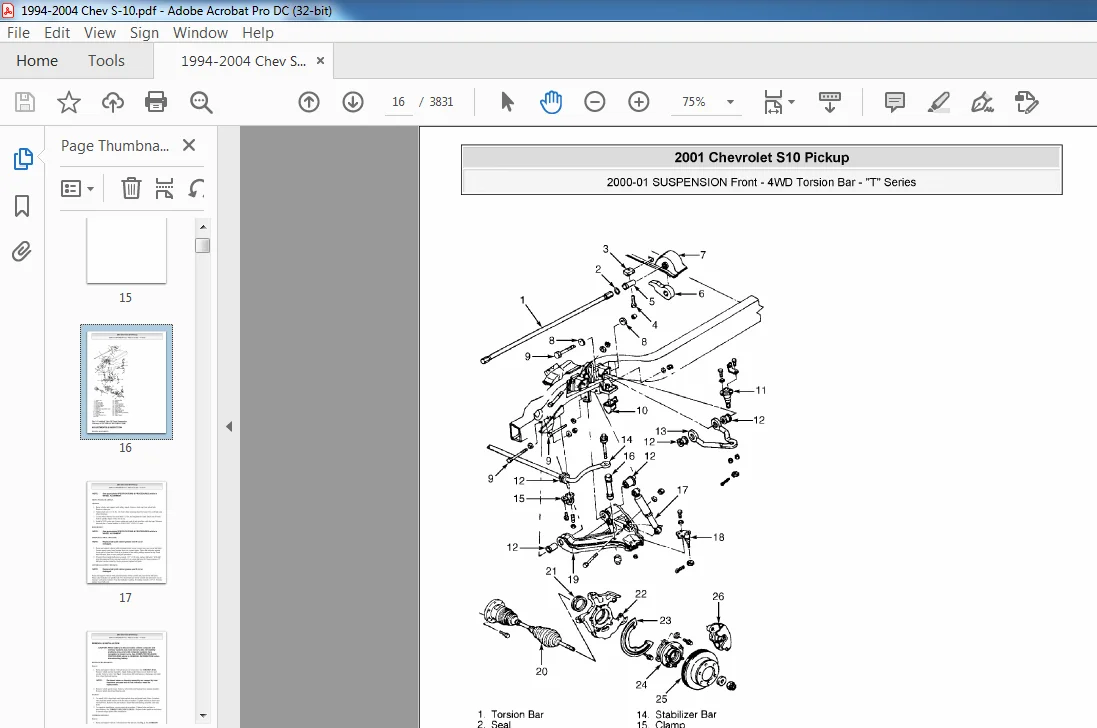

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
