2002 Hummer H1 Service Manual – Complete Vehicle Repair & Drivetrain Guide

Description

2002 Hummer H1 Service Manual – Complete Vehicle Repair & Drivetrain Guide PDF DOWNLOAD

Description

This official 2002 Hummer H1 Service Manual (AM General Publication No. 05745159) is the complete factory reference for all service, repair, maintenance, and diagnostics for the H1 platform. It serves as the definitive Hummer H1 complete vehicle repair manual 2002, containing hundreds of detailed procedures and technical specifications required by professional technicians.

Every major system is covered in-depth — from the 6.5L diesel engine to the Hummer’s advanced powertrain, electronics, cooling systems, and the unique H1 Central Tire Inflation System (CTIS). The manual also includes comprehensive information on Hummer H1 transmission and transfer case service, detailed driveline and chassis service procedures, and critical diagnostics such as Hummer H1 PCM P1811 troubleshooting.

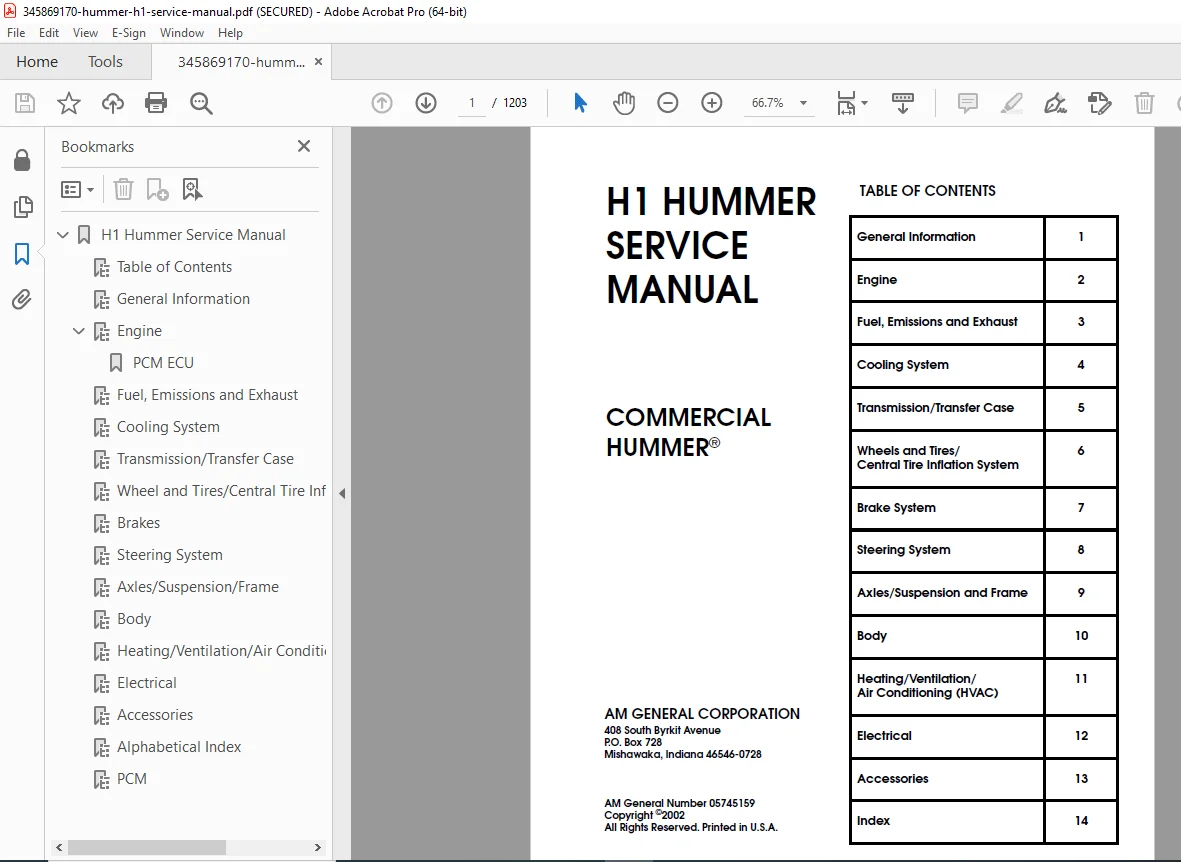

Organized into 13 complete service sections plus a full index, this manual ensures no part of the H1 is overlooked. From drivetrain, axles, and suspension to HVAC, electrical, and steering, technicians receive the full engineering-level documentation necessary for any repair, overhaul, or adjustment.

Table of Contents

Section 1 — General Information

• Vehicle identification and data

• Lubrication & maintenance schedules

• Safety precautions

• Fastener and torque specifications

Section 2 — Engine

• Full service procedures

• Tune-up and performance checks

• 6.5L diesel engine overhaul

• Engine diagnostics

Section 3 — Fuel, Emissions & Exhaust

• Fuel delivery system

• Emissions devices

• Exhaust system components and service

Section 4 — Cooling System

• Radiator and water pump service

• Thermostat and coolant flow

• Complete AM General cooling system procedures

Section 5 — Transmission & Transfer Case

• Full Hummer H1 transmission transfer case service guide

• Automatic transmission pressure diagnostics

• P1811 troubleshooting

• Transfer case teardown and assembly

Section 6 — Wheels, Tires & CTIS

• Tire and wheel maintenance

• Complete Central Tire Inflation System (CTIS) repair & troubleshooting

• Solenoids, valves, sensors, control logic

Section 7 — Brake System

• Full hydraulic brake system repair

• Calipers, rotors, master cylinder, bleeding

Section 8 — Steering System

• Power steering pump and gear

• Linkages, alignment and steering geometry

Section 9 — Axles, Suspension & Frame

• H1 drivetrain and axle service

• Front and rear suspension

• Frame and chassis integrity checks

Section 10 — Body

• Exterior and interior body service

• Panels, glass, trim, hardware

Section 11 — HVAC

• Heating, ventilation and A/C diagnostics

• Component testing and system repair

Section 12 — Electrical System

• Complete wiring diagrams

• Harness inspections and repairs

• Modules, relays, fuses and circuit troubleshooting

• Cooling, steering and auxiliary electrical coverage

Section 13 — Accessories

• Optional and dealer-installed accessories

Section 14 — Index

• Comprehensive alphabetical index
