DESCRIPTION:

2002 Jeep Wrangler TJ Parts-Catalog Manual – PDF DOWNLOAD

PAGE NUMBERING :

Two-part page numbers are used throughout this catalog. The first part of the page designation indicates one major group or section. The second part indicates the actual page number in the group. For example:

2-1 indicates Group 2, Front Suspension, Page 1
3-4 indicates Group 3, Axle Rear, Page 4

In the maintenance of the Loose Leaf Parts Catalog Revision Service, it may become necessary to add info1mation beyond the capacity of the page. In this event, an “A” page will be used. For example, ifit becomes necessary, because of change, to add several part numbers to page 2-1 and space does not permit the addition, you will be given Page 2- lA. Page 2-lA should be filed immediately following Page 2-1. Figure and Item Numbers are also commonly used to identify locations in the Catalog, ie., 14-910/8 refers to Group 14, illustration 910, Item Number 8. Illustration Numbers are always ascending sequential within the Groups.

SYMBOLS USED IN THIS CATALOG
The Following symbols are commonly used with Part Number and Quantity information in this Catalog:
AR – Indicates the quantity required may vary or is to be determined by the user.
PAR- Indicates “Paint As Required”
BLANK – Indicates “All Condition
– = ”Not Illustrated”

LOGICAL ILLUSTRATIONS
Refer to Illustration in front of each group. This will give assistance to as how each group is broken down and what Specific Illustration should be referenced.

TABLE OF CONTENTS:

2002 Jeep Wrangler TJ Parts-Catalog Manual – PDF DOWNLOAD

2002TJ.........................................................................................  1
	Return To Model Year Index.................................................................  0
	Return To 2002 Vehicle Family Index........................................................  0
	General Information........................................................................  1
		Abbreviations..........................................................................  7
		Alphabetic Index.......................................................................  6
		Body Code Plate Interpretation.........................................................  7
		Catalog Groups - Titles & Contents.....................................................  2
		How to Use This Catalog and Locate Parts...............................................  5
		Illustration Index.....................................................................  6
		Illustration Numbering Index...........................................................  5
		Index..................................................................................  1
		Logical Illustration Index.............................................................  2
		Logical Illustrations..................................................................  5
		Numerical Index........................................................................  6
		Page Numbering.........................................................................  5
		Part Packages..........................................................................  6
		Standard Parts.........................................................................  6
		Symbols Used in this Catalog...........................................................  5
		VIN Plate Decoding Information.........................................................  6
	GROUP  001  Component Parts for Mopar Accessories..........................................  8
		FIGURE 001-110 -->Player Kit - CD Changer - 6 Disc..................................... 10
		FIGURE 001-120 -->Player Kit -- 12 Disc................................................ 11
		FIGURE 001-130 -->Install Kit - CD Changer - Trunk..................................... 12
		FIGURE 001-150 -->Antenna Kit.......................................................... 13
		FIGURE 001-162 -->Speaker Kit - Sub Woofer............................................. 14
		FIGURE 001-164 -->Overhead Speakers - Soundbar......................................... 15
		FIGURE 001-220 -->Bike Carrier - Hitch Mount........................................... 16
		FIGURE 001-222 -->Bike Carrier - Spare Tire Mount...................................... 17
		FIGURE 001-232 -->Ski Carrier - Spare Tire Mount....................................... 18
		FIGURE 001-250 -->Trailer Tow - Receiver Kit........................................... 19
		FIGURE 001-310 -->Speed Control Kit.................................................... 20
		FIGURE 001-320 -->Top Kit - Soft Hardtop Replacement................................... 21
		FIGURE 001-322 -->Hardtop Exhauster.................................................... 22
		FIGURE 001-330 -->Mounting Kit - Cell Phone............................................ 23
		FIGURE 001-410 -->Bumper Kit- Front Tubular............................................ 24
		FIGURE 001-420 -->Bumper Kit - Rear Tubular............................................ 25
		FIGURE 001-430 -->Extension Kit - Bumper Front......................................... 26
		FIGURE 001-440 -->Side Step Kit........................................................ 27
		FIGURE 001-510 -->Shield Kit - Air Front............................................... 28
		FIGURE 001-520 -->Trim Kit - Door...................................................... 29
		FIGURE 001-540 -->Hardware Package - Door.............................................. 30
		FIGURE 001-550 -->Hardtop Wiring Kit................................................... 31
		FIGURE 001-610 -->Light Kit - Fog...................................................... 32
		FIGURE 001-620 -->Light Kit - Off Road................................................. 33
		FIGURE 001-630 -->Bar Kit - Light Windshield........................................... 34
		FIGURE 001-640 -->Installation Package - Lights Off Road............................... 35
		FIGURE 001-650 -->Heater Kit - Engine Block............................................ 36
		FIGURE 001-820 -->Console Kit - Floor.................................................. 37
		FIGURE 001-910 -->Alarm - EVS Base System.............................................. 38
		FIGURE 001-1020-->Winch Kit - Power.................................................... 39
	GROUP  002  Front Suspension & Drive....................................................... 40
		FIGURE 002-110 -->Suspension, Front Spring with Control Arms and Track Bar............. 41
		FIGURE 002-120 -->Bar, Front Sway...................................................... 43
		FIGURE 002-210 -->Shafts, Front Axle................................................... 44
		FIGURE 002-310 -->Housing,Front Axle,4 Wheel Drive..................................... 45
		FIGURE 002-410 -->Axle Assembly,Front,4 Wheel Drive.................................... 47
		FIGURE 002-610 -->Differential, Front Axle............................................. 48
	GROUP  003  Rear Axle...................................................................... 50
		FIGURE 003-110 -->Axle Assembly, Rear.................................................. 51
		FIGURE 003-210 -->Housing,Rear Axle,Dana M35/194MM [DRJ]............................... 52
		FIGURE 003-220 -->Housing,Rear Axle,Dana 44/226MM [DRK]................................ 53
		FIGURE 003-230 -->Differential,With and Without Trac-Lok [DSA] Dana M35/194MM [DRJ].... 54
		FIGURE 003-240 -->Differential,With and Without Trac-Lok [DSA] Dana 44/226MM [DRK]..... 55
		FIGURE 003-410 -->Shaft,Rear Axle,Dana 35/194MM [DRJ].................................. 57
		FIGURE 003-420 -->Shaft,Rear Axle,Dana 44/226MM [DRK].................................. 58
	GROUP  004  Parking Brake.................................................................. 59
		FIGURE 004-110 -->Parking Brake Lever and Cables....................................... 60
	GROUP  005  Service Brakes................................................................. 61
		FIGURE 005-110 -->Front Brakes......................................................... 62
		FIGURE 005-210 -->Rear Drum Brakes..................................................... 64
		FIGURE 005-310 -->Power Brake Booster.................................................. 67
		FIGURE 005-410 -->Master Cylinder...................................................... 68
		FIGURE 005-510 -->Hydraulic Control Unit,Anti-lock..................................... 69
		FIGURE 005-520 -->Brake Lines and Hoses,Front,LHD and Rear,LHD,RHD,without ABS......... 70
		FIGURE 005-530 -->Brake Lines and Hoses,Front,RHD,without ABS.......................... 71
		FIGURE 005-540 -->Brake Lines and Hoses Front,LHD,with ABS............................. 72
		FIGURE 005-550 -->Brake Lines and Hoses Rear,LHD,with ABS.............................. 74
		FIGURE 005-610 -->Brake Pedal,LHD...................................................... 75
		FIGURE 005-620 -->Brake Pedal,RHD...................................................... 76
	GROUP  006  Clutch......................................................................... 77
		FIGURE 006-110 -->Clutch............................................................... 78
		FIGURE 006-210 -->Housing & Pan, Clutch................................................ 79
		FIGURE 006-310 -->Control, Clutch...................................................... 80
		FIGURE 006-410 -->Pedal, Clutch........................................................ 81
	GROUP  007  Cooling........................................................................ 82
		FIGURE 007-110 -->Radiator And Related Parts........................................... 83
		FIGURE 007-205 -->Water Pump........................................................... 85
		FIGURE 007-302 -->Tank, Coolant Recovery............................................... 86
		FIGURE 007-405 -->Drive Pulleys........................................................ 87
		FIGURE 007-505 -->Drive Belts, 2.5L Engine, LHD........................................ 88
		FIGURE 007-510 -->Drive Belts, 2.5L Engine, RHD........................................ 89
		FIGURE 007-515 -->Drive Belts, 4.0L Engine............................................. 90
		FIGURE 007-605 -->Oil Cooler Lines..................................................... 91
		FIGURE 007-705 -->Grille And Related Parts............................................. 92
	GROUP  008  Electrical..................................................................... 93
		FIGURE 008-105 -->Starter.............................................................. 95
		FIGURE 008-205 -->Alternator [2.5 Engine].............................................. 96
		FIGURE 008-210 -->Alternator [4.0 Engine].............................................. 97
		FIGURE 008-305 -->Distributor 2.5L Engine.............................................. 98
		FIGURE 008-405 -->Modules.............................................................. 99
		FIGURE 008-505 -->Power Distribution Center Relays and Fuses...........................100
		FIGURE 008-510 -->Fuse Block...........................................................101
		FIGURE 008-605 -->Sensors Engine 2.5L [EP0]............................................102
		FIGURE 008-610 -->Sensors Engine 4.0L [ER0]............................................103
		FIGURE 008-615 -->Sensors - Body.......................................................104
		FIGURE 008-620 -->Sensors Drive Train..................................................105
		FIGURE 008-705 -->Single Board Engine Controllers (JTEC Module)........................106
		FIGURE 008-805 -->Switches - Instrument Panel..........................................107
		FIGURE 008-810 -->Switches Drivetrain..................................................108
		FIGURE 008-815 -->Switches - Body......................................................109
		FIGURE 008-905 -->Horns................................................................110
		FIGURE 008-1005-->Battery Tray & Cables................................................111
		FIGURE 008-1105-->Lamps--Front.........................................................112
		FIGURE 008-1110-->Lamps--Rear..........................................................115
		FIGURE 008-1115-->Lamps--Cargo-Dome-Courtesy...........................................116
		FIGURE 008-1120-->Bulbs & Sockets......................................................117
		FIGURE 008-1205-->Wiring--Engine & Related Parts.......................................118
		FIGURE 008-1305-->Wiring--Headlamp / Dash Panel........................................119
		FIGURE 008-1405-->Wiring Instrument Panel & Fuses......................................121
		FIGURE 008-1505-->Wiring--Body & Accessory.............................................122
		FIGURE 008-1605-->Wiring Repair Packages...............................................124
		FIGURE 008-1610-->Power Distribution Center Repair.....................................125
		FIGURE 008-1905-->Spark Plugs--Cables--Coil............................................126
	GROUP  08A  Instrument Panel and Radios and Consoles.......................................127
		FIGURE 08A-110 -->Instrument Panel.....................................................128
		FIGURE 08A-210 -->Instrument Cluster...................................................131
		FIGURE 08A-315 -->Radio................................................................132
		FIGURE 08A-320 -->Antenna..............................................................133
		FIGURE 08A-325 -->Speakers.............................................................134
		FIGURE 08A-410 -->Consoles Full & Mini.................................................135
	GROUP  009  Engine Mounting................................................................137
		FIGURE 009-110 -->Engine Mounting, Front, 2.5 (EPE)....................................138
		FIGURE 009-120 -->Engine Mounting, Rear, 2.5 (EPE).....................................139
		FIGURE 009-130 -->Engine Mounting, Front, 4.0 (ERH)....................................140
		FIGURE 009-140 -->Engine Mounting, Rear, 4.0 (ERH).....................................141
	GROUP  2.5L4  Engine 2.5L Four Cylinder....................................................142
		FIGURE 2.5L4-210 -->Cylinder Head, 2.5 (EPE)...........................................143
		FIGURE 2.5L4-310 -->Cylinder Block, 2.5 (EPE)..........................................144
		FIGURE 2.5L4-410 -->Crankshaft, Piston and Torque Converter, 2.5 (EPE).................145
		FIGURE 2.5L4-510 -->Camshaft and Valves, 2.5 (EPE).....................................147
		FIGURE 2.5L4-610 -->Timing Cover, 2.5 (EPE)............................................148
		FIGURE 2.5L4-710 -->Engine Oiling, 2.5 (EPE)...........................................149
		FIGURE 2.5L4-810 -->Manifold, Intake and Exhaust, 2.5 (EPE)............................151
		FIGURE 2.5L4-910 -->Crankcase Ventilation, 2.5 (EPE)...................................152
	GROUP  4.0L  Engine 4.0L Six Cylinder......................................................153
		FIGURE 4.0L-210 -->Cylinder Head, 4.0 (ERH)............................................154
		FIGURE 4.0L-310 -->Cylinder Block, 4.0 (ERH)...........................................155
		FIGURE 4.0L-410 -->Crankshaft, Piston and Torque Converter, 4.0 (ERH)..................156
		FIGURE 4.0L-510 -->Camshaft and Valves, 4.0 (ERH)......................................158
		FIGURE 4.0L-610 -->Timing Cover, 4.0 (ERH).............................................159
		FIGURE 4.0L-710 -->Engine Oiling, 4.0 (ERH)............................................160
		FIGURE 4.0L-810 -->Manifold, Intake and Exhaust........................................162
		FIGURE 4.0L-910 -->Crankcase Ventilation, 4.0 (ERH)....................................163
	GROUP  011  Exhaust........................................................................164
		FIGURE 011-110 -->Exhaust System, 2.5 (EPE), 4.0 (ERH).................................165
		FIGURE 011-210 -->Heat Shields, 2.5 (EPE), 4.0 (ERH)...................................166
	GROUP  013  Frames and Bumpers.............................................................167
		FIGURE 013-110 -->Frame................................................................168
		FIGURE 013-210 -->Bumper, Front........................................................171
		FIGURE 013-310 -->Bumper, Rear.........................................................172
		FIGURE 013-510 -->Body Mounting Hardware...............................................173
	GROUP  014  Fuel...........................................................................174
		FIGURE 014-110 -->Fuel Tank, 2.5 (EPE), 4.0 (ERH)......................................176
		FIGURE 014-210 -->Fuel Filler Tube, 2.5 (EPE), 4.0 (ERH)...............................177
		FIGURE 014-310 -->Fuel Lines, Front, 2.5 (EPE).........................................178
		FIGURE 014-320 -->Fuel Lines, Rear, 2.5 (EPE)..........................................179
		FIGURE 014-330 -->Fuel Lines, Front, 4.0 (ERH).........................................180
		FIGURE 014-340 -->Fuel Lines, Rear, 4.0 (ERH)..........................................181
		FIGURE 014-410 -->Fuel Injection System, 2.5 (EPE), 4.0 (ERH)..........................182
		FIGURE 014-510 -->Fuel Module, 2.5 (EPE), 4.0 (ERH)....................................183
		FIGURE 014-610 -->Throttle Body, 2.5 (EPE), 4.0 (ERH)..................................184
		FIGURE 014-710 -->Throttle Controls, 2.5 (EPE), 4.0 (ERH)..............................185
		FIGURE 014-810 -->Air Cleaner, 2.5 (EPE), 4.0 (ERH)....................................186
		FIGURE 014-1010-->Speed Control, 2.5 (EPE), 4.0 (ERH)..................................187
		FIGURE 014-1110-->Accelerator Pedal, 2.5 (EPE), 4.0 (ERH)..............................188
	GROUP  016  Propeller Shafts and U-Joints..................................................189
		FIGURE 016-110 -->Propshaft,Front and Rear.............................................190
	GROUP  017  Rear Suspension................................................................192
		FIGURE 017-110 -->Suspension, Rear  with Shocks,Springs and Track Bar..................193
		FIGURE 017-210 -->Stabilzer, Rear......................................................195
	GROUP  019  Steering.......................................................................196
		FIGURE 019-110 -->Wheel, Steering......................................................197
		FIGURE 019-210 -->Column, Steering Upper and Lower.....................................198
		FIGURE 019-310 -->Gear, Power Steering.................................................200
		FIGURE 019-410 -->Linkage and Damper...................................................201
		FIGURE 019-510 -->Pump, Power Steering.................................................202
		FIGURE 019-710 -->Hoses and Reservoir,2.5L Engine [EP0]................................203
		FIGURE 019-720 -->Hoses and Reservoir,4.0L Engine [ER0]................................204
	GROUP  30RH  Automatic Transmission 3 Speed................................................205
		FIGURE 30RH-110 -->Transmisson 30RH (DGD)..............................................206
		FIGURE 30RH-210 -->Case and Related Parts 30RH (DGD)...................................207
		FIGURE 30RH-310 -->Oil Pump 30RH (DGD).................................................209
		FIGURE 30RH-410 -->Clutch, Front and Rear  30RH (DGD)..................................210
		FIGURE 30RH-420 -->Output Shaft 30RH  (DGD)............................................212
		FIGURE 30RH-510 -->Bands 30RH (DGD)....................................................213
		FIGURE 30RH-610 -->Governor 30RH (DGD).................................................214
		FIGURE 30RH-710 -->Valve Body 30RH (DGD)...............................................215
		FIGURE 30RH-720 -->Servos 30RH  (DGD)..................................................216
		FIGURE 30RH-730 -->Parking Sprag 30RH (DGD)............................................217
		FIGURE 30RH-1230-->Gearshift Controls 30RH (DGD).......................................218
	GROUP  32RH  Automatic Transmission 3 Speed................................................219
		FIGURE 32RH-110 -->Transmission 32RH (DGG).............................................220
		FIGURE 32RH-210 -->Case and Related Parts 32RH (DGG)...................................221
		FIGURE 32RH-310 -->Oil Pump 32RH (DGG).................................................223
		FIGURE 32RH-410 -->Clutch, Front and Rear 32RH (DGG)...................................224
		FIGURE 32RH-420 -->Output Shaft 32RH (DGG).............................................226
		FIGURE 32RH-510 -->Bands 32RH (DGG)....................................................227
		FIGURE 32RH-610 -->Governor 32RH (DGG).................................................228
		FIGURE 32RH-710 -->Valve Body 32RH (DGG)...............................................229
		FIGURE 32RH-720 -->Servos 32RH (DGG)...................................................230
		FIGURE 32RH-730 -->Parking Sprag 32RH (DGG)............................................231
		FIGURE 32RH-1230-->Gearshift Controls 32RH (DGG).......................................232
	GROUP  3550  Manual Transmission 5 Speed...................................................233
		FIGURE 3550-110 -->Transmission  (DDD).................................................234
		FIGURE 3550-210 -->Case and Extension  (DDD)...........................................235
		FIGURE 3550-410 -->Gear Train (DDD)....................................................236
		FIGURE 3550-910 -->Fork and Rails (DDD)................................................237
		FIGURE 3550-1210-->Gearshift Controls (DDD)............................................238
	GROUP  AISIN  Manual Transmission 5 Speed..................................................239
		FIGURE AISIN-110 -->Transmission (DDQ).................................................240
		FIGURE AISIN-210 -->Case and Extension AX5 (DDQ).......................................241
		FIGURE AISIN-410 -->Gear Train  AX5 (DDQ)..............................................242
		FIGURE AISIN-910 -->Forks AX5 (DDQ)....................................................245
		FIGURE AISIN-1210-->Gearshift Controls (DDQ)...........................................247
	GROUP  231  Transfer Case Model 231........................................................248
		FIGURE 231-110 -->Command Trac Transfer Case  [DHN]....................................249
		FIGURE 231-210 -->Case & Related Parts, Command Trac [DHN].............................250
		FIGURE 231-410 -->Gear Train, Command Trac [DHN].......................................254
		FIGURE 231-910 -->Forks & Rails, Command Trac [DHN]....................................258
		FIGURE 231-1210-->Gearshift Controls, Command Trac [DHN]...............................260
	GROUP  21P  Speedometer Pinions............................................................262
		FIGURE 21P-110 -->Speedometer Pinion & Housing.........................................263
	GROUP  022  Wheels, Covers and Jacks.......................................................264
		FIGURE 022-110 -->Wheels...............................................................265
		FIGURE 022-210 -->Caps And Covers......................................................266
		FIGURE 022-310 -->Jack And Storage.....................................................267
		FIGURE 022-410 -->Wheel, Spare Tailgate Mounted........................................268
	GROUP  23D  Wiper/Lock Cylinder and Keys...................................................269
		FIGURE 23D-105 -->Lock Cylinders & Keys................................................270
		FIGURE 23D-205 -->Wiper System Front...................................................272
		FIGURE 23D-305 -->Rear Wiper System....................................................273
	GROUP  024  Air Conditioning & Heater......................................................274
		FIGURE 024-105 -->Hevac Unit, LHD......................................................275
		FIGURE 024-110 -->Hevac Unit, RHD......................................................276
		FIGURE 024-205 -->Hoses, Heater 2.5L Engine, LHD.......................................277
		FIGURE 024-210 -->Hoses, Heater 2.5L Engine, RHD.......................................278
		FIGURE 024-220 -->Hoses, Heater 4.0L Engine, RHD.......................................279
		FIGURE 024-225 -->Plumbing, Hevac 2.5L Engine, LHD.....................................280
		FIGURE 024-230 -->Plumbing, Hevac 2.5L Engine, RHD.....................................281
		FIGURE 024-235 -->Plumbing, Hevac 4.0L Engine, LHD.....................................282
		FIGURE 024-240 -->Pluming, Hevac 4.0L Engine, RHD......................................283
		FIGURE 024-245 -->Seals, A/C Condenser.................................................284
		FIGURE 024-310 -->Control, Heater And A/c..............................................285
		FIGURE 024-410 -->Compressor, Air Conditioning.........................................286
		FIGURE 024-420 -->Compressor, Mounting 4.0L Engine.....................................287
		FIGURE 024-610 -->Ducts, Heater And A/c................................................288
	GROUP  025  Emission Systems...............................................................289
		FIGURE 025-110 -->Emission Labels, 2.5 (EPE), 4.0 (ERH)................................290
		FIGURE 025-310 -->Vacuum Canister, 2.5 (EPE), 4.0 (ERH)................................291
		FIGURE 025-410 -->Emission Control Vacuum Harness, 2.5 (EPE), 4.0 (ERH)................292
		FIGURE 025-420 -->Leak Detection Pump, 2.5 (EPE), 4.0 (ERH)............................293
	GROUP  DTJ  Doors and Related Parts........................................................294
		FIGURE DTJ-110 -->Door, Full Front Shell And Hinges....................................295
		FIGURE DTJ-120 -->Door, Full Front Glass And Regulator.................................296
		FIGURE DTJ-130 -->Door, Full Front Lock And Controls...................................297
		FIGURE DTJ-160 -->Door, Half Front Shell And Hinges....................................298
		FIGURE DTJ-170 -->Door, Half Front Lock And Controls...................................299
		FIGURE DTJ-510 -->Mirror, Exterior.....................................................300
		FIGURE DTJ-610 -->Door Weatherstrips And Runs..........................................301
	GROUP  ETJ  Exterior Ornamentation.........................................................302
		FIGURE ETJ-210 -->Mouldings............................................................303
		FIGURE ETJ-310 -->Decals...............................................................304
	GROUP  ITJ  Interior Trim..................................................................305
		FIGURE ITJ-110 -->Sunvisors............................................................306
		FIGURE ITJ-310 -->Carpets And Interior Trim Panels.....................................307
		FIGURE ITJ-410 -->Door Trim Panels Half Doors & Full Doors.............................308
		FIGURE ITJ-510 -->Front Seats..........................................................309
		FIGURE ITJ-610 -->Seat Assemblies, Seat Covers Rear Seat...............................314
		FIGURE ITJ-710 -->Seat Belts...........................................................318
		FIGURE ITJ-810 -->Seat Assemblies, Adjusters, Recliners................................320
	GROUP  STJ  Body Sheet Metal Except Doors..................................................325
		FIGURE STJ-210 -->Pan, Floor Front And Rear............................................327
		FIGURE STJ-310 -->Plugs................................................................328
		FIGURE STJ-410 -->Fender And Flare, Front..............................................329
		FIGURE STJ-510 -->Hood, Lock, Catches..................................................330
		FIGURE STJ-610 -->Panels, Cowl And Dash................................................331
		FIGURE STJ-710 -->Glass, Windshield, Backlite, Quarter Windshield Frame, Hinges........332
		FIGURE STJ-810 -->Panels, Body Side....................................................334
		FIGURE STJ-1110-->Soft Top And Windows.................................................336
		FIGURE STJ-1120-->Top Enclosure, Hard..................................................338
		FIGURE STJ-1310-->Tailgate.............................................................339
		FIGURE STJ-1320-->Add-a-Trunk..........................................................340
		FIGURE STJ-1610-->Sport Bar Wrangler...................................................341
	End of Catalog.............................................................................325

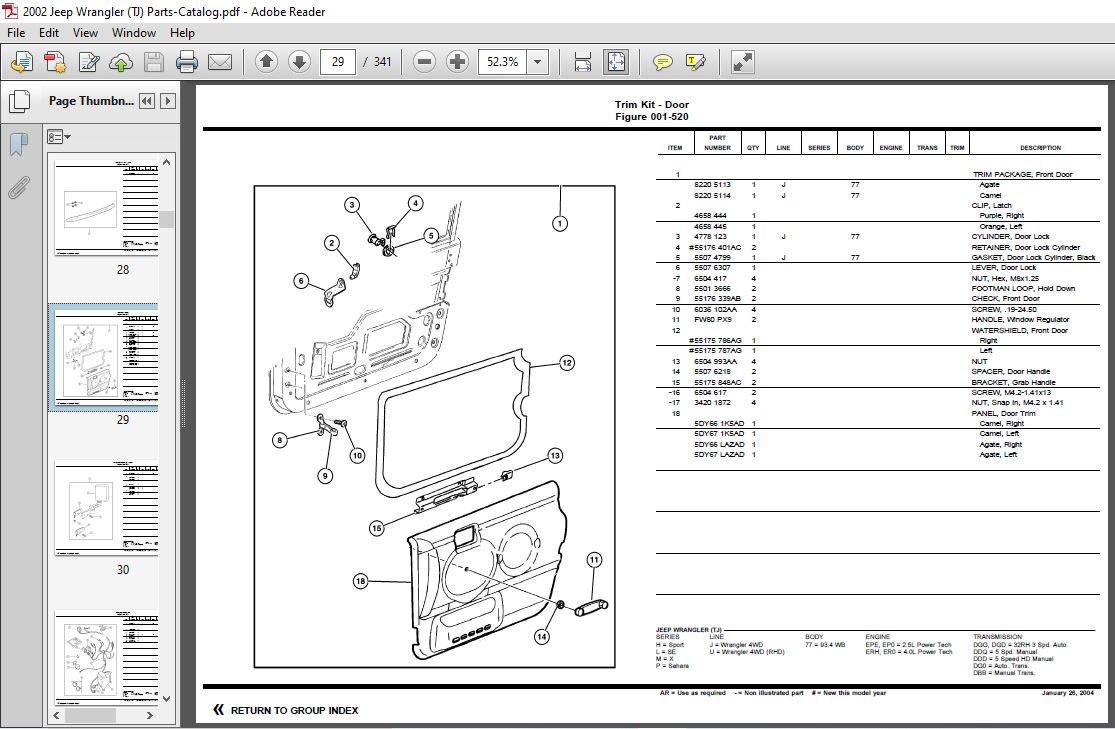

2002 JEEP WRANGLER TJ PARTS-CATALOG MANUAL – PDF DOWNLOAD:

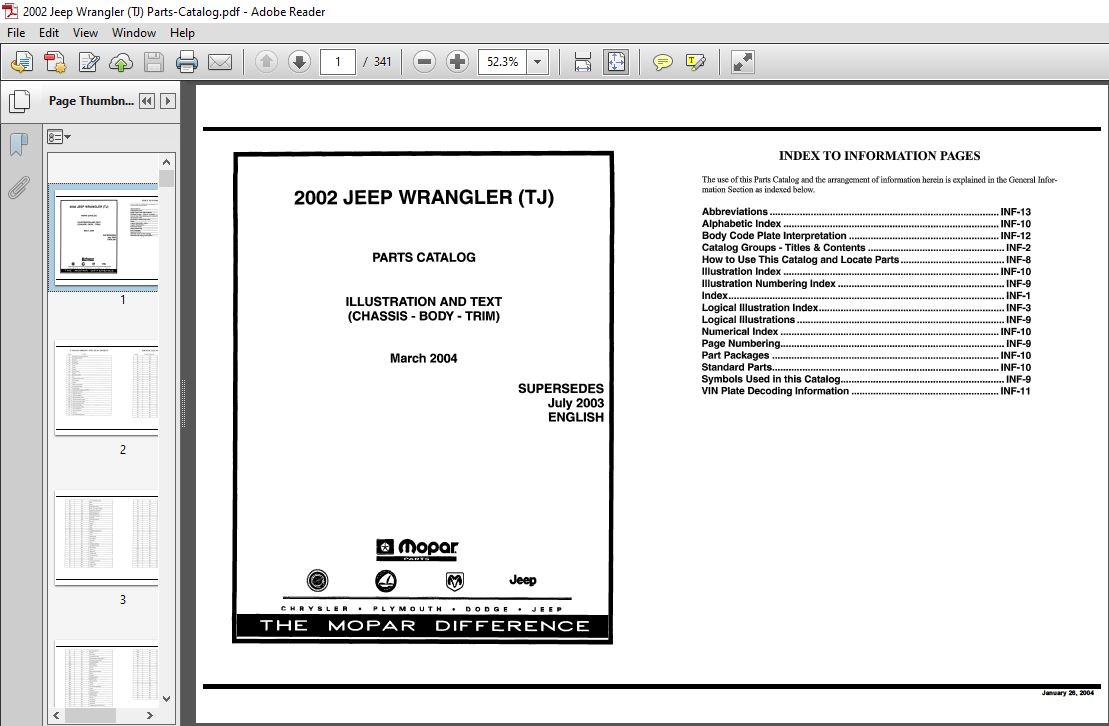

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.V
