2005-2006 Adly ATV-150UII (228A) Parts Manual – PDF DOWNLOAD

Description

2005-2006 Adly ATV-150UII (228A) Parts Manual – PDF DOWNLOAD

FILE DETAILS:

2005-2006 Adly ATV-150UII (228A) Parts Manual – PDF DOWNLOAD

Language : English & Chinese
Pages : 66
Downloadable : Yes
File Type : PDF

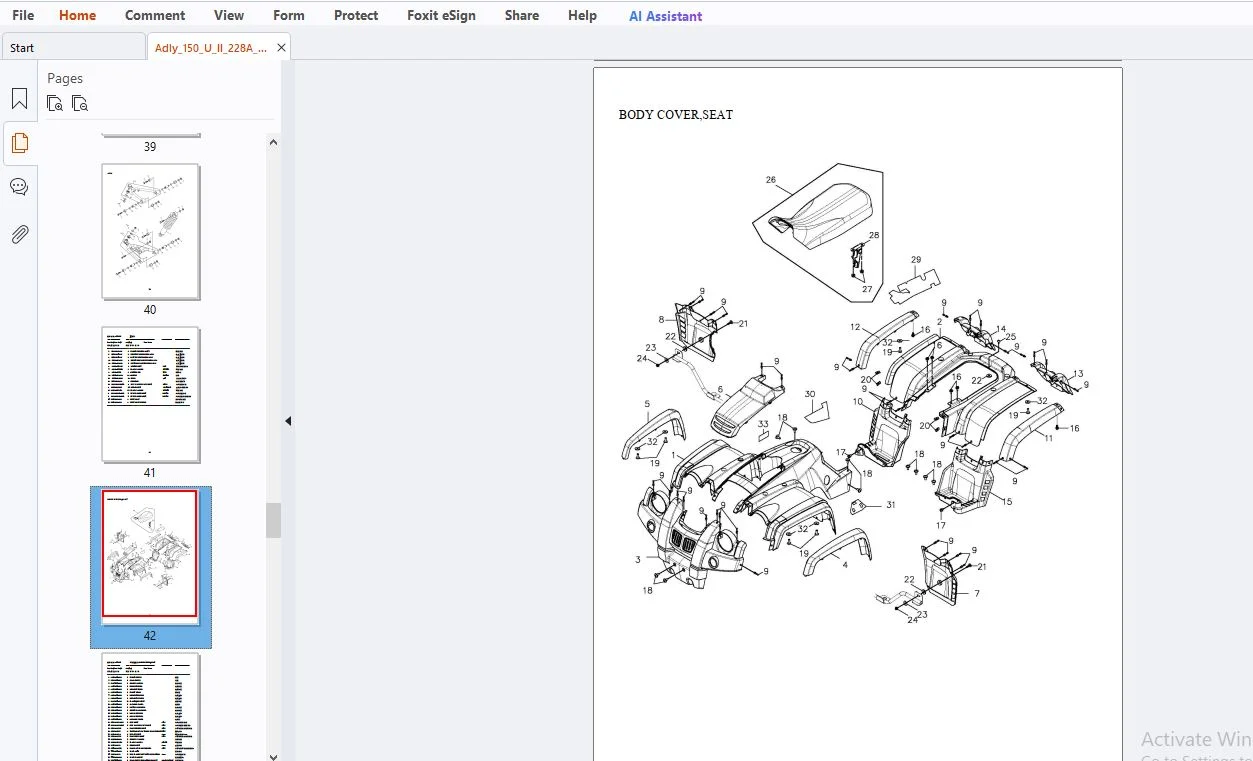

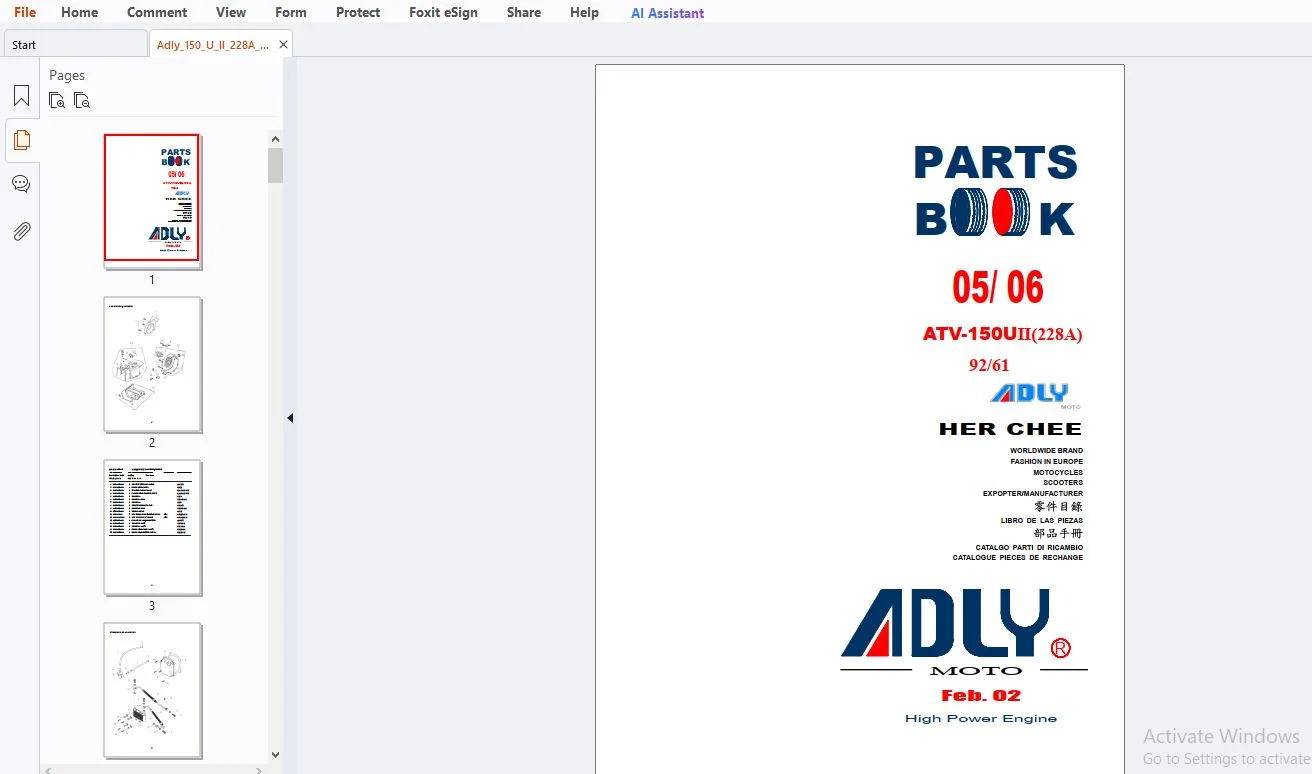

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

2005-2006 Adly ATV-150UII (228A) Parts Manual – PDF DOWNLOAD

ATV-150U II(228A)............................... 1
228-01 風扇蓋,引擎罩蓋 FAN COVER,SHROUD
............... 2
228-02A汽缸頭蓋 CYLINDER HEAD COVER................. 4
228-03
汽缸頭 CYLINDER HEAD........................ 6
228-04
凸輪軸,閥門 CAMSHAFT,VALVE.................... 8
228-05
內鍊條,汽缸 CAM CHAIN,CLYIDER.................10
228-06
右曲軸箱蓋 RIGHT CRANKCASE COVER..............12
228-07
發電機 GENERATOR............................14
228-08
機油泵 OIL PUMP.............................16
228-09
起動馬達 STARTING MOTOR......................18
228-10
左曲軸箱蓋 LEFT CRANKCASE COVER...............20
228-11
驅動盤 DRIVE FACE...........................22
228-12
傳動盤 DRIVEN FACE..........................24
228-13
傳動系 TRANSMISSON..........................26
228-14
曲軸箱 CRANKCASE............................28
228-15
曲軸,活塞 CRANK SHAFT,PISTON.................30
228-16A 空氣濾清器 AIR CLEANER.......................32
228-17A 排氣管,化油器EXHANST MUFFLER,CARBU RETOR  ....34
228-18
車架 FRAME BODY............................36
228-19
前/後防護桿 F/R BUMPER........................38
228-20 三腳架 ARM..................................40
228-21
車體蓋,座墊 BODY COVER,SEAT...................42
228-22A
油箱 FUEL TANK............................46
228-23
後叉總成 SWING ARM SUB ASS'Y.................48
228-24A  前,後輪 WHEEL FRONT&REAR..................49
228-25A 前剎車系統 FRONT BRAKE.......................51
228-26A 後剎車系統 REAR BRAKE........................53
228-27A
手把 HANDLE BAR...........................55
228-28A 後輪軸,鏈條 REAR WHEEL AXLE,CHAIN   .........57
228-29A
轉向系統 STEERING...........................59
228-30A
頭燈,後燈,方向燈 TAIL LIGHT,SIGNAL LIGHT
....61
228-31A
電裝品 ELECTRICAL PARTS....................63
228-32
排檔系統 GEAR SHIFT SYSTEM...................65
