2007-2010 CHEVROLET AVEO WAVE G3 BARINA VIN ST SERVICE MANUAL

Description

2007-2010 CHEVROLET AVEO WAVE G3 BARINA VIN ST SERVICE MANUAL – PDF DOWNLOAD

Need help? Contact: [email protected]

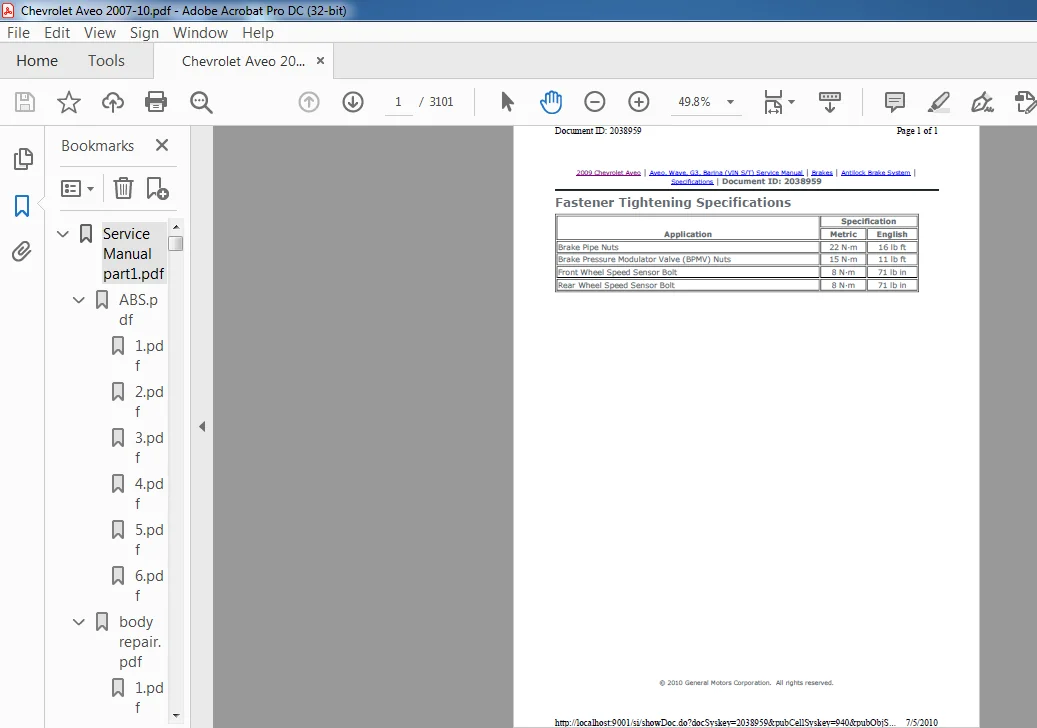

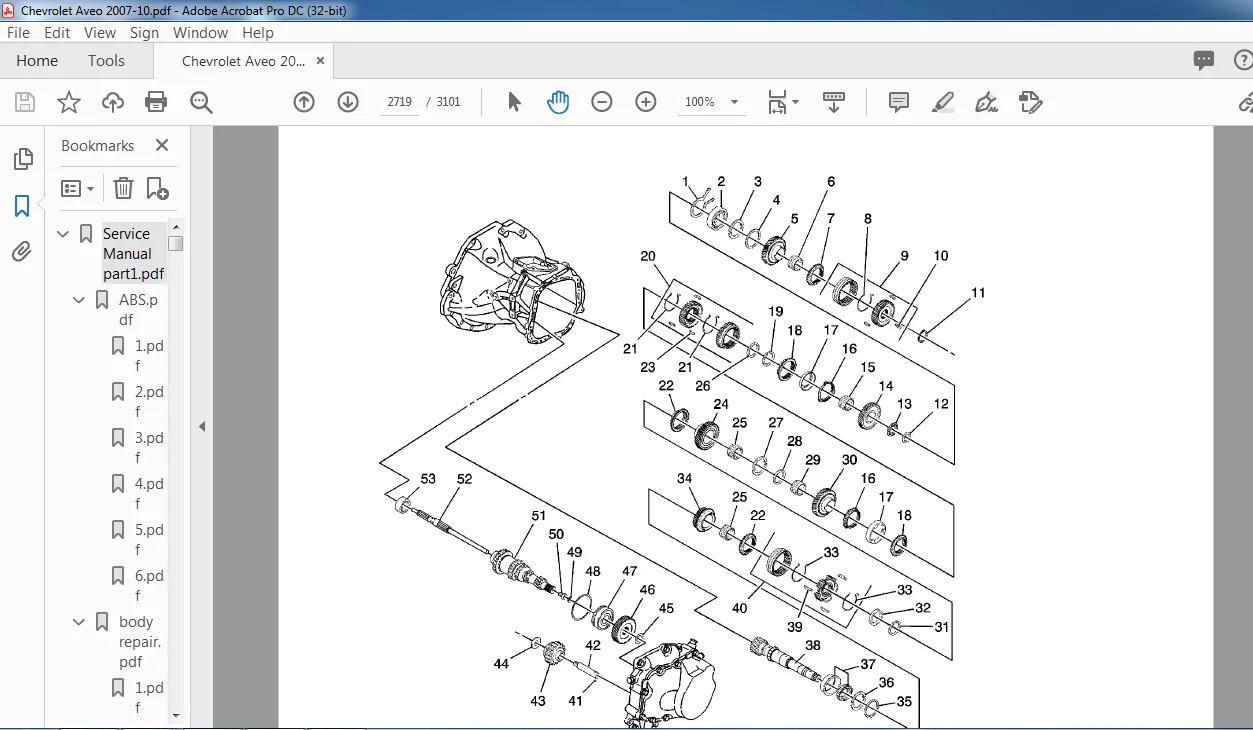

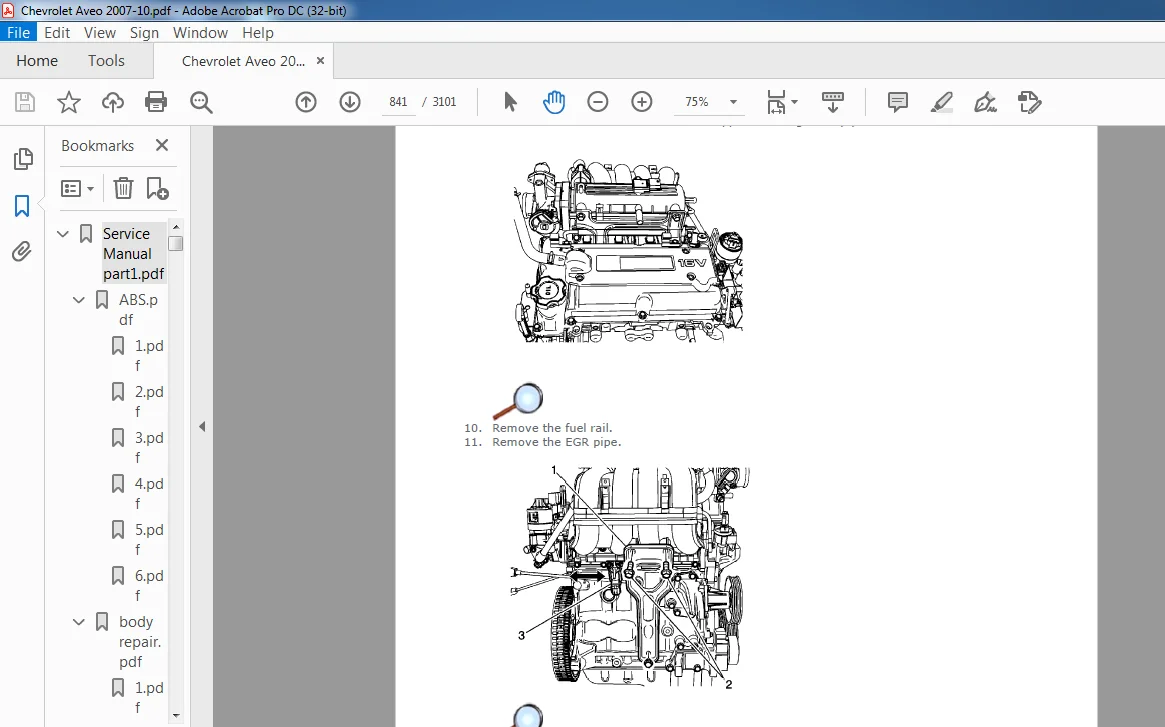

IMAGE PREVIEW:

DESCRIPTION:

2007-2010 CHEVROLET AVEO WAVE G3 BARINA VIN ST SERVICE MANUAL – PDF DOWNLOAD

• Perform a manual or pressure bleeding procedure. Refer to Hydraulic Brake System Bleeding. If the desired brake pedal height results are not achieved, perform the automated bleed procedure below.
• The procedure cycles the system valves and runs the pump in order to purge the air from the secondary circuits normally closed off during normal base brake operation and bleeding.
• The automated bleed procedure is recommended when air ingestion is suspected in the secondary circuits, or when the BPMV has been replaced.
• Remove the brake pipes from the brake pressure modulator valve (BMPV) assembly. 4. Plug the brake pipes. 5.
• Loosen the mounting nuts (2) on the BPMV assembly (1). 6. Position the brake pipes aside far enough to allow for lifting the BPMV assembly from the mounting bracket. It may be necessary to loosen the brake pipes on the master cylinder to allow for moving those pipes out of the way.
• 7. Remove the BPMV assembly from the mounting bracket.

TABLE OF CONTENTS:

2007-2010 CHEVROLET AVEO WAVE G3 BARINA VIN ST SERVICE MANUAL – PDF DOWNLOAD

Antilock Brake System (ABS) Main Relay Operation Voltage 9-16 V
Antilock Brake System (ABS) Type 4 Channel 4 Sensor
Speed Ring
l Inside Diameter – Front 69.6 mm 2.7401 in
l Inside Diameter – Rear 58 mm 2.2835 in
l Outside Diameter – Front 83.7 mm 3.2952 in
l Outside Diameter – Rear 69 mm 2.7165 in
l Tooth Volume of the Speed Ring (Front)
l Tooth Volume of the Speed Ring (Rear)

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

SK
