2007 Arctic Cat 2 Stroke Snowmobiles Service Manual – PDF DOWNLOAD

Description

2007 Arctic Cat 2 Stroke Snowmobiles Service Manual

2007 ARCTIC CAT 2 STROKE SNOWMOBILES SERVICE MANUAL – PDF DOWNLOAD:

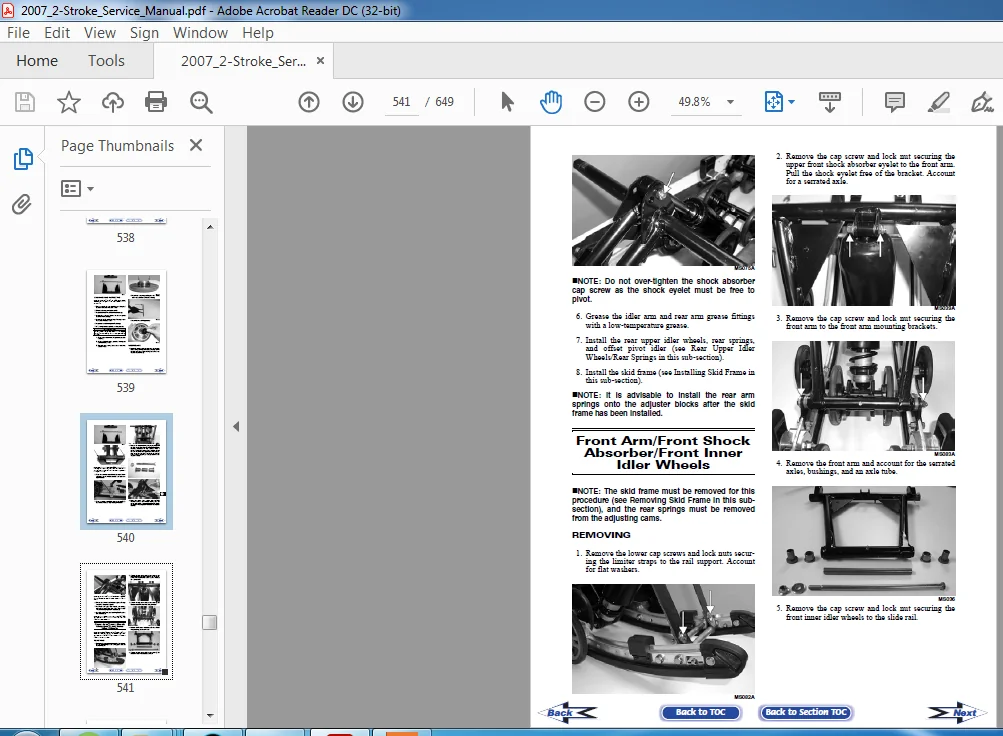

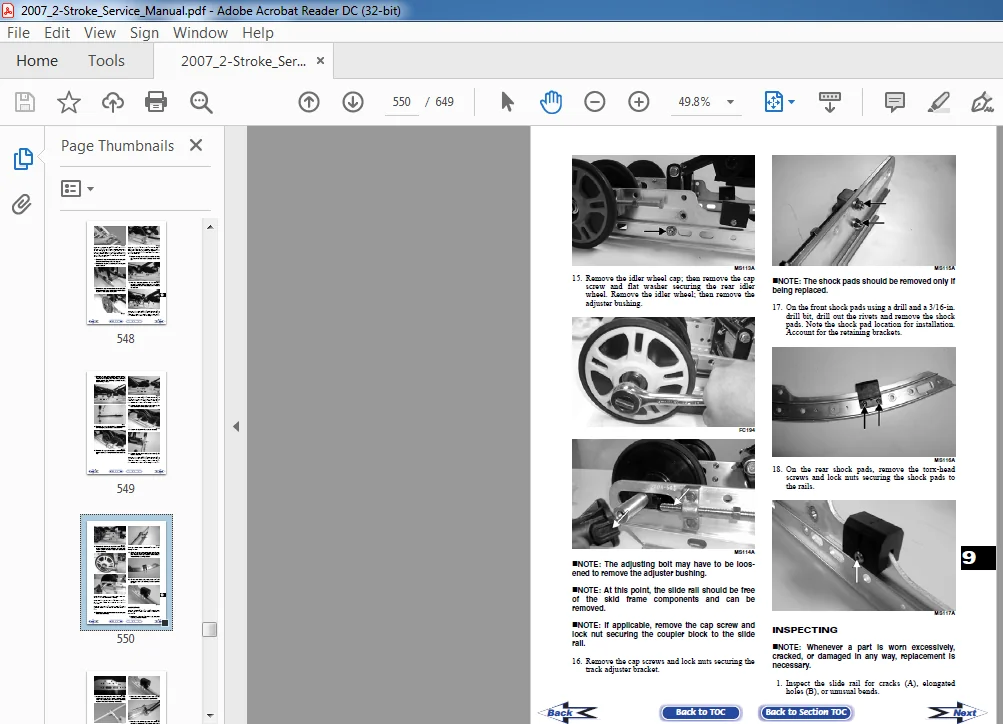

Image Preview:

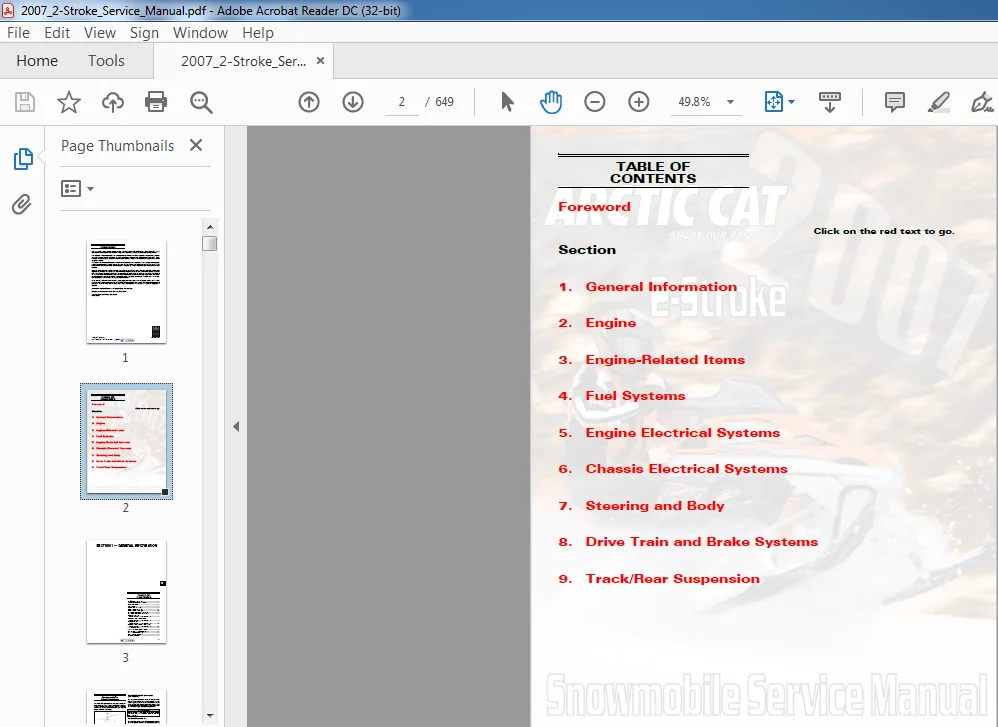

Table Of Contents:

2007 Arctic Cat 2 Stroke Snowmobiles Service Manual

Snowmobile Identification ………………………………… 1-2
Recommended Gasoline and Oil ……………………… 1-2
Break-In Procedure ………………………………………… 1-2
Genuine Parts ……………………………………………….. 1-2
High Altitude Operation …………………………………… 1-3
Preparation For Storage ………………………………….. 1-3
Preparation After Storage ……………………………….. 1-4
After Break-In Checkup (100 Miles) ………………….. 1-5
After Break-In Checkup Checklist …………………….. 1-6
Check Engine Light
(Crossfire/F-Series/M-Series Models) …………….. 1-6
Diagnostic Codes/Check Engine
(Crossfire/F-Series/M-Series Models) …………….. 1-6
Chassis Control Unit
(Crossfire/F-Series/M-Series Models) …………….. 1-7
Diagnostic Codes/Chassis Control Unit
(Crossfire/F-Series/M-Series Models) …………….. 1-7
Torque Conversions ……………………………………….. 1-8
Tightening Torque (General Bolts) ……………………. 1-8
Fraction/Decimal Conversion Chart ………………….. 1-9
Drill Bit Sizes (Number) Chart ………………………….. 1-9
MM/In. Conversion Chart ………………………………. 1-10
Servicing Symbols ……………………………………….. 1-11
Back to TOC

Description:

2007 Arctic Cat 2 Stroke Snowmobiles Service Manual

• This Arctic Cat Service Manual contains service and maintenance information for the Model Year 2007 Arctic Cat 2-Stroke Snowmobiles.
• This manual is designed to aid service personnel in service-oriented applications. This manual is divided into sections.
• The sections cover specific snowmobile components or systems and, in addition to the standard service procedures, includes assembling, disassembling, and inspecting instructions.
• When using this manual as a guide, the technician should use discretion as to how much disassembly is needed to correct any given condition.
• The service technician should become familiar with the operation and construction of the components or systems by carefully studying the complete manual.
• This will assist the service technician in becoming more aware of and efficient with servicing procedures. Such efficiency not only helps build consumer confidence but also saves time and labor.
• All Arctic Cat publications and snowmobile decals display the words Warning, Caution, and Note to emphasize important information.
• The symbol ! WARNING identifies personal safety-related information. Be sure to follow the directive because it deals with the possibility of severe personal injury or even death.
• The symbol ! CAUTION identifies unsafe practices which may result in snowmobile-related damage.
• Follow the directive because it deals with the possibility of damaging part or parts of the snowmobile.
• The symbol ? NOTE: identifies supplementary information worthy of particular attention. At the time of publication, all information, photographs, and illustrations were technically correct.
• Some photographs and illustrations used in this manual are used for clarity purposes only and are not designed to depict actual conditions.
• Because Arctic Cat Inc. constantly refines and improves its products, no retroactive obligation is incurred.

Please Note:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
