2007 Arctic Cat ATV Service Manual – PDF DOWNLOAD

Description

2007 Arctic Cat ATV Service Manual

DESCRIPTION:

2007 Arctic Cat ATV Service Manual

This Arctic Cat Service Manual contains service, maintenance, and troubleshooting information for certain 2007 Arctic Cat ATV models (see cover). The complete manual is designed to aid service personnel in service-oriented applications.

• Arctic Cat offers additional publications (when they become available) to aid in servicing other ATV models. To service models not included in this manual, please refer to the following publications: • 2007 Y-12 Service Manual • 2007 DVX/Utility 250 Service Manual • 2007 DVX 400 Service Manual • 2007 Prowler Service Manual • 2007 700 Diesel Service Manual This manual is divided into sections. Each section covers a specific ATV component or system and, in addition to the standard service procedures, includes disassembling, inspecting, and assembling instructions. When using this manual as a guide, the technician should use discretion as to how much disassembly is needed to correct any given condition.
• The service technician should become familiar with the operation and construction of each component or system by carefully studying the complete manual. This manual will assist the service technician in becoming more aware of and efficient with servicing procedures. Such efficiency not only helps build consumer confidence but also saves time and labor. All Arctic Cat ATV publications and decals display the words Warning, Caution, Note, and At This Point to emphasize important information. The symbol ! WARNING identifies personal safety-related information. Be sure to follow the directive because it deals with the possibility of severe personal injury or even death. The symbol ! CAUTION identifies unsafe practices which may result in ATV-related damage. Follow the directive because it deals with the possibility of damaging part or parts of the ATV.
• The symbol ? NOTE: identifies supplementary information worthy of particular attention. The symbol ? AT THIS POINT directs the technician to certain and specific procedures to promote efficiency and to improve clarity. At the time of publication, all information, photographs, and illustrations were technically correct. Some photographs used in this manual are used for clarity purposes only and are not designed to depict actual conditions. Because Arctic Cat Inc. constantly refines and improves its products, no retroactive obligation is incurred.

TABLE OF CONTENTS:

2007 Arctic Cat ATV Service Manual

General Specifications
(400/400 TRV – Automatic Transmission) 1-2
General Specifications
(400 – Manual Transmission) 1-3
General Specifications
(500 – Manual Transmission) 1-4
General Specifications
(500 – Automatic Transmission) 1-5
General Specifications
(650 H1/650 H1 TBX/650 H1 TRV) 1-6
General Specifications
(700 EFI) 1-7
Break-In Procedure 1-8
Gasoline – Oil – Lubricant 1-8
Genuine Parts 1-9
Preparation For Storage 1-9
Preparation After Storage 1-10

2007 ARCTIC CAT ATV SERVICE MANUAL – PDF DOWNLOAD:

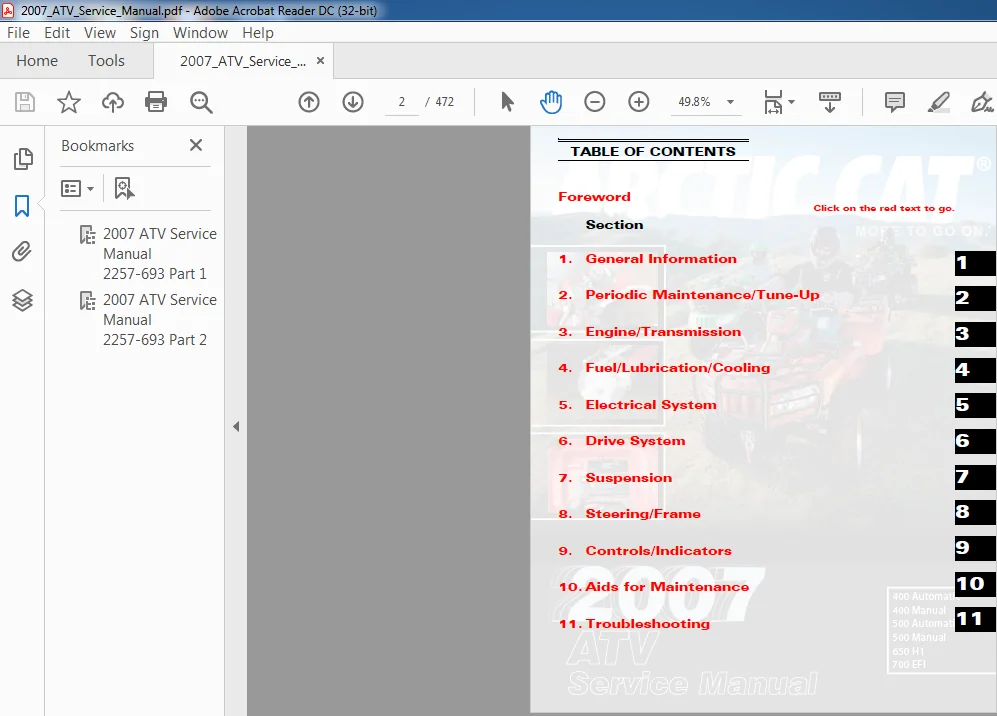

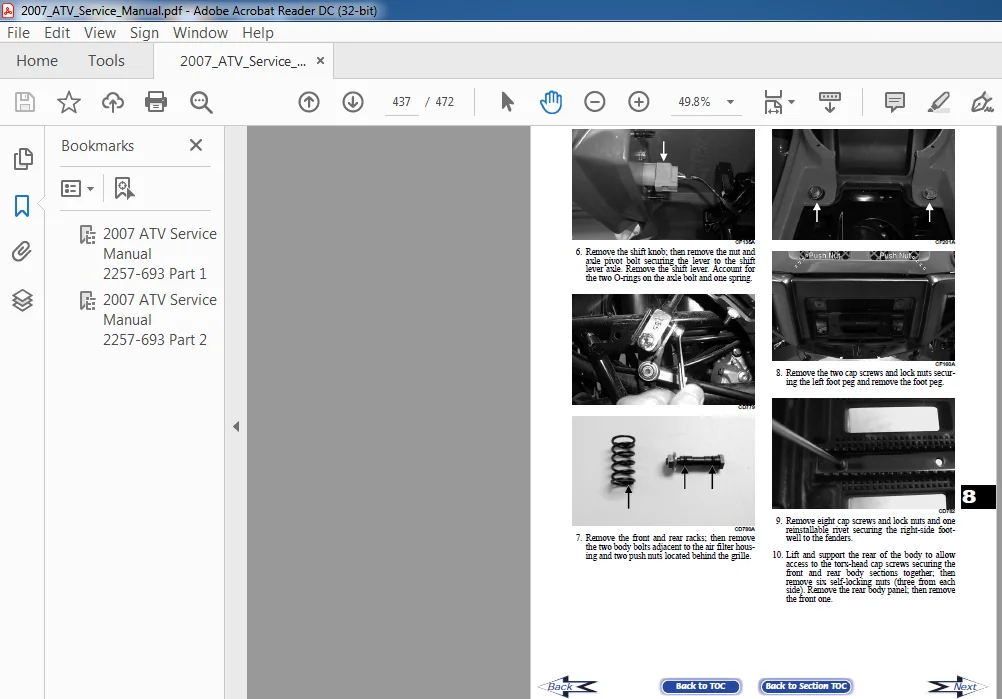

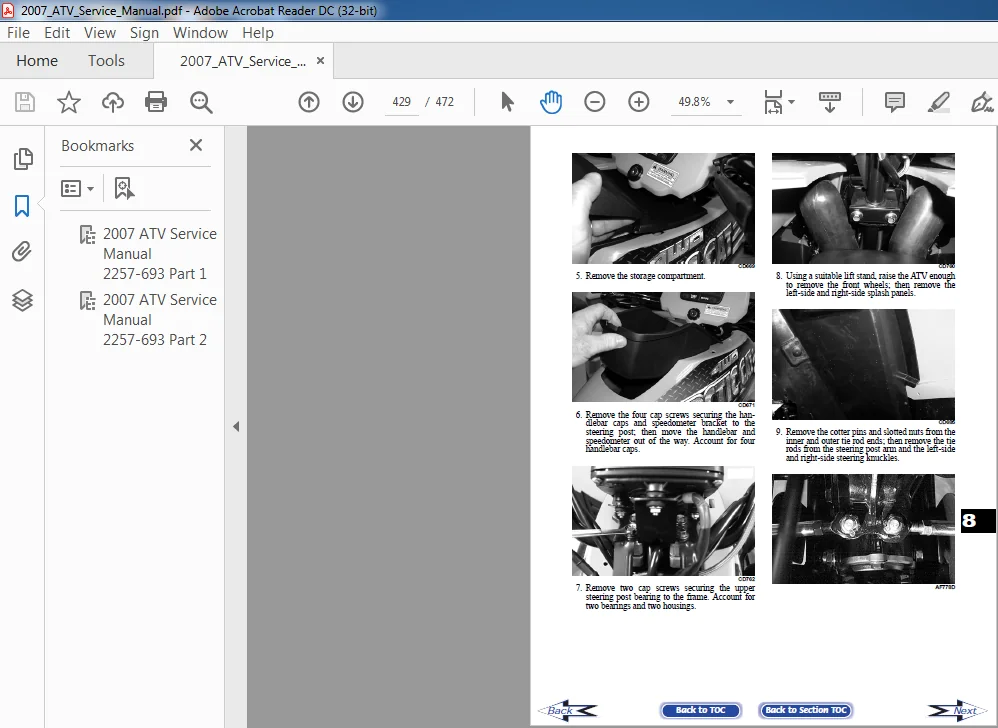

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
