2009 Hyundai Genesis 4.6 MPI Workshop Manual – PDF DOWNLOAD

Description

2009 Hyundai Genesis 4.6 MPI Workshop Manual – PDF DOWNLOAD

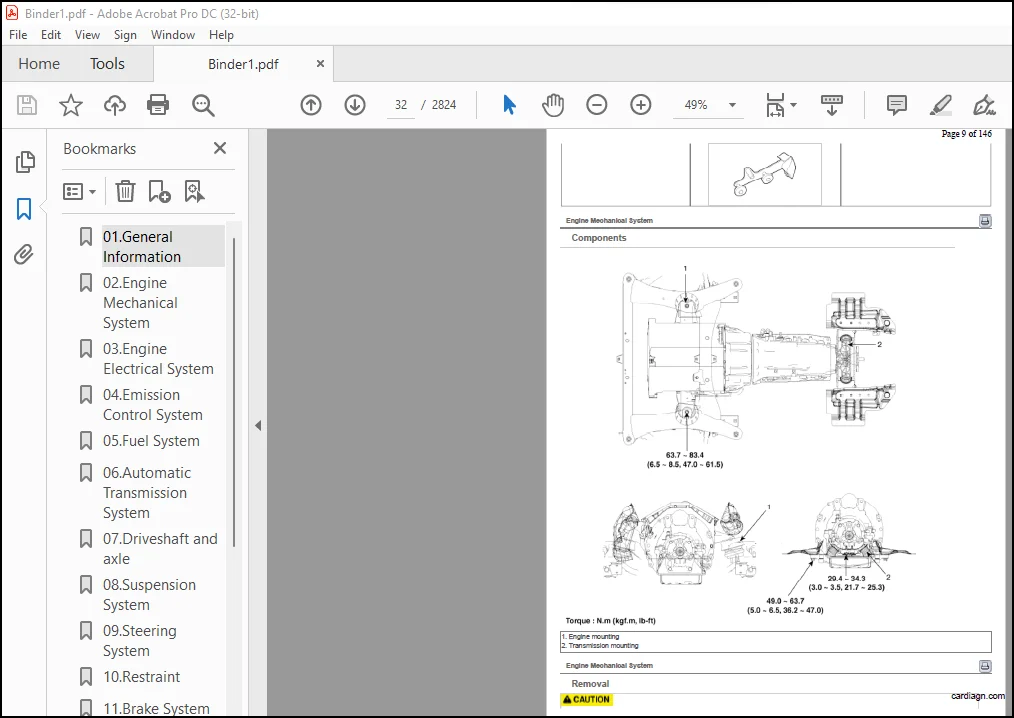

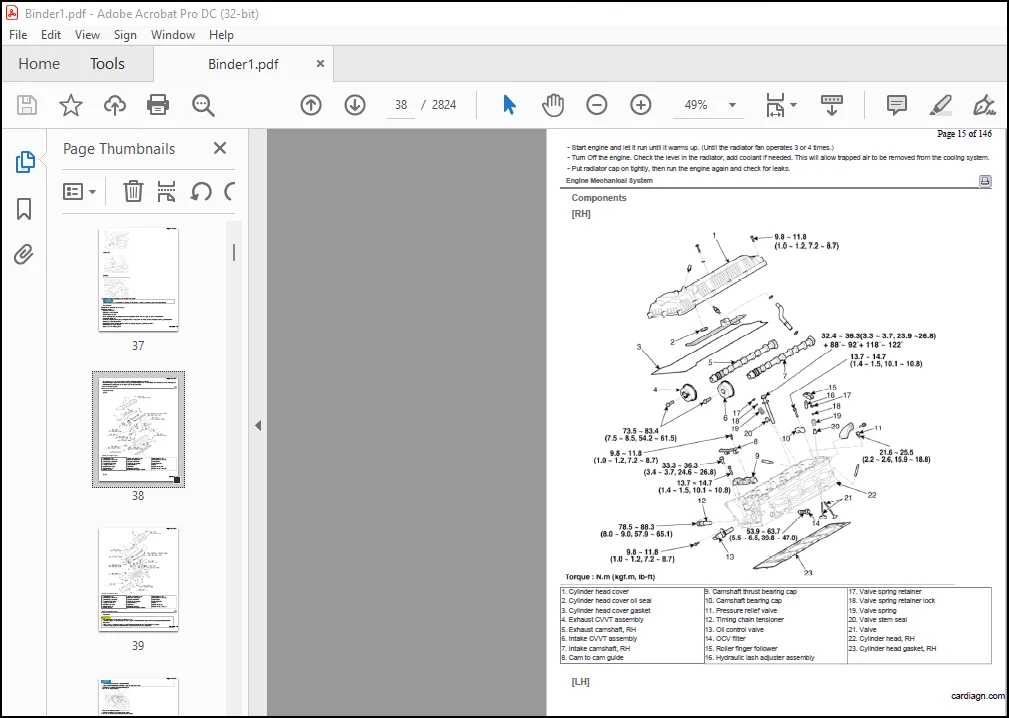

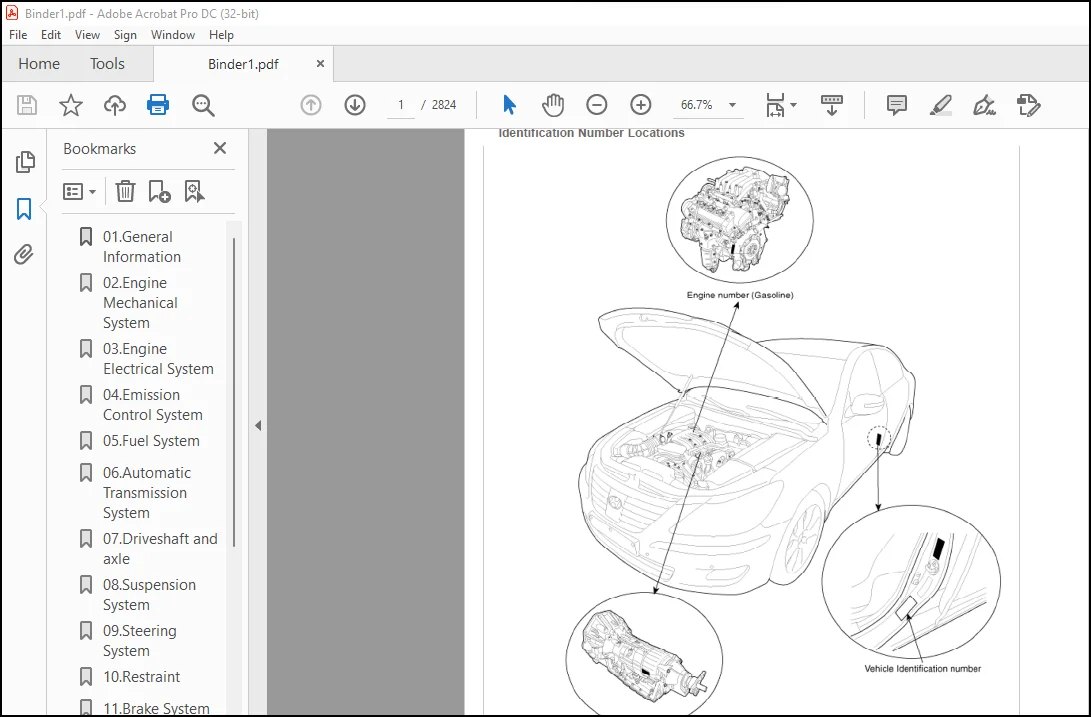

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

2009 Hyundai Genesis 4.6 MPI Workshop Manual – PDF DOWNLOAD

Engine Oil And Filter Replacement
• Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and
dermatitis. In addition, used engine oil contains potentially harmful contaminants which may cause skin cancer.
Exercise caution in order to minimize the length and frequency of contact of your skin to used oil. Wear protective clothing and gloves.
Wash your skin thoroughly with soap and water, or use water-less hand cleaner, to remove any used engine oil. Do not use gasoline,
thinners, or solvents.
• In order to preserve the environment, used oil and used oil filter must be disposed of only at designated disposal sites.
1. Park the car on level ground.
Start the engine and let it warm up.
2. Drain engine oil.
(1) Remove the oil filler cap.
(2) After lifting the car, remove the oil drain plug and drain oil into a container.
3. Replace the oil filter.
(1) Remove the oil filter cap from the oil filter body.
(2) Remove the oil filter element.
(3) Check and clean the oil filter installation surface.
(4) Check the part number of a new oil filter is same as old one.
(5) Install a new oil filter element and new O-rings.
(6) Apply clean engine oil to the new O-ring.
Lightly screw the oil filter cap into place, and tighten it until the O-ring contacts the seat.
(7) Finally tighten it again by specified tightening torque.
Tightening torque :
25N.m (2.54kgf.m, 18.4lb-ft)
4. Fill new engine oil.
(1) Install the oil drain plug with a new gasket.
Tightening torque :
34.3 ~ 44.1N.m (3.5 ~ 4.5kgf.m, 25.3 ~ 32.5lb-ft)
(2) Fill with new engine oil, after removing the engine oil level gauge.
Engine Oil quantity
Total : 7.5 L (7.92 US qt, 6.59 lmp qt)
Oil pan : 6.0 L (6.34 US qt, 5.27 lmp qt)
Drain and refill including oil filter :
6.5 L (6.86 US qt, 5.71 lmp qt)
A. Fill a half oil of the total amount first and do the rest again after about one minute later.
B. Do not fill oil over the ‘F’ line, checking the level with the oil level gauge.
(3) Install the oil filler cap and oil level gauge.
5. Start the engine and check to be sure no oil is leaking from the drain plug or oil filter.
6. Recheck the engine oil level.

TABLE OF CONTENTS:

2009 Hyundai Genesis 4.6 MPI Workshop Manual – PDF DOWNLOAD

01.General Information………………………. 1
02.Engine Mechanical System………………….. 24
03.Engine Electrical System………………….. 170
04.Emission Control System…………………… 208
05.Fuel System……………………………… 225
06.Automatic Transmission System……………… 903
07.Driveshaft and axle……………………….1212
08.Suspension System…………………………1240
09.Steering System…………………………..1322
10.Restraint………………………………..1367
11.Brake System (Electronic Stability Control)….1588
12.Body (Interior and Exterior)……………….1730
13.Body Electrical System (Immobilizer)………..1841
14.Heating,Ventilation, Air Conditioning……….2664
