2014 Hyundai Genesis 3.8 GDI Workshop Manual – PDF DOWNLOAD

General:
The supplemental restraint system (SRS) is designed to supplement the seat belt to help reduce the risk or severity of injury to the driver and
passenger by activating and deploying the driver, passenger, side airbag and belt pretensioner in certain frontal or side collisions.
The SRS (Airbag) consists of ; a driver side airbag module located in the center of the steering wheel, which contains the folded cushion and an
inflator unit ; a passenger side airbag module located in the passenger side crash pad contains the folded cushion assembled with inflator unit ;
side airbag modules located in the front seat contain the folded cushion and an inflator unit ; curtain airbag modules located inside of the
headliner which contains folded cushions and inflator units. The impact sensing function of the SRSCM is carried out by electronic accelerometer
that continuously measure the vehicle’s acceleration and delivers a corresponding signal through amplifying and filtering circuitry to the
microprocessor.
SRSCM (SRS Control Module)
SRSCM will detect front impact with front impact sensor, and side impact with side impact sensor, and determine airbag module deployment.
1. DC/DC converter: DC/DC converter in power supply unit includes up/down transformer converter, and provide ignition voltage for 2 front
airbag ignition circuits and the internal operation voltage of the SRSCM. If the internal operation voltage is below critical value setting, it will
perform resetting.
2. Safety sensor: Safety sensor is located in airbag ignition circuit. Safety sensor will operate airbag circuit at any deployment condition and
release airbag circuit safely at normal driving condition. Safety sensor is a double contact electronic switch that will close detecting
acceleration above certain criteria.
3. Back up power supply: SRSCM has separate back up power supply, that will supply deployment energy instantly in low voltage condition or
upon power failure by front crash.
4. Self diagnosis: SRSCM will constantly monitor current SRS operation status and detect system failure while vehicle power supply is on,
system failure may be checked with trouble codes using scan tool. (Hi- Scan)
5. Airbag warning lamp on: Upon detecting error, the module will transmit signal to SRSCM indicator lamp located at cluster. MIL lamp will
indicate driver SRS error. Upon ignition key on, SRS lamp will turn on for about six seconds.
6. Trouble code registration: Upon error occurrence in system, SRSCM will store DTC corresponding to the error. DTC can be cleared only by
Hi-Scan. However, if an internal fault code is logged or if a crash is recorded the fault clearing should not happen.
7. Self diagnostic connector: Data stored in SRSCM memory will be output to Hi-Scan or other external output devices through connector
located below driver side crash pad.
8. Once airbag is deployed, SRSCM should not be used again but replaced.
9. SRSCM will determine whether passenger put on seat belt by the signal from built-in switch in seat belt buckle, and deploy front seat airbag
at each set crash speed.
10. Side airbag deployment will be determined by SRSCM that will detect satellite sensor impact signal upon side crash, irrespective to seat belt
condition.

TABLE OF CONTENTS:

2014 Hyundai Genesis 3.8 GDI Workshop Manual – PDF DOWNLOAD

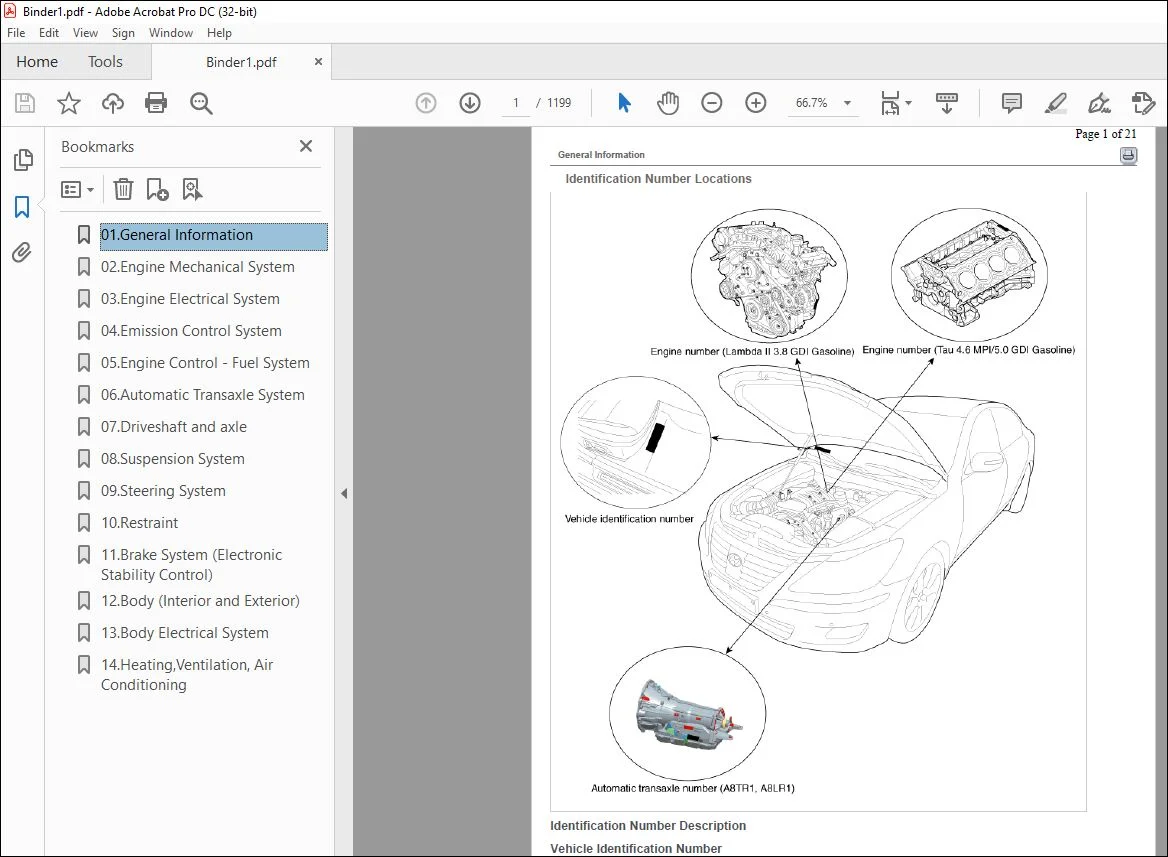

01.General Information………………………. 1

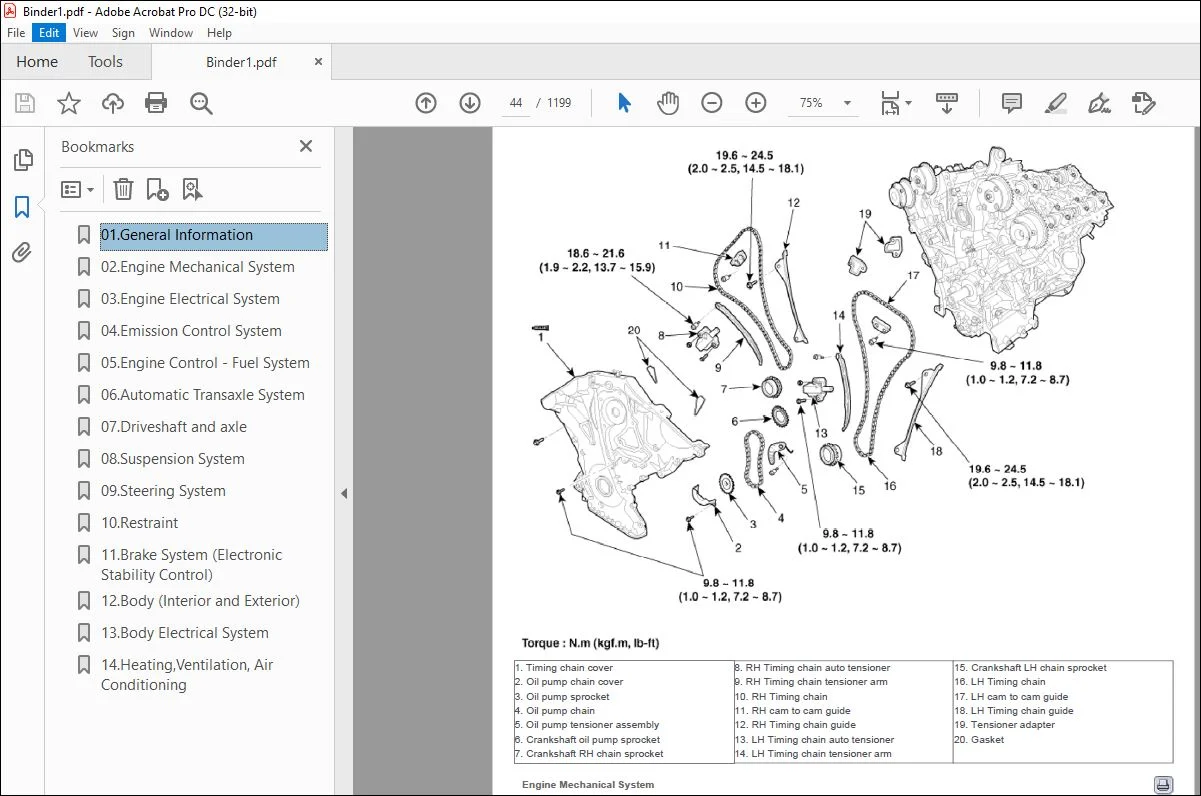

02.Engine Mechanical System………………….. 22
03.Engine Electrical System………………….. 157
04.Emission Control System…………………… 213
05.Engine Control – Fuel System………………. 231

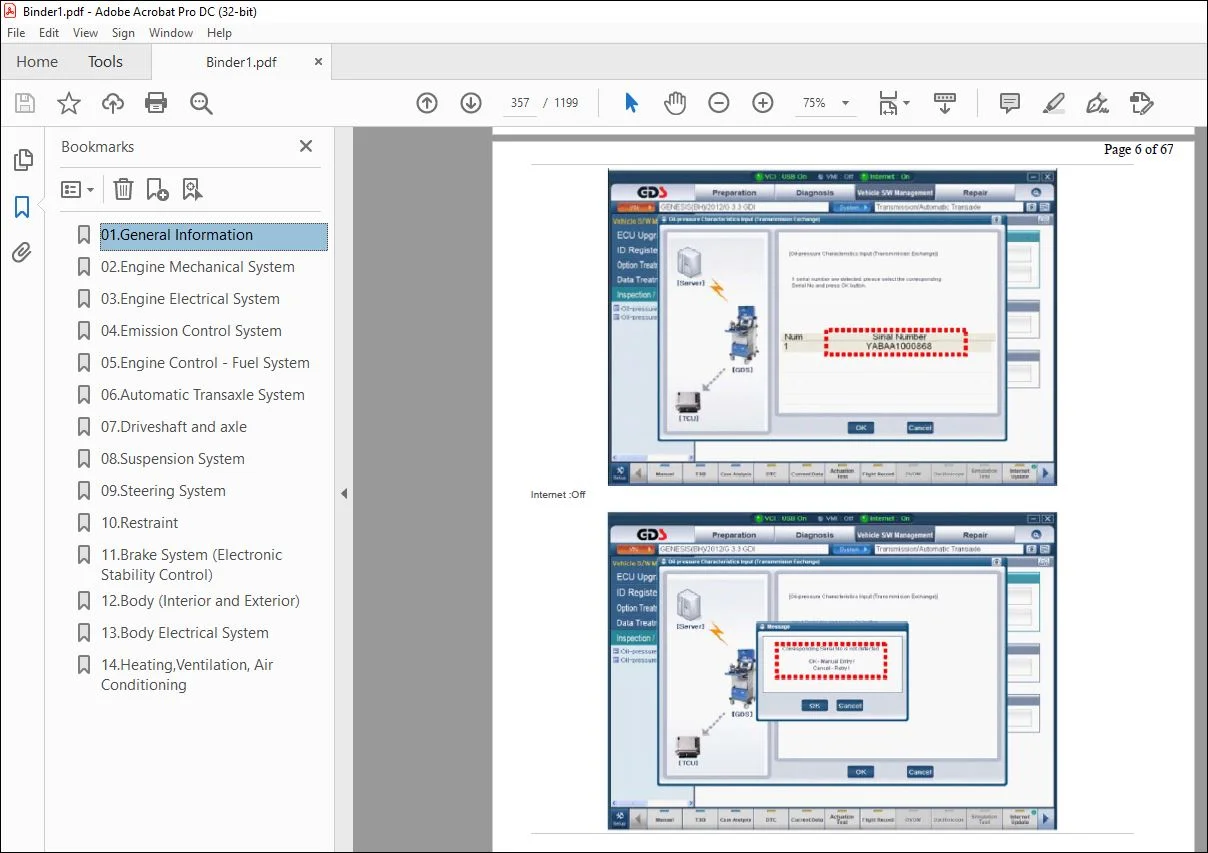

06.Automatic Transaxle System………………… 352
07.Driveshaft and axle………………………. 419
08.Suspension System………………………… 447
09.Steering System………………………….. 479
10.Restraint……………………………….. 497
11.Brake System (Electronic Stability Control)…. 548
12.Body (Interior and Exterior)………………. 631
13.Body Electrical System……………………. 745
14.Heating,Ventilation, Air Conditioning……….1133
