2016 Hyundai Genesis 3.8 GDI Workshop Manual – PDF DOWNLOAD

Description

2016 Hyundai Genesis 3.8 GDI Workshop Manual – PDF DOWNLOAD

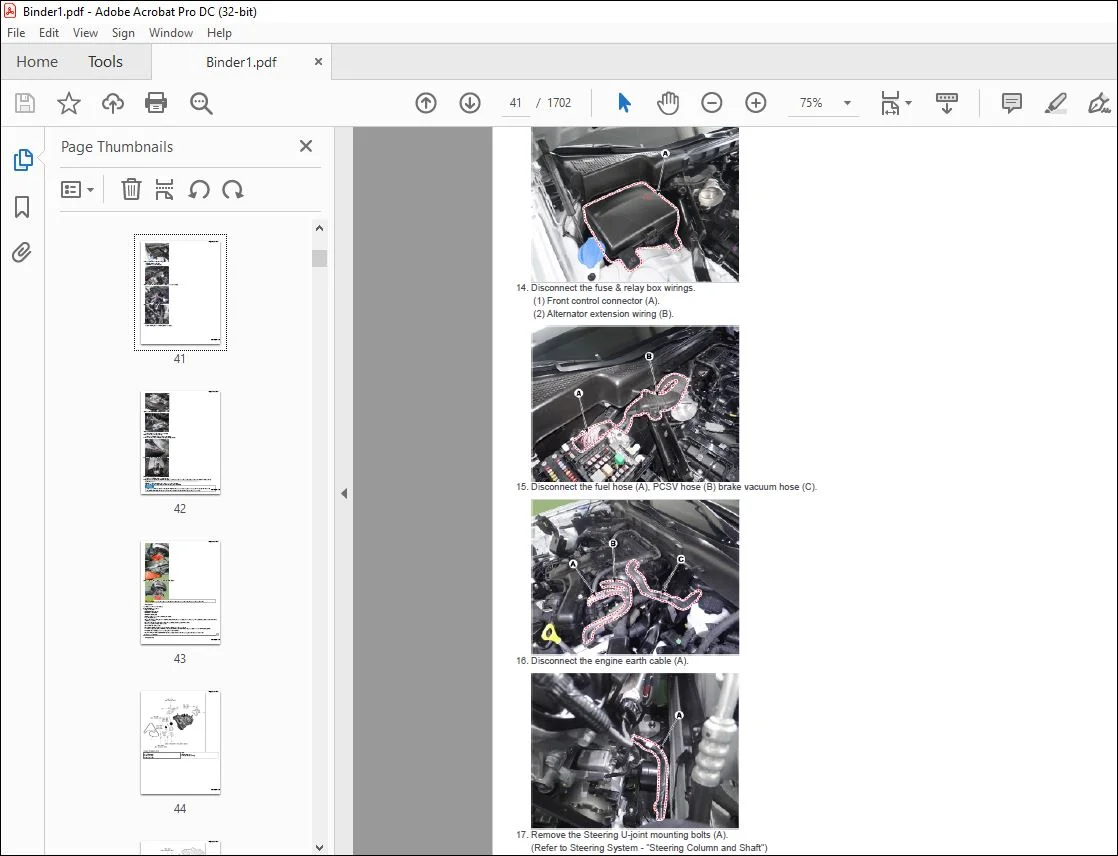

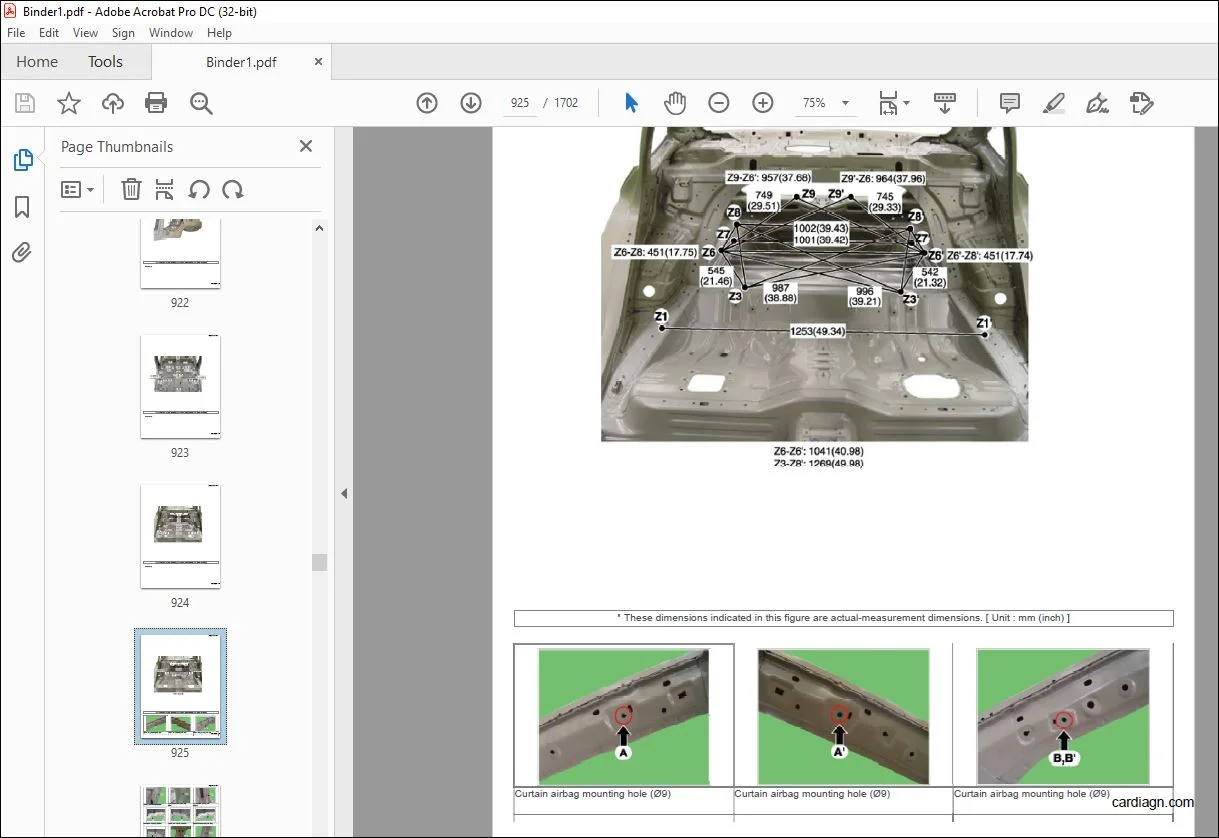

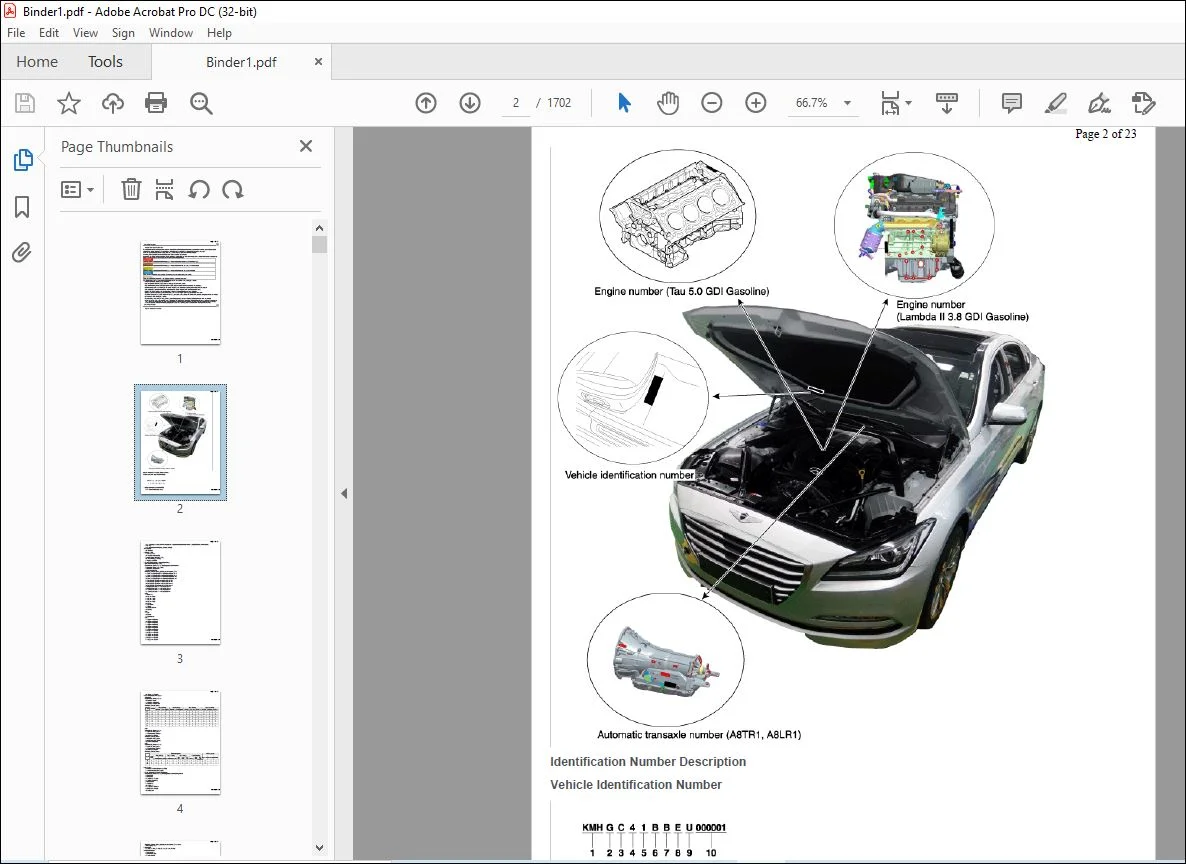

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

2016 Hyundai Genesis 3.8 GDI Workshop Manual – PDF DOWNLOAD

Important Safety Notice:
Proper service methods and repair procedures are essential for safe, reliable operation of all motor vehicles as well as personal safety of the
operator. The service procedures and descriptions in this shop manual provide general directions for service and repair.
There are various procedures, techniques, tools and pars for service as well as the skill of technicians.
Therefore, it is impossible for this manual to provide advice or caution for each case.
Accordingly, if you use a replacement part, service procedure, or tool which are not recommended by the vehicle manufacturer, make sure that neither the personal safety nor the safe operation of the vehicle is jeopardized.
Gives you additional information that will help you complete a particular procedure.
The following list contains some general WARNINGS that you should follow while working on a vehicle.
• Always wear safety glasses for eye protection.
• Use safety stands whenever a procedure requires you to be under the vehicle.
• Make sure that the ignition switch is always in the OFF position, unless otherwise required by the procedure.
• Set the parking brake when working on the vehicle. If you have an automatic transaxle, set the vehicle in the P position.
• Place supporters against the front and rear surfaces of the tires to prepare for the vehicle suddenly moving.
• Operate the engine only in a well-ventilated area to avoid the danger of carbon monoxide poisoning.
• Keep yourself and your clothing away from moving parts when the engine is running, especially the drive belts.
• To prevent serious burns, avoid contact with hot metal parts such as the radiator, exhaust manifold, tail pipe, catalytic converter and muffler.
• Do not smoke while working on a vehicle.
• To avoid injury, always remove rings, watches, loose hanging jewelry, and loose clothing before beginning to work on a vehicle.
• When it is necessary to work under the hood, keep hands and other objects clear of the radiator fan blades! Your vehicle may be equipped
with a cooling fan that may turn on, even though the ignition switch is in the OFF position. For this reason care should be taken to ensure
that the radiator fan electric motor is completely disconnected when working under the hood and that the engine is not running.

TABLE OF CONTENTS:

2016 Hyundai Genesis 3.8 GDI Workshop Manual – PDF DOWNLOAD

01.General Information…………………….. 1
02.Engine Mechanical System………………… 24
03.Engine Electrical System………………… 193
04.Emission Control System…………………. 272
05.Engine Control – Fuel System…………….. 290
06.Automatic Transmission System (SBC)………. 443
07.4 Wheel Drive (AWD) System………………. 516
08.Driveshaft and axle…………………….. 550
09.Suspension System………………………. 629
10.Steering System………………………… 720
11.Restraint……………………………… 740
12.Brake System…………………………… 806
13.Body (Interior and Exterior)…………….. 909
14.Body Electrical System…………………..1177
15.Heating, Ventilation and Air Conditioning….1629

Questions? Email us: [email protected]

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
