🔧 2022 Beta RR 250/300 2T Race Edition – OEM Workshop Service Manual (PDF)

If you’re rebuilding, diagnosing, or servicing the 2022 Beta RR 250 / RR 300 2-stroke Race Edition engine, this OEM workshop manual gives you the exact procedures, checks, and torque specs used by professional techs. It includes step-by-step disassembly/assembly guidance with clear workshop-style visuals and detailed component handling notes.

✅ Models Covered

• Beta RR 250 2T (2-Stroke) – 2022

• Beta RR 300 2T (2-Stroke) – 2022

⚙️ Engine Technical Specifications (From the Manual)

RR250

• Bore/Stroke: 66.4 / 72 mm

• Displacement: 249 cc

• Compression ratio: 13.2:1

RR300

• Bore/Stroke: 73.0 x 69.9 mm

• Displacement: 292.6 cc

• Compression ratio: 11.6:1

🧰 Special Tools / Equipment Covered

Includes the official special tools list such as crankcase uncoupler, flywheel blocking tool, flywheel extractor, squish measuring tool, and multiple Beta special wrenches (with part codes).

📑 Table of Contents (Neatly Organized)

Introduction

• Safety + workshop warnings and handling notes

Engine Technical Specifications

• Engine data + transmission ratios

Special Equipment

• Beta special tools list + symbols reference

1) Engine Removal From Vehicle

• Tank/seat removal, wiring disconnects, cooling drain, exhaust removal

• Engine extraction and mounting on stand

2) Engine Disassembly

• Clutch/gear oil drain

• Clutch control rod + pinion spacer removal

• Piston, cylinder & head removal

• Ignition unit removal (flywheel cover, stator, flywheel, pick-up)

• Electric start system (start motor + Bendix)

• Coolant pump + clutch unit + main gear + centrifugal unit

• Gearshift organs + optional kickstart

• Intake system (reed valve/manifold)

• Crankshaft + gearbox + internal gearshift (crankcase splitting)

• Parts removal from crankcases (bearings/oil seals guidance)

3) Engine Checks and Assembly

• Crankcase half checks + bearing installation method

• Connecting rod & crankshaft checks (runout/play limits)

• Gearbox inspection + gear unit reassembly

• External & internal gearshift setup (forks, pins, desmodromic device)

• Closing crankcase + seal/oil seal guidance

• Clutch unit checks + assembly

• Coolant pump + centrifugal unit assembly

• Electric ignition unit + ignition system checks

• Thermal unit checks (piston/cylinder/exhaust valve) + adjustments

• Intake unit assembly + final clutch rod/pinion spacer install

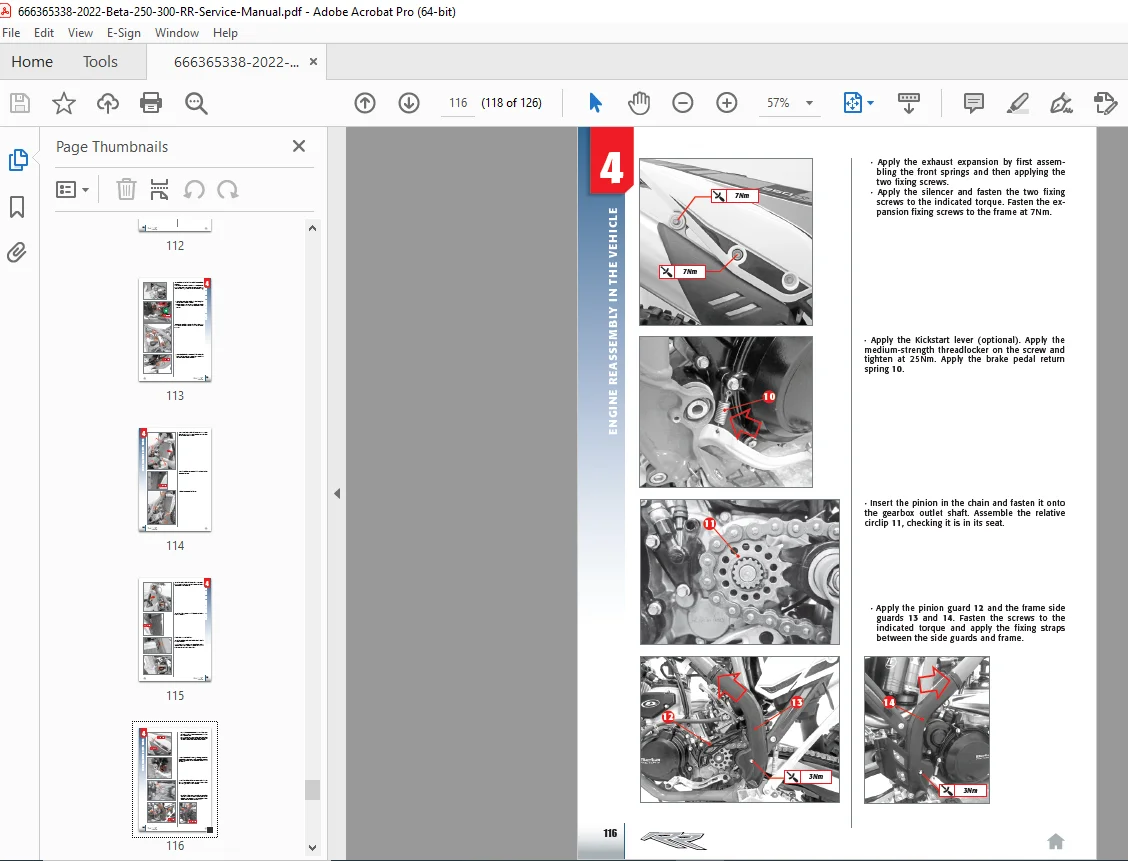

4) Engine Reassembly in the Vehicle

• Final refit procedure

Torque & Maintenance Tables

• Engine component tightening torques

• Frame/engine tightening torques

• Superstructure tightening torques

• Recommended engine maintenance
