Advance SC6500 Parts Manual – PDF DOWNLOAD

Description

Advance SC6500 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Advance SC6500 Parts Manual – PDF DOWNLOAD

Language : English
Pages : 64
Downloadable : Yes
File Type : PDF

56414010 (40C), 56414011 (40C EcoFlex), 56414012 (40D), 56414013 (40D EcoFlex),
56414014 (45C), 56414015 (45C EcoFlex), 56414016 (45D), 56414017 (45D EcoFlex),
56414018 (48C), 56414019 (48C EcoFlex), 56414020 (48D), 56414021 (48D EcoFlex)

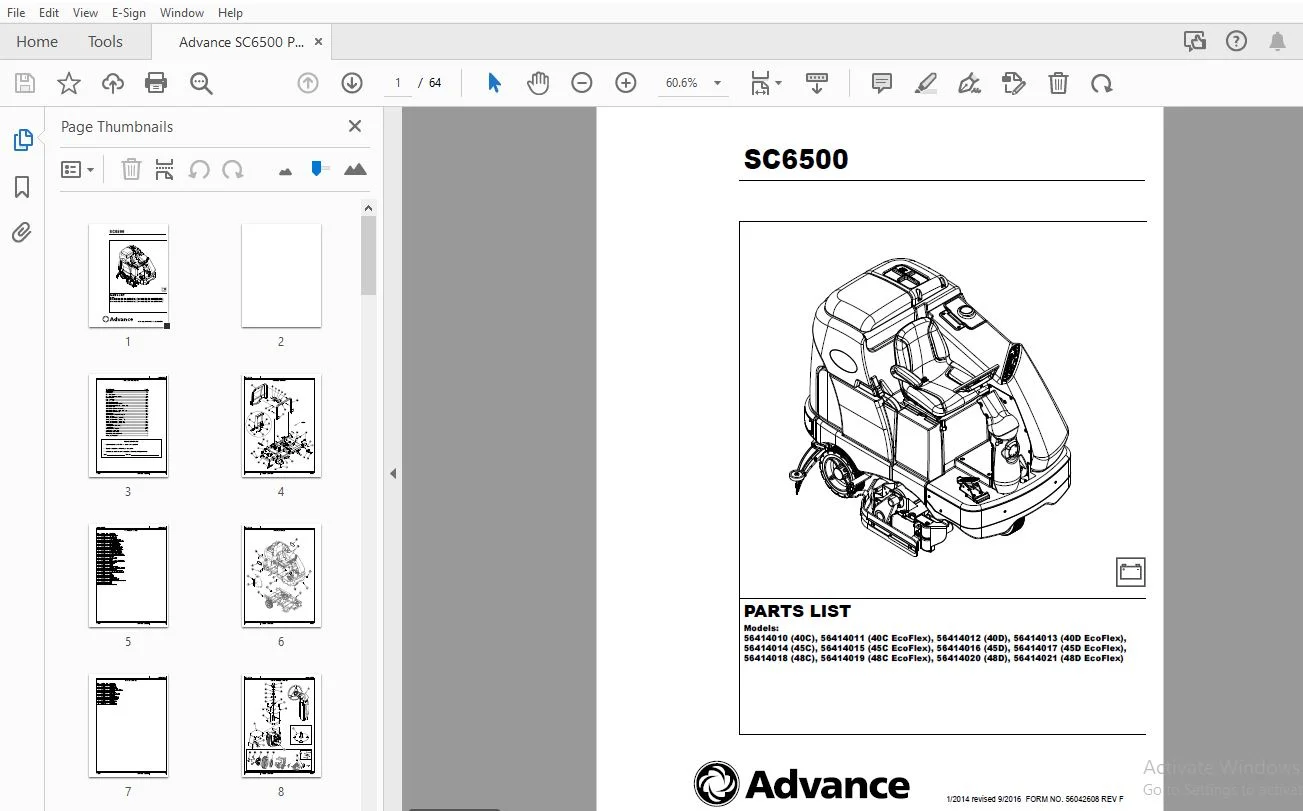

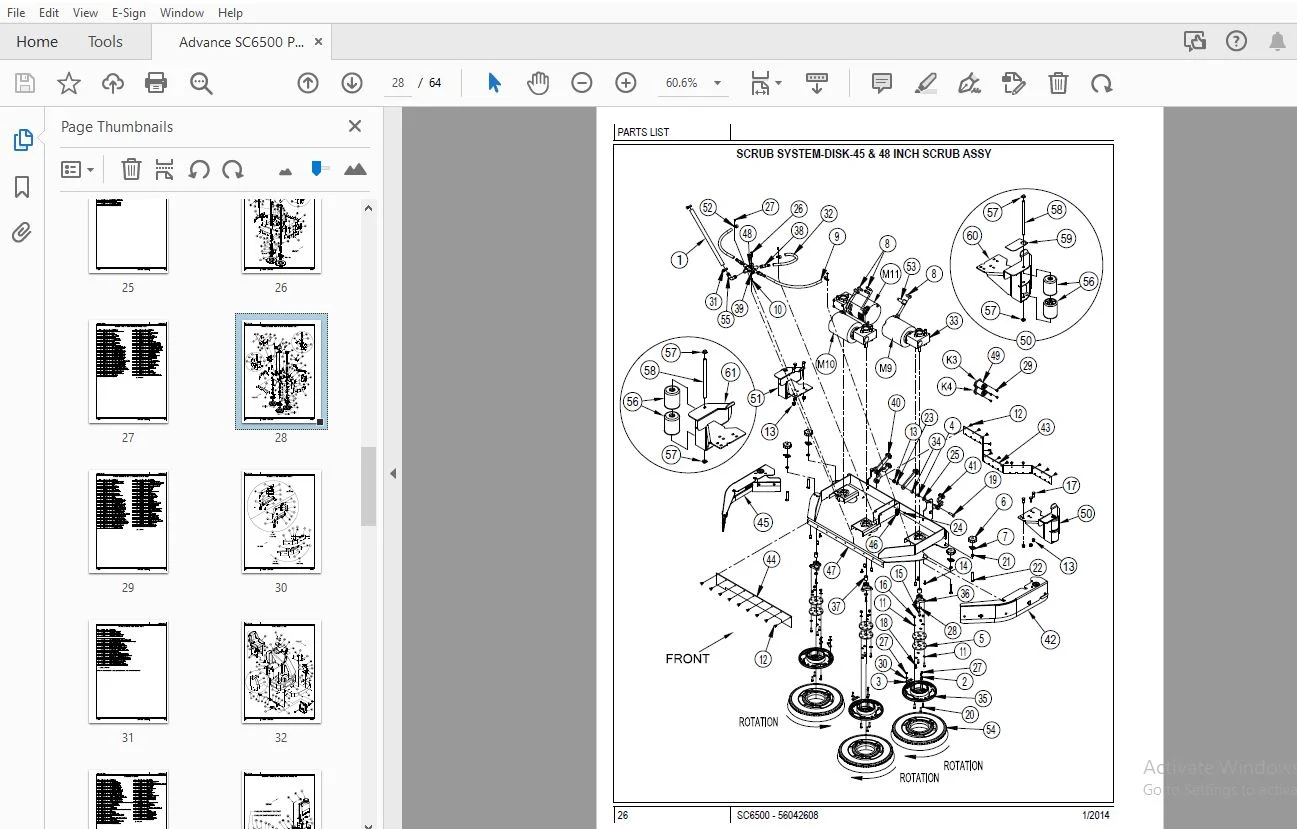

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Advance SC6500 Parts Manual – PDF DOWNLOAD

AdvanceChassis System 2-3
Decal System 4-5
Drive Wheel System 6-7
Drive Wheel System-Steering Assy 8-9
Electrical System 10-11
Rear Wheel System 12-13
Recovery System 14-15
Scrub System-Cylindrical 16-17
Scrub System-Cylindrical-Scrub Assy 18-19
Scrub System-Cylindrical-Skirt & Bumper Assy 20-21
Scrub System-Disk 22-23
Scrub System-Disk-40 Inch Scrub Assy 24-25
Scrub System-Disk-45 & 48 Inch Scrub Assy 26-27
Scrub System-Disk-Skirt Assy 28-29
Solution System 30-31
Solution System-Detergent Metering Kit 32-33
Squeegee System 34-35
Squeegee System-Squeegee Arm Assy 36-37
Squeegee System-Squeegee Assy F-40” 38-39
Squeegee System-Squeegee Assy G-45” 40-41
Squeegee System-Squeegee Assy H-48” 42-43
Sweep System 44-45
Sweep System-Side Broom Assy 46-47
Ladder Diagram 48-53
Optional Kits & Accessories 54-55
Recommended Spare Parts 56-57
Brush Selector Guide-Disk 58
Brush Selector Guide-Cylindrical 59
Squeegee Selector Guide 60

S.S 28/01/2025
