Aeon Overland 125, 180 Manual
FILE DETAILS:
Aeon Overland 125, 180 Manual
Language : English
Pages : 93
Downloadable : YES
Format : PDF
Size : 10.2 MB
DESCRIPTION:
Aeon Overland 125, 180 Manual
Safety:
GASOLINE:
Gasoline is extremely flammable and is explosive under certain condition. Do not smoke or allow sparks or flames in your work area.
CARBON MONOXIDE
Never run the engine in a closed area. The exhaust contains poisonous carbon monoxide gas that may cause loss of consciousness and lead to death.
BATTERY ELECTROLYTE
The battery electrolyte contains sulfuric acid. Protect your eyes, skin and clothing. If you come into contact with the electrolyte, flush the area thoroughly with water. If you get the electrolyte in your eyes, flush with water and contact a doctor immediately.
HOT PARTS
Engine and exhaust pipe become very hot and remain hot for one hour after the engine is run. Wear insulated gloves before handling these parts.
USED ENGINE /GEAR OIL
Used engine oil and gear oil may cause skin disease after repeated contact with the skin for long periods. Keep out of reach of children.
TABLE OF CONTENTS:
Aeon Overland 125, 180 Manual
1 INFORMATION 2
2 MAINTENANCE 6
3 ENGINE REMOVAL AND INSTALLATION 16
4 ENGINE LUBRICATION AND COOLING SYSTEM 17
5 CYLINDER HEAD & VALVES 26
6 CYLINDER & PISTON 37
7 TRANSMISSION SYSTEM 46
8 FRONT WHEEL, SUSPENSION AND STEERING 57
9 REAR WHEEL SYSTEM 68
10 FENDERS AND EXHAUST PIPE 79
11 ELECTRICAL SYSTEM 81
12 TROUBLE SHOOTING 88
VIDEO PREVIEW OF THE MANUAL:

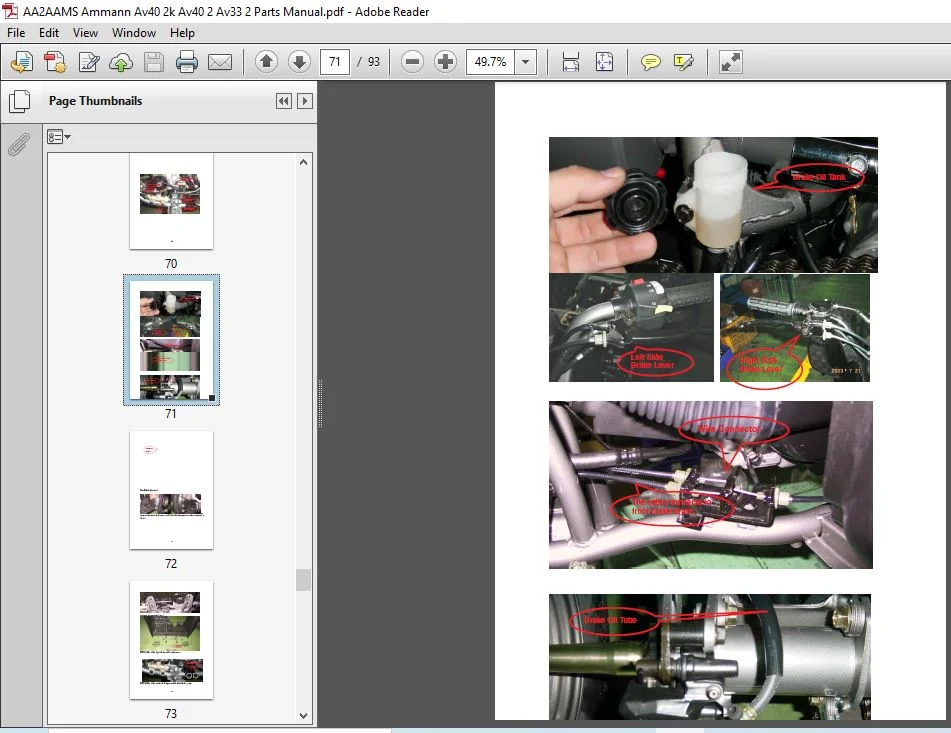

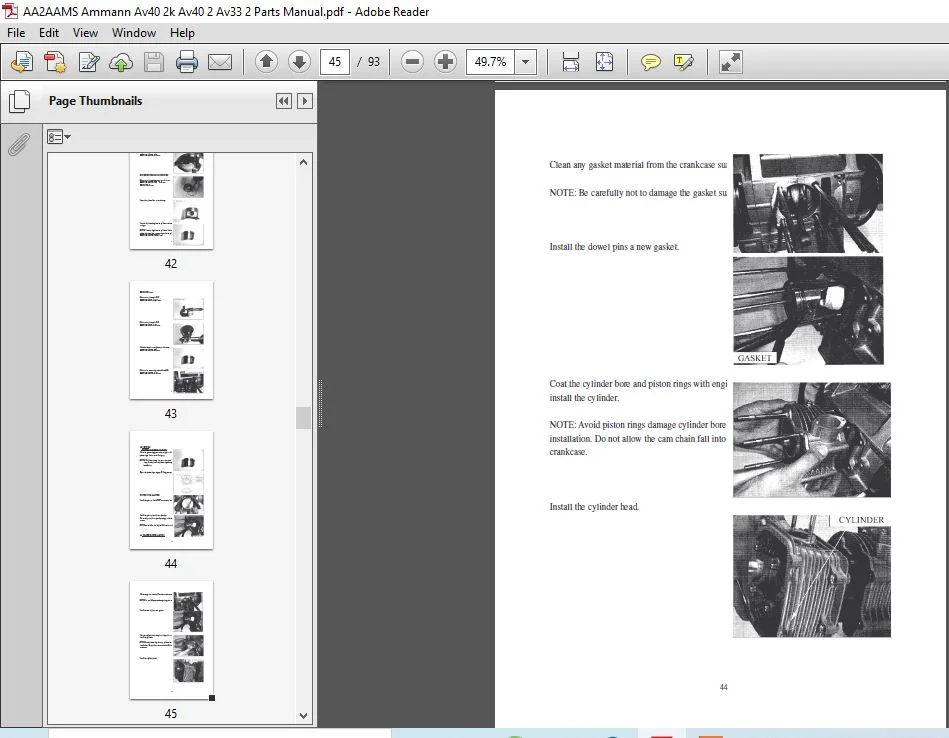

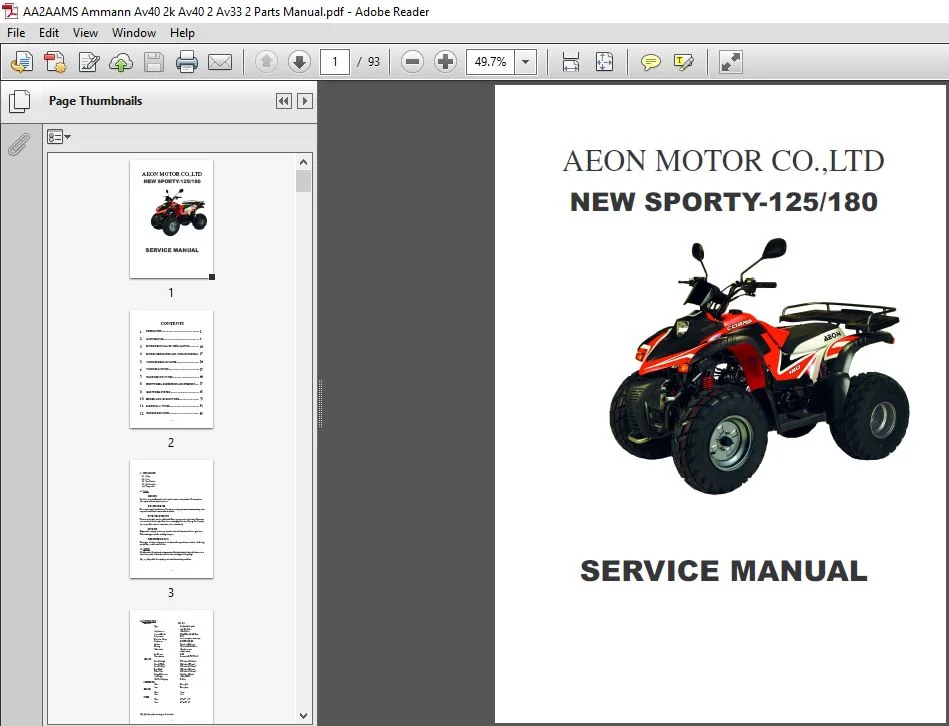

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
