Alcon Series 20000 Legacy Phaco System Service Manual (PDF)

Description

🏥 Alcon SERIES 20000™ LEGACY® (STTL) — Service Manual (PDF)

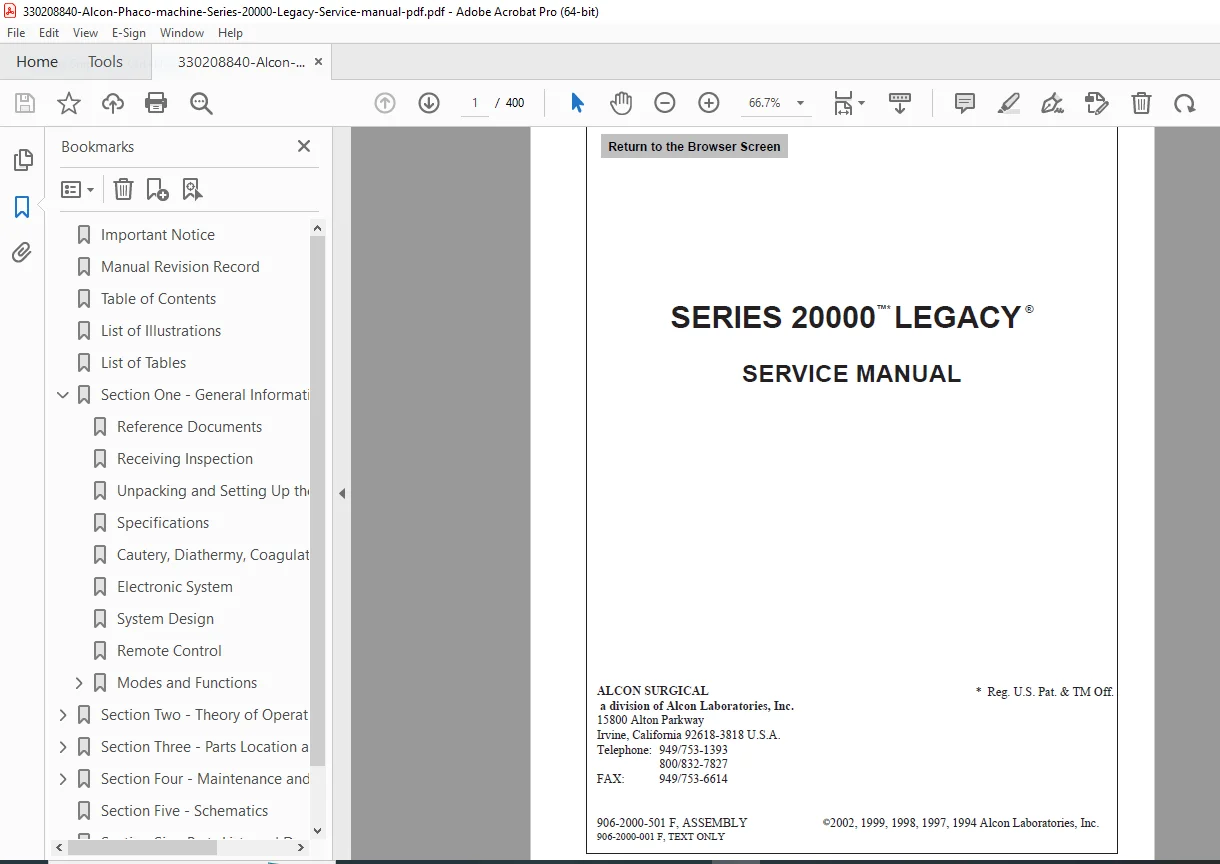

This is the official Alcon Surgical Service Manual for the Series 20000™ Legacy® (STTL) ophthalmic surgical system. It’s built for trained service personnel and provides the service-grade information needed for installation checks, diagnostics, board-level theory, disassembly, troubleshooting, and repair support across multiple Legacy configurations.

✅ What This Manual Covers (High Value)

• Full system description and feature overview

• Detailed modes & functions (irrigation, aspiration, ultrasound/phaco, vit, coag, etc.)

• Handpiece & tip descriptions + consumable pack configurations

• Deep Theory of Operation from system level to PCB level (block diagrams, interface signals, subsystem design)

• Parts location diagrams and field-level disassembly procedures

• Maintenance & troubleshooting including:

  • Recommended supplies/tools/spares

  • System configuration tables

  • Fault/Warning/Advisory message tables

  • POST (Power-On Self-Test) error codes for different CPU PCB versions

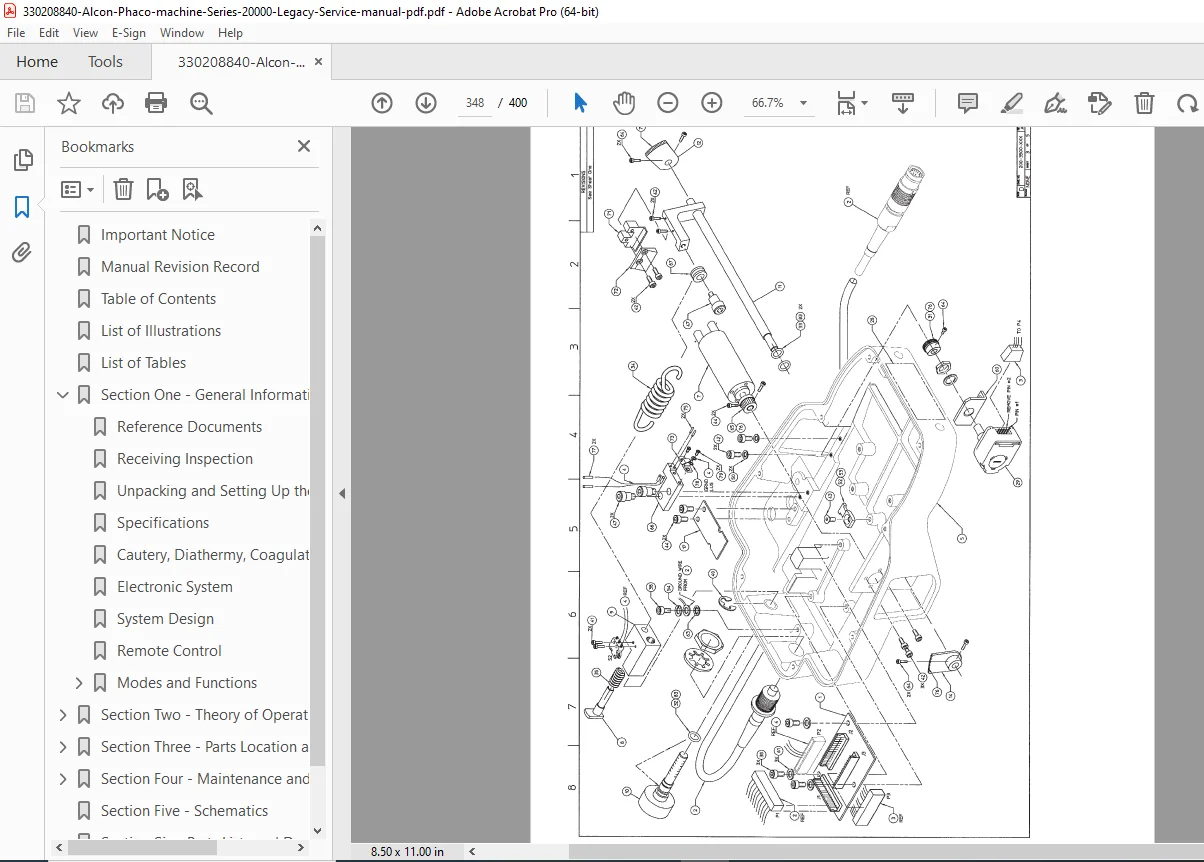

• Full schematics, engineering drawings, and parts lists

• Additional Information section for optional systems (ex: VideOverlay parameters)

📑 Table of Contents (Neatly Organized)

Section One — General Information

• About this manual + reference documents

• Receiving inspection + unpacking/setup

• System design + front panel / cassette housing / connector panel / rear panel

• Audible tones + remote control

• Modes & functions (Irr, Hydrosonics, AdvanTec, U/S, I/A, Vit, Coag, Custom, Test modes)

• Footswitch

• Handpieces and tip descriptions

• Consumable pack configurations

• Error processing + system setup

Section Two — Theory of Operation

• System overview + power supply

• Host system and CPU/multifunction boards

• Footswitch interface / IV pole PCB / video PCB

• Front panel subsystem + remote control boards

• Fluidics subsystem (controller, transducer, cassette type, backplane)

• Pneumatic module / compressor / vit drive

• Phaco subsystem variations (different software versions)

• NeoSonix controller (newer configurations)

• Steerable I/A system (option)

Section Three — Parts Location and Disassembly

• Required tools

• Skins removal

• Field disassembly procedures (LCDs, connector panel, modules, etc.)

Section Four — Maintenance and Troubleshooting

• Supplies / tools / spares tables

• System configuration tables

• Fault, warning, and advisory message tables

• Troubleshooting matrix

• Maintenance procedures (battery replacement, software install/upgrade, touch screen cleaning, calibration items)

• POST error code tables for multiple CPU PCB versions

Section Five — Schematics

• System interconnect + PCB drawings + schematic diagrams

Section Six — Parts Lists and Drawings

• Parts lists + engineering drawings + cable drawings

Section Seven — Additional Information

• Optional accessory/service coverage (e.g., VideOverlay Parameters System)

📌 File Details

If you’re servicing a Legacy system, this is the manual that saves hours—board-level theory, fault tables, POST codes, disassembly steps, and schematics in one place. Instant download so you can diagnose and repair with confidence today.
