Alfa Laval Purifier Unit P150 Service Manual (2000) – PDF Download
Original price was: $75.00.$21.95Current price is: $21.95.

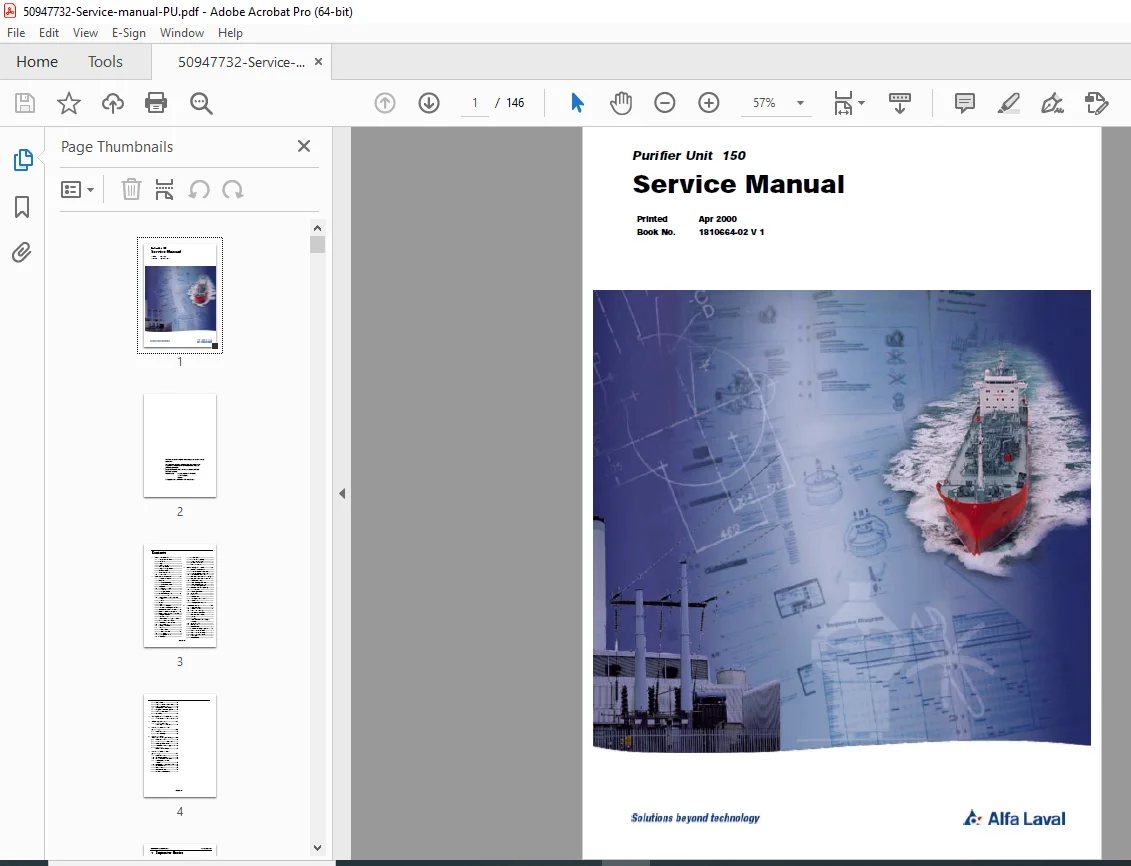

Official Alfa Laval Purifier Unit 150 (P150) Service Manual. Covers separator basics, maintenance intervals, troubleshooting, dismantling/assembly, lubrication charts, CIP, Heatpac CBM/EHM heater options, Power Unit, drawings, wiring/connection lists, and gravity disc nomogram. Ideal for ship engine rooms and plant maintenance. (OEM PDF, ~146 pages, Apr-2000).
Description
Alfa Laval Purifier Unit P150 Service Manual (2000) – PDF Download
Description
Overview

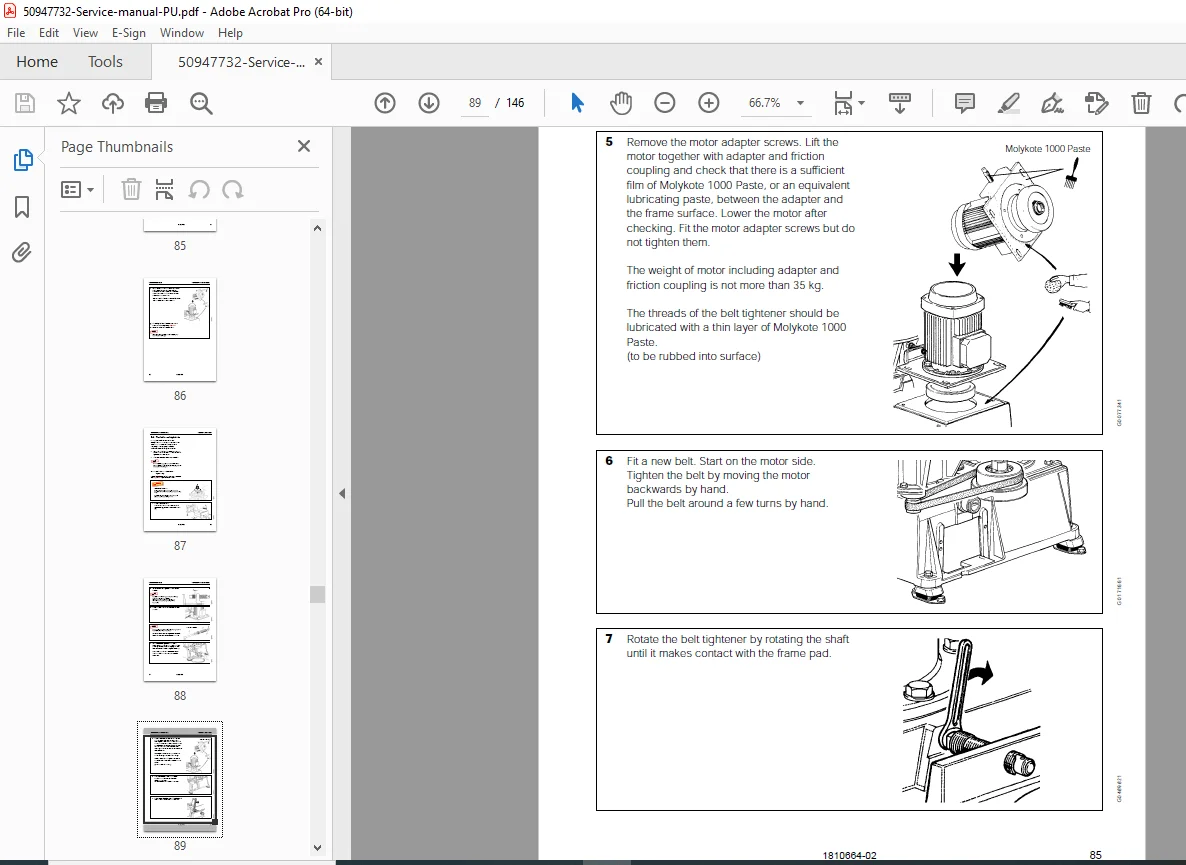

Factory manual for the Alfa Laval P150 high-speed centrifugal separator used for purifying mineral and fuel oils. Includes operating principle, sludge discharge hydraulics, service schedules (IS/MS/3-year), vibration limits, and complete teardown/assembly procedures with special tools.
Models Covered
Purifier Unit 150 (P150) Separator — marine & land applications; purifier/clarifier configurations; optional vibration switch & Heatpac heaters.
Bookmarks / Table of Contents
1. Separator Basics – Application, design, liquid seal & gravity disc, sludge discharge, power transmission, sensors/indicators, definitions.
2. Service Instructions – Periodic maintenance, daily checks, IS/MS service logs, checkpoints (corrosion/erosion/cracks), paring-disc height, spindle wobble, lifting, cleaning agents, oil change, vibration analysis & switch setup, bearings, shut-down prep.
3. Dismantling / Assembly – Inlet/outlet, bowl stack, sliding bottom, distributing rings, friction coupling, belt & tightener; special tools.
4. Technical Reference – Technical data, connection list, basic size drawing, interface description, water quality, lubricants (groups/brands), lubrication chart, drawings & gravity disc nomogram, storage/installation.
5. Change of Circuit Board – Temperatures & handling.
6. Cleaning-in-Place (CIP) – Heatpac® CBM heater CIP procedure.
7–9. Options – Heatpac® CBM/EHM technical data, cleaning, element tests, Heatpac Power Unit functions & load control.
Key Procedures & Specs (highlights)
Operating modes: purifier vs clarifier; gravity/clarifier disc usage; water seal & displacement water.
Service intervals: IS every ~3 months/2000 h; MS annually/8000 h; 3-year: coupling bearings, frame feet, seals.
Diagnostics: vibration ≤ 9 mm/s; optional vibration switch set-point adjustment method included.
Critical settings: paring-disc height over frame hood; spindle radial wobble ≤ 0.04 mm; disc-stack pressure check (30–60° mark lead).
Lubrication: oil groups/brands, change interval 1500 h (2000 h with Group D), filling method & volumes; lubrication chart provided.
File Details
| Field | Info |
|---|---|
| Manual name | Purifier Unit 150 Service Manual (Book No. 1810664-02, V1) |
| Models covered | Alfa Laval P150 centrifugal separator (purifier/clarifier) |
| Year | Apr 2000 |
| PDF quality | OEM, clear, searchable with diagrams & drawings |
| No. of pages | ~146 pages |
