Allengers PRIDE HP Cathlab Service Manual – Fixed 100kW System with FPD
$26.95
Comprehensive factory service manual for the Allengers PRIDE HP 100kW Fixed Cathlab System with FPD, covering installation, electrical wiring, calibration, and compliance standards. A must-have reference for certified biomedical engineers and service teams.
Description
Allengers PRIDE HP Cathlab Service Manual – Fixed 100kW System with FPD (PDF Download)
DESCRIPTION:
The Allengers PRIDE HP Service Manual is the official factory manual for installation, calibration, and service of the Allengers PRIDE HP Fixed Cathlab 100kW system equipped with Flat Panel Detector (FPD) technology.
Developed by Allengers Medical Systems Ltd., this detailed technical document is designed for trained biomedical engineers and field service technicians, providing complete guidance for mechanical installation, electrical connections, safety, and calibration of diagnostic X-ray imaging systems.
This manual outlines every step of the system setup process, from unpacking and electrical grounding to configuring DICOM image processing and radiation protection. It includes circuit-level descriptions, safety compliance tables, and precise mechanical specifications for the C-Arm, generator, and patient table.
The PRIDE HP system is built to deliver high-frequency performance (100kW output, 40kHz generator) and supports advanced fluoroscopy and digital subtraction angiography (DSA) functions for cardiac and vascular imaging.

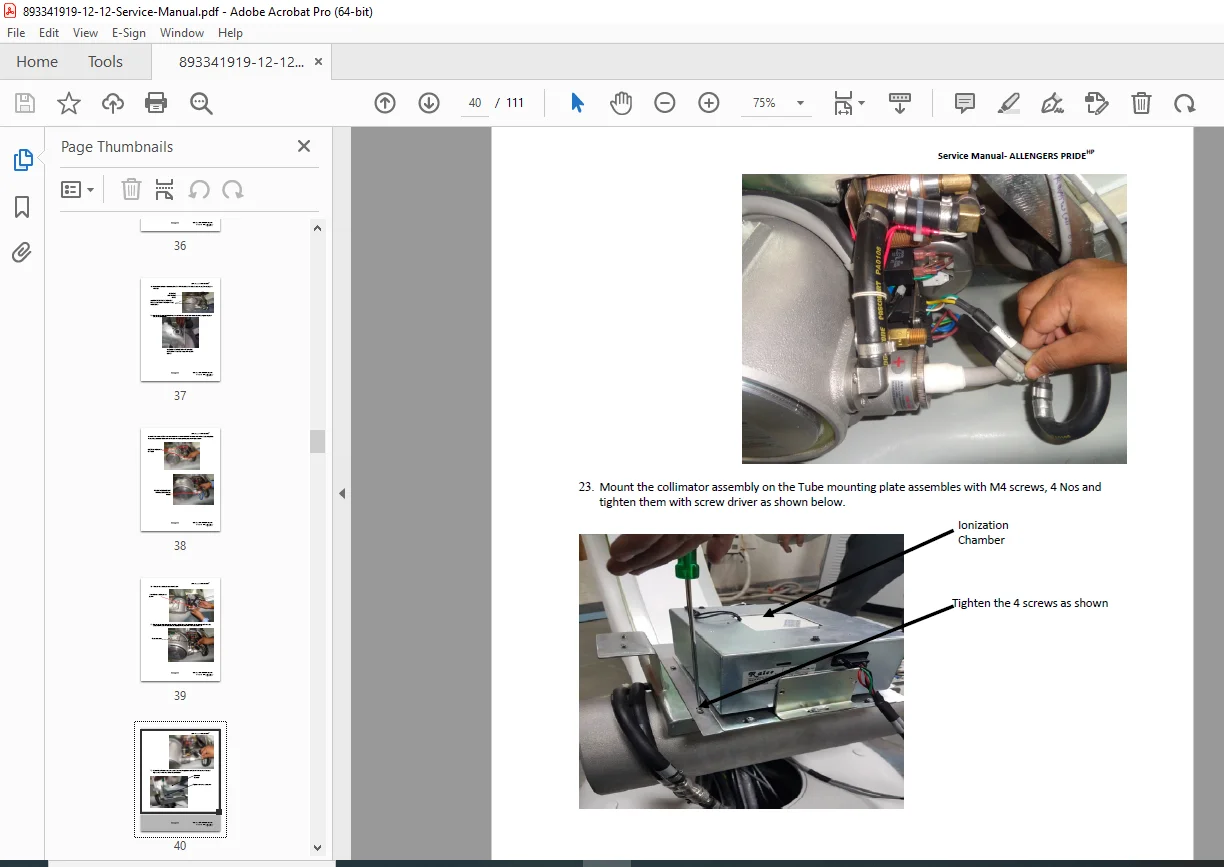

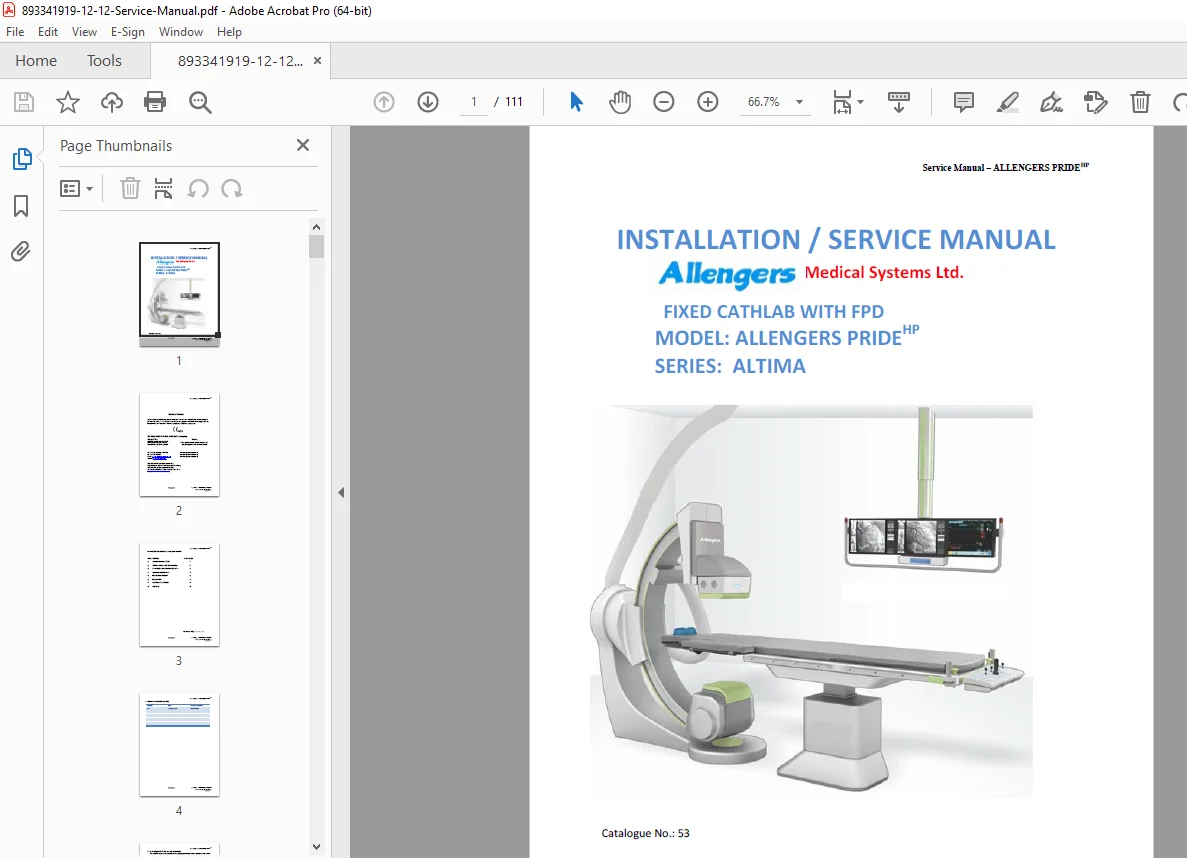

IMAGES:
⚙️ Technical Highlights
| Category | Specification |
|---|---|
| Model Name | Allengers PRIDE HP Fixed Cathlab |
| Output Power | 100kW (100kV, 1000mA, 0.1s) |
| Generator Frequency | 40 kHz |
| X-ray Tube | Liquid Metal Tube with Grid Control, 2.1 MHU Heat Capacity |
| Anode Heat Dissipation | 6300 HU/sec |
| Collimator | Parallel Long, Cross, and Cardiac Copper Shutters |
| Flat Panel Detector | Varian PaxScan 2020DXV – 1024×1024 pixels, 19.9cm field |
| Frame Rate | 1–30 fps |
| Operating Modes | Cine, Fluoroscopy, Pulsed Fluoro (up to 25 pps) |
| Processor | Intel Core i3 3.7GHz, 4GB RAM, 1TB HDD |
| Software | Windows 7 with DICOM 3.0 |
| Mechanical Type | Fixed Cathlab – 3-axis floating carbon table |
| SID Range | 820–1120 mm |
| C-Arm Movement | ±90° L-arm, ±45° CRA/CAU |
| Electrical Input | 400V ±10%, 3 Phase, 125 KVA |
| UPS | 230V ±10%, 2 KVA |
| Safety Class | Class I, Type B Applied Part |
| Protection Rating | IP30 |
| Standards Compliance | EN 60601-1, EN 60601-1-2, EN 60601-2-54, ISO 14971, ISO 15223-1 |
| Manufacturer | Allengers Medical Systems Ltd., Chandigarh, India |
🧰 Main Sections Covered
Introduction and Safety Instructions
Unpacking and Installation Procedures
Electrical Connection Schematics
Technical and Mechanical Specifications
EMC & Radiation Compliance Tables
Calibration and Alignment Guidelines
Maintenance and Troubleshooting
Service Contacts and Help Desk Directory
FILE DETAILS
| Field | Information |
|---|---|
| File Name | 893341919-12-12-Service-Manual.pdf |
| Manual Type | Service / Installation Manual |
| Manufacturer | Allengers Medical Systems Ltd. |
| Model Covered | PRIDE HP Fixed Cathlab with FPD |
| System Type | 100kW X-ray Cathlab (Fixed Type) |
| Pages | 111 Pages |
| Language | English |
| Format | Searchable PDF |
| Size | ~17.5 MB |
| Publication Date | March 2011 |
| Compliance | ISO 9001:2008 & EN ISO 13485:2012 |
| Includes | Installation, Electrical, Safety & Calibration Procedures |
