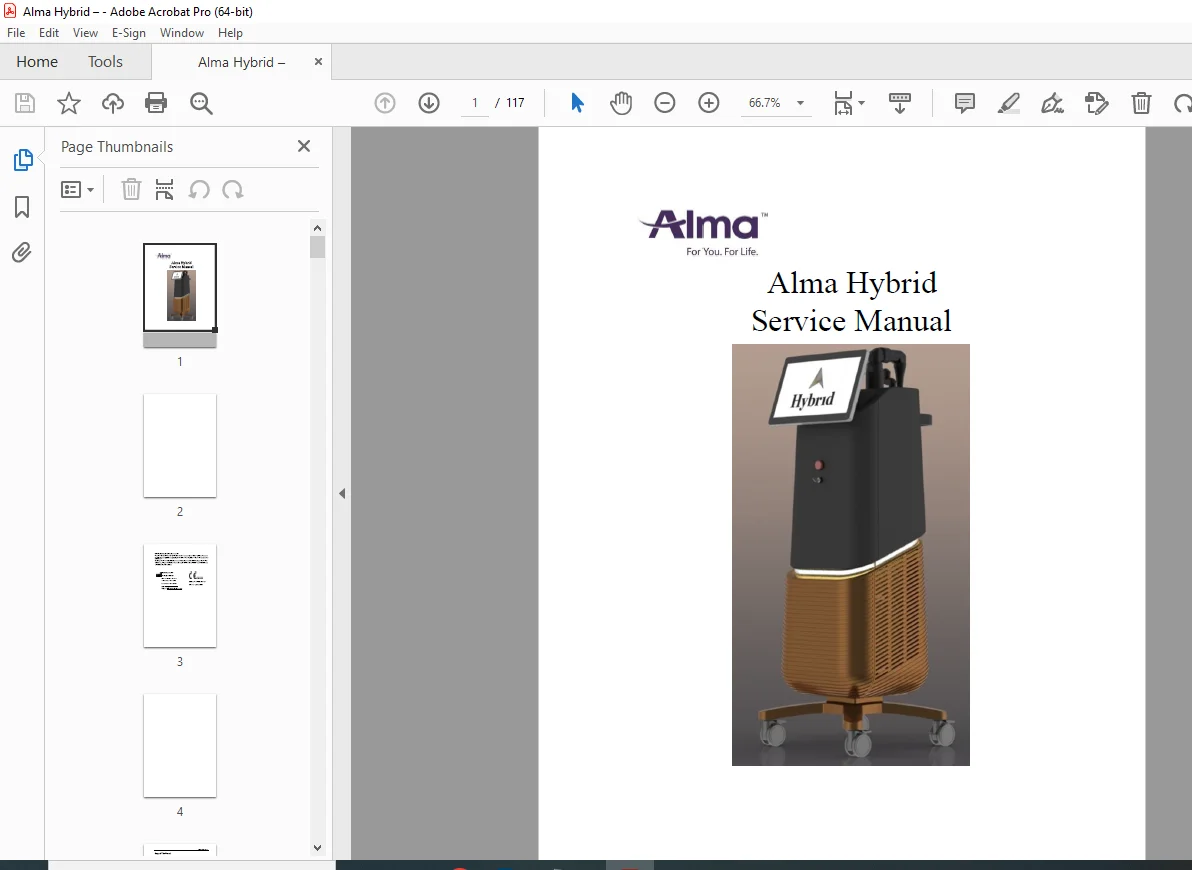

Alma Hybrid Laser System Service Manual β 2020 Revision (PDF)
Original price was: $65.00.$22.95Current price is: $22.95.
Factory service manual for the Alma Hybrid platform combining COβ 10,600 nm, 1570 nm fiber laser, and Impact ultrasound. Includes safety, installation, operation, technician-mode calibration & beam alignment, troubleshooting error codes, software installation, and full spare parts list with figures. Text-searchable PDF.
Description
Alma Hybrid Laser System Service Manual β 2020 Revision (PDF) DOWNLOAD
description
What this manual covers
System Overview β device purpose, user responsibilities, maintenance policy.
Safety β electrical, laser & ultrasound safety, eyewear specs (OD for 10600 nm + 1570 nm), interlock, alarms, fire/explosion cautions, labeling & compliance (Class 4 lasers, IEC/ANSI).
System Description β specs and modules:
COβ laser (RF-excited, up to 30 W/70 W models)
1570 nm fiber laser (up to 15 W)
Impact ultrasound (Langevin transducer)
Cooling, purge-air, articulated arm, UI & controls.
Installation β electrical (120 VAC 11 A or 220/230 VAC 6 A), space/ventilation, interlock & footswitch, coolant fill, moving & storage conditions.
Operating Instructions β start-up sequence, READY/STANDBY, emission indicators & buzzer, parameter presets, safe shutdown.
Maintenance β routine cleaning, periodic service schedule, coolant spec (50% distilled water / 50% propylene glycol) & refill procedure.
Troubleshooting β full error-code tables (e.g., Interlock, Flow SW, Shutter, Pump Laser Current, Case Temp, Femilift Motor), causes & corrective actions.
Technician-Mode Calibration & Beam Alignment β COβ & 1570 nm optical alignment workflow, technical screens, energy table calibration.
Software Installation β main controller, scanner controller, LCD software procedures.

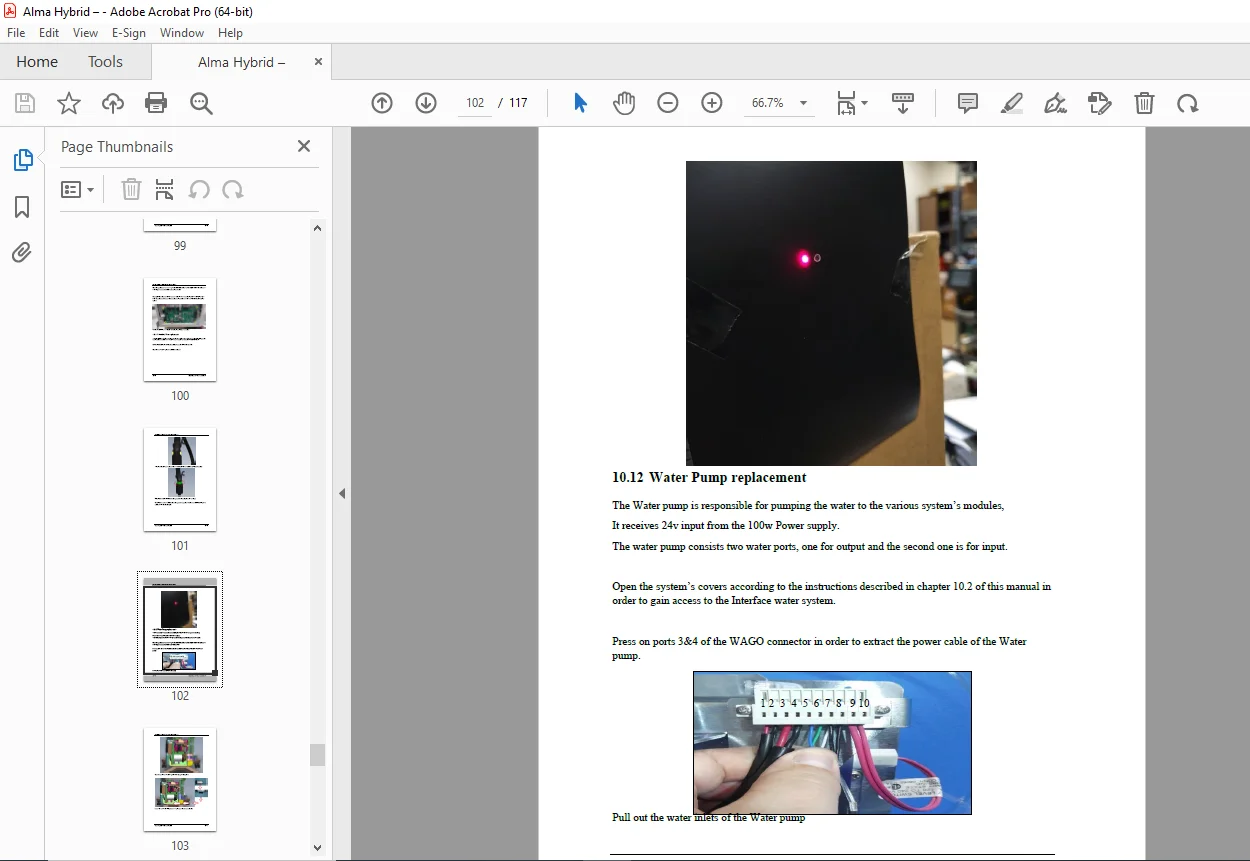

Module Replacement β panels, LCD, PSU (HWS series / Lambda SWS1000L 48 V), 1570 fiber laser assembly, umbilical, articulated arm, water pump, interface controller.
Spare Parts List & Figures β index of service assemblies (interface controller, scanner controller, fiber laser 1570 with housing & tip, COβ+1570+650 arm, umbilical, particle filter, water tank, flow switch, shutter, LCD, panels, emergency/key switches, water pump, wheels, etc.).
Laser/Ultrasound specs (from System Description):
β’ COβ: 10,600 nm, 30 W / 70 W models β’ Fiber: 1570 nm up to 15 W β’ Control: touchscreen UI, footswitch, interlock; closed-loop cooling.
File details
| Field | Value |
|---|---|
| Manual name | Alma Hybrid β Service Manual |
| Models covered | Alma Hybrid platform (COβ 30 W/70 W, 1570 nm fiber, Impact ultrasound), articulated arm & accessories |
| Year / Revision | Revision 1 β March 2020 (Catalog No. OMHY18061901) 752638683-Hybrid-Service-manualβ¦ |
| PDF quality | Text-searchable, clean diagrams, tabled error codes |
| No. of pages | 117 pages |
Why this manual is valuable
Cuts downtime with official error codes + fixes (interlock, flow, shutter, pump/driver, case temp, Femilift motor).
Ensures precise output via step-by-step COβ & 1570 nm alignment and energy calibration.
Speeds repairs with module replacement guides and a comprehensive parts index.
