Aloka SSD-500 Ultrasound Scanner Service Manual – PDF Download

Description

Aloka SSD-500 Ultrasound Scanner Service Manual – PDF Download

Description:

Overview

This Aloka SSD-500 service manual is for the compact B-mode ultrasound scanner used in medical diagnostics. Released around 1990s its aimed at qualified service personnel with 249 pages of in-depth info. Models cover SSD-500 series focusing on repair calibration. Starts with safety precautions like electrical hazards probe handling radiation avoidance though ultrasound non-ionizing.

System Specifications

Specs include power requirements 100-240V AC display 5-inch CRT scan modes linear convex microconvex. Probe frequencies 3.5-7.5 MHz depth up to 24cm. Gain adjustments dynamic range image storage via thermal printer optional.

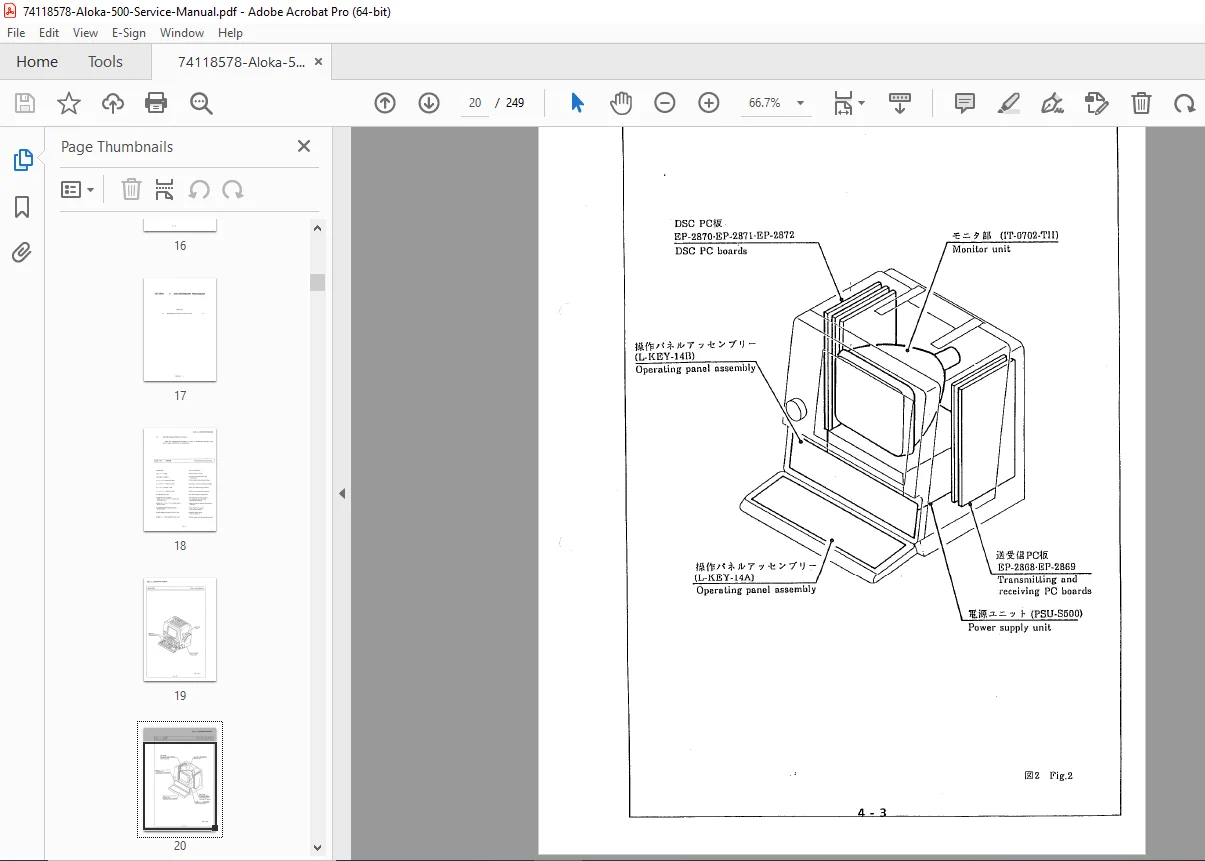

IMAGES:

Functional Description

Details signal flow from transducer to processor. Electrical circuits cover power supply unit main CPU board video board keyboard interface. Hydraulic none but cooling fan checks included. Mechanical assemblies like probe connector cart mounting.

Installation and Adjustments

Installation chapter site prep electrical grounding probe connection initial power-up self-test. Adjustments for brightness contrast gain time gain compensation TGC curves. Calibration procedures using phantoms for resolution depth accuracy. Torque specs missing for most but general for enclosure screws.

• Transducers: Testing continuity impedance matching gel application.
• Display Circuits: CRT alignment video signal checks some voltage values 12V 5V rails.
• Keyboard and Controls: Switch membrane replacement.

Troubleshooting and Maintenance

Troubleshooting flowcharts for no power blank screen image artifacts error codes like E01 power fail E12 probe disconnect. Maintenance periodic cleaning filter replacement fuse checks battery backup if equipped. Parts list with diagrams for boards cables probes but no pricing.

Schematics and Appendices

Full schematics for main boards wiring harnesses. Appendices test points waveforms some torque for critical like probe holder. Lacks exhaustive connector pinouts assumes multimeter scope. Good for hospital techs though some sections assume factory tools.

File Details for Aloka SSD-500 Ultrasound Scanner Service Manual

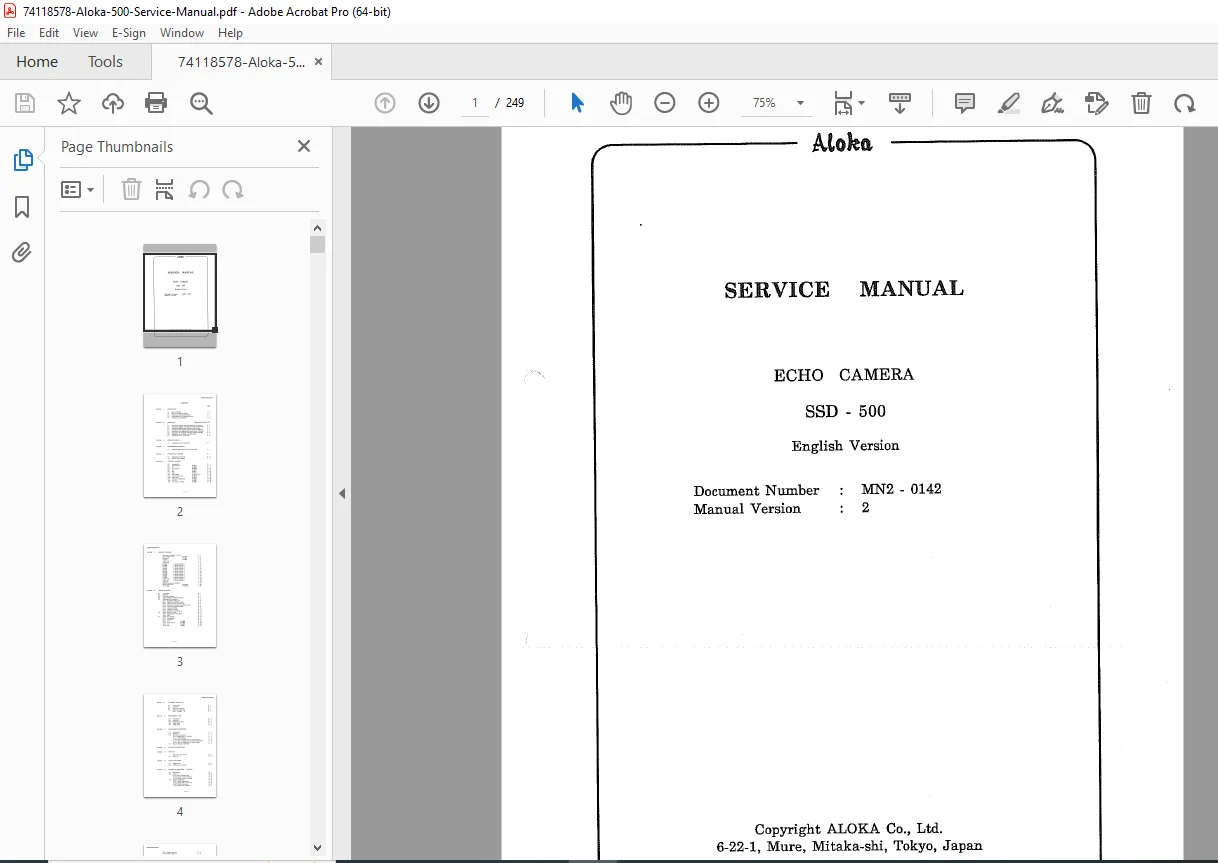

• Document Title: Aloka SSD-500 Service Manual
• Models Covered: SSD-500 Series (Portable B-Mode Ultrasound Scanner)
• System Coverage: Safety Precautions, System Specifications, Functional Description, Installation, Adjustments and Calibration, Troubleshooting, Maintenance, Electrical Schematics, Parts List, Appendices (Test Points, Waveforms)
• Pages: 249
• Format: Searchable PDF (OCR-enabled)
• Languages: English
• File Size: ~18.3 MB
• Quality Notes: Factory scan with clear text, crisp schematics, OCR searchable; diagrams sharp and legible. ✅ Verified factory technical content.
