Ammann ARX 110 Tandem Roller Operating Manual 3002751 PDF
$28.95
The Ammann ARX 110 Tandem Roller Cummins QSB3.3-C99 EU Stage IIIA/U.S. EPA Tier 3 Operating Manual (SN 3002751) is a vital guide for operators. It furnishes detailed instructions for effective use and maintenance of the specified roller model, ensuring optimal performance and compliance.
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Ammann ARX 110 Tandem Roller Cummins QSB3.3-C99 EU Stage IIIA / U.S. EPA Tier 3 Operating Manual SN 3002751 – PDF DOWNLOAD
FILE DETAILS:
Ammann ARX 110 Tandem Roller Cummins QSB3.3-C99 EU Stage IIIA / U.S. EPA Tier 3 Operating Manual SN 3002751 – PDF DOWNLOAD
Language : English
Pages : 194
Downloadable : Yes
File Type : PDF

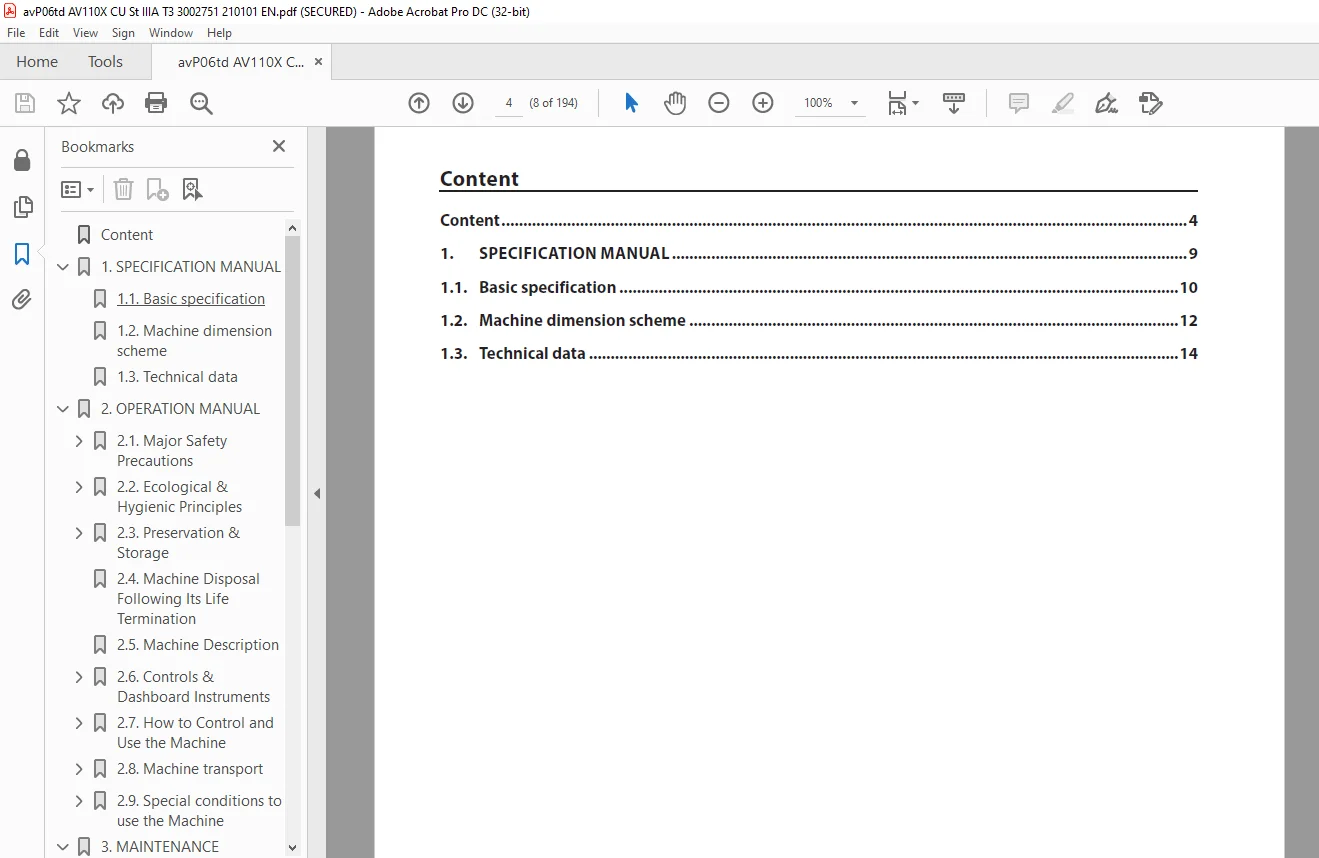

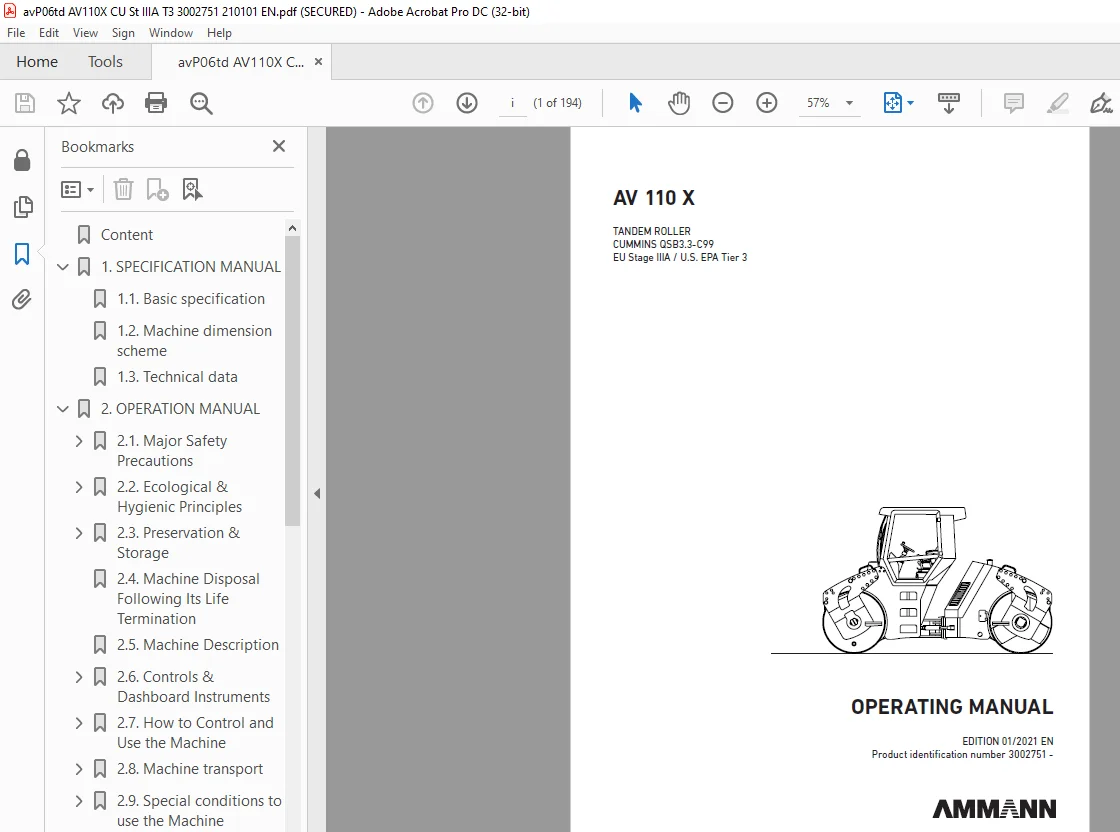

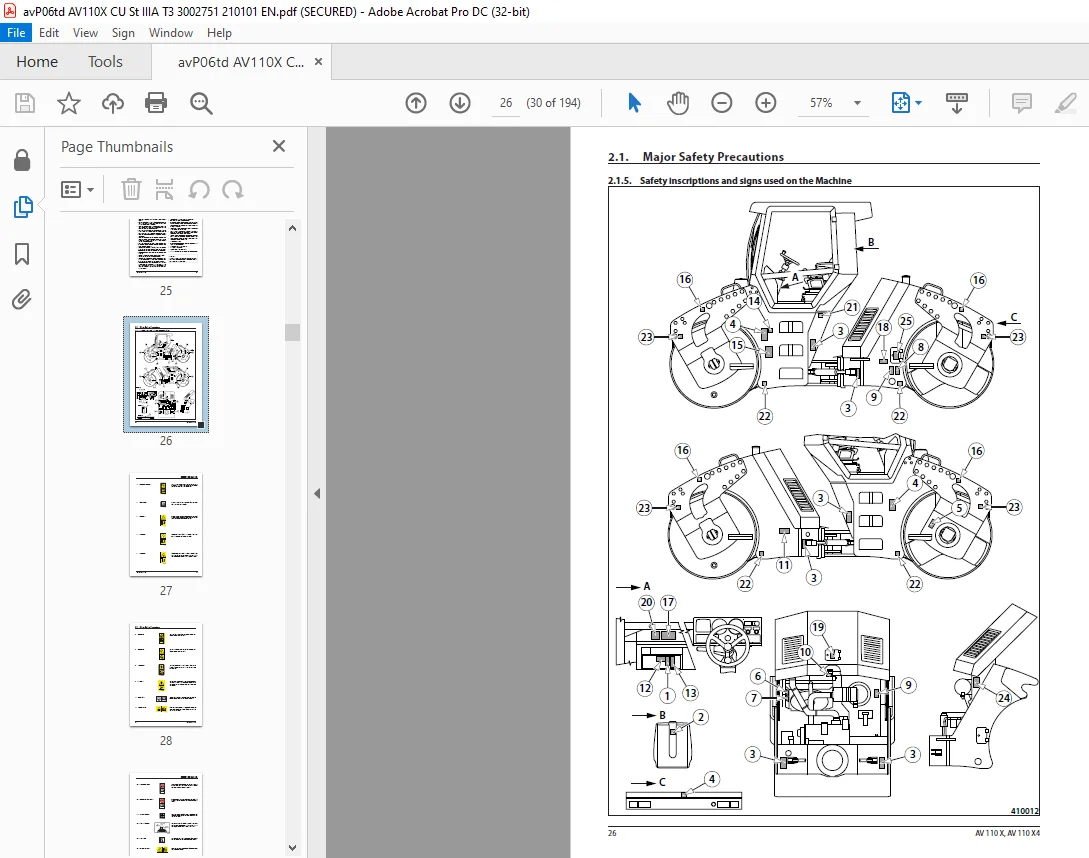

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Ammann ARX 110 Tandem Roller Cummins QSB3.3-C99 EU Stage IIIA / U.S. EPA Tier 3 Operating Manual SN 3002751 – PDF DOWNLOAD
Content 8
1 SPECIFICATION MANUAL 13
1 1 Basic specification 14
1 2 Machine dimension scheme 16
1 3 Technical data 18
2 OPERATION MANUAL 23
2 1 Major Safety Precautions 25
2 1 1 Safety Measures during Machine Operation 25
2 1 1 1 Compaction Work Commencement 25
2 1 1 2 Work Safety Secured by User 25
2 1 1 3Ensurance of safety measures by the owner 26
2 1 1 4 ROPS Cab 26
2 1 2 Reguirements on Driver’s Qualification 27
2 1 3 Driver’s Liabilities 27
2 1 4 Banned Operations – safety and guarantee 29
2 1 5 Safety inscriptions and signs used on the Machine 30
2 1 6 Hand Signals 35
2 2 Ecological & Hygienic Principles 38
2 2 1 Hygienic Principles 38
2 2 2 Ecological Principles 38
2 3 Preservation & Storage 39
2 3 1 Short-term preservation and storage for a period of 1 – 2 months 39
2 3 2 Machine Preservation & Storage for the Period Over 2 Months Long 39
2 3 3 Dewaxing and inspection of the supplied machine 40
2 4 Machine Disposal Following Its Life Termination 41
2 5 Machine Description 42
2 6 Controls & Dashboard Instruments 44
2 6 1 Power View control 66
2 7 How to Control and Use the Machine 76
2 7 1 Start-up of the engine 77
2 7 2 Travel and reversing 81
2 7 3 Emergency stop of the Machine 87
2 7 4 How to stop the Machine and its engine 87
2 7 5 Machine parking 88
2 7 6 How to lift and let down the bonnet 89
2 7 7 Sprinkling 91
2 7 8 Ammann edgecutter (Optional) 92
2 7 9 Infra thermometer (Optional) 93
2 8 Machine transport 94
2 8 1 How to load the Machine 95
2 9 Special conditions to use the Machine 97
2 9 1 Machine towing 97
2 9 2 How to operate the Machine during its running-in 103
2 9 3 Operating the Machine at low temperatures 103
2 9 4 Machine operation at high temperatures and humidity 103
2 9 5 Machine operation at high altitudes 103
2 9 6 Machine operation within very dusty environment 103
2 9 7 Driving with vibrations on compacted and hard materials 103
3 MAINTENANCE MANUAL 105
3 1 Safety and other measures for machine maintenance 107
3 1 1 Safety of machine maintenance 107
3 1 2 Fire precautions during operation media exchanges 107
3 1 3 Ecological and hygienic principles 108
3 2 Media specification 109
3 2 1 Engine oil 109
3 2 2 Fuel 110
3 2 3 Cooling liquid 111
3 2 4 Hydraulic oil 111
3 2 5 Gearbox oil 112
3 2 6 Lube grease 112
3 2 7 Glass washer fluid 112
3 2 8 Drum cooling liquid 112
3 2 9 Air-conditioning filling 112
3 3 Media 113
3 4 Lubrication and Maintenance Chart 114
3 5 Lubrication Chart 116
3 6 Lubrication and Maintenance Operations 118
Every 20 hours of operation (daily) 119
3 6 1 Engine oil level check 119
3 6 2 Engine cooling liquid level check 120
3 6 3 Inspect the engine belt 121
3 6 4 Crankcase breather 121
3 6 5 Air filter dust valve check 122
3 6 6 Inspect fan condition 122
3 6 7 Fuel level check 123
3 6 8 Hydraulic tank oil level check 124
3 6 9 Water tank refilling 124
3 6 10 Inspect alarm and control devices 125
3 6 11 Check of the tightness of the fuel and hydraulic system 127
Every 250 hours of operation (3 months) 128
3 6 12 Engine oil exchange 128
3 6 13 Inspect engine induction manifold 131
3 6 14 Inspect engine cooling circuit 132
3 6 15 Checking oil in gearboxes 133
3 6 16 Inspect the battery 134
3 6 17 Air filter sensor check 136
3 6 18 Watering filter cleaning 136
3 6 19 Machine lubrication 138
3 6 20 Seat switch check 140
Every 500 hours of operation (every 6 months) but at least once a year 141
3 6 21 Engine fuel filter exchange 141
3 6 22 Engine cooling liquid level check 142
3 6 23 Replace air filter elements 143
3 6 24 Clean cab ventilation filter 145
3 6 25 Check of wiring 145
Every 1000 hours of operation (1 year) 146
3 6 26 Inspect engine belt 146
3 6 27 Exchanging oil in gearboxes 147
3 6 28 Vibrations system oil exchange 149
3 6 29 Inspect the silencing system 151
3 6 30 Fuel tank cleaning 153
3 6 31 Water tank cleaning 154
Every 2000 hours of operation (2 years) 155
3 6 32 Checking and adjusting valve clearance 155
3 6 33 Engine coolant exchange 155
3 6 34 Replace hydraulic oil and filters 159
Maintenance as required 163
3 6 35 Deaerating (venting) the fuel system 163
3 6 36 Cleaning the water separator 164
3 6 37 Cleaning of coolers 165
3 6 38 Drain water from sprinkling circuit before winter season 166
3 6 39 Adjustment of scrapers 168
3 6 40 Machine cleaning 170
3 6 41 Check the tightening of bolted connections 170
3 7 Defects 173
3 8 Attachments 174
Wiring diagram AV 110 X 174
Wiring diagram AV 110 X4 180
Hydraulic system diagram AV 110 X 186
Hydraulic system diagram AV 110 X4 188
Regular maintenance spare parts chart 190
Service set after 500 EH (4-760014) 191
Customer Support: [email protected]
https://vimeo.com/898301959?share=copy
S.V
