Ammann ARX 26-2 ARX 23-2 Tandem Roller Workshop Manual PDF
$28.95
The Workshop Manual for Ammann ARX 23-2 and ARX 26-2 Tandem Roller, equipped with Kubota D1803-CR-E5 engine, ensures compliance with EU Stage V and U.S. EPA Tier 4f emissions. Essential guide for maintenance, optimizing performance while meeting stringent environmental standards.
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Ammann ARX 23-2 ARX 26-2 Tandem Roller Kubota D1803-CR-E5 EU Stage V, U.S. EPA Tier 4f Workshop Manual – PDF DOWNLOAD
FILE DETAILS:
Ammann ARX 23-2 ARX 26-2 Tandem Roller Kubota D1803-CR-E5 EU Stage V, U.S. EPA Tier 4f Workshop Manual – PDF DOWNLOAD
Language : English
Pages : 328
Downloadable : Yes
File Type : PDF
ARX 23-2 KU St V/ T4f Product Identification Number 3017039-
ARX 26-2 KU St V/ T4f Product Identification Number 3017043-

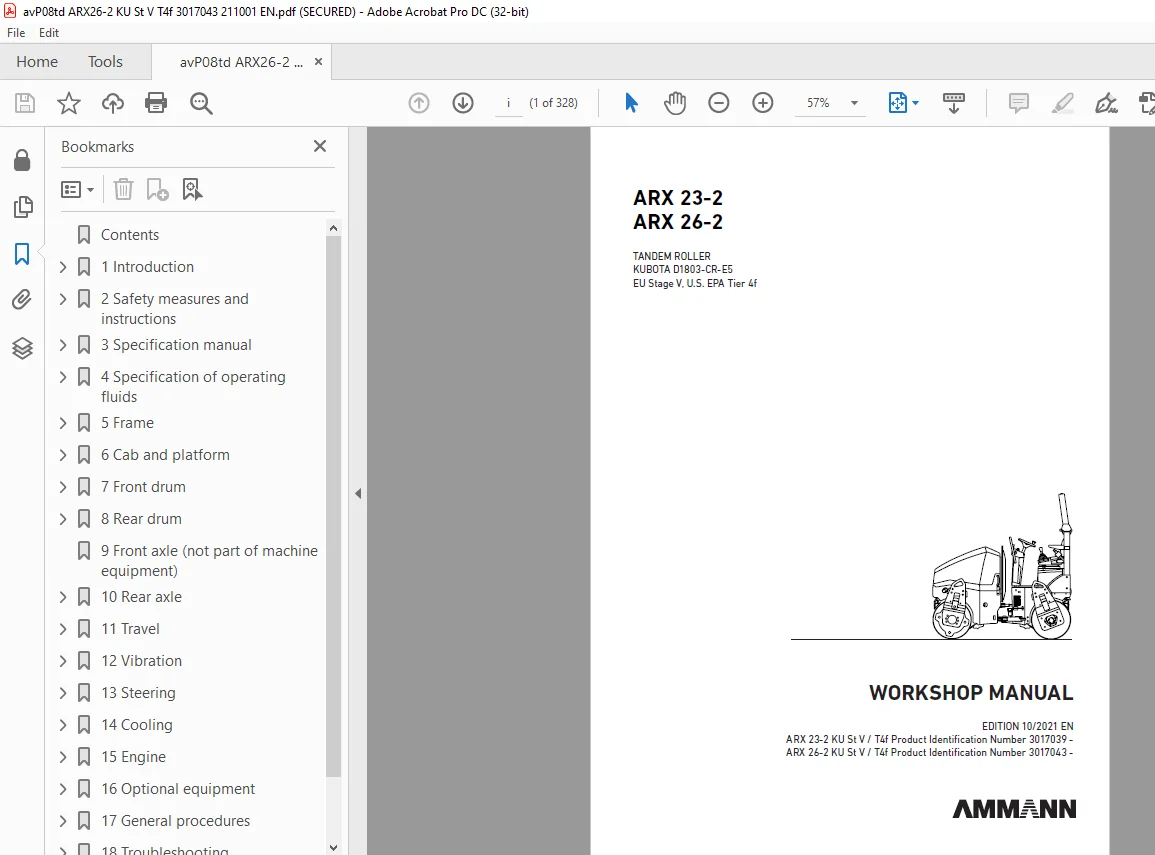

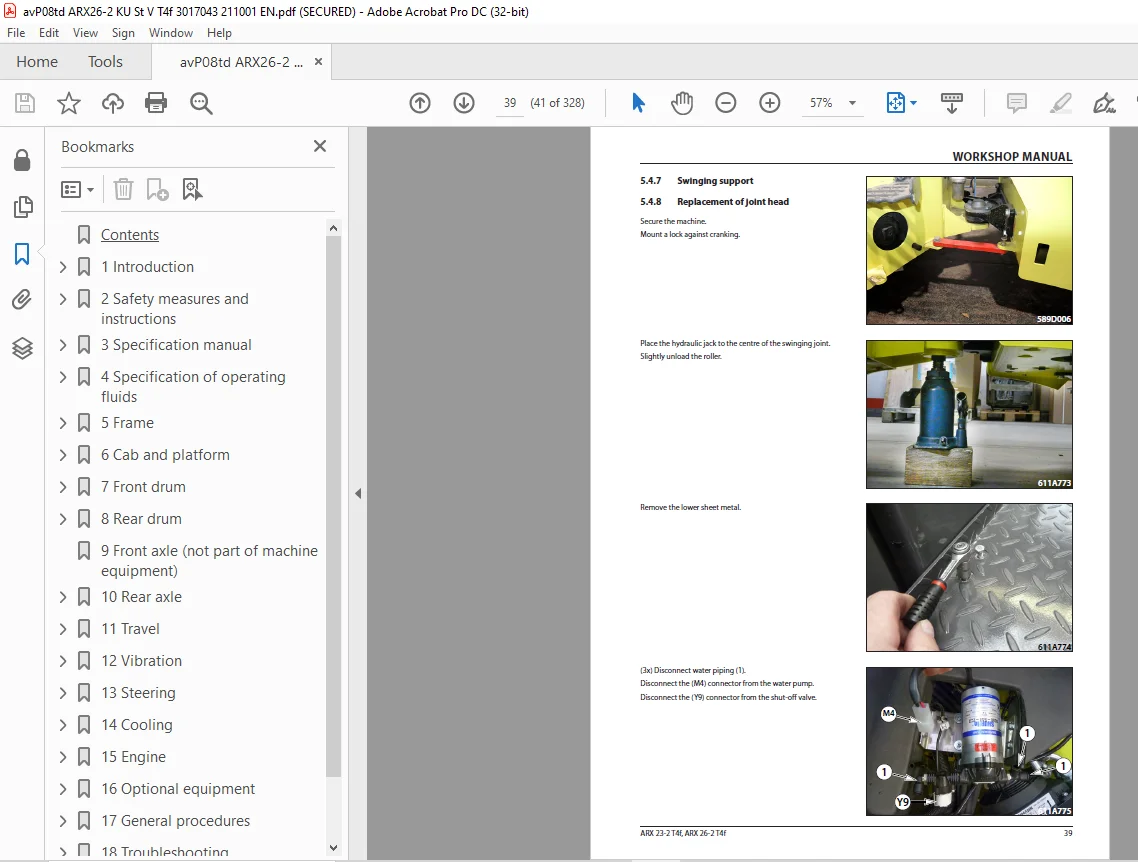

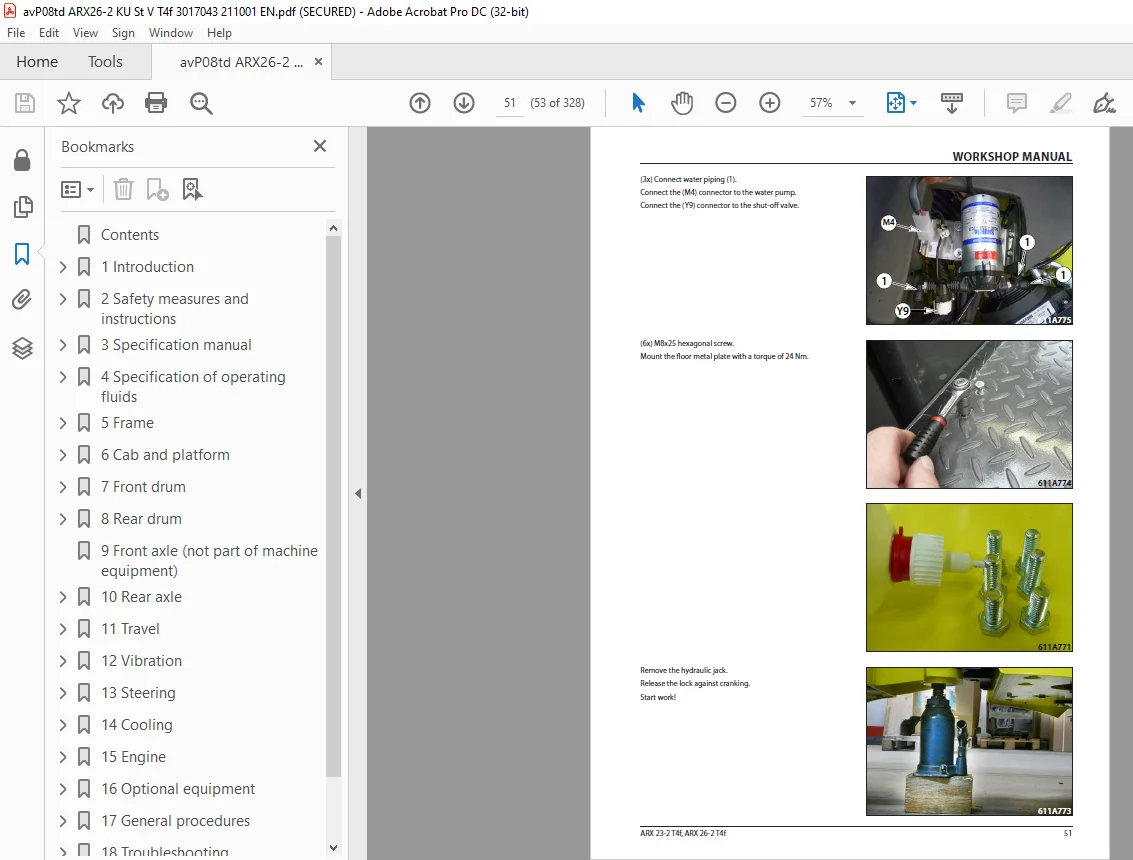

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Ammann ARX 23-2 ARX 26-2 Tandem Roller Kubota D1803-CR-E5 EU Stage V, U.S. EPA Tier 4f Workshop Manual – PDF DOWNLOAD
Contents 4
1 Introduction 9
1 1About this workshop manual 12
1 1 1Who is the workshop manual intended for 12
1 1 2Purpose 12
1 1 3Applicability of the workshop manual 12
1 1 4Validity of the workshop manual 12
2 Safety measures and instructions 13
2 1Safety rules 14
2 2Environmental and hygiene principles 17
2 3Fire prevention 18
2 4Claim conditions and disclaimer of liability 18
3 Specification manual 19
3 1Basic data 20
3 2Dimensioned drawing of the machine 22
3 3Technical data 24
4 Specification of operating fluids 27
4 1 1Engine oil 28
4 1 2Fuel 29
4 1 3Coolant 30
4 1 4Hydraulic oil 31
4 1 5Lubricating grease 31
4 1 6Emulsion 31
4 1 7Fillings 32
5 Frame 33
5 1Description of basic elements 35
5 4Mechanical parts 36
5 4 1Replacement of swinging support joint head 36
5 4 2Replacement of swinging joint bearing 37
5 4 3Lubrication of steering piston bearing 37
5 4 4Dashboard (screws) 38
5 4 5Gas pressure spring 38
5 4 6Disassembly/replacement of engine bonnet 39
5 4 7Swinging support 41
5 4 8Replacement of joint head 41
5 4 9Swinging joint 54
5 4 10Replacement of bearing 54
5 5Fuel tank 64
5 5 1Fuel level check 64
5 5 2Fuel replenishment 64
5 5 3Fuel drainage 65
5 5 4Cleaning the fuel tank 65
5 6Hydraulic tank 66
5 6 1Check of the hydraulic oil level 66
5 6 2Hydraulic oil replenishment 66
5 6 3Hydraulic oil drainage 67
5 6 4Hydraulic oil filter replacement 68
5 6 6Ventilation filter replacement 69
5 7Water tank 70
5 7 1Water tank removal 70
5 9Sprinkling 72
5 9 2Cleaning accessories 72
5 9 3Sprinkling device 72
5 9 4Sprinkling with shut-off valve 73
5 9 5Scraper 73
5 10Roll Over Protective Structure – ROPS 74
5 10 1ROPS tilting 74
5 10 2ROPS lifting 75
5 10 3Lowering of the ROPS protection frame with a plastic canopy 76
5 10 4Raising of the ROPS protection frame with a plastic canopy 79
6 Cab and platform 83
6 1Description of basic elements 85
6 3Electrical installation 86
6 3 1Steering column 86
6 3 2Output layout on the steering pillar 86
6 3 3Relays and fuses in the engine compartment 87
6 3 4Dashboard 87
6 3 5Multifunctional display (A4) 88
6 3 6Control lever panel 89
6 3 7Other components 89
6 3 7 1Control unit of the machine A3 89
6 4Mechanical parts 90
6 4 1Setting of the control force of the travel control 90
7 Front drum 91
7 1Description of basic elements 92
7 2Hydraulic parts 93
7 2 1Overview of hydraulic hoses 93
7 4Mechanical parts 94
7 4 1Replacement of vibration unit bearing 94
7 4 1 1Drum removal 94
7 4 1 2Drum disassembly 99
7 4 1 3Drum assembly 106
8 Rear drum 125
8 1Description of basic elements 126
8 3Hydraulic parts 127
8 3 1Overview of hydraulic hoses 127
8 4Mechanical parts 128
8 4 1Replacement of vibration unit bearings 128
8 4 1 1Drum removal 128
8 4 1 2Drum disassembly 133
8 4 1 3Drum assembly 141
9 Front axle (not part of machine equipment) 159
10 Rear axle 161
10 1Description of basic elements 162
10 4Mechanical parts 163
10 4 1Replacement of travel motor at the pneumatic axle 163
11 Travel 169
11 1Description of basic elements 170
11 2Hydraulic parts 171
11 2 1Brake test 171
11 2 1 1Check of the parking brake 171
11 2 1 2Check of the emergency brake 172
11 2 1 3Check of the service brake 173
11 2 2Change of the position of the hydraulic oil temperature sensor 174
12 Vibration 179
12 1Description of basic elements 180
13 Steering 181
13 1Description of basic elements 182
14 Cooling 183
14 1Description of basic elements 184
14 2Hydraulic parts 185
14 2 1Hydraulic oil cooler cleaning 185
14 4Mechanical parts 186
14 4 1Coolant and check of coolant level 186
14 4 1 1Coolant level check 186
14 4 1 2Coolant replenishment 187
14 4 1 3Cooler cleaning 187
15 Engine 189
15 1Description of basic elements 190
15 1 1Overview of engine compartment 190
15 1 2Kubota engine servicing 191
15 3Electrical installation 192
15 3 1Steering pillar fuses 192
15 4Mechanical parts 193
15 4 1Fuel filter element 193
15 4 2Water separator filter element 193
15 4 3Engine oil 194
15 4 3 1Check of engine oil level 194
15 4 3 2Engine oil replenishment 195
15 4 3 3Engine oil draining 196
15 4 3 4Engine oil filter replacement 197
15 4 4Inlet air filter 199
15 4 5Principles of use of the machine with a diesel particulate filter (DPF) 201
15 4 5 1Diesel particulate filter (DPF) 201
15 4 5 2Diesel particulate filter (DPF) regeneration 202
15 4 5 2 1Passive regeneration 203
15 4 5 2 2Automatic active regeneration 203
15 4 5 2 2 1Suppression of DPF regeneration 204
15 4 5 2 3Active parking regeneration 205
15 4 5 3Diesel particulate filter (DPF) clogging 206
15 5Hydraulic oil temperature sensor replacement 207
16 Optional equipment 213
16 1List of optional equipment 214
17 General procedures 215
17 2Electrical installation 216
17 2 1Travel pump magnetic coil check 216
17 2 2Preparation for welding works 218
17 2 3Starting the battery by means of another battery (jumping) 218
17 2 4Charging the battery with a charger 219
17 2 5Long-term storage 219
17 2 6Battery replacement 220
17 2 7Lamp replacement 221
17 2 7 1Front lamp replacement 221
17 2 7 2Rear lamp replacement 222
17 4Calibration and setting (calibration mode) 223
17 4 1Calibration mode 224
17 4 2Calibration of the minimum current of travel coils 226
18 Troubleshooting 229
18 1SW error diagnostics 230
18 1 1Error codes 230
18 1 2Messages displayed on the display 236
18 2Pressure check 237
18 2 1Pressure check and adjustment 237
18 2 2Steering pressure setting 237
18 2 3Steering valve 237
18 2 4Maximum pressure of vibration control valve 238
18 2 5Travel pump check 238
18 2 5 1Supply pressure check 238
18 2 5 2Travel pressure check 239
18 2 7Travel pump zero position adjustment 241
18 2 7 1Travel pump magnetic coil check 242
18 2 8Travel pump servo block check 244
18 2 9Edge cutter valve 250
18 2 10Introduction 254
18 2 11Brake valve magnetic coil check 255
18 2 12Quantity divider check 256
18 2 13Vibration control valve 258
18 2 13 1Pressure valve 258
18 2 13 2Magnetic coil 262
18 2 14Travel controller 263
18 2 14 1Replacement of the travel controller 263
18 2 14 2Switch check and replacement 265
18 2 15Electronics replacement 268
18 2 16Brake test 272
18 2 16 1Check of the parking brake 272
18 2 16 2Check of the emergency brake 272
18 2 16 3Check of the service brake 272
19 Annexes 273
19 1Hydraulic system 274
19 1 1Travel pump zero position adjustment 274
19 1 1 1Travel pump magnetic coil check 275
19 2Wiring diagram 278
19 3Electric installations cable harnesses 284
19 3Hydraulic system diagram ARX 23-2, ARX26-2 314
19 6Workshop jigs 318
