Ammann ARX 40-2 ARX 45-2 ARX 36-2 Tandem Roller Workshop Manual PDF
$28.95
The Workshop Manual for Ammann ARX 36-2, ARX 40-2, and ARX 45-2 Tandem Roller, powered by Kubota D1803-CR-TE5B, ensures compliance with EU Stage V and U.S. EPA Tier 4f emissions. Essential for maintenance, optimizing performance while meeting stringent environmental standards.
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Ammann ARX 36-2 ARX 40-2 ARX 45-2 Tandem Roller Kubota D1803-CR-TE5B EU Stage V / U.S. EPA Tier 4f Workshop Manual – PDF DOWNLOAD
FILE DETAILS:
Ammann ARX 36-2 ARX 40-2 ARX 45-2 Tandem Roller Kubota D1803-CR-TE5B EU Stage V / U.S. EPA Tier 4f Workshop Manual – PDF DOWNLOAD
Language : English
Pages : 382
Downloadable : Yes
File Type : PDF
ARX 36-2 KU St V/T4f Product Identification Number 3032650-
ARX 40-2 KU St V/T4f Product Identification Number 3032488-
ARX 45-2 KU St V/T4f Product Identification Number 3030743-

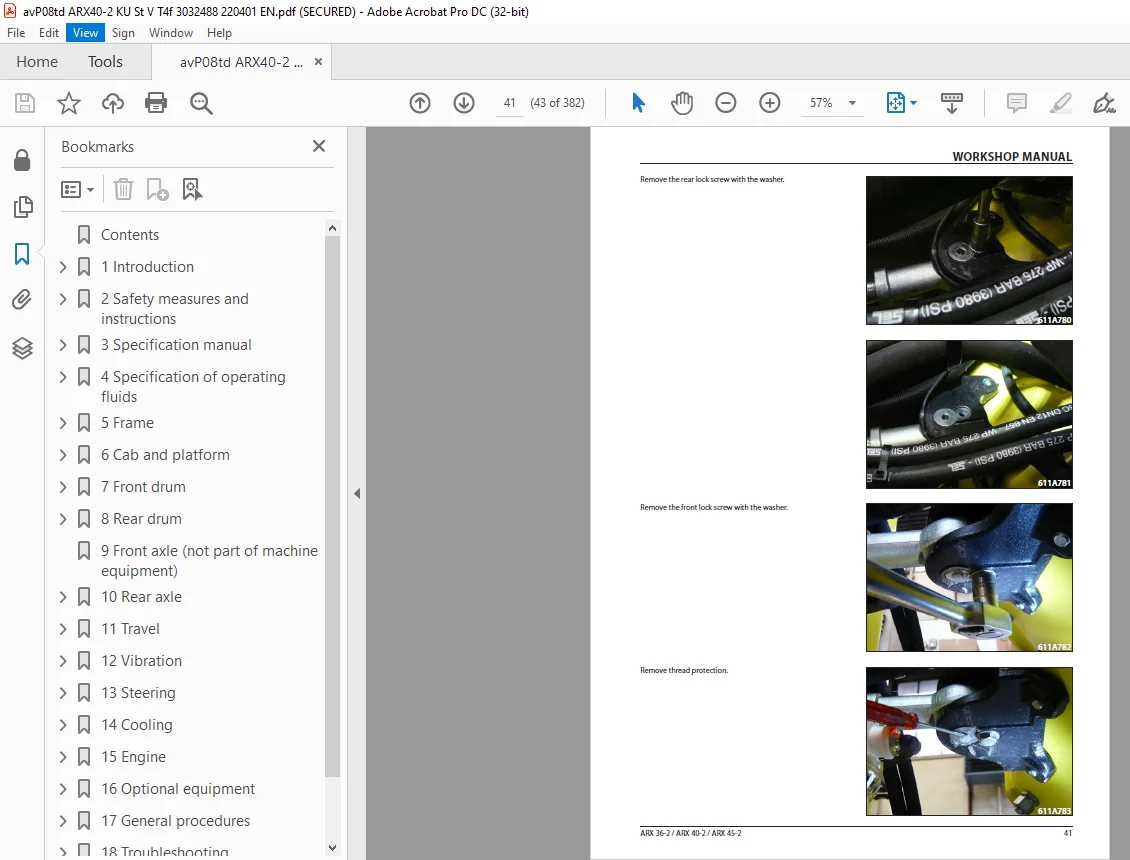

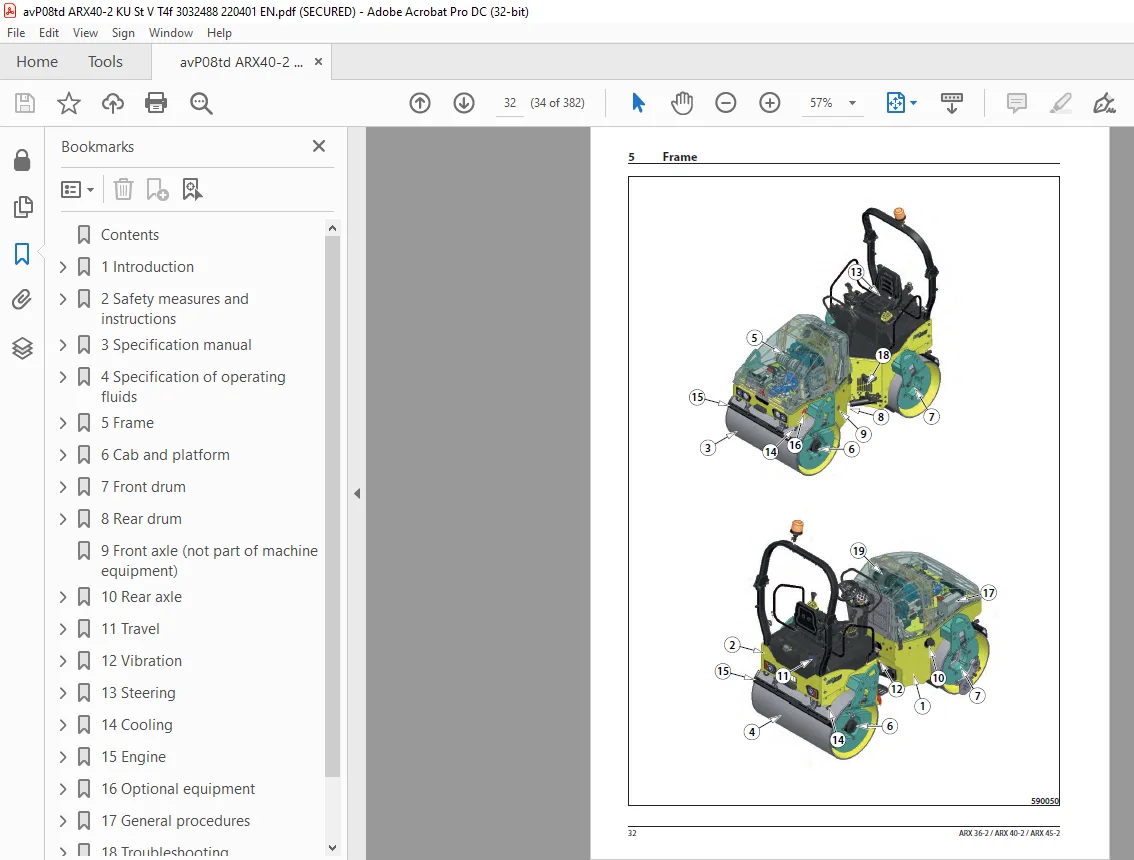

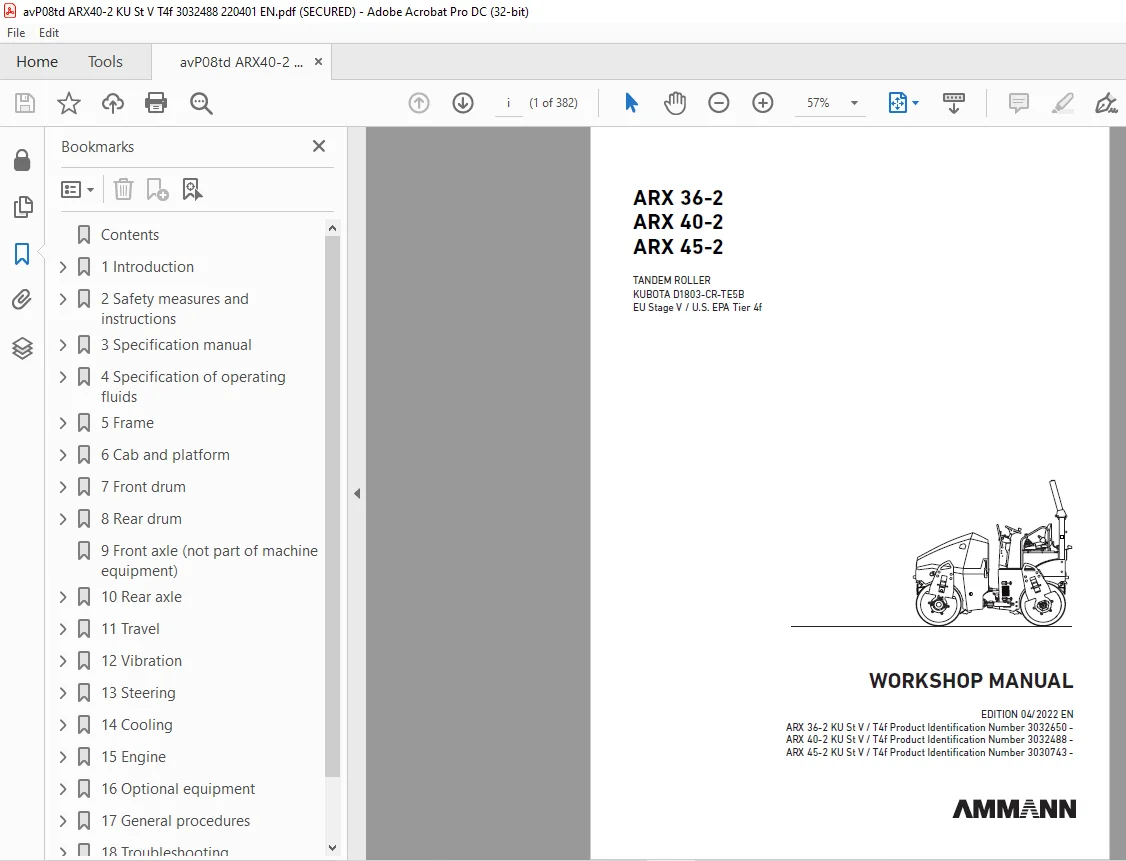

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Ammann ARX 36-2 ARX 40-2 ARX 45-2 Tandem Roller Kubota D1803-CR-TE5B EU Stage V / U.S. EPA Tier 4f Workshop Manual – PDF DOWNLOAD
Contents 4
1 Introduction 9
1 1About this workshop manual 12
1 1 1Who is the workshop manual intended for 12
1 1 2Purpose 12
1 1 3Applicability of the workshop manual 12
1 1 4Validity of the workshop manual 12
2 Safety measures and instructions 13
2 1Safety rules 14
2 2Environmental and hygiene principles 17
2 3Fire prevention 18
2 4Claim conditions and disclaimer of liability 18
3 Specification manual 19
3 1Basic data 20
3 2Dimensioned drawing of the machine 22
3 3Technical data 24
4 Specification of operating fluids 27
4 1 1Engine oil 28
4 1 2Fuel 29
4 1 3Coolant 30
4 1 4Hydraulic oil 31
4 1 5Lubricating grease 31
4 1 6Emulsion 31
4 1 7Fillings 32
5 Frame 33
5 1Description of basic elements 35
5 4Mechanical parts 36
5 4 1Replacement of swinging support joint head 36
5 4 2Replacement of swinging joint bearing 37
5 4 3Lubrication of steering piston bearing 37
5 4 4Dashboard (screws) 38
5 4 5Gas pressure spring 38
5 4 6Disassembly/replacement of engine bonnet 39
5 4 7Swinging support 41
5 4 8Replacement of joint head 41
5 4 9Swinging joint 54
5 4 10Replacement of bearing 54
5 5Fuel tank 64
5 5 1Fuel level check 64
5 5 2Fuel replenishment 64
5 5 3Fuel drainage 65
5 5 4Cleaning the fuel tank 65
5 6Hydraulic tank 66
5 6 1Check of the hydraulic oil level 66
5 6 2Hydraulic oil replenishment 66
5 6 3Hydraulic oil drainage 67
5 6 4Hydraulic oil filter replacement 68
5 6 6Ventilation filter replacement 69
5 7Water tank 70
5 7 1Water tank removal 70
5 9Sprinkling 72
5 9 2Cleaning accessories 72
5 9 3Sprinkling device 72
5 9 4Sprinkling with shut-off valve 73
5 9 5Scraper 73
5 10ROPS lifting and lowering 74
5 10 1Raising and lowering of the ROPS with a plastic canopy 78
5 10 2Lowering and raising of the plastic canopy 84
6 Cab and platform 87
6 1Description of basic elements 89
6 3Electrical installation 90
6 3 1Steering column 90
6 3 2Output layout on the steering pillar 90
6 3 3Relays and fuses in the engine compartment 91
6 3 4Dashboard 91
6 3 5Multifunctional display (A4) 93
6 3 6Control lever panel 94
6 3 7Other components 94
6 3 7 1Control unit of the machine A3 94
6 4Mechanical parts 94
7 Front drum 95
7 1Description of basic elements 96
7 2Hydraulic parts 97
7 2 1Overview of hydraulic hoses 97
7 3Mechanical parts 98
7 3 1Replacement of vibration unit bearings 98
7 3 1 1Drum removal 98
7 3 1 2Mounting of the vibrator shaft 116
7 3 1 3Removal of the vibrator shaft: 124
7 3 1 4Installation of the roller drum 124
7 3 1 5Roller drum ballast 144
7 4Replacement rubber-metal elements from the drum 147
8 Rear drum 161
8 1Description of basic elements 162
8 2Hydraulic parts 163
8 2 1Overview of hydraulic hoses 163
8 4Mechanical parts 164
8 4 1Replacement of vibration unit bearings 164
8 4 1 1Drum removal 164
8 4 1 2Drum disassembly 169
8 4 1 3Drum assembly 176
8 5Replacement rubber-metal elements from the drum 194
9 Front axle (not part of machine equipment) 215
10 Rear axle 217
10 1Description of basic elements 218
10 4Mechanical parts 219
10 4 1Replacement of travel motor at the pneumatic axle 219
11 Travel 225
11 1Description of basic elements 226
11 2Hydraulic parts 227
11 2 1Brake test 227
11 2 1 1Check of the parking brake 227
11 2 1 2Check of the emergency brake 228
11 2 1 3Check of the service brake 229
12 Vibration 231
12 1Description of basic elements 232
13 Steering 233
13 1Description of basic elements 234
14 Cooling 235
14 1Description of basic elements 236
14 2Hydraulic parts 237
14 2 1Hydraulic oil cooler cleaning 237
14 4Mechanical parts 238
14 4 1Coolant and check of coolant level 238
14 4 1 1Coolant level check 238
14 4 1 2Coolant replenishment 239
14 4 1 3Cooler cleaning 239
15 Engine 241
15 1Description of basic elements 242
15 1 1Overview of engine compartment 242
15 1 2Kubota engine servicing 243
15 3Electrical installation 244
15 3 1Steering pillar fuses 244
15 4Mechanical parts 245
15 4 1Fuel filter element 245
15 4 2Water separator filter element 245
15 4 3Engine oil 246
15 4 3 1Check of engine oil level 246
15 4 3 2Engine oil replenishment 247
15 4 3 3Engine oil draining 248
15 4 3 4Engine oil filter replacement 249
15 4 4Inlet air filter 251
15 4 5Principles of use of the machine with a diesel particulate filter (DPF) 253
15 4 5 1Diesel particulate filter (DPF) 253
15 4 5 2Diesel particulate filter (DPF) regeneration 254
15 4 5 2 1Passive regeneration 255
15 4 5 2 2Automatic active regeneration 255
15 4 5 2 2 1Suppression of DPF regeneration 256
15 4 5 2 3Active parking regeneration 257
15 4 5 3Diesel particulate filter (DPF) clogging 258
15 5Hydraulic oil temperature sensor replacement 259
16 Optional equipment 265
16 1List of optional equipment 266
17 General procedures 267
17 2Electrical installation 268
17 2 1Travel pump magnetic coil check 268
17 2 2Preparation for welding works 270
17 2 3Starting the battery by means of another battery (jumping) 271
17 2 4Charging the battery with a charger 272
17 2 5Long-term storage 272
17 2 6Battery replacement 273
17 2 7Lamp replacement 274
17 2 7 1Front lamp replacement 274
17 2 7 2Rear lamp replacement 275
17 4Calibration and setting (calibration mode) 276
17 4 1Calibration mode 277
17 4 2Calibration of the minimum current of travel coils 279
18 Troubleshooting 283
18 1SW error diagnostics 284
18 1 1Error codes 284
18 1 2Messages displayed on the display 290
18 1 3Travel controller check 290
18 1 3 1Introduction 290
18 1 3 2Test 290
18 2Pressure check 291
18 2 1Pressure check and adjustment 291
18 2 1 1Vibration control valve 291
18 2 2Steering pressure setting 291
18 2 3Steering valve 291
18 2 4Maximum pressure of vibration control valve 292
18 2 5Travel pump check 292
18 2 5 1Supply pressure check 292
18 2 5 2Travel pressure check 293
18 2 7Travel pump zero position adjustment 295
18 2 7 1Travel pump magnetic coil check 296
18 2 8Travel pump servo block check 298
18 2 9Edge cutter valve 304
18 2 10Introduction 308
18 2 11Brake valve magnetic coil check 309
18 2 12Quantity divider check 310
18 2 13Vibration control valve 313
18 2 13 1Pressure valve 313
18 2 13 2Magnetic coil 317
18 2 14Travel controller 318
18 2 14 1Replacement of the travel controller 318
18 2 14 2Switch check and replacement 320
18 2 15Electronics replacement 323
18 2 16Brake test 327
18 2 16 1Check of the parking brake 327
18 2 16 2Check of the emergency brake 327
18 2 16 3Check of the service brake 327
19 Annexes 329
19 1Hydraulic system 330
19 1 1Travel pump zero position adjustment 330
19 1 1 1Travel pump magnetic coil check 331
19 2Wiring diagram 334
19 3Electric installations cable harnesses 340
19 4Hydraulic system diagram ARX 36-2, ARX 40-2, ARX 45-2 368
19 5Hydraulic system diagram ARX 36-2C, ARX 45-2C 370
19 7Workshop jigs 372
