Ammann ARX 90 Tandem Roller Deutz Tier 3 Workshop Manual 4122020 PDF
$28.95
The Ammann ARX 90 Articulated Tandem Roller Deutz Tier 3 Workshop Manual (4122020) is an essential guide for technicians, providing detailed instructions for efficient repairs and ensuring optimal performance for the specified equipment.
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Ammann ARX 90 Articulated Tandem Roller Deutz Tier 3 Workshop Manual 4122020 – PDF DOWNLOAD
FILE DETAILS:
Ammann ARX 90 Articulated Tandem Roller Deutz Tier 3 Workshop Manual 4122020 – PDF DOWNLOAD
Language : English
Pages : 370
Downloadable : Yes
File Type : PDF

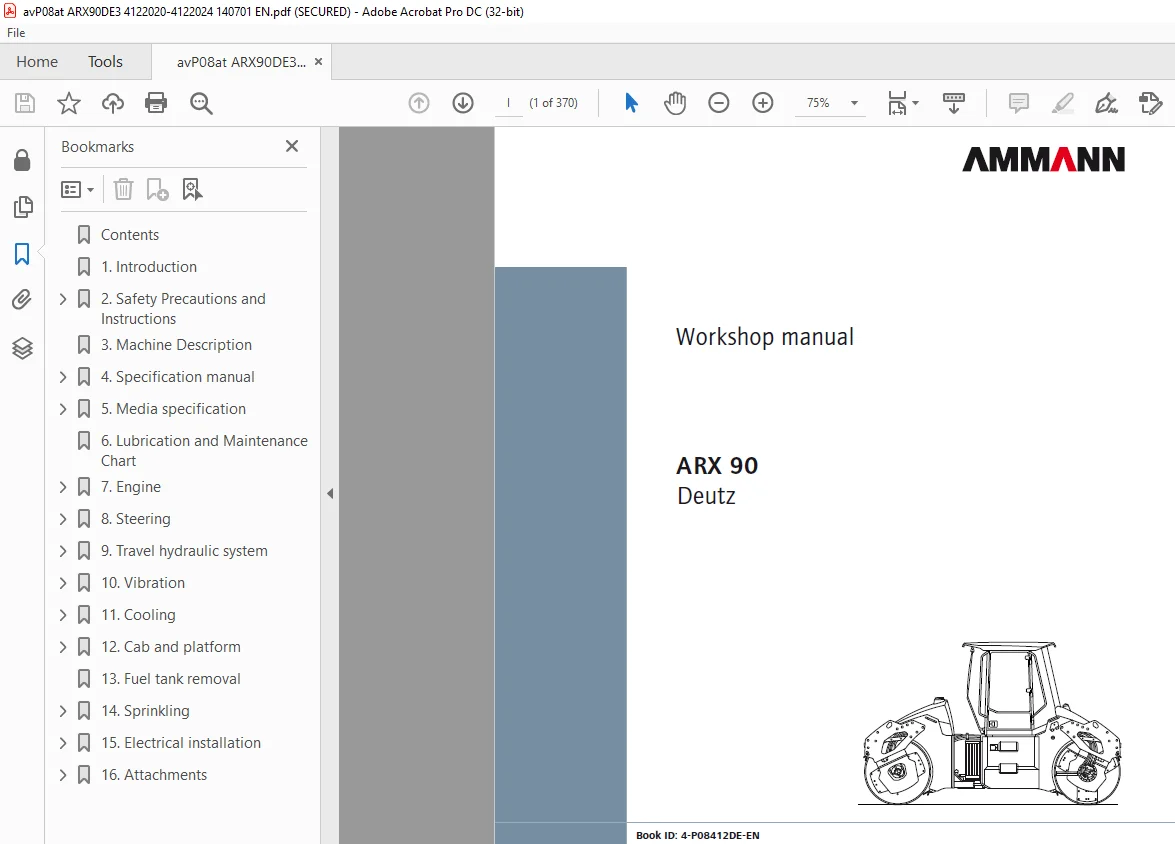

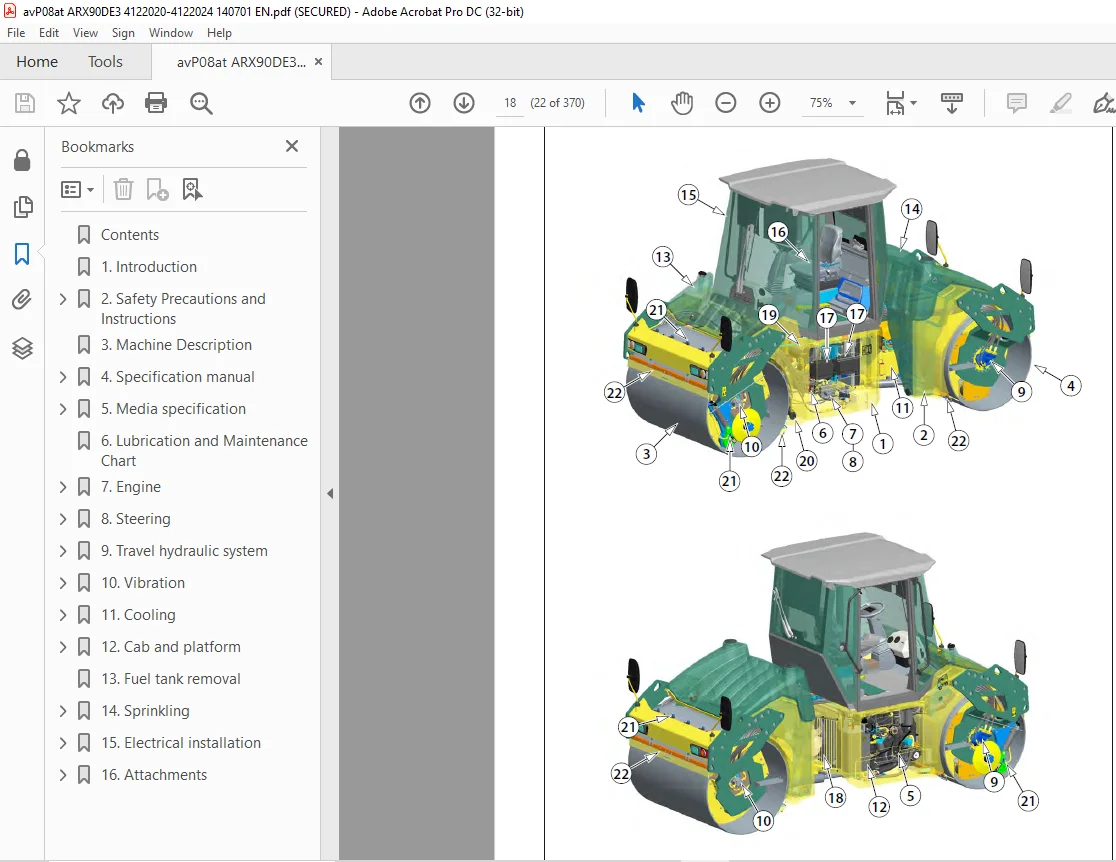

IMAGES PREVIEW OF THE MANUAL:

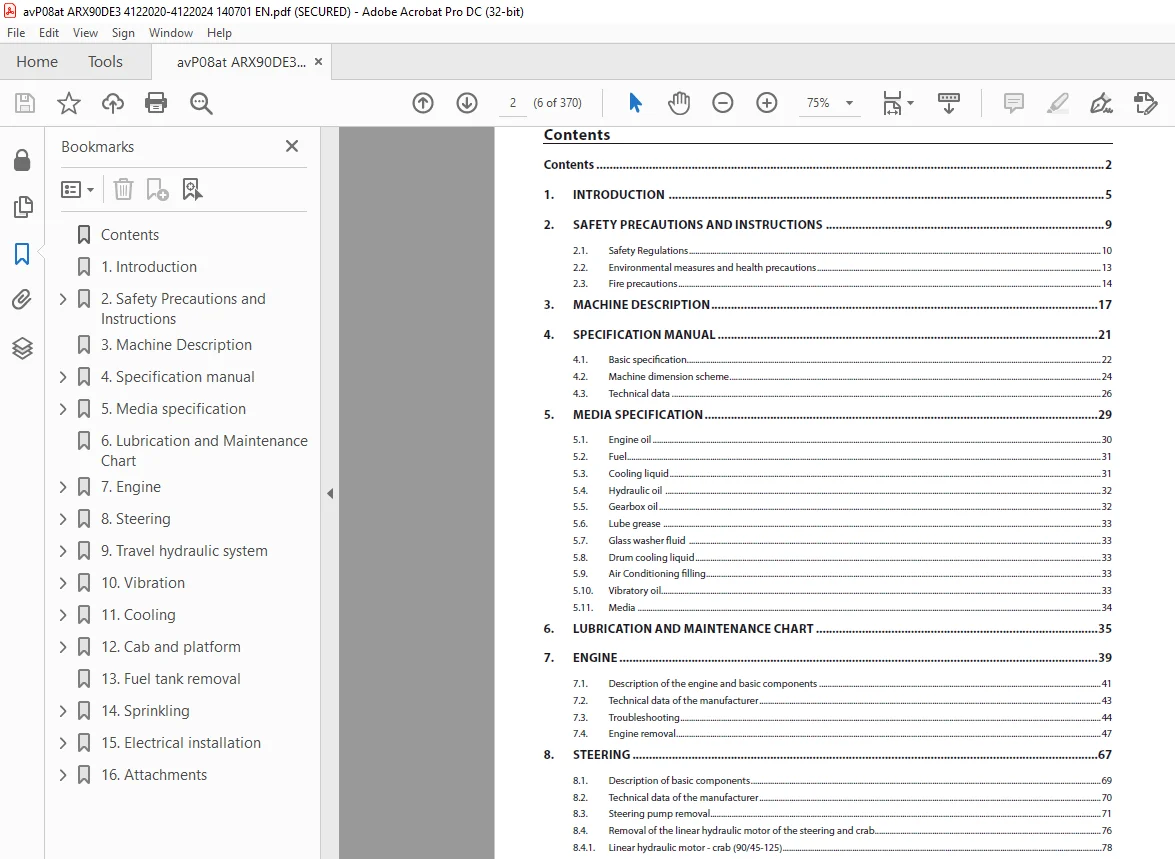

TABLE OF CONTENTS:
Ammann ARX 90 Articulated Tandem Roller Deutz Tier 3 Workshop Manual 4122020 – PDF DOWNLOAD
Contents 6
1 Introduction 9
2 Safety Precautions and Instructions 13
2 1 Safety Regulations 14
2 2 Environmental measures and health precautions 17
2 3 Fire precautions 18
3 Machine Description 21
4 Specification manual 25
4 1 Basic specification 26
4 2 Machine dimension scheme 28
4 3 Technical data 30
5 Media specification 33
5 1 Engine oil 34
5 2 Fuel 35
5 3 Cooling liquid 35
5 4 Hydraulic oil 36
5 5 Gearbox oil 36
5 6 Lube grease 37
5 7 Glass washer fluid 37
5 8 Drum cooling liquid 37
5 9 Air Conditioning filling 37
5 10 Vibratory oil 37
5 11 Media 38
6 Lubrication and Maintenance Chart 39
7 Engine 43
7 1 Description of the engine and basic components 45
7 2 Technical data of the manufacturer 47
7 3 Troubleshooting 48
7 4 Engine removal 51
8 Steering 71
8 1 Description of basic components 73
8 2 Technical data of the manufacturer 74
8 3 Steering pump removal 75
8 4 Removal of the linear hydraulic motor of the steering and crab 80
8 4 1 Linear hydraulic motor – crab (90/45-125) 82
8 4 2 Linear hydraulic motor – steering (90/45-420) 84
8 4 3 Replacement of sealings of the linear hydraulic motor 86
8 5 Steering unit removal 90
8 6 Removal of the hydraulic tank 94
8 7 Steering wheel removal 99
8 8 Steering pillar removal 102
8 9 Removal of the steering joint from the machine 105
8 9 1 Removal of bearings of the steering joint 114
8 9 2 Removal of bearings of the arm 122
9 Travel hydraulic system 129
9 1 Description of basic components 131
9 2 Technical data of the manufacturer 131
9 3 Travel hydraulic motor removal 132
9 4 Travel gearbox removal 136
9 5 Travel pump removal 142
10 Vibration 149
10 1 Description of basic elements of vibration hydraulics 151
10 2 Technical data of the manufacturer 152
10 3 Removal of vibration hydraulic motor 153
10 4 Removal of vibration pump on front drum 160
10 5 Removal of vibration hydraulic pump from rear drum 164
10 6 Removal of drum from machine 168
10 7 Removal of vibrator bearings 178
10 8 Removal of flange bearings and damper plate 191
10 9 Removal of rubber-metals from drum 200
11 Cooling 207
11 1 Description of basic components of the cooling hydraulics 208
11 2 Technical data of the manufacturer 209
11 3 Removal of the cooling hydraulic motor and propeller 210
11 4 Cooling pump removal 216
11 5 Combined cooler disassembly 221
12 Cab and platform 231
12 1 Ball valve heating removal 233
12 2 Heating removal 236
12 3 Heating fan removal 240
12 4 Cab removal 244
12 5 Platform removal 250
12 6 Removal of rubber-metals of the platform 263
13 Fuel tank removal 272
14 Sprinkling 279
14 1 Sprinkling pump removal 280
14 2 Water tank removal 284
15 Electrical installation 291
15 1 Measurement technique 293
15 2 Safety and instruction 294
15 3 Fuse positioning 295
15 4 Display removal 296
15 5 Seat switch removal 299
15 6 Removal of the travel lever and switches 303
15 7 Adjust pulse sensor 308
15 8 Accumulators 311
15 9 Alternator 314
15 10 Starter 317
16 Attachments 321
16 1 Wiring diagram ARX 90, ARX 90 HF 322
16 2 Electric installations cable harnesses 329
16 3 Hydraulic system diagram ARX 90 360
16 4 Hydraulic system diagram ARX 90 HF 362
16 5 Check the tightening of bolted connections 364
16 6 List of spare parts specified in the publication 366
16 7 List of groups from spare parts catalog used in the publication 366
