Ammann ARX 90 Tandem Roller Workshop Manual 3008235 PDF
$29.95
The Ammann ARX 90 Tandem Roller Deutz TCD3.6 L4 EU Stage IV / U.S. EPA Tier 4f Workshop Manual (SN 3008235) is a comprehensive guide for technicians, providing detailed instructions for efficient repairs and maintenance, ensuring optimal performance for the specified equipment.
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Ammann ARX 90 Tandem Roller Deutz TCD3,6 L4 EU Stage IV / U.S. EPA Tier 4f Workshop Manual SN 3008235 – PDF DOWNLOAD
FILE DETAILS:
Ammann ARX 90 Tandem Roller Deutz TCD3,6 L4 EU Stage IV / U.S. EPA Tier 4f Workshop Manual SN 3008235 – PDF DOWNLOAD
Language : English
Pages : 442
Downloadable : Yes
File Type : PDF

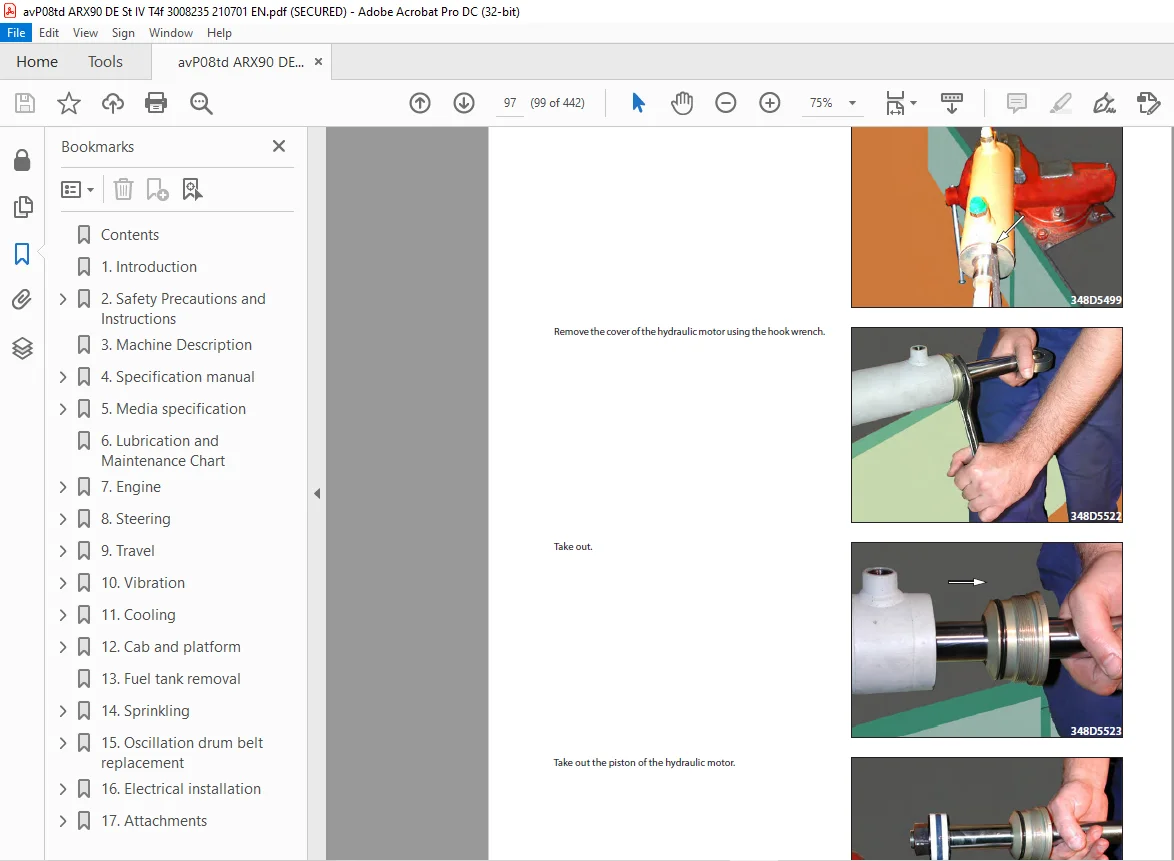

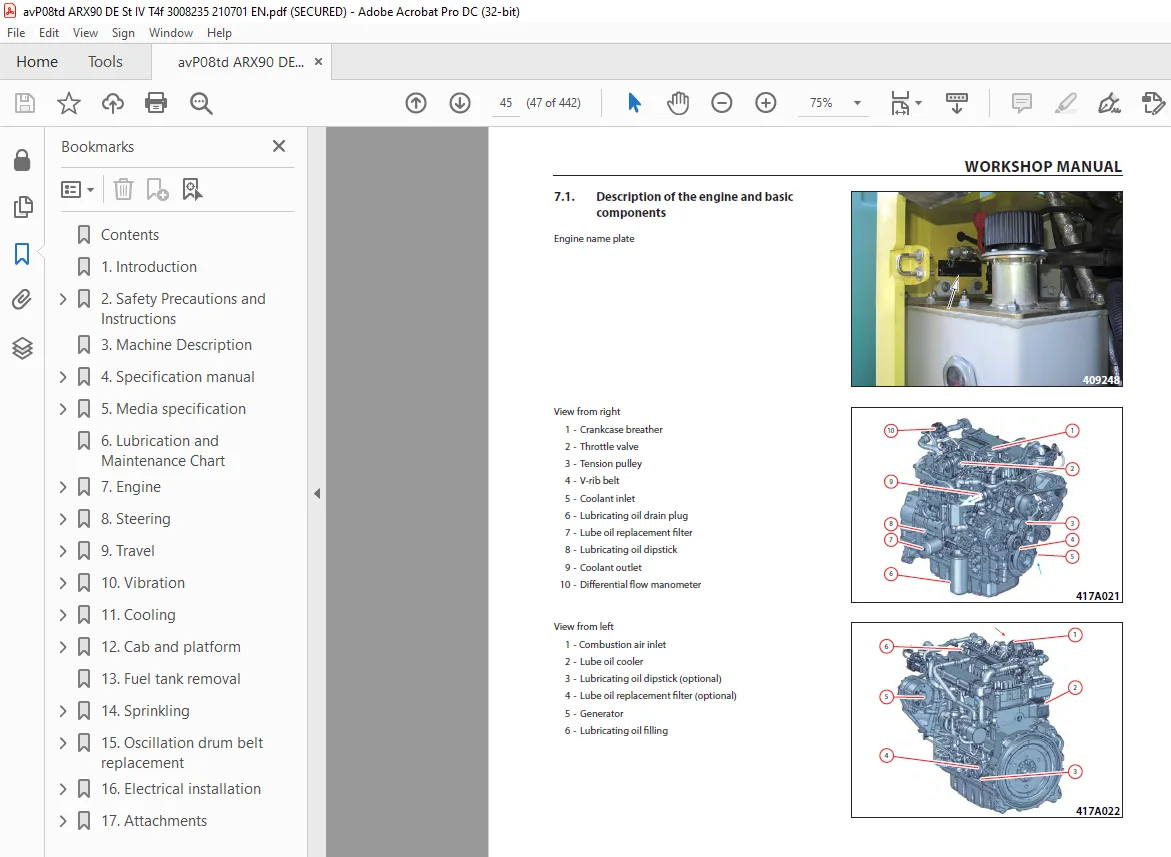

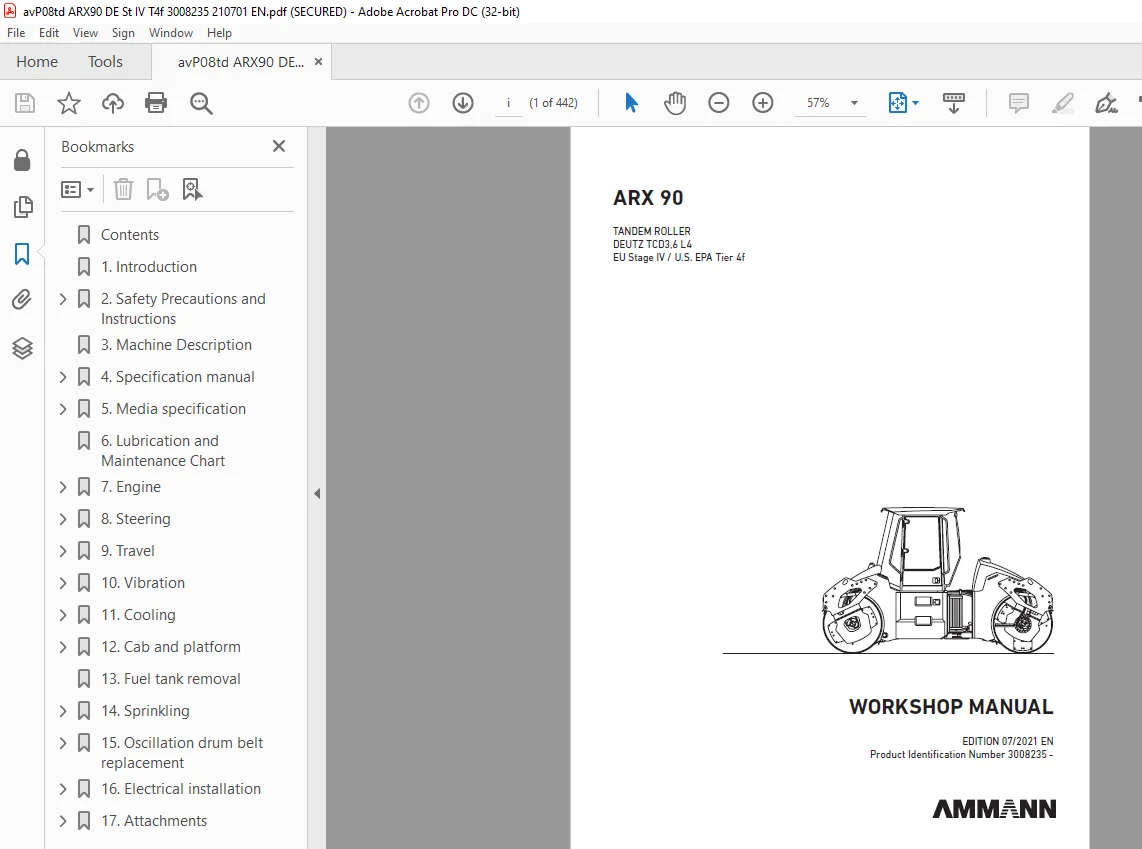

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Ammann ARX 90 Tandem Roller Deutz TCD3,6 L4 EU Stage IV / U.S. EPA Tier 4f Workshop Manual SN 3008235 – PDF DOWNLOAD
Contents 4
1 Introduction 7
2 Safety Precautions and Instructions 11
2 1 Safety Regulations 12
2 2 Environmental measures and health precautions 15
2 3 Fire precautions 16
3 Machine Description 17
4 Specification manual 21
4 1 Basic specification 22
4 2 Machine dimension scheme 24
4 3 Technical data 28
5 Media specification 33
5 1 Engine oil 34
5 2 Fuel 35
5 3 Cooling liquid 35
5 4 Hydraulic oil 36
5 5 Gearbox oil 36
5 6 DEF (AdBlue) 36
5 7 Lube grease 37
5 8 Glass washer fluid 37
5 9 Drum cooling liquid 37
5 10 Air Conditioning filling 37
5 11 Vibratory oil 37
5 12 Emulsion 37
5 13 Media 38
6 Lubrication and Maintenance Chart 39
7 Engine 45
7 1 Description of the engine and basic components 47
7 2 Technical data of the manufacturer 49
7 3 Troubleshooting 50
7 4 Engine removal 54
7 5 AdBlue tank removal 74
8 Steering 83
8 1 Description of basic components 85
8 2 Technical data of the manufacturer 86
8 3 Steering pump removal 87
8 4 Removal of the linear hydraulic motor of the steering and crab 92
8 4 1 Linear hydraulic motor – crab (90/45-125) 94
8 4 2 Linear hydraulic motor – steering (90/45-420) 96
8 4 3 Replacement of sealings of the linear hydraulic motor 98
8 5 Steering unit removal 102
8 6 Removal of the hydraulic tank 106
8 7 Steering wheel removal 111
8 8 Steering pillar removal 114
8 9 Removal of the steering joint from the machine 117
8 9 1 Removal of bearings of the steering joint 126
8 9 2 Removal of bearings of the arm 134
9 Travel 141
9 1 Description of basic components 143
9 2 Technical data of the manufacturer 143
9 3 Travel hydraulic motor removal 144
9 4 Travel gearbox removal 148
9 5 Travel pump removal 154
9 6 Travel hydraulic motors and gearboxes of ARX 90 K 161
9 6 1 Removal of the travel hydraulic motor and gearbox of ARX 90 K 165
9 6 2 Installation of the travel hydraulic motor and gearbox of ARX 90 K 165
10 Vibration 167
10 1 Description of basic elements of vibration hydraulics 169
10 2 Technical data of the manufacturer 170
10 3 Removal of vibration hydraulic motor 171
10 4 Removal of vibration pump on front drum 178
10 5 Removal of vibration hydraulic pump from rear drum 182
10 6 Removal of drum from machine 186
10 7 Removal of vibrator bearings 196
10 8 Removal of flange bearings and damper plate 209
10 9 Removal of rubber-metals from drum 218
11 Cooling 225
11 1 Description of basic components of the cooling hydraulics 226
11 2 Technical data of the manufacturer 227
11 3 Removal of the cooling hydraulic motor and propeller 228
11 4 Cooling pump removal 234
11 5 Combined cooler disassembly 239
12 Cab and platform 249
12 1 Ball valve heating removal 251
12 2 Heating removal 254
12 3 Heating fan removal 258
12 4 Cab removal 262
12 5 Platform removal 269
12 6 Removal of rubber-metals of the platform 283
13 Fuel tank removal 293
14 Sprinkling 301
14 1 Sprinkling pump removal 302
14 2 Water tank removal 306
15 Oscillation drum belt replacement 313
15 1Dismounting the belts 320
15 1Mounting the belts 332
16 Electrical installation 347
16 1 Measurement technique 349
16 2 Safety and instruction 350
16 3 Fuse positioning 351
16 4 Display removal 352
16 5 Seat switch removal 355
16 6 Removal of the travel lever and switches 359
16 7 Adjust pulse sensor 364
16 8 Accumulators 367
16 9 Alternator 370
16 10 Starter 373
17 Attachments 377
17 1 Wiring diagram 378
17 2 Wiring diagram of chip spreader 386
17 3 Electric installations cable harnesses 389
17 4 Hydraulic system diagram ARX 90 424
17 5 Hydraulic system diagram ARX 90 HF 426
17 6 Hydraulic system diagram ARX 90 K 428
17 7 Hydraulic diagram of chip spreader 430
17 8 Check the tightening of bolted connections 432
17 9 List of spare parts specified in the publication 434
17 10 List of groups from spare parts catalog used in the publication 435
17 11 Error codes 436
