This is the complete factory-authorized Arctic Cat 2005 Snowmobile Service Manual (All Models) — a two-volume technical manual used by dealership technicians. It covers service, maintenance, inspection, teardown, assembly, torque settings, diagnostics and troubleshooting for all major systems. Includes detailed schematics, exploded diagrams and step-by-step repair procedures.

✔ Models Covered (2005 Model Year)

From the engine specifications, piston & assembly schematics and service sections, the manual covers all 2005 Arctic Cat snowmobiles including (but not limited to):

• 370 / 440 cc

• 500 cc (APV & Non-APV / Laydown)

• 550 cc

• 570 cc

• 600 cc (STD & Laydown)

• 700 cc Laydown

• 900 cc

(Engine-family schematics and torque charts appear throughout Sections 1–2.)

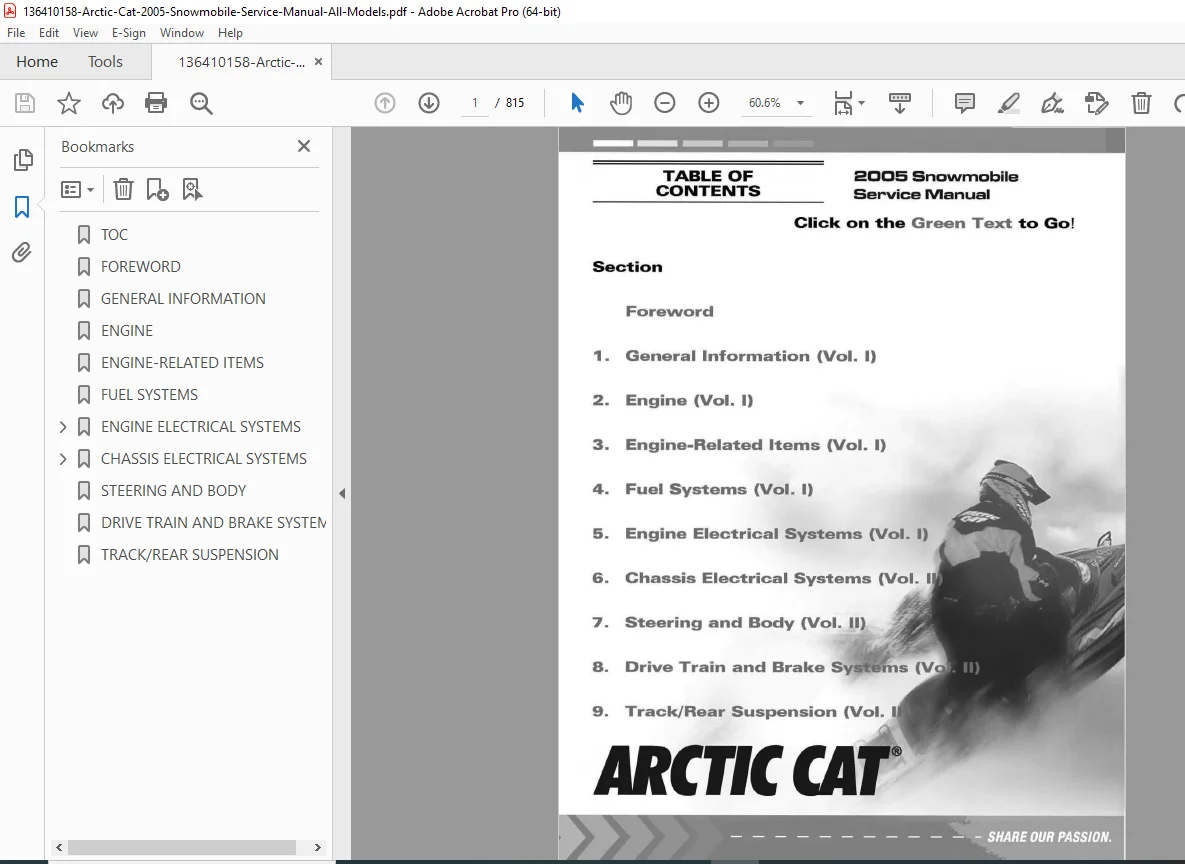

📑 Bookmarks / Table of Contents

SECTION 1 — GENERAL INFORMATION

• Snowmobile Identification (VIN / ESN)

• Recommended Gasoline & Oil (EFI & Carb Models)

• Break-In Procedure

• High Altitude Operation

• Storage Preparation / After-Storage Checklist

• After Break-In Checkup (100 Miles)

• Torque Conversions & Tightening Charts

• Fraction / Decimal / MM-IN Conversion Tables

• Servicing Symbols & Lubricant References

SECTION 2 — ENGINE

• Arctic Cat Engine Specifications & Torque Charts

• Piston Replacement Guide

• Cylinder Head & Crankshaft Specifications

• Engine Removal / Disassembly / Assembly

• Measuring Critical Components

• Laydown Engine Service Procedures

• Engine Installation

• Troubleshooting (Carbureted & EFI Models)

(Also includes assembly schematics for 370/440, 500, 550, 570, 600, 700 & 900 engines.)

SECTION 3 — ENGINE-RELATED ITEMS (Vol. I)

Covers components that support or interface with the engine, including:

• Exhaust system service & inspection

• Reed valve & intake system

• Cooling system components

• Oil-injection system setup & bleed procedures

• APV valve service (where applicable)

• Mounts, brackets & vibration dampers

• Engine compartment hardware & shields

Includes removal, assembly, torque values and wear limits.

SECTION 4 — FUEL SYSTEMS (Vol. I)

Includes procedures for both Carbureted & EFI models:

Carburetor Systems

• Jetting charts (altitude / temperature / oxygenated fuel)

• Float height specs & tuning

• Throttle synchronization

• Choke & enrichment circuits

• Fuel pump service

EFI Systems

• ECU modes & fuel designation connector

• Sensor testing & diagnostics

• Fuel rail & injector service

• EFI troubleshooting trees

Also includes:

• fuel hose routing

• filter service

• tank & shutoff valve service

SECTION 5 — ENGINE ELECTRICAL SYSTEMS (Vol. I)

Factory procedures for:

• Ignition system testing

• CDI / ECU diagnostics

• Stator & magneto inspection

• Charging system output checks

• Spark plug specifications

• Timing & synchronization

• Continuity and resistance charts

Includes wiring diagrams and troubleshooting logic paths.

SECTION 6 — CHASSIS ELECTRICAL SYSTEMS (Vol. I)

Covers all non-engine electrical systems:

• Main wiring harness routing

• Battery (electric start models)

• Starter motor & solenoid

• Lighting system (high/low beam)

• Brake light & switches

• Handlebar controls & safety switches

• Gauges & instrument cluster

• Accessory circuits

Includes:

• connector pinouts

• voltage & resistance specs

• diagnostics & replacement procedures

  136410158-Arctic-Cat-2005-Snowm…

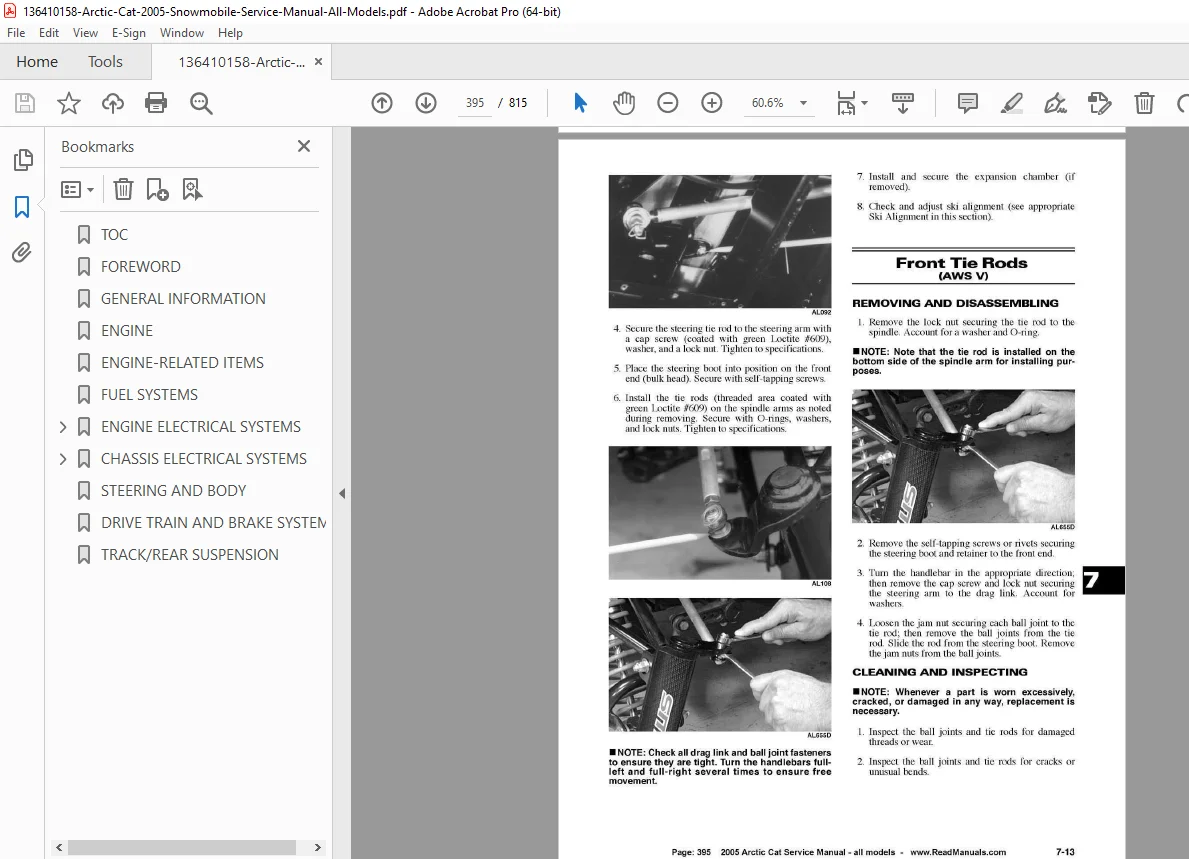

SECTION 7 — STEERING & BODY (Vol. II)

Service & setup procedures for:

• Steering post & linkage

• Tie rods & spindle alignment

• Ski assembly & wear bars

• Body panels & cowl fasteners

• Hood, console & windshield service

• Seat assembly & hardware

• Chassis frame inspection

Includes alignment charts & torque specs.

SECTION 8 — DRIVE TRAIN & BRAKE SYSTEMS (Vol. II)

Factory maintenance & repair coverage for:

Drive System

• Drive clutch & driven pulley service

• Belt deflection & break-in procedures

• Chaincase disassembly & lubrication

• Gear case service

• Jackshaft & driveshaft inspection

Brake System

• Brake caliper & pads

• Hydraulic system bleed procedure

• Lever travel adjustment

• Rotor inspection & tolerance limits

Includes exploded diagrams and torque charts.

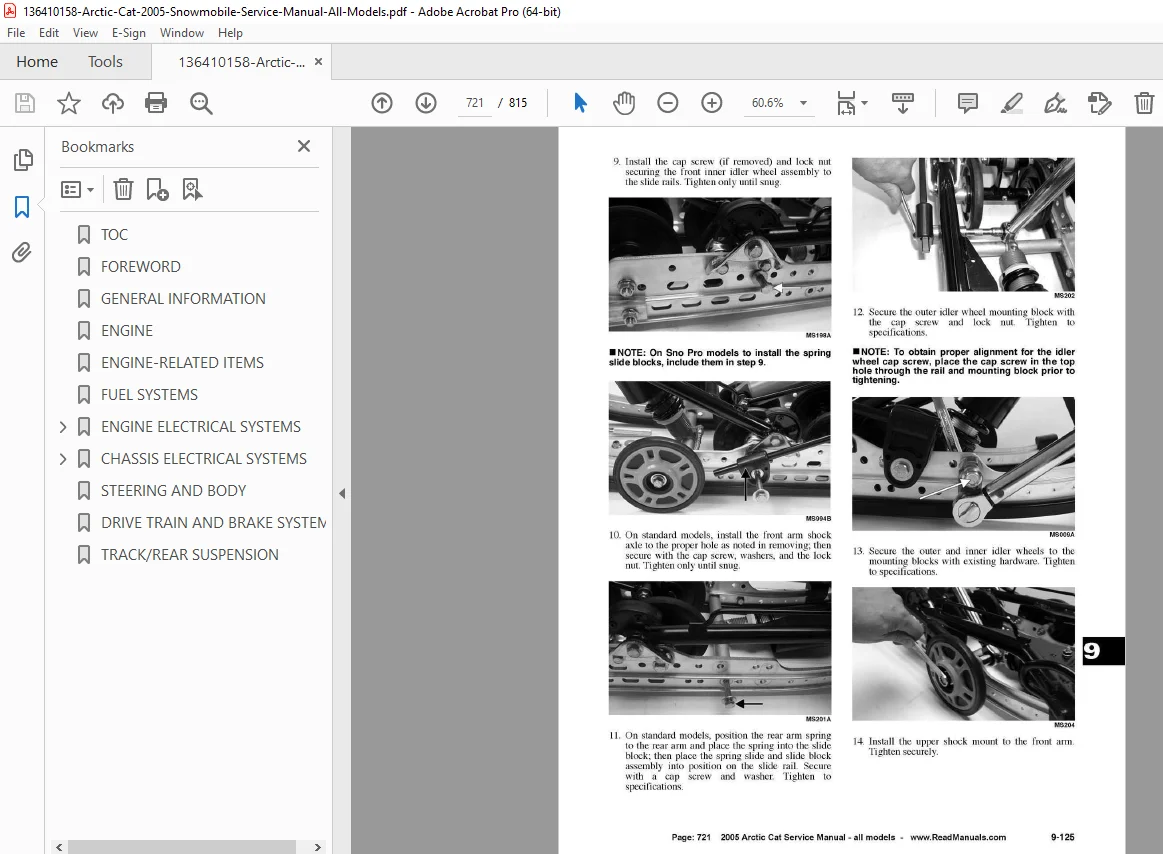

SECTION 9 — TRACK / REAR SUSPENSION (Vol. II)

Includes full teardown, service & alignment procedures:

• Track removal & installation

• Track tension & alignment specs

• Rear suspension arm service

• Idler wheels & bearings

• Shock absorber service

• Suspension rail inspection

• Ski stance & ride height adjustments

Also includes break-in inspection recommendations and setup guidance after first 100 miles (cross-referenced to Section 1)

Other Main Service Sections (Vol. I & II)

• Fuel Systems

• Engine Electrical Systems

• Chassis Electrical Systems

• Steering & Body

• Drive Train & Brake Systems

• Track / Rear Suspension

Each section contains:

• OEM service procedures

• Disassembly / reassembly steps

• Inspection & wear limits

• Torque values & sequences

• Adjustment & alignment specs

• Diagnostic guides & charts

🧰 Technical Highlights

• Factory torque & lubrication references

• Drive belt break-in & setup procedures

• Track tension & alignment guidance

• Storage & preservation procedures

• High-altitude tuning notes

• EFI / Oxygenated fuel mode guidance

• Safety & servicing cautions

All content is taken directly from the official Arctic Cat service publication

📂 File Details
