Arctic Cat Snowmobile Crossfire 700 Efi Illustrated Parts Manual

ARCTIC CAT SNOWMOBILE CROSSFIRE 700 EFI ILLUSTRATED PARTS MANUAL – DOWNLOAD:

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

SKI AND SPINDLE ASSEMBLY 1
A-ARM ASSEMBLY 2
SHOCK ABSORBER AND SWAY BAR ASSEMBLY 3
FRONT SUSPENSION SHOCK ABSORBER 4

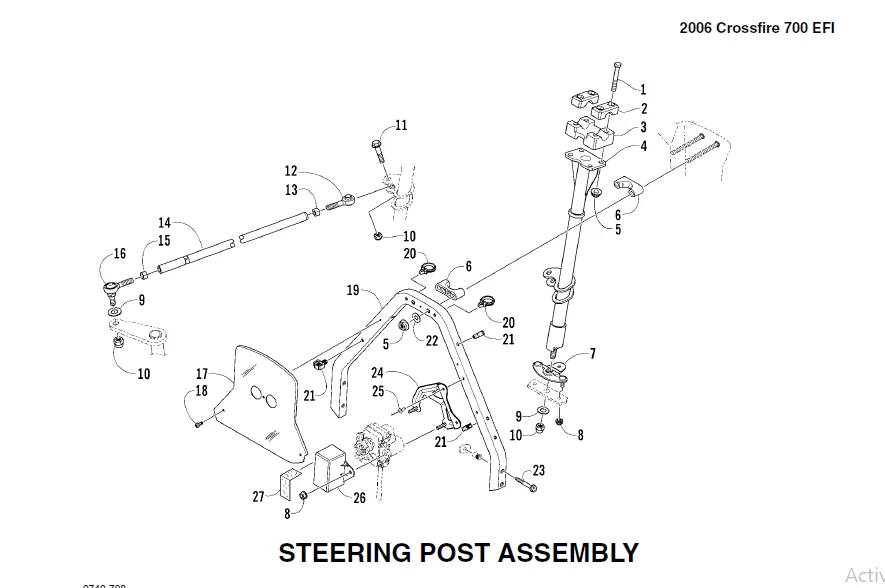

STEERING POST ASSEMBLY 5
TIE ROD ASSEMBLY 6
HANDLEBAR AND CONTROLS 7

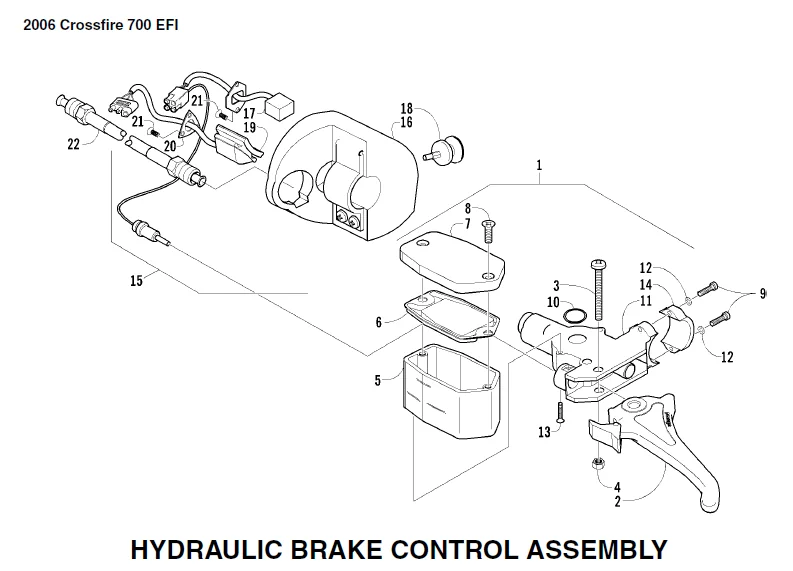

HYDRAULIC BRAKE CONTROL ASSEMBLY 8
DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES 9
GEAR CASE ASSEMBLY 10
SLIDE RAIL AND TRACK ASSEMBLY 11
IDLER WHEEL ASSEMBLY 12
REAR SUSPENSION FRONT ARM ASSEMBLY 13
REAR SUSPENSION FRONT ARM SHOCK ABSORBER 14
REAR SUSPENSION REAR ARM ASSEMBLY 15
REAR SUSPENSION REAR ARM SHOCK ABSORBER 16
FRONT FRAME AND FOOTREST ASSEMBLY 17
HOOD AND WINDSHIELD ASSEMBLY 18
HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES 19
CONSOLE AND SWITCH ASSEMBLY 20
BELLY PAN ASSEMBLY 21
BELT GUARD ASSEMBLY 22
GAS TANK ASSEMBLY 23
FUEL PUMP ASSEMBLY 24
SEAT ASSEMBLY 25
TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLY 26
COOLING ASSEMBLY 27
ENGINE AND RELATED PARTS 28
EXHAUST ASSEMBLY 29
AIR INTAKE ASSEMBLY 30
AIR SILENCER ASSEMBLY 31
OIL TANK ASSEMBLY 32
DRIVE CLUTCH 33
DRIVEN CLUTCH 34
CYLINDER AND HEAD ASSEMBLY 35
CRANKCASE ASSEMBLY 36
PISTON AND CRANKSHAFT 37
REED VALVE ASSEMBLY 38
THROTTLE BODY ASSEMBLY 39
OIL PUMP 40
WATER PUMP AND THERMOSTAT 41
RECOIL STARTER 42
MAGNETO 43
ELECTRICAL 44
SERVOMOTOR ASSEMBLY 45
RELATED ITEMS Back Cover

FILE FORMAT:

LANGUAGE:ENGLISH
PAGES:48
DOWNLOADABLE:YES
FILE TYPE:PDF
