ASUS VW224U & VW224S LCD Monitor Service Manual β PDF Download
$16.95
Official ASUS factory service manual for VW224U and VW224S LCD monitors.
Includes schematics, PCB layouts, disassembly steps, troubleshooting, and calibration data.
Ideal for professional repair, maintenance, and electronic diagnostics.
Description
ASUS VW224U & VW224S LCD Monitor Service Manual β PDF Download
DescriptionΒ
π§Ύ Overview

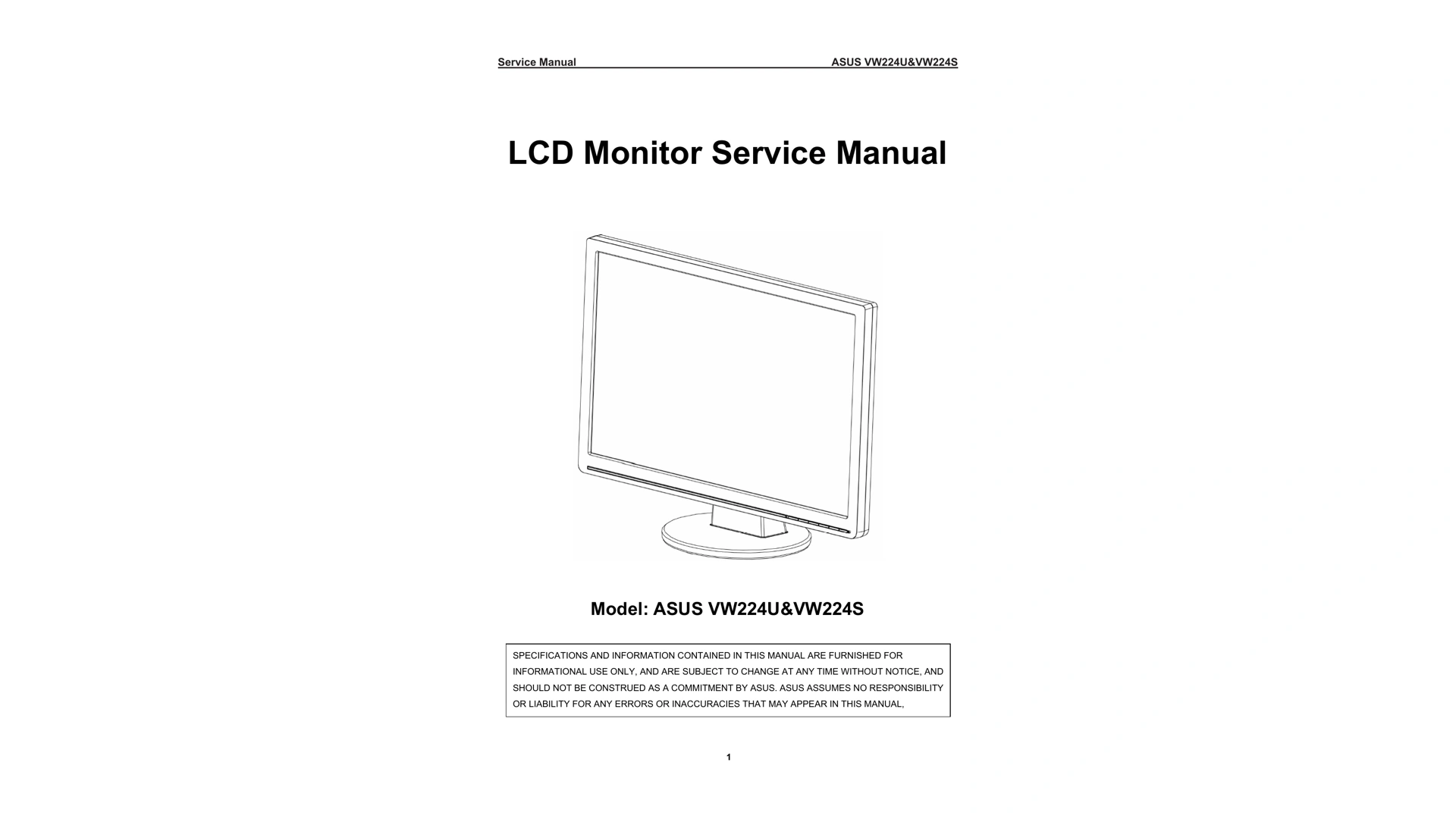

The ASUS VW224U & VW224S Service Manual provides full technical documentation for these 22-inch LCD monitors. It covers both analog (VGA) and digital (DVI) models, detailing circuitry, block diagrams, and board-level schematics. Intended for engineers, technicians, and authorized service centers, this manual ensures accurate troubleshooting and component-level repairs
51639886-ASUS-vw224-Service-Manβ¦
IMAGES:
βοΈ Contents Summary
Safety Precautions β Proper handling and precautionary measures for high-voltage components and ESD protection.
Monitor Specifications β Electrical ratings, signal interface standards, and display modes.
Operation Instructions β Control buttons, power functions, OSD menu structure, and input selection.
Input/Output Specifications β Detailed pin assignment for VGA and DVI connectors, power requirements, and factory preset display modes
51639886-ASUS-vw224-Service-Manβ¦

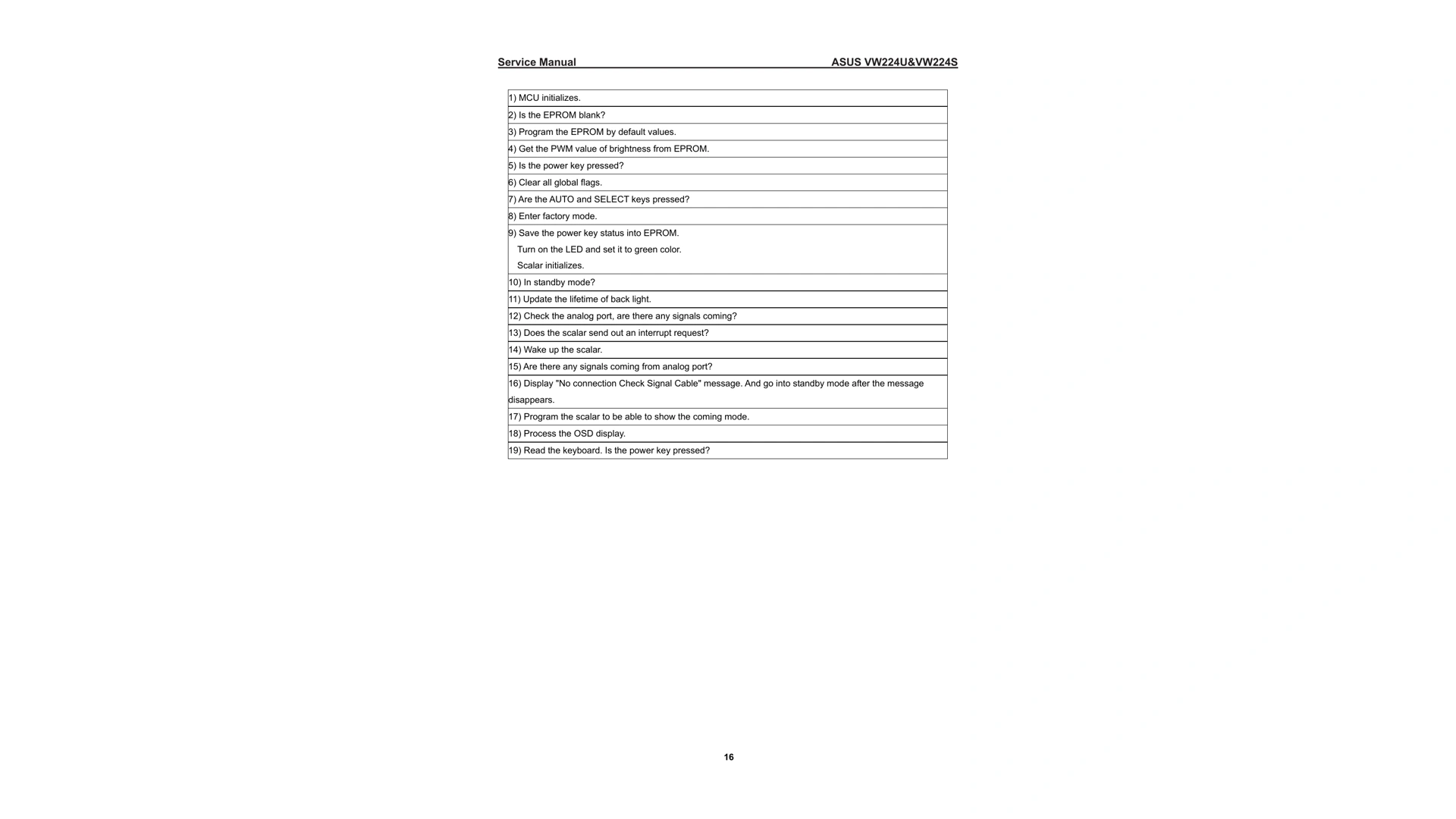

Block Diagrams & Software Flowchart β System architecture, scalar control, EEPROM programming, and MCU initialization logic.

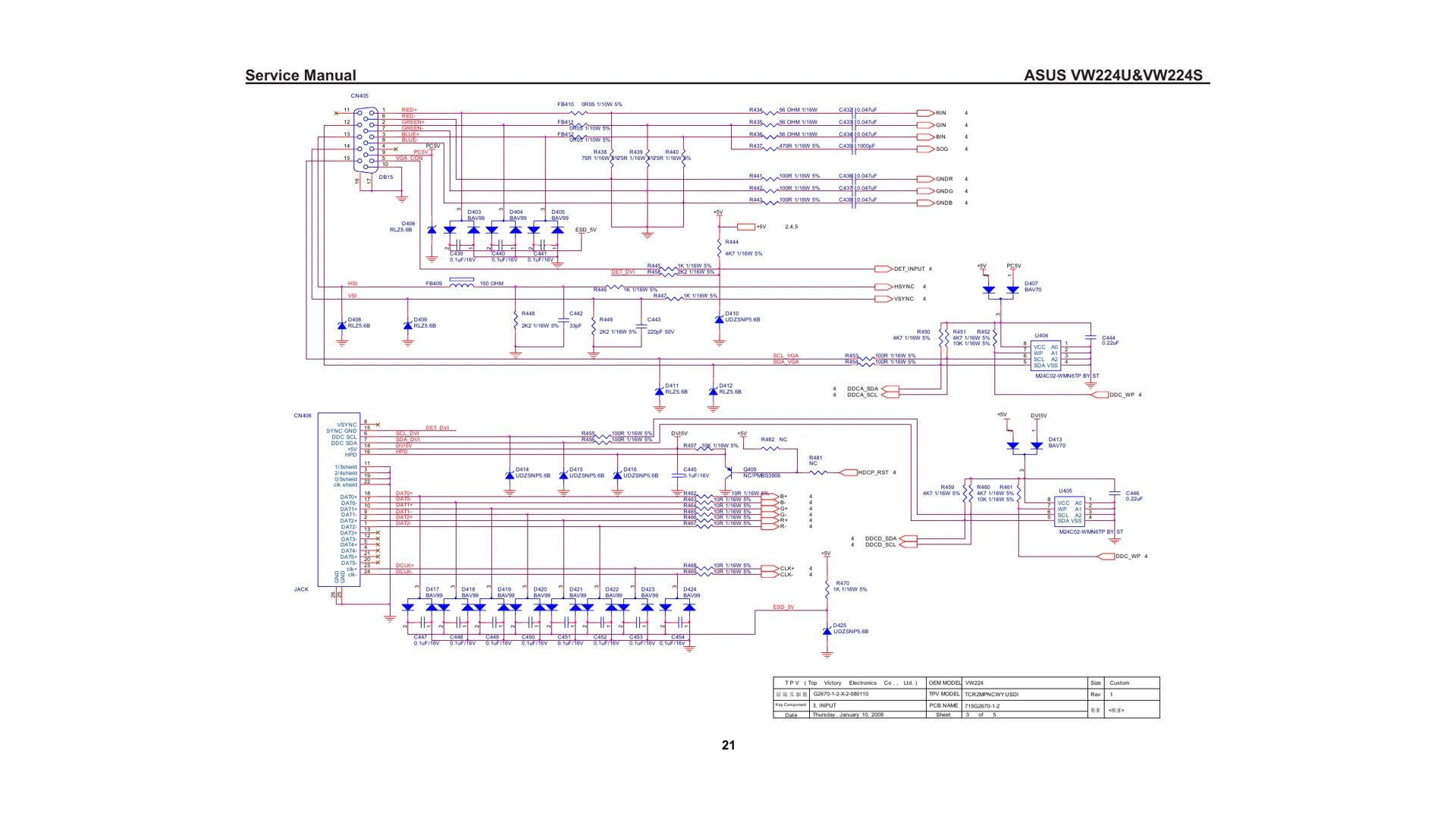

Main Board & Power Board Schematics β Complete schematic circuits for power supply, inverter, audio board, and signal processing sections.
PCB Layouts β Top/bottom views for Main Board, Power Board, Audio Board, and Key Board assemblies.
Disassembly & Assembly Procedures β Step-by-step SOP for removing rear cover, panel, and internal modules
51639886-ASUS-vw224-Service-Manβ¦
ISP & DDC Instructions β Firmware flashing, color balance calibration, and communication protocol setup.
Color/White Balance Adjustment β Factory calibration and gamma correction methods.
Troubleshooting Guide β Diagnostic flowcharts for power failure, no display, backlight faults, and signal issues.
Exploded Views & BOM List β Mechanical drawings and complete bill of materials for both models.
π§ Technical Highlights
Dual model support: VW224U (DVI + VGA) and VW224S (VGA only)
Integrated TSUMO5RCWHQ-LF scalar with EEPROM control
Power input: 100 β 240 V AC, 50/60 Hz
Typical current: 1.5 A at 100 V / 0.8 A at 240 V
PWM-based backlight control with over-voltage protection
SPLENDIDβ’ Video Enhancement modes (Game, Night View, Scenery, Standard, Theater)
DDC/CI communication and EEPROM configuration for firmware updates
π File Details
| Parameter | Information |
|---|---|
| File Type | PDF (Digital Download) |
| File Size | β 6.80 MB |
| Page Count | β 109Β pages |
| Language | English |
| Downloadable | Yes β Instant after purchase |
| Searchable Text | Yes (OCR enabled) |
| Compatibility | Windows / macOS / iOS / Android |
| Edition / Date | Rev A02 β Jan 5 2009 |
| Models Covered | VW224U / VW224S |
π‘ Why You Need This Manual
Comprehensive board-level repair documentation for technicians.
Saves time in fault diagnosis and EEPROM programming.
Includes schematic and layout data not found in user manuals.
Ideal for workshops specializing in ASUS monitor repairs and electronics servicing.
