AUSA C 300 H X4 FORKLIFTS PARTS MANUAL – PDF DOWNLOAD
FILE DETAILS:
AUSA C 300 H X4 FORKLIFTS PARTS MANUAL – PDF DOWNLOAD
Language : English
Pages : 150
Downloadable : Yes
File Type : PDF

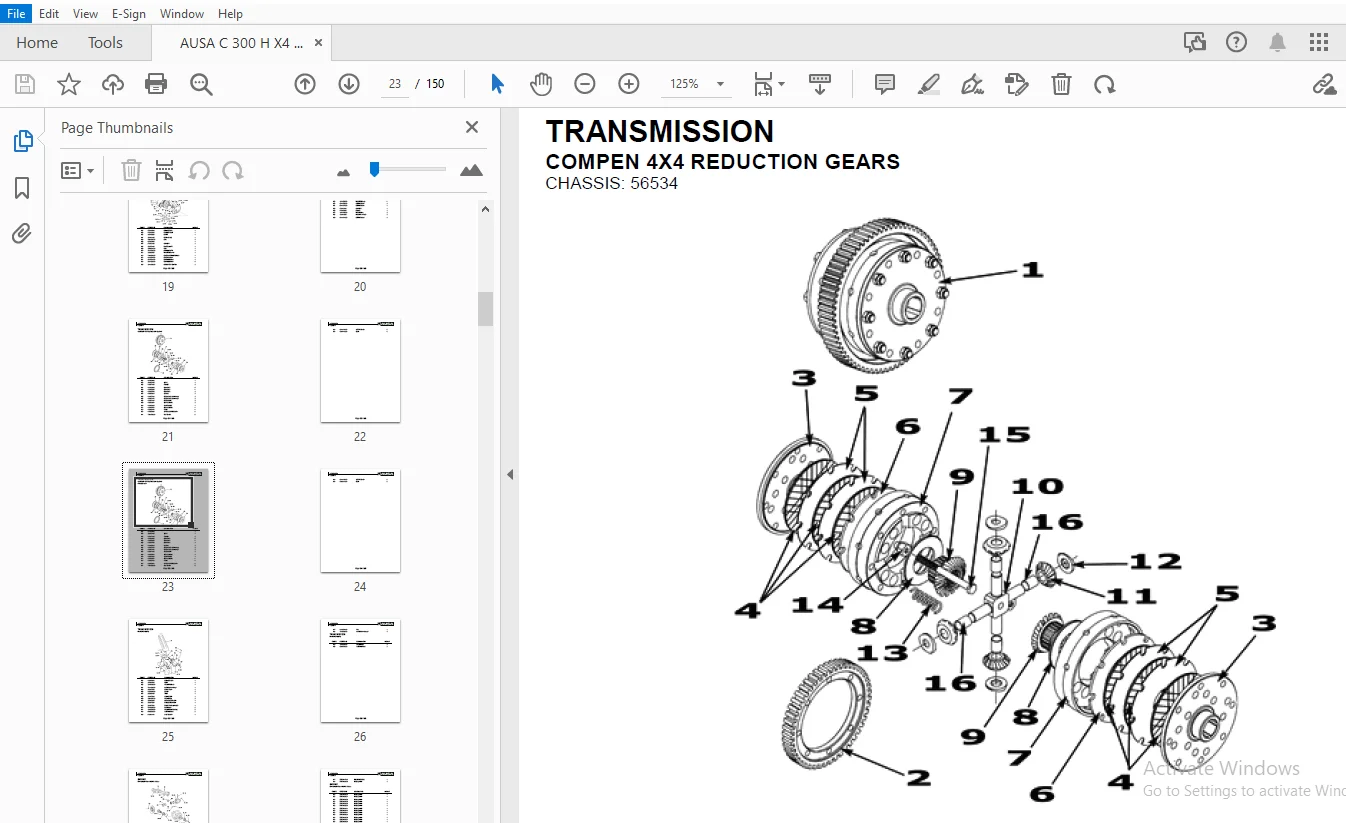

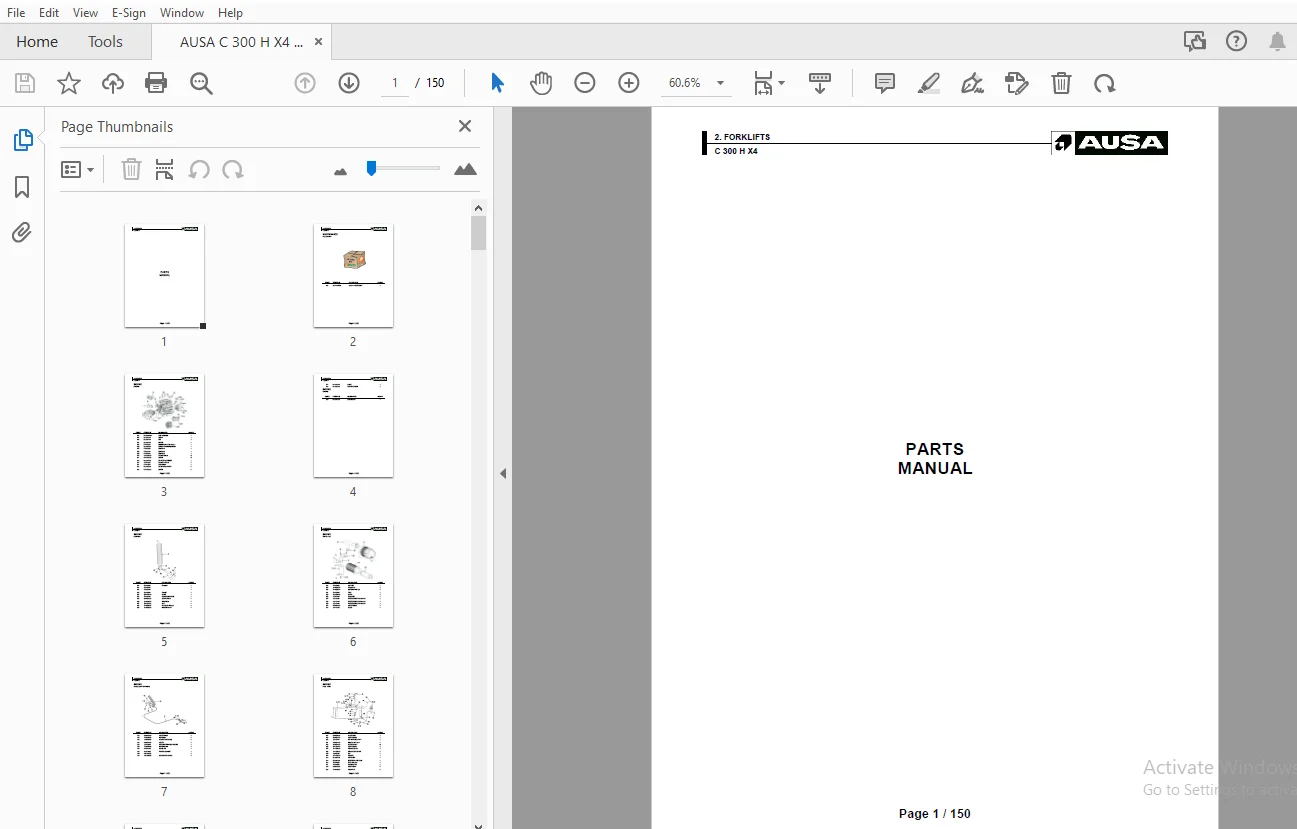

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
AUSA C 300 H X4 FORKLIFTS PARTS MANUAL – PDF DOWNLOAD
Maintenance - Filters kit......................................... 2 Engine - Engine................................................... 3 Engine - Exhaust.................................................. 5 Engine - Air filter............................................... 6 Engine - Accelerator pedal........................................ 7 Engine - Fuel tank................................................ 8 Engine - Radiator................................................. 9 Engine - Cooling.................................................. 10 Engine - Supports................................................. 11 Transmission - Reductor box 4x4................................... 12 Transmission - Reductor box 4x4 - 51401........................... 14 Transmission - Reductor box 4x4 - 56534........................... 16 Transmission - Reductor box 4x4 usa............................... 18 Transmission - COMPEN 4x4 Reduction gears......................... 20 Transmission - COMPEN 4x4 Reduction gears - 56534................. 21 Transmission - Inching pedal...................................... 22 Engine - Differential (Front axle)................................ 24 Engine - Differential (Front axle) - 51808........................ 27 Transmission - Differential (Front axle USA Version).............. 30 Transmission - Differential (Front axle USA Version) - 51808...... 33 Transmission - Casings (Front axle)............................... 36 Transmission - Casings (Front axle USA Version)................... 40 Transmission - Differential (Steering drive axle)................. 43 Transmission - Differential (steering drive axle USA)............. 45 Transmission - Planetary gear (Steering drive axle)............... 47 Transmission - Casings (Steering drive axle)...................... 48 Transmission - Articulation (Steering drive axle)................. 51 Transmission - Reduction (Steering drive axle).................... 53 Transmission - ................................................... 54 Transmission - Steering (Steering drive axle)..................... 55 Transmission - Cardan joint....................................... 57 Brake - Footbrake................................................. 58 Steering - Steering - 2006........................................ 60 Steering - Steering - 49315....................................... 61 Wheel - Front wheels.............................................. 62 Wheel - Rear wheels............................................... 63 Body - Sheets..................................................... 64 Body - Sheets (USA Version)....................................... 65 Body - Cab and Protectors (PART 1)................................ 66 Body - Cab and Protectors (PART 2)................................ 68 Body - half-closed cabin (part 1)................................. 70 Body - half-closed cabin (part 2)................................. 71 Body - Closed cab (Part 1)........................................ 72 Body - Closed cab (Part 2)........................................ 74 Body - Rear cabin lock............................................ 75 Body - Cabin lock device.......................................... 77 Body - Counterweight.............................................. 78 Machine operation tools - Elevation systems....................... 79 Body - Closed cab (Part 3)........................................ 80 Machine operation tools - Elevation systems (PART 1).............. 81 Machine operation tools - Elevation systems (PART 2).............. 82 Machine operation tools - Elevation systems (PART 3).............. 83 Machine operation tools - Internal mast (DUPLEX).................. 84 Machine operation tools - Port-forks (DUPLEX)..................... 85 Machine operation tools - Pipes (DUPLEX).......................... 86 Machine operation tools - External mast (DUPLEX).................. 87 Machine operation tools - Side shift carriage (DUPLEX)............ 88 Machine operation tools - Cylinder (DUPLEX)....................... 90 Machine operation tools - General mast (TRIPLEX) PART 1........... 91 Machine operation tools - General mast (TRIPLEX) PART 2........... 92 Machine operation tools - General mast (TRIPLEX) PART 3........... 93 Machine operation tools - External mast (TRIPLEX)................. 95 Machine operation tools - Intermidle mast (TRIPLEX)............... 96 Machine operation tools - Internal mast (TRIPLEX)................. 97 Machine operation tools - Side shift carriage (TRIPLEX)........... 98 Machine operation tools - Pipes (TRIPLEX) PART 1..................100 Machine operation tools - Pipes (TRIPLEX) PART 2..................101 Machine operation tools - Cylinder (TRIPLEX)......................102 Machine operation tools - 4th. Valve (OPTIONAL TRIPLEX) PART 1....103 Machine operation tools - 4th. Valve (OPTIONAL TRIPLEX) PART 2....104 Hydraulic diagram installation - Oil pump.........................105 Hydraulic diagram installation - Hydraulic pump...................106 Hydraulic diagram installation - Distributor......................107 Hydraulic diagram installation - Valves...........................108 Hydraulic diagram installation - .................................109 Hydraulic diagram installation - Filters in line..................111 Hydraulic diagram installation - transmission (part 1)............112 Hydraulic diagram installation - transmission (part 2)............113 Hydraulic diagram installation - Controls (Valve).................115 Hydraulic diagram installation - controls (part 1)................116 Hydraulic diagram installation - controls (part 2)................117 Electric installation - ..........................................119 Electric installation - Lights (OPTIONAL).........................120 Electric installation - Acoustic alarm............................121 Electric installation - Switches..................................122 Electric installation - Battery...................................124 Electric installation - Supports and brackets.....................125 Finishing - Plates and decals.....................................126 Finishing - Plates and decals - 53998.............................128 Finishing - Plates and decals - 57394.............................130 Finishing - Tools bag.............................................132 Finishing - Plates and decals (USA Version).......................133 Machine operation tools - Elevation systems (USA Version).........134 Wheel - Front wheels (USA Version)................................135 Chassis - Chassis (USA Version)...................................136 Index - C 300 H x4................................................137
