Ausa C500 H Forklift Parts Manual – PDF DOWNLOAD

Description

Ausa C500 H Forklift Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Ausa C500 H Forklift Parts Manual – PDF DOWNLOAD

Language : English
Pages : 211
Downloadable : Yes
File Type : PDF

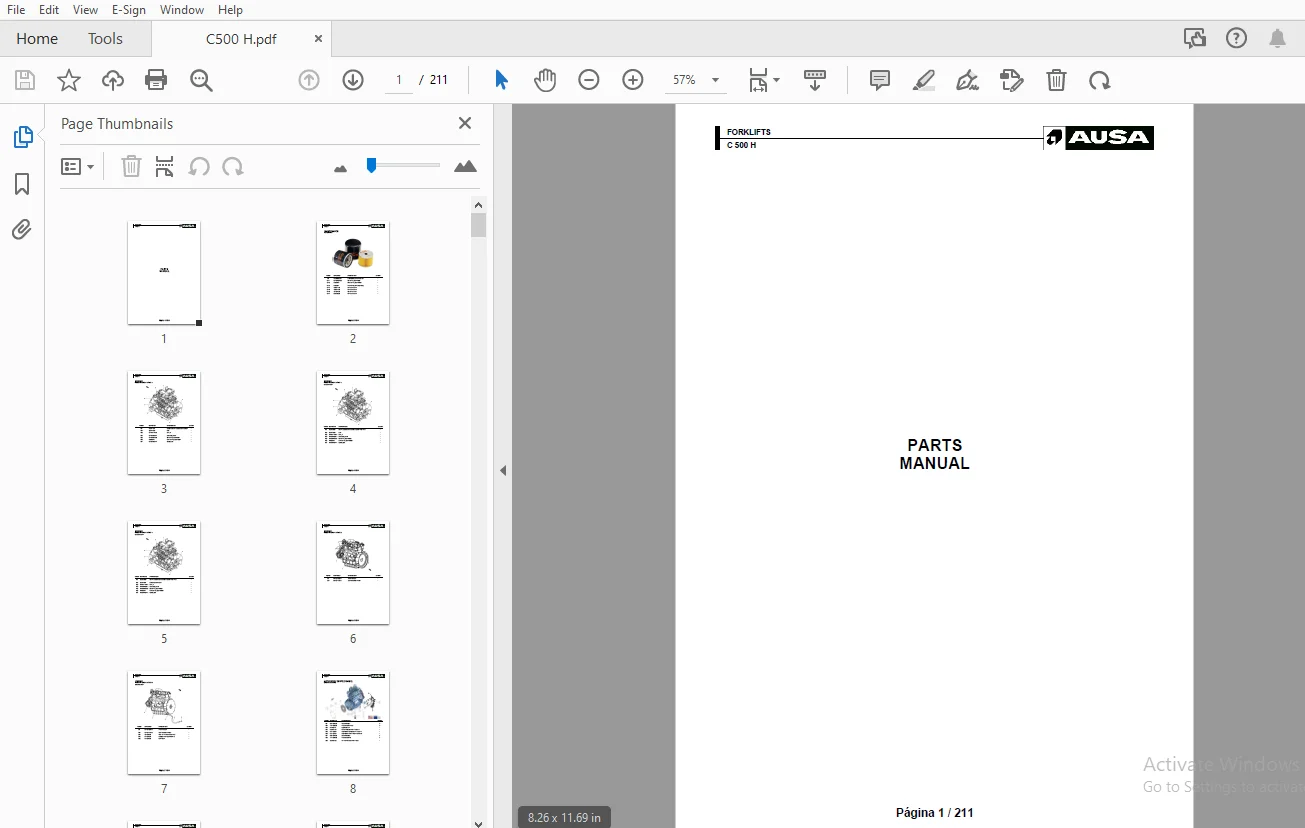

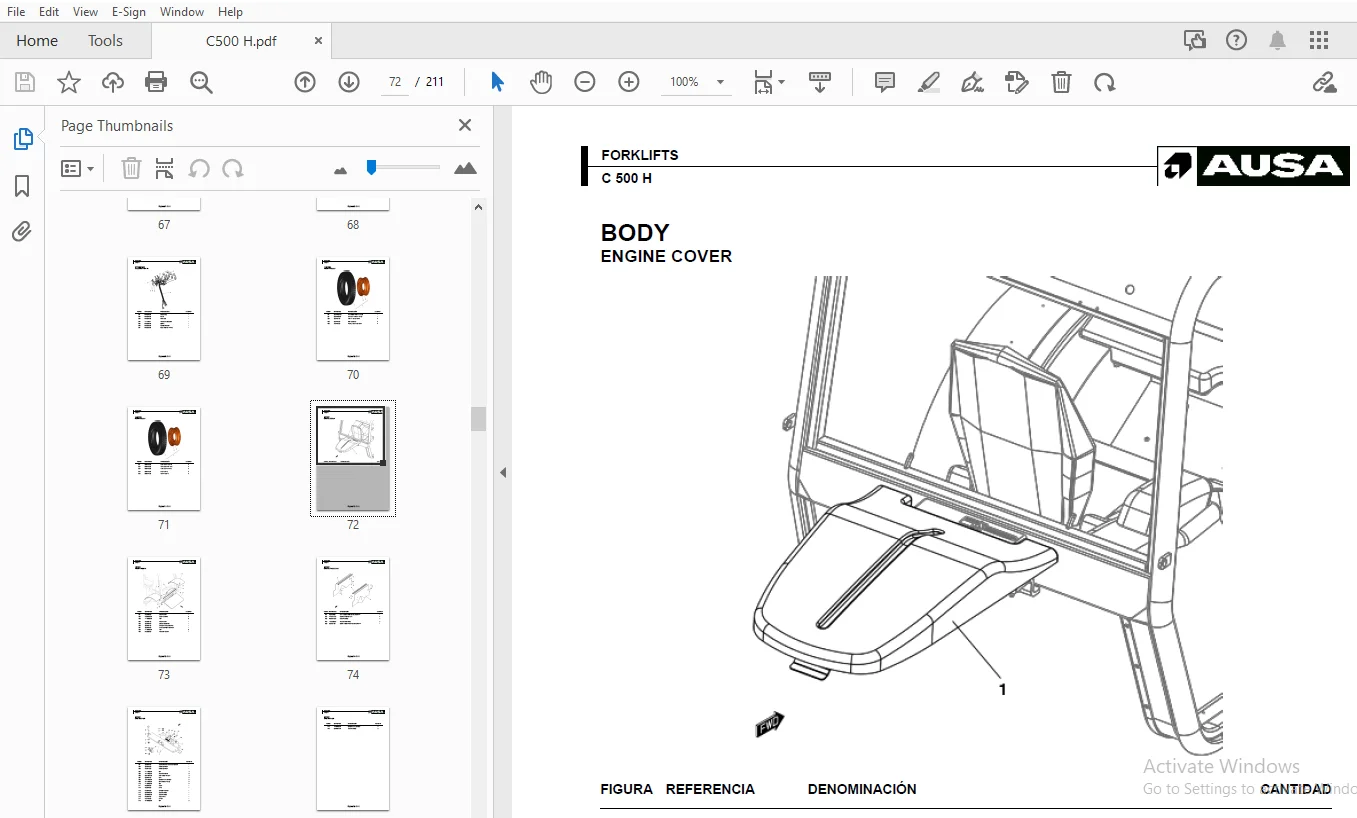

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Ausa C500 H Forklift Parts Manual – PDF DOWNLOAD

Maintenance - Filters kit..........................................  2
Engine - Kubota V3600-T (Part 1)...................................  3
Engine - Kubota V3600-T (Part 1) - 60884...........................  4
Engine - Kubota V3600-T (Part 1) - 66379...........................  5
Engine - Kubota V3600-T (Part 2)...................................  6
Engine - Kubota V3600-T (Part 2) - 60887...........................  7
accessory deutz (usa/eu) - ENGINE I-ENGINE.........................  8
accessory deutz (usa/eu) - ENGINE II-ENGINE........................  9
Engine - Pump coupling............................................. 10
Engine - Pump coupling - 72869..................................... 11
Engine - Pompe..................................................... 12
Engine - Exhaust pipe.............................................. 13
Engine - Air filter comp........................................... 14
Engine - Fuel tank................................................. 15
Engine - Delivery.................................................. 16
DEUTZ ENGINE TD3.6 - ACCESSORY 1 (ENGINE).......................... 17
DEUTZ ENGINE TD3.6 - ACCESSORY 2 (ENGINE).......................... 18
DEUTZ ENGINE TD3.6 - ACCESSORY 3 (ELECTRICAL SYSTEM)............... 20
DEUTZ ENGINE TD3.6 - ACCESSORY 4 (REFRIGERATION SYSTEM)............ 21
Engine - Accelerator pedal......................................... 22
Engine -  Radiator................................................. 23
Engine -  engine supports.......................................... 24
Engine -  engine supports - 61308.................................. 25
Engine -  engine supports - 65357.................................. 26
Transmission - Reductor box........................................ 27
Transmission - Transmission support - 61325........................ 28
Transmission - Reduction box inner (Part 1)........................ 29
Transmission - Reducer box inner (Part 2).......................... 30
Transmission - Inching pedal....................................... 32
Transmission - Cardan Joint........................................ 34
Transmission (Front axle) - Front axle............................. 35
Transmission (Front axle) - Carter différentiel.................... 36
Transmission (Front axle) - Ring & pinion.......................... 37
Transmission (Front axle) - Differential........................... 39
Transmission (Front axle) - Reduction.............................. 40
Transmission (Front axle) - Brake.................................. 42
Transmission (Rear axle) - Rear axle............................... 44
Transmission (Rear axle) - Rear axle - 65172....................... 45
Transmission (Rear axle) - Rear axle (PART 1)...................... 46
Transmission (Rear axle) - Rear axle (PART 2)...................... 47
Transmission (Rear axle) - Rear axle (PART 2) - 65171.............. 49
Transmission (Rear axle) - Rear axle (Part 3)...................... 51
Transmission (Rear axle) - Rear axle (Part 3) - 65171.............. 53
Transmission (Rear axle) - Rear axle (Part 3) - 67458.............. 54
Transmission (Rear axle) - Rear axle (Part 3) - 72188.............. 55
Transmission (Rear axle) - Steering cylinder mounting.............. 57
Transmission (Rear axle) - Steering cylinder mounting - 72188...... 58
Chassis - Chassis.................................................. 59
Chassis - mast bush................................................ 60
Operation brake - Foot brake....................................... 61
Operation brake - Fluid reservoir frein............................ 63
Steering - Direction Column........................................ 64
Steering - Direction Column - 63368................................ 65
Steering - Steering (Part 1)....................................... 66
Steering - Steering (Part 2)....................................... 67
Steering - Steering (Part 4)....................................... 68
Wheel - Front Wheels............................................... 69
Wheel - Rear Wheels................................................ 70
Body - Engine cover................................................ 71
Body - Front sheets................................................ 72
Body - Engine Protector............................................ 73
Body - Cab shutter................................................. 74
Body - Seat........................................................ 76
Body - Seat - 69383................................................ 77
Body - Protecteur moteur........................................... 78
Body - Protecteur moteur - 67347................................... 79
Body - Cabin supports.............................................. 80
Body - Counterweight............................................... 81
Opened cab - Opened cab (Part 1)................................... 82
Opened cab - Opened cab (Part 2)................................... 83
Opened cab - Opened cab (Part 3)................................... 84
Opened cab - Rear view mirrors..................................... 85
Opened cab - Carpet................................................ 86
Opened cab - Shock absorber........................................ 87
cabin - OPEN COCKPIT - SEMICLOSED COCKPIT.......................... 88
Half-closed cab - Half-closed cab (Part 1)......................... 89
Half-closed cab - Half-closed cab (Part 2)......................... 90
Half-closed cab - Half-closed cab (Part 3)......................... 91
Half-closed cab - Half-closed cab (Part 4)......................... 92
Half-closed cab - Half-closed cab (Part 5)......................... 93
Half-closed cab - Half-closed cab (Part 6)......................... 94
Closed cab - SEMICLOSE COCKPIT - CLOSE COCKPIT..................... 95
Closed cab - Closed cab (Part 1)................................... 97
Closed cab - Closed cab (Part 2)................................... 98
Closed cab - Closed cab (Part 3)................................... 99
Closed cab - Closed cab (Part 4)...................................100
Closed cab - Closed cab (Part 5)...................................102
Closed cab - Closed cab (Part 6)...................................103
Closed cab - Shock absorber........................................104
Closed cab - Heater (Part 1).......................................105
Closed cab - Heater (Part 2).......................................106
Duplex mast 3,7 m. (FEM IV) - Mast guides..........................107
Duplex mast 3,7 m. (FEM IV) - Carriage subjection..................109
Duplex mast 3,7 m. (FEM IV) - Auxiliary reeving....................110
Duplex mast 3,7 m. (FEM IV) - Carriage.............................111
Duplex mast 3,7 m. (FEM IV) - Lateral displacement.................112
Duplex mast 3,7 m. (FEM IV) - Lateral cylinder.....................113
Duplex mast 4,5 m. (FEM IV) - Mast guides..........................114
Duplex mast 4,5 m. (FEM IV) - Carriage subjection..................116
Duplex mast 4,5 m. (FEM IV) - Auxiliary reeving....................117
Duplex mast 4,5 m. (FEM IV) - Carriage.............................118
Duplex mast 4,5 m. (FEM IV) - Lateral displacement.................119
Duplex mast 4,5 m. (FEM IV) - Lateral cylinder.....................120
Triplex mast 4,25 m. (FEM IV) - Mast guides........................121
Triplex mast 4,25 m. (FEM IV) - Carriage subjection................123
Triplex mast 4,25 m. (FEM IV) - Auxiliary reeving..................124
Triplex mast 4,25 m. (FEM IV) - Carriage...........................125
Triplex mast 4,25 m. (FEM IV) - Lateral displacement...............126
Triplex mast 4,25 m. (FEM IV) - Lateral cylinder...................127
Triplex mast 4,25 m. (FEM IV) - Free lift cylinder.................128
Triplex mast 6,8 m. (FEM IV) - Mast guides.........................129
Triplex mast 6,8 m. (FEM IV) - Carriage subjection.................131
Triplex mast 6,8 m. (FEM IV) - Auxiliary reeving...................132
Triplex mast 6,8 m. (FEM IV) - Carriage............................133
Triplex mast 6,8 m. (FEM IV) - Lateral displacement................134
Triplex mast 6,8 m. (FEM IV) - Lateral cylinder....................135
Triplex mast 6,8 m. (FEM IV) - Free lift cylinder..................136
Machine operation tools - Inclination cylinder.....................137
Machine operation tools - Inclination cylinder - 66414.............138
Machine operation tools - Forks....................................139
Machine operation tools - Load protector...........................140
Machine operation tools - Bucket...................................141
Hydraulic diagram installation - Joystick..........................142
Hydraulic diagram installation - Distributor.......................143
Hydraulic diagram installation - Hydraulic tank....................144
Hydraulic diagram installation - Line filters......................146
Hydraulic diagram installation - Transmission......................147
Hydraulic diagram installation - Service diagram...................149
Hydraulic diagram installation - Valves............................151
Electric installation - Joystick lever.............................152
Electric installation - Battery....................................153
Electric installation - Battery - 60884............................154
Electric installation - Battery - 62988............................155
Electric installation - Battery support............................156
Electric installation - Supports and brackets - 62988..............157
Electric installation - Cable Installation.........................158
Electric installation - Main wire harness..........................159
Electric installation - Engine wiring harness......................160
Electric installation - Lights wiring harness......................161
Electric installation - Front lighting.............................162
Electric installation - Rear lighting..............................163
Finishing - Plaques et autocollants (Partie 1).....................164
Finishing - Plaques et autocollants (Partie 2).....................165
Finishing - Plaques et autocollants (Partie 3).....................166
Finishing - Plaques et autocollants (Partie 4).....................167
Finishing - Plaques et autocollants (Partie 5).....................168
Finishing - Plaques et autocollants (Partie 5) - 61283.............169
Finishing - Finished France........................................170
Finishing - Finished UK............................................171
Finishing - Finished Germany.......................................172
Finishing - Finished Poland........................................173
Finishing - Tools bag..............................................174
Option and variants - .............................................175
Option and variants - Bucket.......................................176
accessory deutz (usa/eu) - EXHAUST-ENGINE..........................177
accessory deutz (usa/eu) - INTAKE-ENGINE...........................178
accessory deutz (usa/eu) - POWER SUPPLY PART 1-ENGINE..............179
accessory deutz (usa/eu) - POWER SUPPLY PART 2-ENGINE..............180
accessory deutz (usa/eu) - COOLING-ENGINE..........................181
accessory deutz (usa/eu) - SUSPENSION-ENGINE.......................182
accessory deutz (usa/eu) - FIXED BRIDGE-TRANSMISSION...............183
accessory deutz (usa/eu) - SIMPLE GUIDELINE BRIDGE-TRANSMISSION....184
accessory deutz (usa/eu) - CARDAN JOINT-TRANSMISSION...............185
accessory deutz (usa/eu) - BODY-ON-FRAME-CHASIS....................186
accessory deutz (usa/eu) - HYDRAULIC-STEERING......................187
accessory deutz (usa/eu) - WHEELS-WHEELS...........................188
accessory deutz (usa/eu) - BODYWORK-PLATES.........................189
accessory deutz (usa/eu) - BODYWORK-CABIN I........................190
accessory deutz (usa/eu) - BODYWORK-CABIN II.......................191
accessory deutz (usa/eu) - BODYWORK-CABIN III......................192
accessory deutz (usa/eu) - BODYWORK-CABIN IV.......................193
accessory deutz (usa/eu) - BODYWORK-COUNTERWEIGHTS I...............194
accessory deutz (usa/eu) - BODYWORK-COUNTERWEIGHTS II..............195
accessory deutz (usa/eu) - FEATURES-LIFT...........................196
accessory deutz (usa/eu) - FUNCTIONS-MAST DUPLEX 3.7 M FEM IV......197
Indice - C 500 H...................................................198

S.S 05/24
