Factory Service Manual for the AUTION™ ELEVEN AE-4020 semi-automatic urine analyzer by Arkray/KDK Corporation (June 2005 Edition). Covers operation principles, assembly drawings, service mode, calibration, electrical circuits, analytical curves, and troubleshooting. Essential for professional biomedical and clinical instrument technicians.
Description
AUTION™ ELEVEN AE-4020 Urine Analyzer — Official Service Manual (Akray / KDK Corp.) – PDF DOWNLOAD
Description
The AUTION ELEVEN AE-4020 Service Manual is a complete technical reference for maintenance engineers servicing Arkray/KDK urine analyzers. It explains hardware structure, measurement logic, calibration, diagnostics, and full assembly layouts.
🔧 Analyzer Overview
Model: AE-4020
Type: Semi-automatic urine analyzer
Sample: Human urine
Method: Single / Dual-wavelength Reflectance Method
Wavelengths: 450, 565, 635, 760 nm
Speed: Up to 514 samples / h (7 s interval)
Warm-up: 60 s Reaction time: 60 s
Display: Custom LCD Printer: 58 mm thermal printer
Memory: 520 samples Power: 100–240 V AC (50/60 Hz)
Dimensions: 210 × 328 × 164 mm Weight: 3.6 kg
494694059-AE-4020-Service-Manua…
⚙️ Key Features & Functions
Auto-start & non-directional test-strip placement
Capillary removal of excess urine
Auto-detection of test-strip type (via classification marks)
Color-tone determination & abnormal color detection
Temperature correction & “no dipping” detection
Calibration by blank pad (automatic)
User mode & Service mode with EEPROM initialization options
494694059-AE-4020-Service-Manua…
🧪 Measurement Principle
Measurement uses reflectance from LED-illuminated reaction pads.
Reflectance (R) is calculated by:
R=Tm⋅CsTs⋅CmR = \frac{Tm \cdot Cs}{Ts \cdot Cm}
For single-wavelength (BLD) tests: R = Tm / Cm.
Temperature-corrected reflectance:
Rt=R+A(T−27)R2(1−R)2R_t = R + A(T – 27)R^2(1 – R)^2
Measured items: GLU, KET, BIL, NIT, PRO, URO, pH, BLD, LEU, S.G., Color-tone, ALB, CRE, A/C, P/C.
494694059-AE-4020-Service-Manua…
🎨 Color-Tone Analysis
23 tone and hue combinations (Light / Normal / Dark × Hue types).
Reflectances at 430 nm, 565 nm, 635 nm, 760 nm yield hue and tone results.
Classifies urine color into Colorless, Yellow, Orange, Brown, Red, Violet, Blue, Green, Other.
494694059-AE-4020-Service-Manua…
🧩 Composition & Assembly Drawings
Comprehensive exploded views with part numbers and codes:
Main unit and optical block layout
Maintenance cover assembly (Printer, Thermistor, Main PCB)
Under cover (Driver PCB and External Output board)
Chassis and optical unit structure
Drive parts for introduction and conveyance (DC motors, belts, photo-sensors, bushings)
494694059-AE-4020-Service-Manua…
🧠 Service Mode Functions
Activated via key sequence -4020- at startup or standby.
Major menu categories
| Function | Item No. Range | Examples |
|---|---|---|
| System Parameters | 100–199 | Print settings, analytical curve selection |
| Calibration & Diagnostics | 400–499 | Light intensity adjustment, levelness check |
| Mechanical Adjustments | 430–471 | Lever positions, black-mark pulses |
| Color-Tone Calibration | 480–530 | C/M, Y/M, C/r corrections |
| Network Settings | 300–324 | IP, Subnet, DHCP, Device ID |
| EEPROM & Memory | 900–990 | Clear memory, Initialize EEPROM |
📈 Analytical Curve Calibration
Multiple regional curves for Japan (J), Overseas (W), Menarini (M), China (C).
Measurement unit selectable mg/dL or mmol/L.
Service mode supports editing thresholds and ranks (when non-Chinese ROM).
PC interface (RS-232C) enables external curve upload via Aution Net software.
494694059-AE-4020-Service-Manua…
⚡ Electrical Sections
Includes full circuit schematics for:
Main PCB, Driver PCB, Head-Amp board, Optical LED unit
Thermistor connections, Motor controls, Sensor inputs, EEPROM interface
External Output port and Ethernet specifications
494694059-AE-4020-Service-Manua…

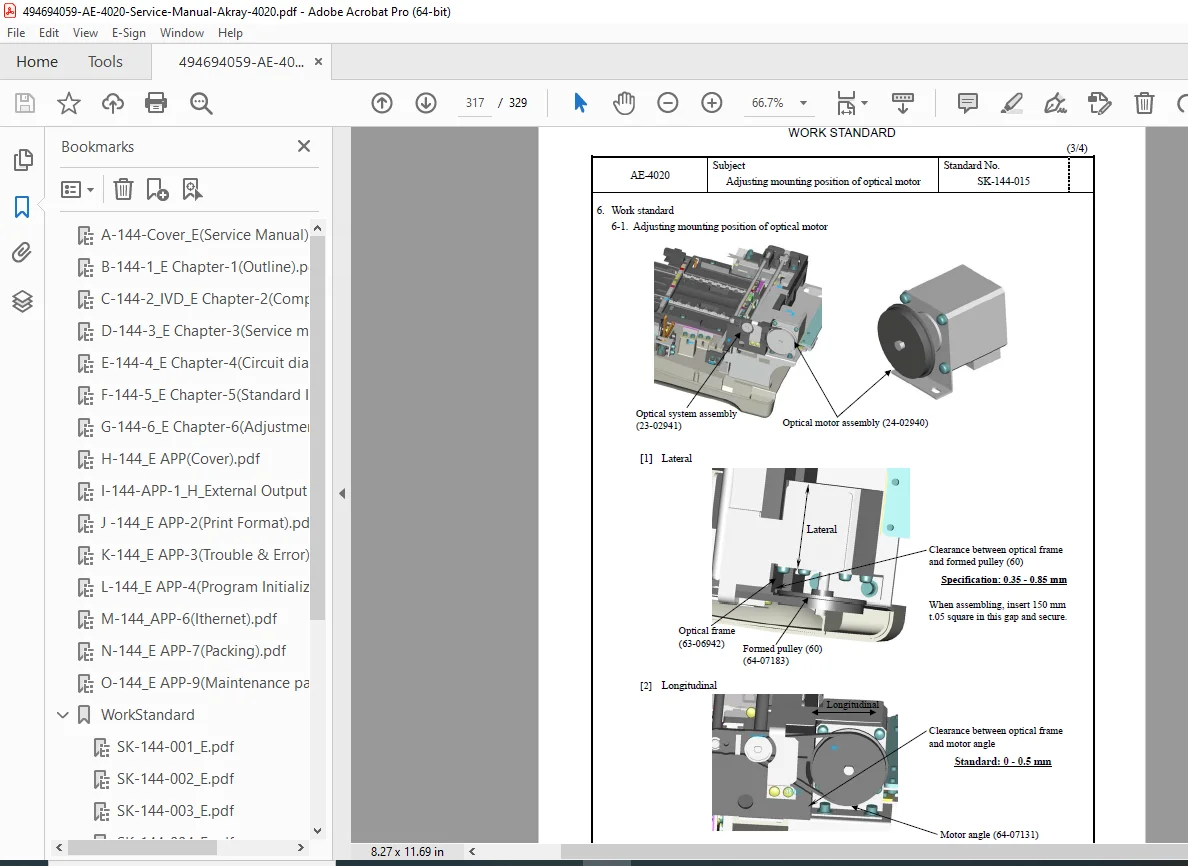

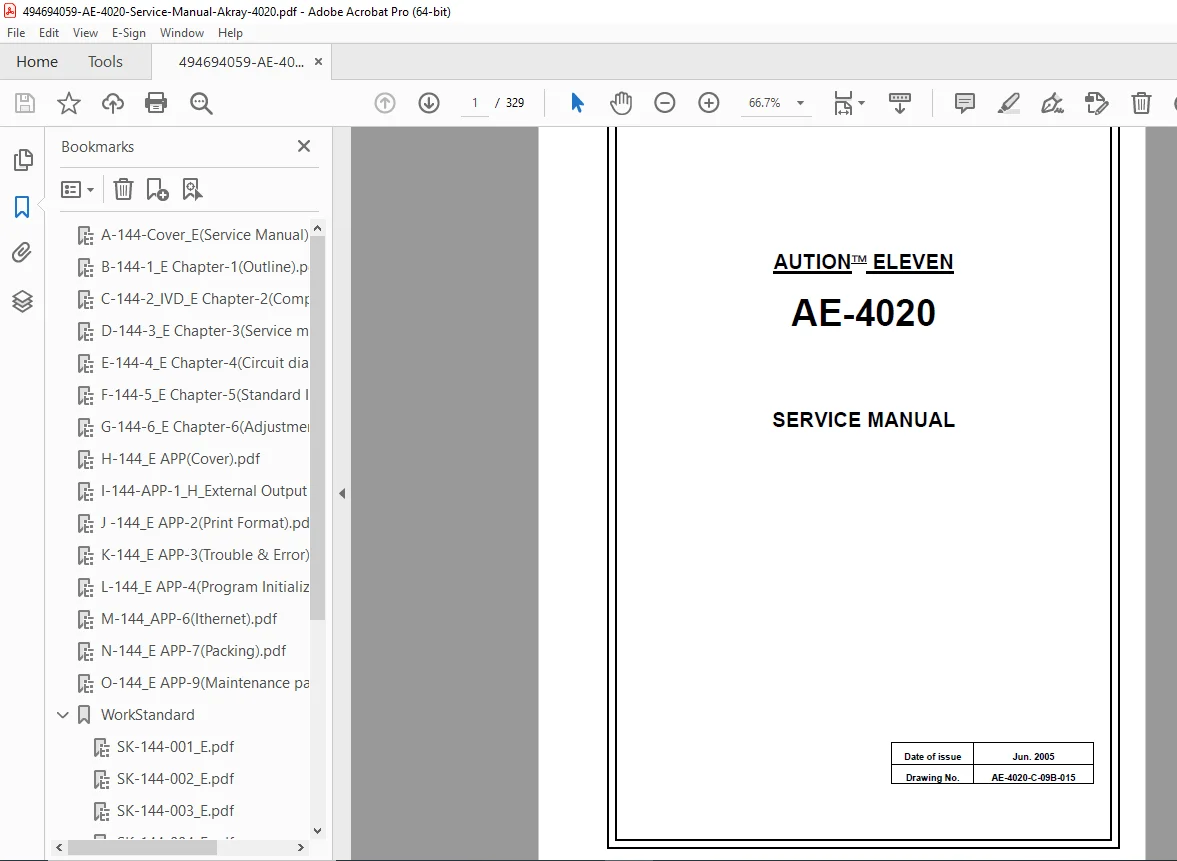

🧾 File Details
| Attribute | Value |
|---|---|
| Manual Name | AUTION ELEVEN AE-4020 Service Manual |
| Manufacturer | KDK / Arkray Inc. (Japan) |
| Document Code | AE-4020-C-09B-015 |
| Date of Issue | June 2005 |
| Pages | ≈ 329 (fully searchable OEM scan) |
| Format | PDF with indexed bookmarks |
| Language | English / Technical |
| Quality | Clear text and schematic drawings (600 dpi) |
