AUX Air Conditioner Service Manual PDF (Installation, Troubleshooting, Codes)
Original price was: $85.00.$15.95Current price is: $15.95.
This official AUX Air Conditioner Service Manual provides complete technical guidance for operation theory, wiring diagrams, exploded views, troubleshooting, disassembly, fault code diagnosis, and maintenance procedures. Covers E, H, and M series AUX split AC systems. Essential for technicians handling repair, servicing, and fault analysis.
Description
AUX Air Conditioner Service Manual PDF (Installation, Troubleshooting, Codes) DOWNLOAD
Description
This is the complete factory AUX Air Conditioner Service Manual, designed for technicians, repair engineers, and HVAC specialists. It covers the theory, structure, servicing, troubleshooting, electrical diagrams, exploded views, maintenance tools, and full AC fault code list.
All contents are extracted directly from the official manual.
Table of Contents & Bookmarks
Chapter 1 — Operation Theory of Room Air Conditioners
Basic pyrology & ventilation
Refrigeration fundamentals
Air temperature, humidity, pressure
Enthalpy & heat transfer (conduction, convection, radiation)
Air-conditioning principles (cooling, humidity, airflow, cleanliness)
Chapter 2 — AUX Product Introduction
Electric controller functions
Technical parameters of AUX products
Optional functions and settings
Chapter 3 — Exploded Views of AUX Products
E Series exploded views
H Series exploded views
M Series exploded views
(Excellent for parts identification and assembly troubleshooting)
Chapter 4 — Disassembly Procedures
Disassembly guidelines for 9000–12000 BTU models
Disassembly for 18000–24000 BTU models
Safety precautions, component handling, routing, seals
348570505-aux-service-manual
Chapter 5 — Troubleshooting & Electrical Diagrams
Basic diagnostic flow for 9000–12000 BTU
Diagnostic flow for 18000–24000 BTU
Full electrical wiring diagrams
AC system workflow charts (compressor, fan, sensors, valves)
Chapter 6 — Regular Service Tools
HVAC tool classifications
Required gauges, vacuums, leak detectors
Specialized AUX servicing tools
Chapter 7 — Failure Analysis (Electrical Control System)
PCB component analysis
Relay, sensor, thermistor fault identification
Voltage flow & circuit protection logic
Chapter 8 — Refrigeration System Troubleshooting
Cooling issues
Low efficiency, icing, low pressure, high pressure
Compressor faults
Refrigerant flow issues
Chapter 9 — Noise & Water Leakage Maintenance Cases
Case studies of AC noise
Water drainage & leakage troubleshooting
Vibration analysis
Appendices
Appendix 1 — Full AUX Fault Display Code List
(E Series, H Series, M Series)
Appendix 2 — Controller Board Schematics
Appendix 3 — Unit Conversion Tables
📄 File Details
| Item | Details |
|---|---|
| Manual Name | AUX Air Conditioner Service Manual |
| Models Covered | E Series, H Series, M Series AUX split air conditioners |
| Year | 2006 edition (covers multi-series AUX AC units) |

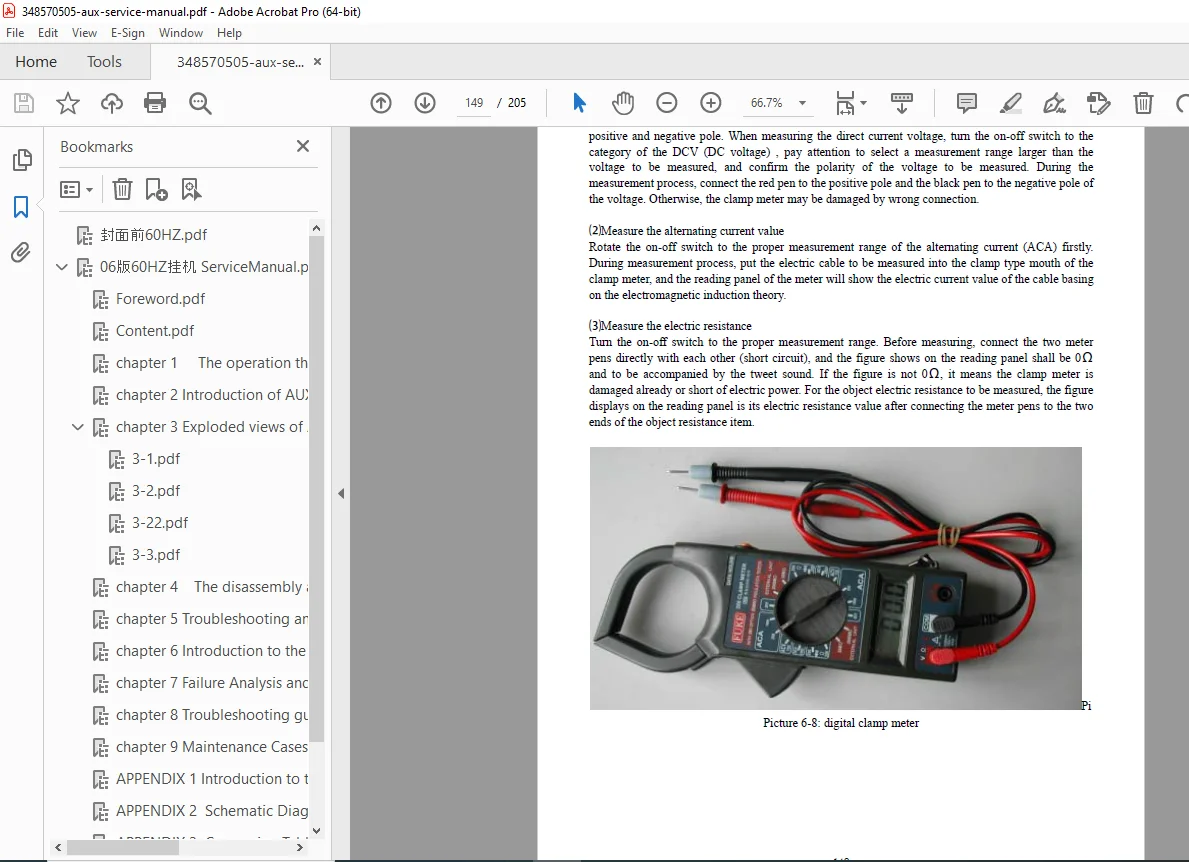

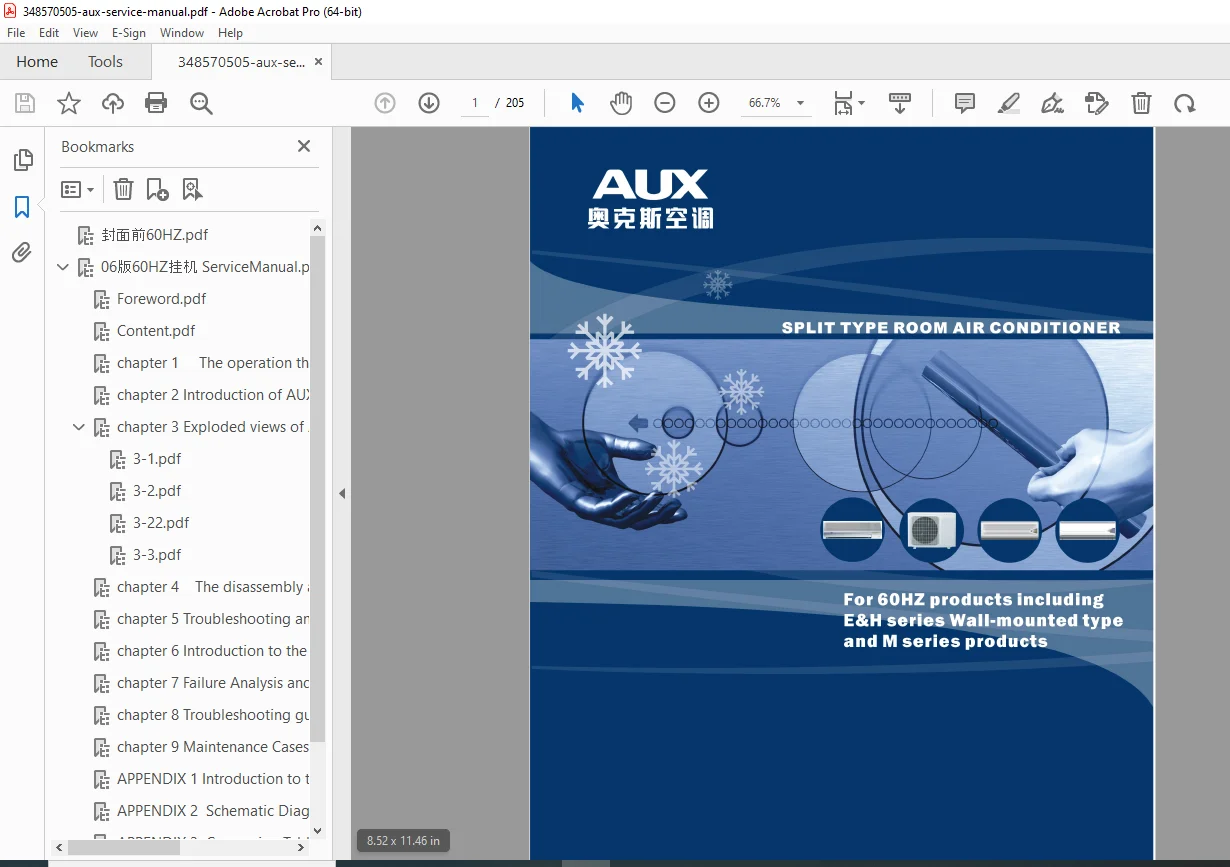

| PDF Quality | Clear text, fully readable, includes diagrams & tables |
| Total Pages | 205 |
