DESCRIPTION

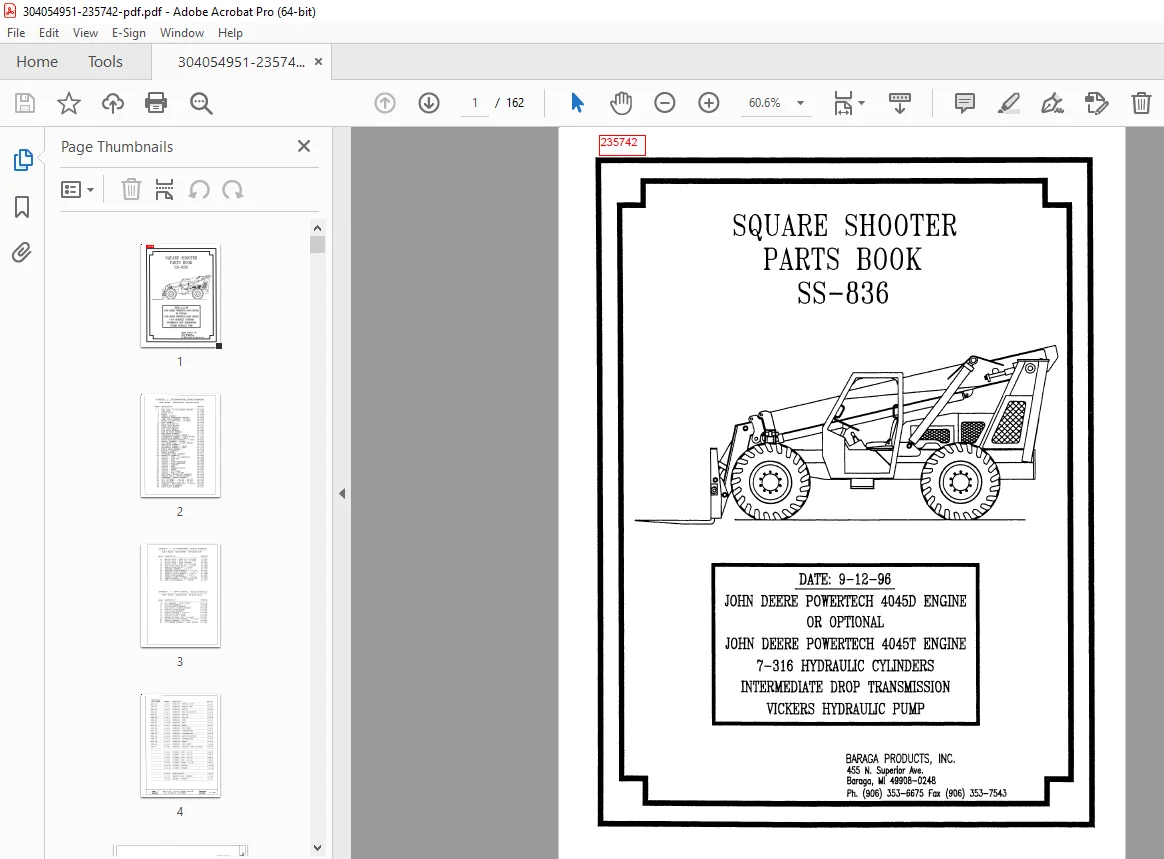

This is the official Baraga Products Square Shooter SS-836 Parts Book (Document Number 235742, Date: September 12, 1996) for the SS-836 telehandler/material handler. This comprehensive 162-page parts manual provides complete parts identification, exploded view diagrams, hydraulic schematics, electrical wiring diagrams, and component specifications for qualified technicians servicing these versatile material handling machines used in construction, forestry, agriculture, and industrial applications worldwide.

Product Overview

Baraga Products Square Shooter SS-836:

The Square Shooter SS-836 represents Baraga Products’ heavy-duty telehandler designed for demanding material handling applications. This robust machine combines a powerful John Deere PowerTech diesel engine, intermediate drop transmission, Vickers hydraulic system, telescopic boom, and versatile attachments to provide exceptional lifting capacity, reach, and maneuverability for construction sites, lumber yards, warehousing, and industrial operations.

Key Applications:

• Construction material handling
• Lumber yard operations
• Warehouse loading/unloading
• Agricultural material handling
• Industrial plant maintenance
• Stone and aggregate yards
• Landscaping operations
• Demolition and salvage
• Military logistics
• Forestry operations

Model Specifications

Model: SS-836 Square Shooter

Engine Options:

• John Deere PowerTech 4045D (Standard)
  • Naturally aspirated diesel
  • 4-cylinder, 4.5L displacement
  • Tier-compliant emissions
• John Deere PowerTech 4045T (Optional)
  • Turbocharged diesel
  • 4-cylinder, 4.5L displacement
  • Enhanced power output

Transmission:

• Intermediate Drop Transmission
• Multiple speed ranges
• Forward and reverse

Hydraulic System:

• Vickers Hydraulic Pump
• 7-316 Series Hydraulic Cylinders
• Multiple hydraulic circuits
• High-pressure capability

Key Components

Power Train:

• John Deere 4045D or 4045T engine
• Engine enclosure assembly
• Exhaust system
• Air cleaner assembly
• Fuel system
• Cooling system

Transmission System:

• Intermediate drop transmission
• Driveshaft assemblies (front and rear)
• Pump drive assembly
• Transmission controls

Hydraulic System:

• Vickers hydraulic pump
• Oil reservoir
• Oil cooler circuit
• Control block assembly
• Logic block assembly
• Multiple hydraulic circuits

Hydraulic Cylinders (7-316 Series):

• Lift Cylinder: 7-316-02
• Tilt Cylinder: 7-316-03
• Boom Cylinder: 7-316-04
• Sway-Rear Lock Cylinder: 7-316-01

Boom Assembly:

• Small boom section
• Middle boom section
• Large boom section
• Telescopic extension capability

Operator Controls:

• Operators compartment assembly
• Instrument panel
• Control levers
• Foot brake assembly
• Parking brake assembly
• Hand brake assembly
• Accelerator assembly
• 4-way controller
• Auto-controller

Chassis:

• Frame assembly
• Tire and wheel assemblies
• Axles and suspension
• Fuel tank and battery box

Comprehensive Manual Contents

DOCUMENT INFORMATION:

• Document Number: 235742
• Title: Square Shooter Parts Book SS-836
• Date: September 12, 1996 (9-12-96)
• Manufacturer: Baraga Products, Inc.
• Address: 455 N. Superior Ave., Baraga, MI 49908-0248
• Phone: (906) 353-6675
• Fax: (906) 353-7543
• Pages: 162 pages
• Format: Letter size (612 x 792 pts)

COMPLETE INDEX AND TABLE OF CONTENTS

Page 1: Seal Kits / SS-836 Square Shooter (Drawing P1-2008)
Page 2: Lube Chart (Drawing P4-1306)
Page 3: Filter Guide (Drawing P1-1144)
Page 4: Decals (Drawing P1-1154)
Page 5: General Assembly (Drawing P4-1628)

Page 6: Operators Compartment Assembly (Drawing P4-1303)
Page 7: Power Train Assembly / JD-4045 (Drawing P4-1629)
Page 8: Engine and Pump Assembly / JD-4045D (Drawing P4-1627)

Page 9: Boom Assembly (Drawing P4-1630)
Page 10: Small Boom Section (Drawing P4-1121)
Page 11: Middle Boom Section (Drawing P4-1122)
Page 12: Large Boom Section (Drawing P4-1631)

Page 13: Lift Copy Assembly (Drawing P4-1632)

Page 14: Foot Brake Assembly (Drawing P4-1097)
Page 15: Parking Brake Assembly (Drawing P1-1168)
Page 16: Hand Brake Assembly (Drawing P4-1112)

Page 17: Transmission Control Assembly (Drawing P3-1172)

Page 18: Accelerator Assembly / 4045D Engine (Drawing P1-1169)
Page 19: Accelerator Assembly / Pedal (Drawing P1-1037)

Page 20: Engine Enclosure Assembly / JD-4045 (Drawing P4-1633)
Page 21: Exhaust Assembly / JD-4045 (Drawing P4-1634)
Page 22: Air Cleaner Assembly / JD-4045 Engine (Drawing P4-1635)

Page 23: Pump Drive Assembly (Drawing P4-1636)
Page 24: Driveshaft Assembly / Front (Drawing P1-1170)
Page 25: Driveshaft Assembly / Rear (Drawing P1-1163)

Page 26: Tire & Wheel Assembly (Drawing P3-1114)

Page 27: Electric Schematic (Drawing P4-1368)
Page 28: Wiring Diagram (Drawing P4-1147)
Page 29: Instrument Panel Assembly (Drawing P4-1427)

Page 30: Hydraulic Schematic (Drawing P4-1663)

Hydraulic Circuits: Page 31: Circuit / Pump / Oil Reservoir (Drawing P4-1638)
Page 32: Circuit / Lift-Tilt (Drawing P4-1639)
Page 33: Circuit / Boom (Drawing P4-1640)
Page 34: Circuit / 4-Way Controller (Drawing P4-1641)
Page 35: Circuit / Auto-Controller (Drawing P4-1296)
Page 36: Circuit / Steering (Drawing P4-1294)
Page 37: Circuit / Sway (Drawing P4-1297)
Page 38: Circuit / Pressure Switch (Drawing P4-1208)
Page 39: Circuit / Brake (Drawing P4-1657)
Page 40: Circuit / Oil Cooler (Drawing P4-1652)

Page 41: Circuit / Fuel / JD-4045 (Drawing P4-1653)

Page 42: Fuel Tank & Battery Box Assembly (Drawing P4-1654)
Page 43: Starter Relay / Sender Assembly (Drawing P4-1655)
Page 44: Hourmeter / Sender Assembly (Drawing P4-1656)

Hydraulic Cylinders (7-316 Series): Page 45: Lift Cylinder / 7-316-02 / SS-836 (Drawing P4-1346)
Page 46: Tilt Cylinder / 7-316-03 / SS-836 (Drawing P4-1347)
Page 47: Boom Cylinder / 7-316-04 / SS-836 (Drawing P4-1348)
Page 48: Cylinder / Sway-Rear Lock / 7-316-01 (Drawing P4-1345)

Page 49: Control Block Assembly (Drawing P4-1099)
Page 50: Logic Block Assembly (Drawing P4-1291)

Pages 51-162: Detailed parts breakdowns, part numbers, specifications, and additional components

Key Manual Features

Seal Kits:

• Complete seal kit identification
• Hydraulic cylinder seals
• Component-specific seal kits
• O-ring specifications
• Replacement intervals

Lube Chart:

• Lubrication points
• Lubricant specifications
• Service intervals
• Grease fitting locations
• Oil capacities

Filter Guide:

• Engine oil filters
• Fuel filters
• Hydraulic filters
• Air filters
• Part numbers and specifications

Decals:

• Safety decals
• Warning labels
• Operating instructions
• Capacity ratings
• Model identification

Electrical System:

• Complete electrical schematic
• Wiring diagrams
• Color-coded wiring
• Component locations
• Fuse and relay identification
• Instrument panel wiring
• Starter relay circuits
• Hourmeter connections

Hydraulic System:

• Complete hydraulic schematic
• Individual circuit diagrams
• Pump specifications
• Valve configurations
• Cylinder specifications
• Pressure settings
• Flow rates
• Oil cooler circuit
• Steering circuit
• Brake circuit

Parts Identification:

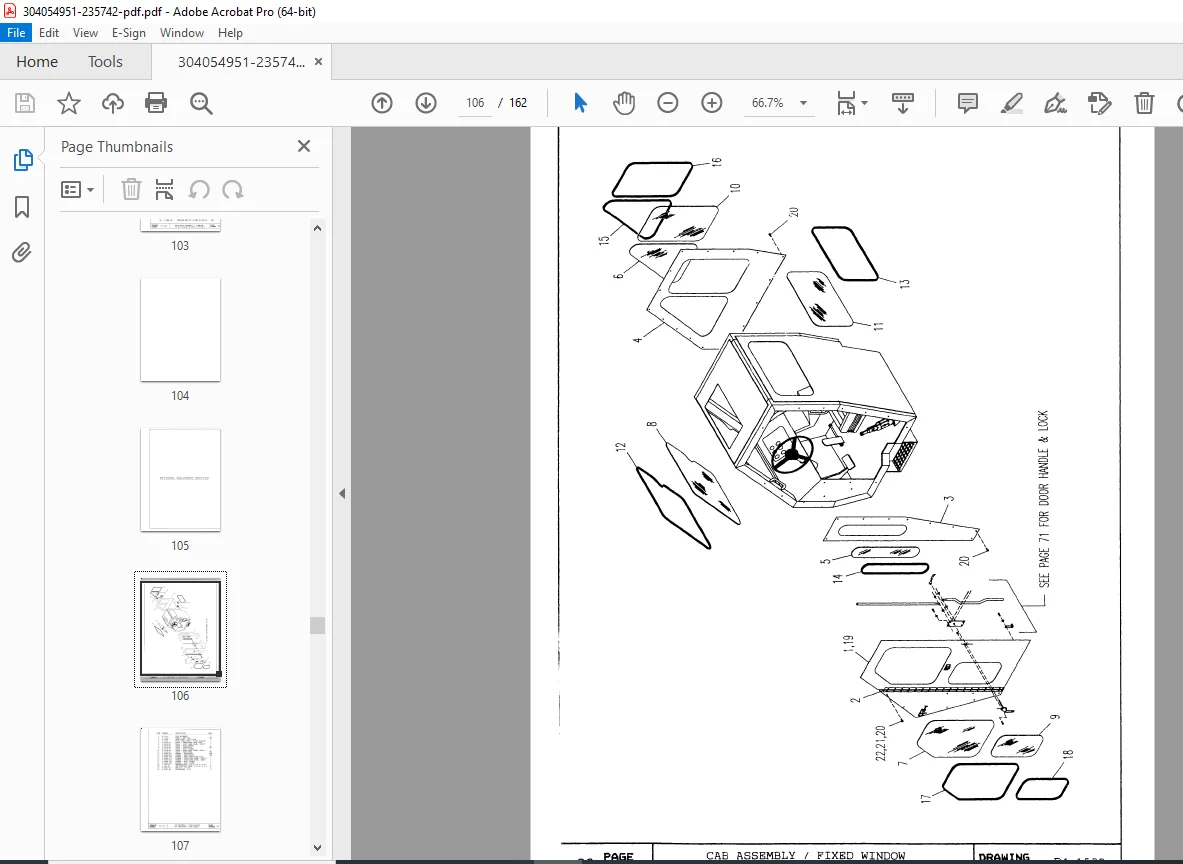

• Exploded view diagrams
