DESCRIPTION:

Belarus 1221.4 with motor TCD 2012 L062V (104,6 kW) Parts Catalogue Manual – PDF DOWNLOAD

INTRODUCTION :

The present catalogue contains the whole range of assembly units and parts for tractors “BELARUS-1221.4“.The tractor “BELARUS -1221.4“ is four-by-four general-purpose wheeled tractor of traction class 2. The tractor is equipped with the engine TCD 2012 L06 2V, produced by DEUTZ Company, with electronic control system, power 104,6 kW. The emission level of the engine corresponds to environmental requirements of stage IIIA.

HOW TO USE THE CATALOGUE
The catalogue consists of three parts:
1. Tractor assembly units and parts.
2. Standardized units (bearings, collars, rings).
3. Component list.

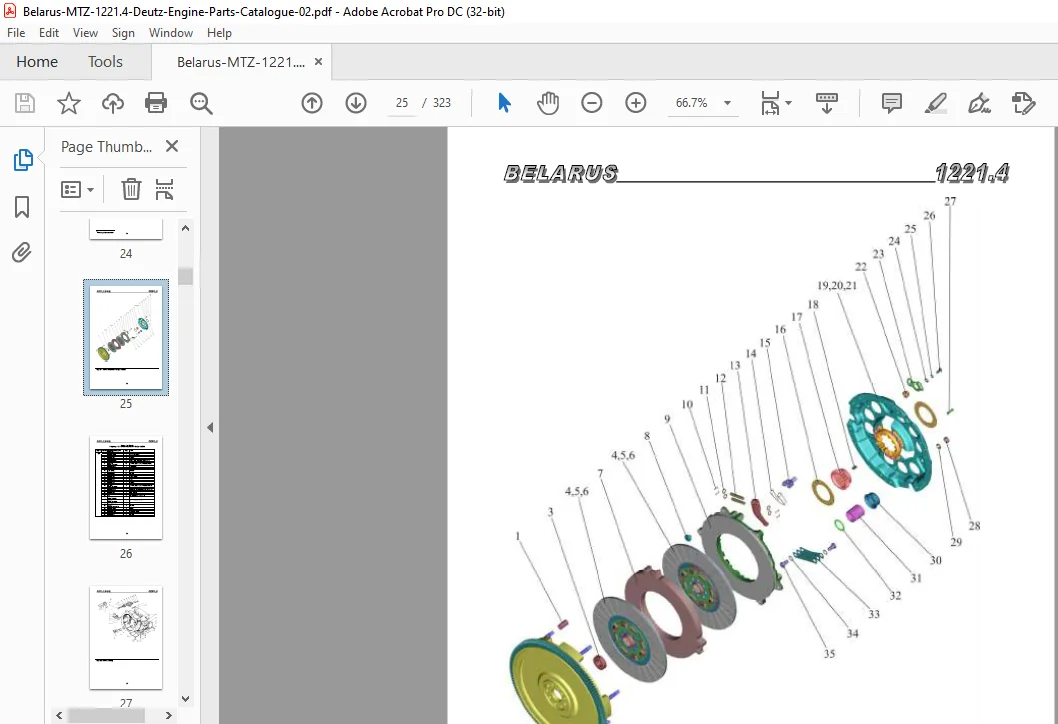

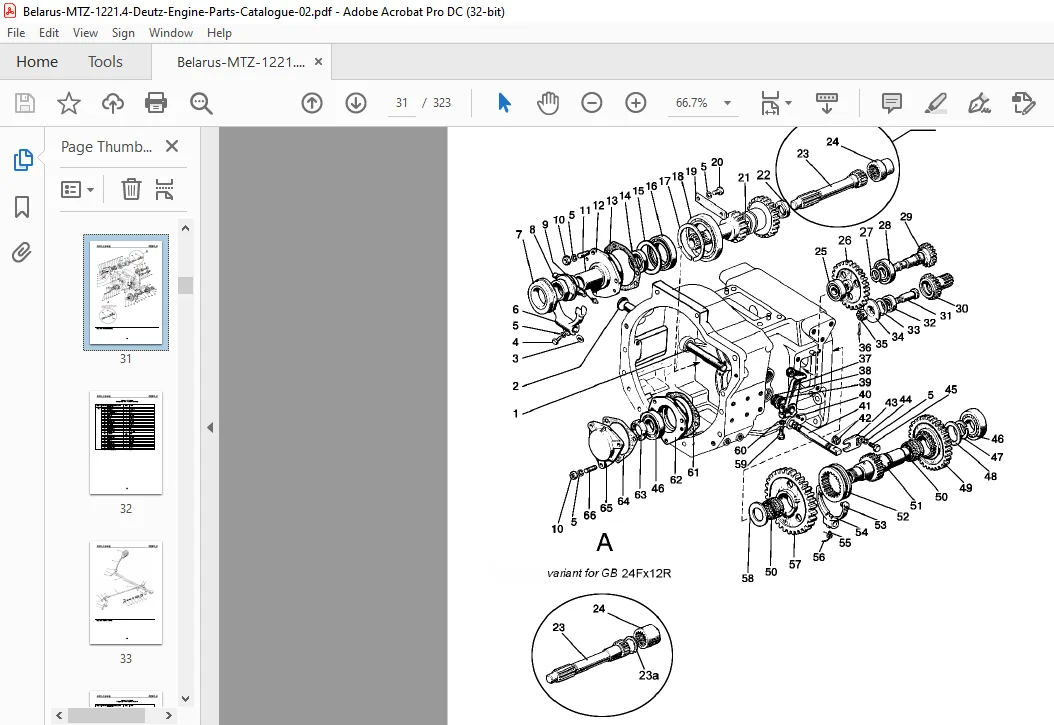

The assembly units and parts in Part I are divided into groups and subgroups according to functional attribute. This directory is well illustrated with axonometric figures of knocked-down tractor components. All parts in the figures have sequence numbers (figure numbers), ascending consequently in a clockwise direction.

• For ease of catalogue reference in search for necessary part the same sequence numbers are placed in column “Pos. No.” in the text part of the catalogue in ascending order from top downward.
• The figures referred to in the catalogue are well-done in the terms of art and let the user get acquainted with structure and configuration of parts and assembly units. They can serve as a manual for carrying out disassembling and assembling operations.

TABLE OF CONTENTS:

Belarus 1221.4 with motor TCD 2012 L062V (104,6 kW) Parts Catalogue Manual – PDF DOWNLOAD

Introduction 4
How to use this catalogue 4
Application 5
Index of groups and subgroups of catalogue assembly units and parts 6
Assembly units and parts 9
