BELARUS 2022/2022В/2022.3/2022В.3 PARTS & ASSEMBLY UNITS MANUAL – PDF
$27.95
BELARUS 2022/2022В/2022.3/2022В.3 PARTS & ASSEMBLY UNITS MANUAL – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
BELARUS 2022/2022В/2022.3/2022В.3 PARTS & ASSEMBLY UNITS MANUAL – PDF DOWNLOAD
FILE DETAILS:
BELARUS 2022/2022В/2022.3/2022В.3 PARTS & ASSEMBLY UNITS MANUAL – PDF DOWNLOAD
Language : English
Pages : 257
Downloadable : Yes
File Type : PDF

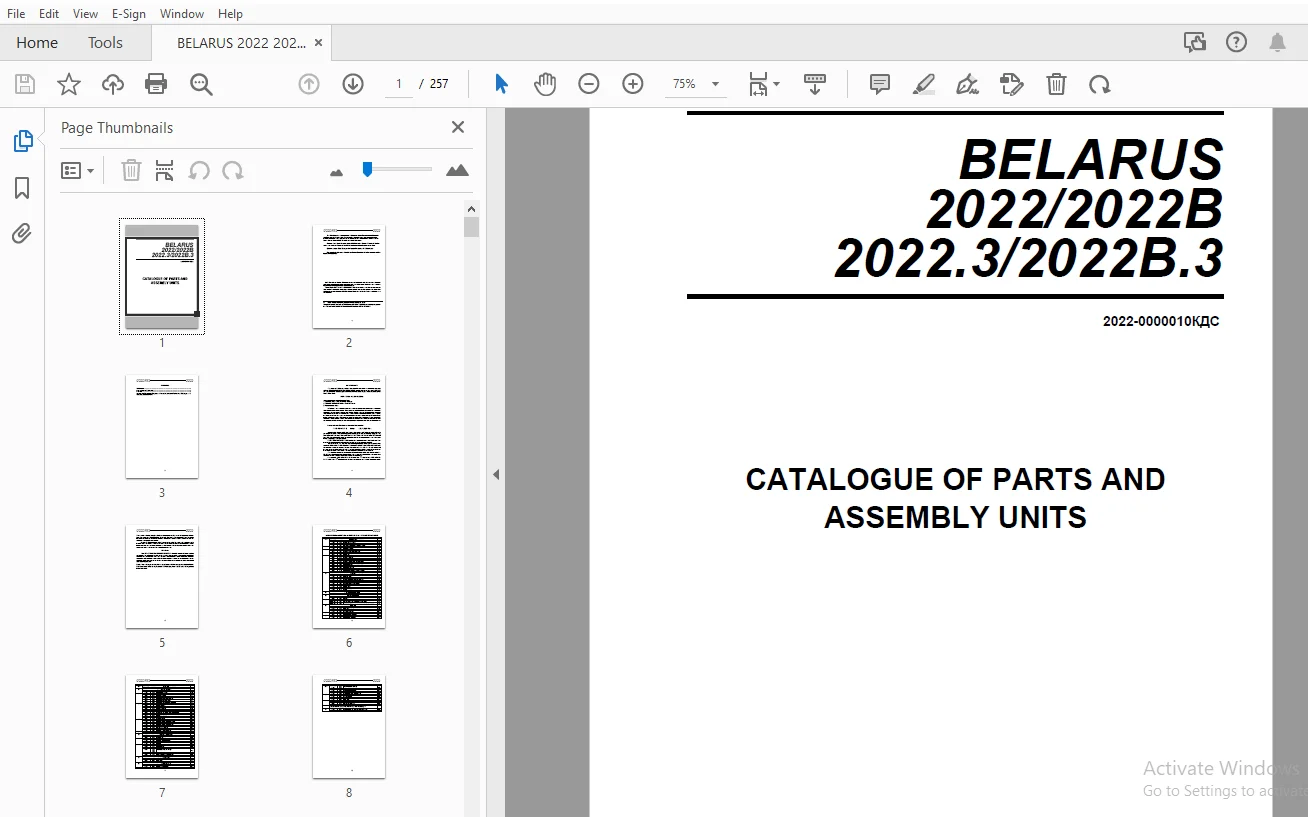

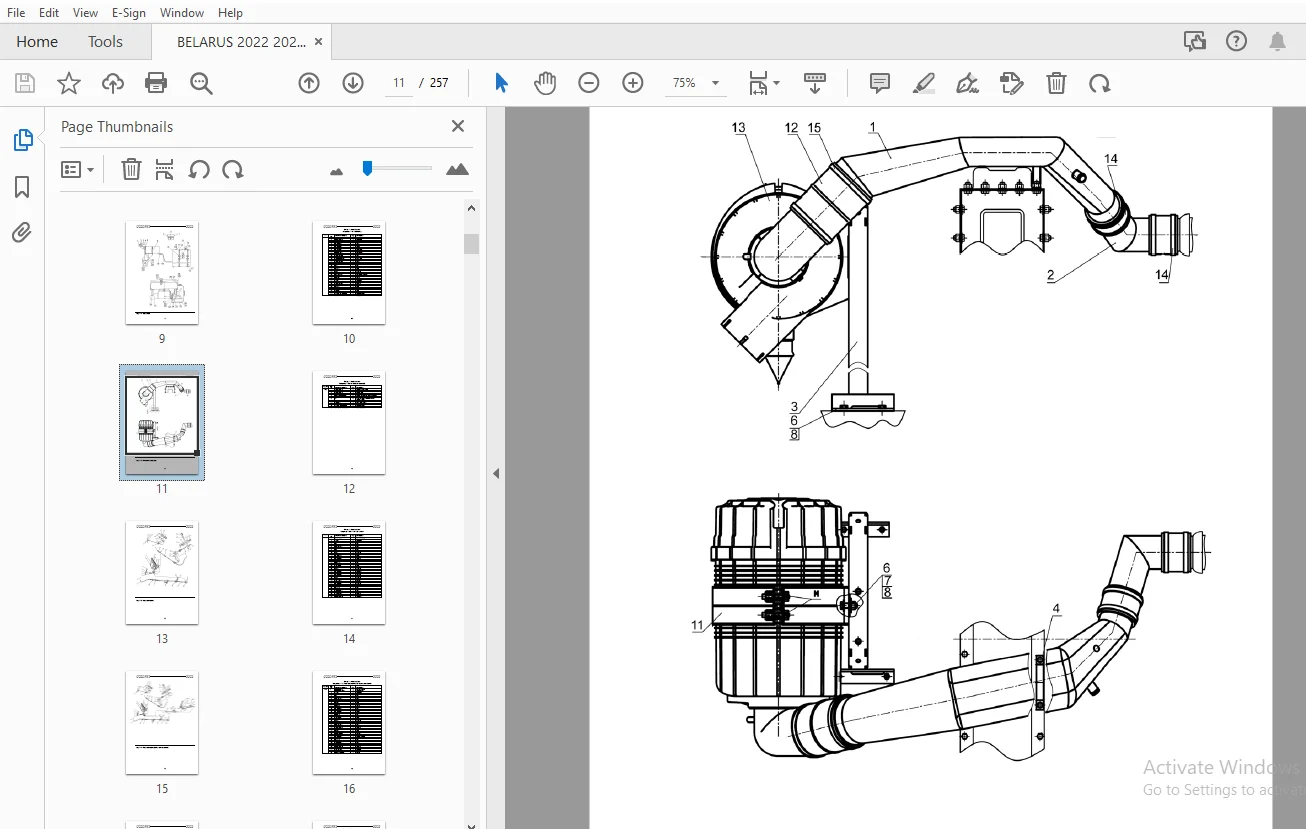

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
BELARUS 2022/2022В/2022.3/2022В.3 PARTS & ASSEMBLY UNITS MANUAL – PDF DOWNLOAD
- Introduction — Page 4
- How to Use the Catalogue — Page 4
- Purpose — Page 5
- Index of the Groups and Subgroups of Assembly Units and Parts of the Catalogue — Page 6
- Assembly Units and Parts
Detailed Group and Subgroup Index:
- 11 Feed system
- Fuel tanks — Page 9
- Air cleaner assembly — Page 11
- Fuel feed control — Page 13
- Fuel feed control (in the reverse mode) — Page 15
- 12 Exhaust system
- Muffler assembly — Page 17
- 13 Cooling system
- Cooling unit 2022-1301009-Б — Page 19
- Cooler unit — Page 21
- Fan guard — Page 23
- 16 Clutch
- Clutch assembly — Page 25
- Clutch housing — Pages 27-29
- Clutch control for the forward motion — Page 33
- Clutch control for the reverse motion — Page 37
- Master cylinder — Page 39
- Reservoir — Page 41
- Hydraulic booster — Page 43
- Service cylinder — Page 45
- Master cylinder for the reverse motion — Page 47
- Tap — Page 49
- 17 Gearbox
- Gearbox 1222-1700010 (24F+12R) — Page 51
- Primary shaft — Page 53
- Intermediate shaft — Page 55
- Shaft of reduced gears and reverse — Page 57
- Gear cluster shaft — Page 61
- Secondary shaft — Page 63
- Gearbox control mechanism — Page 65
- Cylinder — Page 71
- Pump drive — Page 73
- Oil gear pump НШ-25 — Page 75
- Filter — Page 77
- Distributing filter — Page 79
- 18 Front driving axle drive
- Front driving axle drive — Page 81
- 22 Universal-joint drive
- Universal-joint drive — Page 85
- Guard — Page 87
- 23 Front driving axle
- Front driving axle. Central reduction gear — Page 89
- Reduction gear of the final drive of the front driving axle (1524-2308005) — Page 93
- 24 Rear axle
- Rear axle housing. Hub drive — Page 97
- Hub drive — Page 99
- Differential. Bearing shell — Page 101
- Interlock actuator — Page 103
- 27 Haul-and-draw coupler
- Haul-and-draw coupler — Page 105
- 28 Frame
- Semiframe assembly — Page 109
- 30 Front axle
- Control arm — Page 111
- 31 Wheels and hubs
- Front driving wheels — Page 113
- Rear driving wheel — Page 115
- 34 Steering control
- Steering column — Pages 117-119
- Hydraulic cylinder 50х25-250 — Page 121
- Hydraulic power steering — Pages 123-126
- 35 Brakes
- Service brakes — Page 128
- Brake control — Page 130
- Service cylinder — Page 134
- Brake control for the reverse motion — Page 138
- Parking brake control — Page 140
- Pipelines and fittings of the trailer brakes — Page 142
- Pressure regulator — Page 146
- Bottle — Page 150
- Brake valve — Page 152
- Coupling head — Page 156
- 37 Electric equipment
- Electric equipment for the engine — Page 158
- Electric equipment for the transmission — Page 160
- Electric equipment for the cab — Pages 162-164
- Front light assembly — Page 168
- Alternator — Page 170
- Storage battery assembly — Page 172
- 38 Instrumentation
- Dashboard — Page 174
- 39 Tools and accessories
- Operator’s tools — Page 178
- First-aid kit — Page 180
- 42 Power takeoff
- Rear power takeoff shaft — Page 182
- Rear power takeoff shaft control — Page 188
- Ballast — Page 190
- 46 Separate-unit hydraulic system
- Hitch linkage — Page 192
- Hitch linkage assemblies and members — Page 196
- Hydraulic units and fittings — Pages 198-205
- Tank — Page 205
- External filter Б2022-4608310 — Page 207
- Hydraulic system pump drive — Page 209
- 67 Tractor cab
- Tractor cab — Page 211
- Cab door — Page 217
- Tool box assembly — Page 219
- 68 Operator’s seat
- Operator’s seat — Pages 221-225
- Reverse mechanism — Page 225
- 81 Heater
- Heater-cooler assembly — Pages 227-230
- Condenser and drying filter assembly — Page 230
- Compressor assembly — Page 232
- Installation of the air-conditioner hoses — Page 234
- Installation of the heater hoses — Page 236
- 82 Cab accessories
- Internal mirror — Page 238
- External mirror — Page 240
- Sun visor — Page 242
- 84 Empennage
- Racing — Page 244
- Front wheel fenders — Page 248
- Footboard — Pages 250-252
- 87 Control of the FDA, LD, PTO, hitch linkage and reduction gear (electrical part)
- Control of the DL, FDA, and reduction gear — Page 252
- Hitch linkage control — Page 256
