Belarus 923.4 КАТАЛОГ ДЕТАЛЕЙ И СБОРОЧНЫХ ЕДИНИЦ – PDF

Description

Belarus 923.4 КАТАЛОГ ДЕТАЛЕЙ И СБОРОЧНЫХ ЕДИНИЦ – PDF DOWNLOAD

FILE DETAILS:

Belarus 923.4 КАТАЛОГ ДЕТАЛЕЙ И СБОРОЧНЫХ ЕДИНИЦ – PDF DOWNLOAD

Language : Russian
Pages : 378
Downloadable : Yes
File Type : PDF

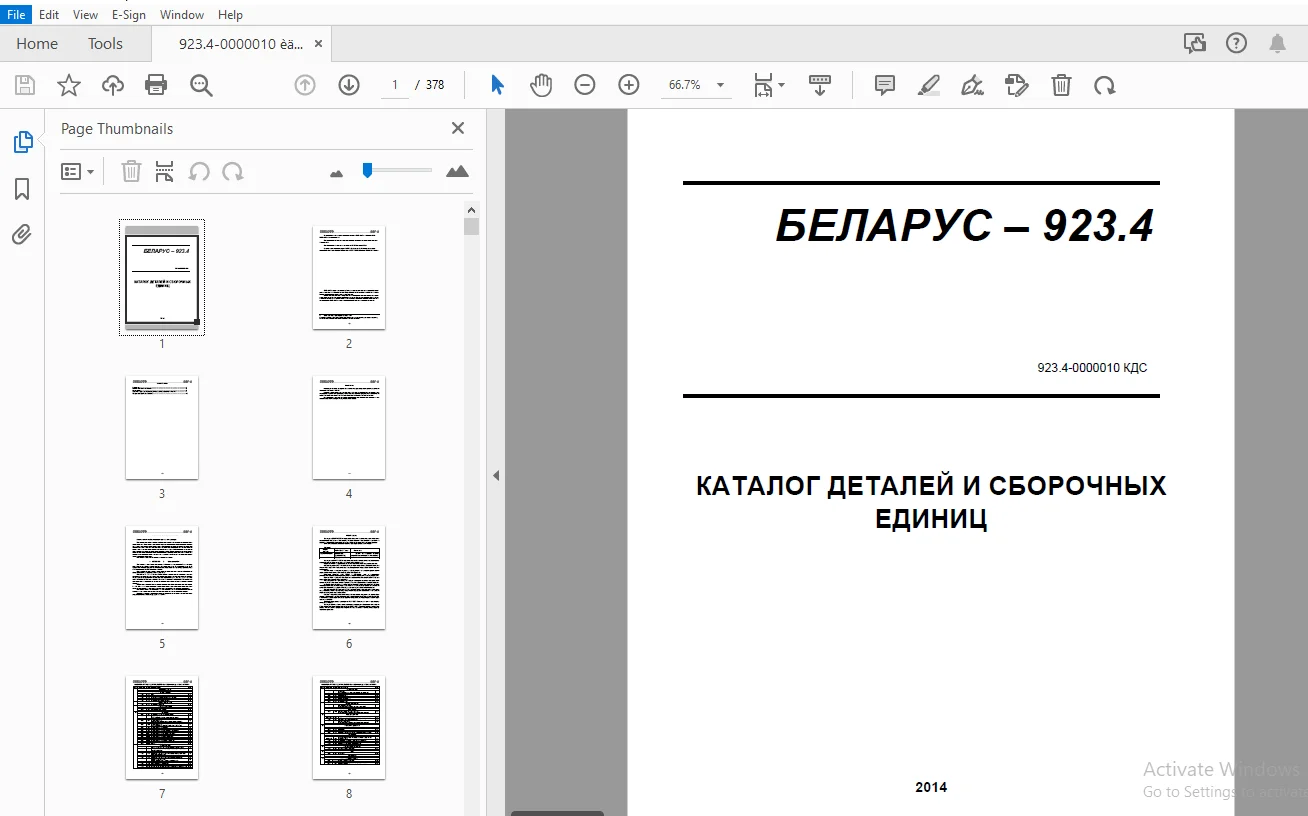

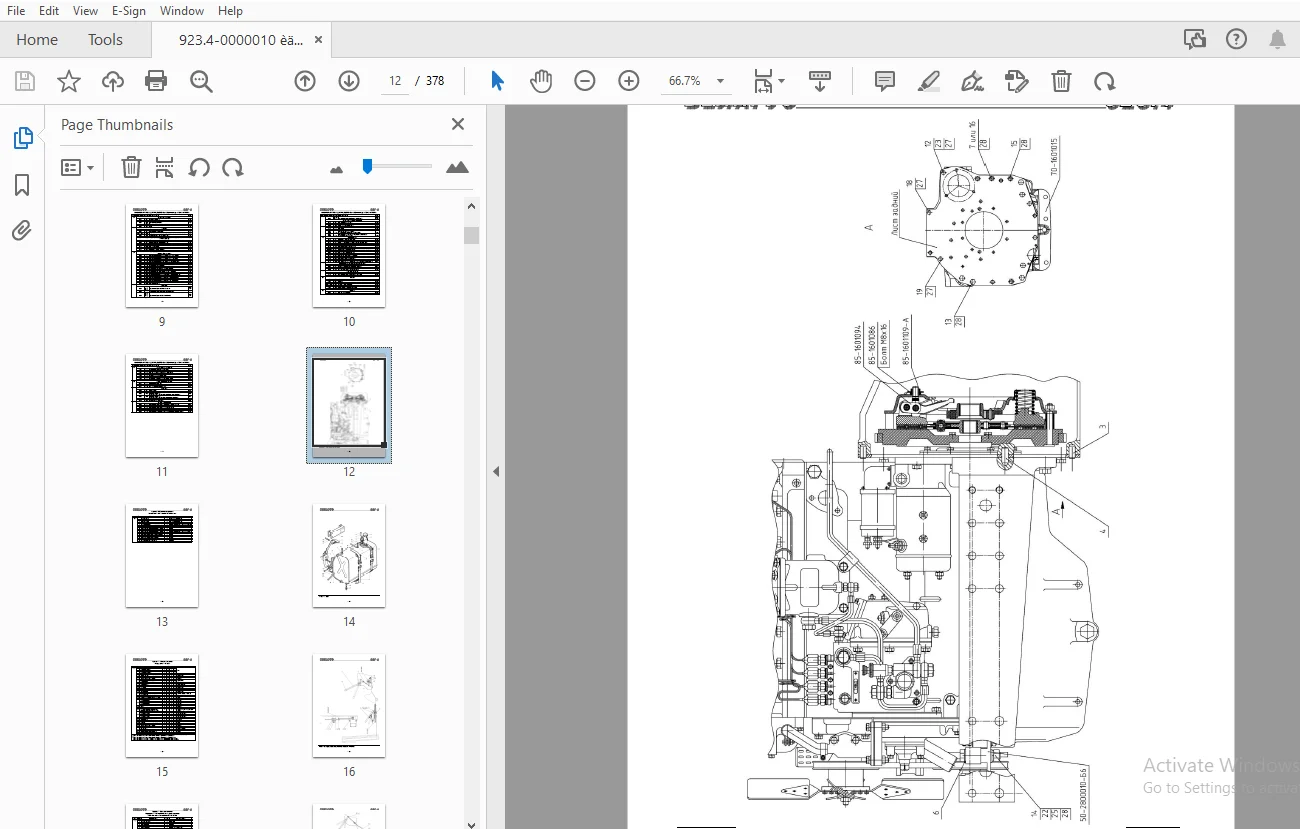

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Belarus 923.4 КАТАЛОГ ДЕТАЛЕЙ И СБОРОЧНЫХ ЕДИНИЦ – PDF DOWNLOAD

Diesel Mechanisms

• 1001 | 10.1 | Engine Installation | 12

Fuel System

• 1101 | 11.1 | Fuel Tank | 14
• 1108 | 11.2 | Fuel Supply Control 923.4-1108000 | 16
• 1108 | 11.3 | Fuel Supply Control 923-1108000 | 18
• 1109 | 11.4 | Air Cleaner Installation | 20
• 1117 | 11.5 | Fuel Filter Installation | 22

Exhaust System

• 1205 | 12.1 | Silencer Installation | 24

Cooling System

• 1301 | 13.1 | Cooling Unit | 26
• 1309 | 13.2 | Fan Guard | 28
• 1317 | 13.3 | Cooler Installation | 30

Clutch

• 1601 | 16.1 | Clutch Installation 240-1005009-06 | 32
• 1601 | 16.2 | Clutch Housing (for tractors with mechanical transmission) | 34
• 1601 | 16.3 | Clutch Housing. Shifter | 38
• 1601 | 16.4 | Clutch Housing (PTO Drive, Hydraulic System Pump Drive) | 40
• 1601 | 16.5 | Clutch Housing. PTO Drive (neng=1800 rpm) | 42
• 1601 | 16.6 | Clutch Housing (for tractors with hydro-mechanical transmission) | 44
• 1601 | 16.7 | Clutch Housing (shifter) | 46
• 1601 | 16.8 | Clutch Housing (PTO, driven shaft) | 48
• 1601 | 16.9 | Clutch Housing (PTO, driving shaft) | 50
• 1601 | 16.10 | Clutch Housing (transmission hydraulic system pump drive) | 52
• 1601 | 16.11 | Clutch Housing (reducer installation) | 54
• 1601 | 16.12 | Clutch Housing (reducer) | 56
• 1601 | 16.13 | Clutch Housing (reducer housing) | 58
• 1601 | 16.14 | Clutch Housing (reducer shaft) | 60
• 1601 | 16.15 | Clutch Housing (carrier) | 62
• 1601 | 16.16 | Clutch Housing (crown gear) | 64
• 1602 | 16.17 | Clutch Control | 66
• 1602 | 16.18 | Reservoir | 68

Gearbox

• Variants of Tractor Gearbox Configurations BELARUS-923.4 | 70
• 1721 | 17.1 | Synchronized Reducer/Synchronizer | 72
• 1723 | 17.2 | Control of Synchronized Reducer/Synchronizer | 74
• 1723 | 17.3 | Electro-hydraulic Control of Synchronized Reducer/Synchronizer | 76
• 1721 | 17.4 | Synchronized Reverse Reducer | 78
• 1723 | 17.5 | Control of Synchronized Reverse Reducer | 80
• 1701 | 17.6 | Gearbox Housing. FDA Drive (for tractors with mechanical transmission) | 82
• 1701 | 17.7 | Primary and Secondary Shaft of Synchronized Gearbox | 84
• 1701 | 17.8 | First Gear and Reverse Gear Shaft | 88
• 1701 | 17.9 | Intermediate Shaft. Inner Shaft | 90
• 1702 | 17.10 | Control Mechanism of Synchronized Gearbox. Fork Housing | 92
• 1702 | 17.11 | Two-Lever Gearbox Control Mechanism | 94

Transfer Gearbox

• 1802 | 18.1 | Transfer Gearbox (for tractors with mechanical transmission) | 112
• 1802 | 18.2 | Transfer Gearbox Control | 114
• 1802 | 18.3 | FDA Drive (for tractors with hydro-mechanical transmission) | 116

Cardan Drive

• 2203, 2209 | 22.1 | Cardan Shaft. Intermediate Bearing (for tractors with mechanical transmission) | 118
• 2210 | 22.2 | Cardan Drive Guard | 120
• 2203 | 22.3 | Cardan Drive (for tractors with hydro-mechanical transmission) | 122
• 2210 | 22.4 | Guard | 124

Front Driving Axle

• 2300 | 23.1 | Front Driving Axle 822-2300020 | 126
• 2302 | 23.2 | Gear | 128
• 2303 | 23.3 | Differential | 130
• 2308 | 23.4 | Final Drive of Front Driving Axle | 132

Rear Axle

• 2401, 2407 | 24.1 | Rear Axle Housing | 136
• 2403, 2407 | 24.2 | Differential. Main Drive. Bearing Housing. Cover | 138
• 2401 | 24.3 | BOM Switch (Independent/Synchronized) | 140
• 2401 | 24.4 | Filler Neck Installation | 142
• 2409 | 24.5 | Differential Lock Mechanism | 144
• 2409 | 24.6 | Wet-Type Differential Lock Clutch | 146

Drawbar Hitch

• 2707 | 27.1 | Drawbar Hitch | 148
• 2707 | 27.2 | Drawbar Hitch (Configuration Options) | 150

Frame

• 2801 | 28.1 | Semi-Frame | 152

Steering Linkage

• 3003 | 30.1 | Steering Linkage | 154

Wheels and Hubs

• 3101 | 31.1, 31.2 | Front Drive Wheels | 156
• 3104, 3107 | 31.3 | Rear Drive Wheels. Rear Wheel Hubs | 158
• 3104 | 31.4 | Wheel Hub | 160

Steering Control

• 3401 | 34.1 | Steering Column | 162
• 3401 | 34.2 | Cardan | 164
• 3407 | 34.3, 34.4 | Steering Control | 166
• 3405 | 34.5 | Hydraulic Cylinder Ц63 (63×30-200) | 170
• 3407 | 34.6 | Tank | 172

Brakes

• 3502 | 35.1 | Brakes | 174
• 3503 | 35.2 | Brake Control | 176
• 3504, 3507 | 35.3 | Parking Brake Control | 180
• 3502 | 35.4 | Wet-Type Service Brakes | 182
• 3507 | 35.5 | Wet-Type Service Brake Control | 184

Pneumatic Drive

• 3506 | 35.6 | Pneumatic Drive 923-3506505-04/-05 | 188
• 3506 | 35.7 | Pneumatic Drive 922-3506705/-01 | 190
• 3513 | 35.8 | Reservoir | 192
• 3514 | 35.9 | Brake Valve | 194
• 3514 | 35.10 | Brake Valve | 195
• 3521 | 35.11 | Coupling Head | 196
• 3521 | 35.12 | Coupling Head | 197
• 3509 | 35.13 | Compressor | 198

Electrical Equipment

• 3700 | 37.1 | Engine Electrical Equipment 921.4М-3700030 | 200
• 3700 | 37.2 | Engine Electrical Equipment 922.5-3700030 | 202
• 3700 | 37.3 | Engine Electrical Equipment 921-3700030-В | 204
• 3700 | 37.4 | Transmission Electrical Equipment 923-3700040-Б | 206
• 3700 | 37.5 | Transmission Electrical Equipment 925.3-3700040 | 208
• 3700 | 37.6 | Cab Electrical Equipment 925-3700050 | 210
• 3700 | 37.7 | Cab Electrical Equipment 923-3700050 | 212
• 3711 | 37.8 | Road Light Installation | 214
• 3711 | 37.9 | Working Light Installation 925-3700110/-01 | 216
• 3711 | 37.10 | Working Light Installation 923-3700110/-01 | 218
• 3712 | 37.11 | Front Light Installation 925-3700025-01 | 220
• 3712 | 37.12 | Front Light Installation 923-3700025-В | 222
• 3716 | 37.13 | Rear Light Installation | 224
• 3703 | 37.14 | Battery Installation 920-3700080/-02 | 226
• 3703 | 37.15 | Battery Installation 925-3700080/-01 | 228
• 3730 | 37.16 | Heater Electrical Equipment 925-3700090/-01 | 230
• 3730 | 37.17 | Heater Electrical Equipment 923-3700090 | 232
• 3730 | 37.18 | Heater Electrical Equipment 923-3700090-01 | 232
• 3738 | 37.19 | Signal Beacon Installation | 234
• 3722 | 37.20 | Commutation Block | 236

Instruments

• 3805 | 38.1, 38.2, 38.3 | Dashboard 925М-3805110/-01 | 238-242
• 3805 | 38.4, 38.5 | Dashboard Installation 925М-3805105 | 243-245
• 3805 | 38.6, 38.7, 38.8, 38.9 | Dashboard 925-3805110-01/-03 | 246-251
• 3805 | 38.10, 38.11 | Dashboard Installation 822-3805105 | 252-254

Tools and Accessories

• 3901 | 39.1 | Operator’s Tools | 255
• 3912 | 39.2 | First-Aid Kit | 256
• 3919 | 39.3 | Toolbox | 257

Power Take-Off

• 4235 | 42.1 | Ballast | 258
• 4202 | 42.2 | Rear Power Take-Off Shaft | 260
• 4216, 4803 | 42.3 | Rear PTO Control, ABD Control | 264
• 4216, 4803 | 42.4 | Hydraulic Drive of DL, PTO, and Reducer Control (see Fig. 42.3 for details) | 266

Hydraulic System

• 4604 | 46.1 | Pump Drive 822-4604010 | 268
• 4604 | 46.1а | Pump Drive 77-4604010 | 270
• 4605 | 46.2 | Rear Lift Mechanism (with hydraulic lift) | 272
• 4605 | 46.3 | Telescopic Link | 278
• 4607 | 46.4 | Hydraulic System | 280
• 4607 | 46.5 | Hydraulic System (continued) | 281
• 4607 | 46.6 | Hydraulic System (continued) for mechanical transmission | 282
• M036.50Б | 46.7 | Quick Coupling | 285
• 4608 | 46.8 | Oil Tank | 286
• 4625 | 46.9 | Hydraulic Lift Cylinder | 288
• 4634 | 46.10 | Hydraulic Lift Distributor | 290
• 4635 | 46.11 | Hydraulic Lift Control | 292
• 4635 | 46.12 | Hydraulic Lift | 296
• РП70 | 46.13 | Hydraulic Distributor РП70 | 298
• 4637 | 46.14 | Transmission Lubrication and Control System | 302
• 4637 | 16.15 | Transmission Lubrication and Control System (continued) | 304

Differential Lock Control

• 4801 | 48.1 | Hydraulic Plate 822-4801180-Б-03 | 306
• 4801 | 48.2 | Hydraulic Plate 822-4801180-Б-02 | 307
• 4803 | 48.3 | ABD, PTO, and FDA Hydraulic Drive | 308
• 4803 | 48.4 | Sectional Distributor РГ-6 | 310

Wipers

• 5205 | 52.1 | Rear Wiper Installation | 312
• 5205 | 52.2 | Front Wiper Installation | 314
• 5208 | 52.3 | Washer Installation | 316

Cabin

• 6700 | 67.1 | Tractor Cabin | 318
• 6700 | 67.2 | Roof | 322
• 6700 | 67.3 | Cabin Door | 324
• 6703, 6708 | 67.4 | Cabin. Cabin Windows | 326
• 6702 | 67.5 | Console Installation | 330
• 6700 | 67.6 | Cladding 2522-6700300-А/-02 | 332
• 6700 | 67.7 | Cladding 2522-6700300-Б | 333

Seat

• 6800 | 68.1 | Operator’s Seat | 334
• 6800 | 68.2 | Operator’s Seat “Grammer” | 338

Heating and Ventilation

• 8101 | 81.1 | Heater-Cooler Installation | 340
• 8101 | 81.2 | Heater-Cooler Installation (continued) | 342
• 8101 | 81.3 | Heater Hose Route 822-8101020 | 344
• 8101 | 81.4 | Heater Hose Route 822-8101020-01 | 344
• 8100 | 81.5 | Air Conditioning 923.5-8100010 | 346
• 8100 | 81.6 | Condenser Installation 1025-8112010 | 348
• 8100 | 81.7 | Air Conditioning Compressor 950-8114010 | 350
• 8100 | 81.8 | Heating and Ventilation System | 352

Cabin Accessories

• 8201 | 82.1 | Internal Mirror | 354
• 8201 | 82.2 | External Mirror | 355
• 8204 | 82.3 | Sun Visor | 356

Body Panels

• 8400 | 84.1 | Cladding | 358
• 8400 | 84.2 | Cladding (continued) | 360
• 8403 | 84.3 | Front Fenders (for FDA 822-2300020-02 with Extended Sleeves) | 362
• 8403 | 84.4 | Front Fenders (for FDA 822-2300020-04 with Short Sleeves) | 364
• 8405 | 84.5 | Footstep 923-8405005-Б | 366
• 8405 | 84.6 | Footstep 923-8405005 | 367

Control System

• 8700 | 87.1 | DL, PTO, and Reducer Control 923-870510-Ж | 368
• 8700 | 87.2 | DL and PTO Control 923-8700310-Д | 370
• 8700 | 87.3 | DL, FDA, and PTO Control 925-8700210 | 372
• 8700 | 87.4 | Reducer Control 925-8700750 | 374
• 8700 | 87.5 | Engine Control (923.5-8700910-Е) | 376
• 8700 | 87.6 | Engine Control (923.5-8700910-Е)  | 377
