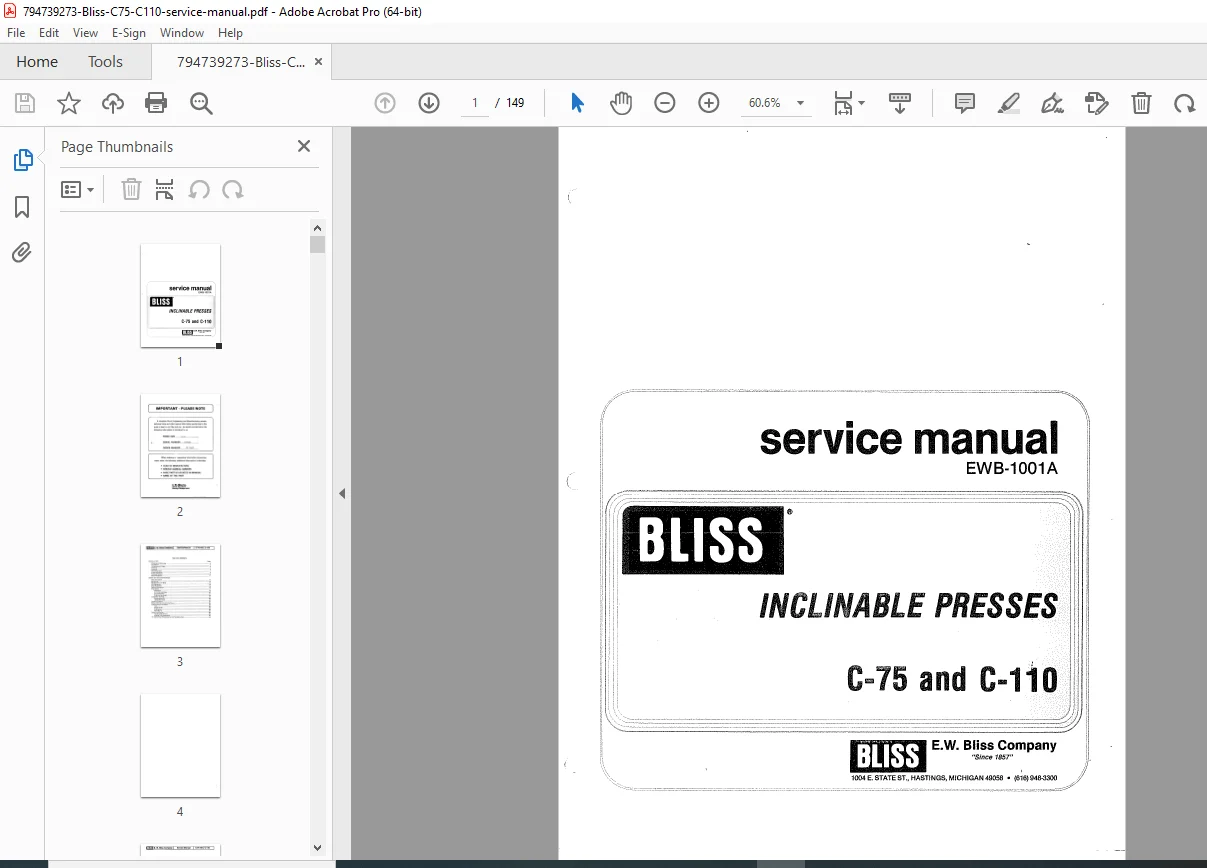

This is the official E.W. Bliss Company factory Service Manual for BLISS Inclineable Mechanical Presses C-75 and C-110.

The manual is written for press owners, maintenance technicians, and industrial service professionals, providing step-by-step mechanical, electrical, and operational guidance to safely install, operate, adjust, and maintain these heavy-duty presses.

It includes factory specifications, OSHA/ANSI safety guidance, lubrication charts, electrical wiring instructions, and precise mechanical adjustment procedures, all supported by clear line drawings and reference figures.

🔹 Press Models Covered

• BLISS C-75 Inclineable Press

• BLISS C-110 Inclineable Press

Manufacturer: E.W. Bliss Company – Hastings, Michigan, USA
Press Type: Mechanical Inclineable Power Press

🧩 Manual Contents & Sections

⚠️ Safety & Compliance

• Golden rule of press safety

• ANSI B11.1-1971 compliance references

• OSHA requirements for guards & controls

• Die safety blocks & stop-main-motor safety blocks

• Operator & maintenance warnings

• Press owner responsibilities

📦 Shipping, Receiving & Installation

• Shipping condition & inspection

• Unloading & lifting procedures

• Foundation requirements & anchor bolts

• Floor loading considerations

• Press leveling procedures

• Cleaning prior to electrical service

⚙️ Specifications

• Tonnage ratings (75 & 110 tons)

• Stroke length & speed (SPM)

• Shut height & slide adjustment

• Bed & slide area dimensions

• Electrical power requirements

• Lubrication & counterbalance system details

🔧 Motor Drive Installation

• Geared & non-geared drive layouts

• Standard & variable speed motor installations

• Flywheel groove alignment

• Belt tensioning & rotation checks

• Restraining cable installation

🧴 Lubrication Systems

• Initial lubrication procedures

• Recirculating oil system operation

• Optional automatic lubrication

• Approved lubricants & oil types

• Lubrication charts & intervals

🛠 Operation & Mechanical Adjustments

• Slide adjustment procedures

• Gib adjustment (left-right / front-back)

• Gib clearance specifications

• Slide parallelism checks

• Bearing & connection clearances

• Knockout system adjustment

• Feed & die clearance guidance

🔄 Inclining the Press

• Safe inclining procedures (0°–10°)

• Counterbalance tank handling

• Jack screw operation

• Blocking & support methods

• Safety warnings during incline operations

⚡ Electrical Installation

• Main power connection

• Disconnect switch wiring

• Grounding requirements

• Fuse & overload protection

• Control enclosure references

• Allen-Bradley / Gemco components

🖥 Illustrations & Diagrams

• Front & rear press views

• Component identification

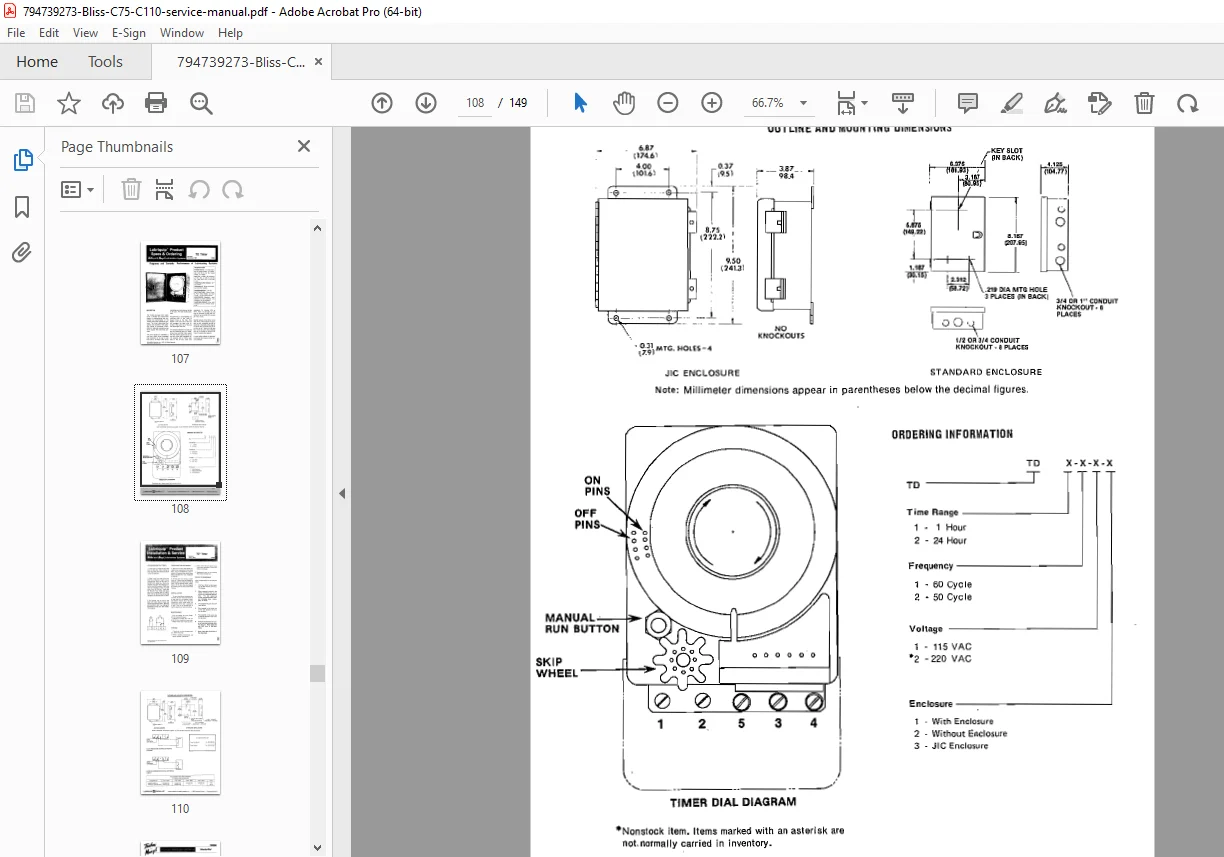

• Electrical connection diagrams

• Motor & drive layouts

• Gib & slide diagrams

• Bearing & clearance reference figures

📄 File Details

Maintain and service your BLISS inclineable press with factory accuracy—this official C-75 / C-110 Service Manual delivers trusted procedures, safety guidance, and mechanical adjustments in one instant download.
