BOBCAT 66 66HF 72 72HF 80 Rotary Cutter Operation & Maintenance Manual 6990844 PDF DOWNLOAD
$19.95
BOBCAT 66 66HF 72 72HF 80 Rotary Cutter Operation & Maintenance Manual 6990844 PDF DOWNLOAD
(66) S/N B37K00101 & Above
(66HF) S/N B37600101 & Above
(72) S/N AYVY00101 & Above
(72HF) S/N B37500101 & Above
(80) S/N B37700101 & Above
Description
BOBCAT 66 66HF 72 72HF 80 Rotary Cutter Operation & Maintenance Manual 6990844 PDF DOWNLOAD
FILE DETAILS:
BOBCAT 66 66HF 72 72HF 80 Rotary Cutter Operation & Maintenance Manual 6990844 PDF DOWNLOAD
Language : English
Pages : 82
Downloadable : Yes
File Type : PDF

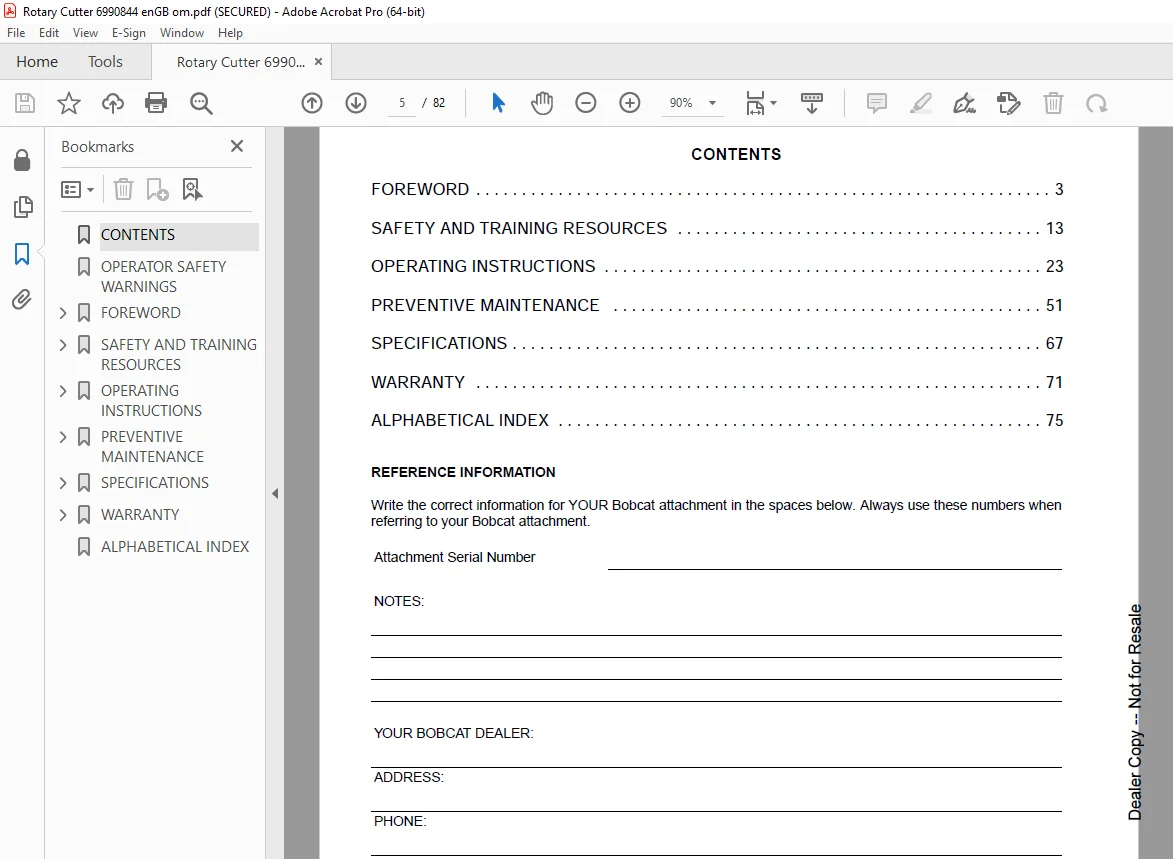

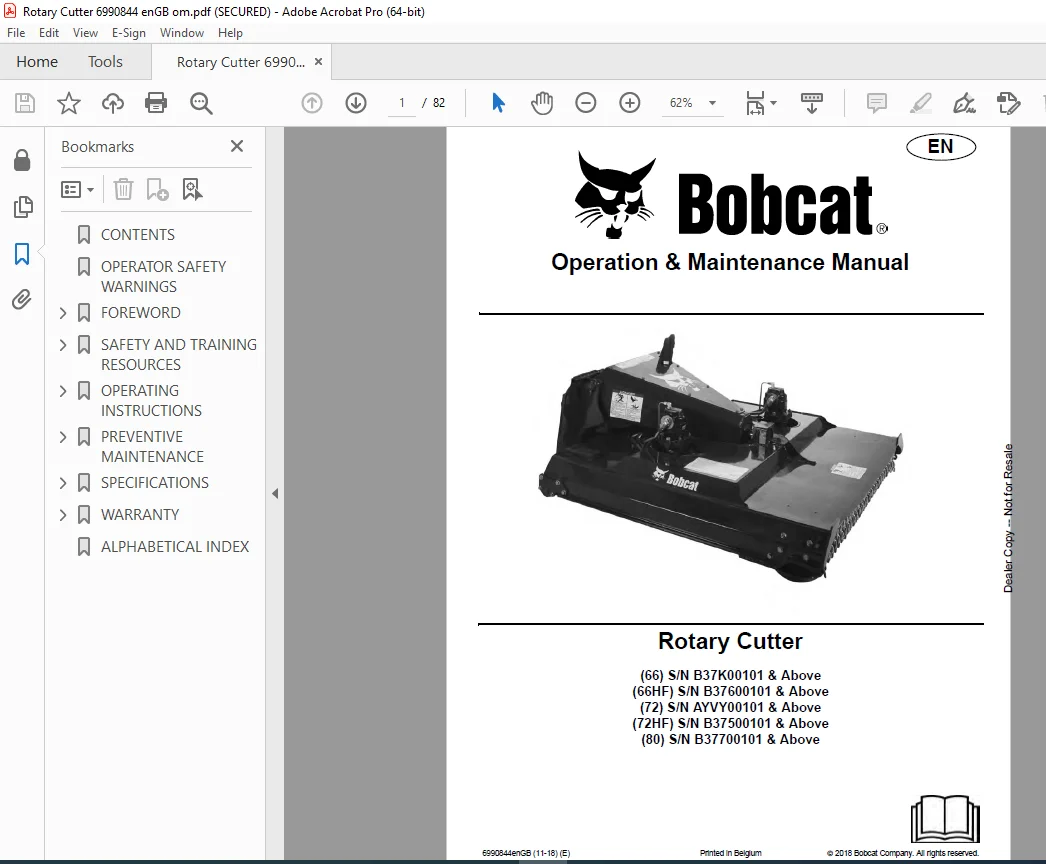

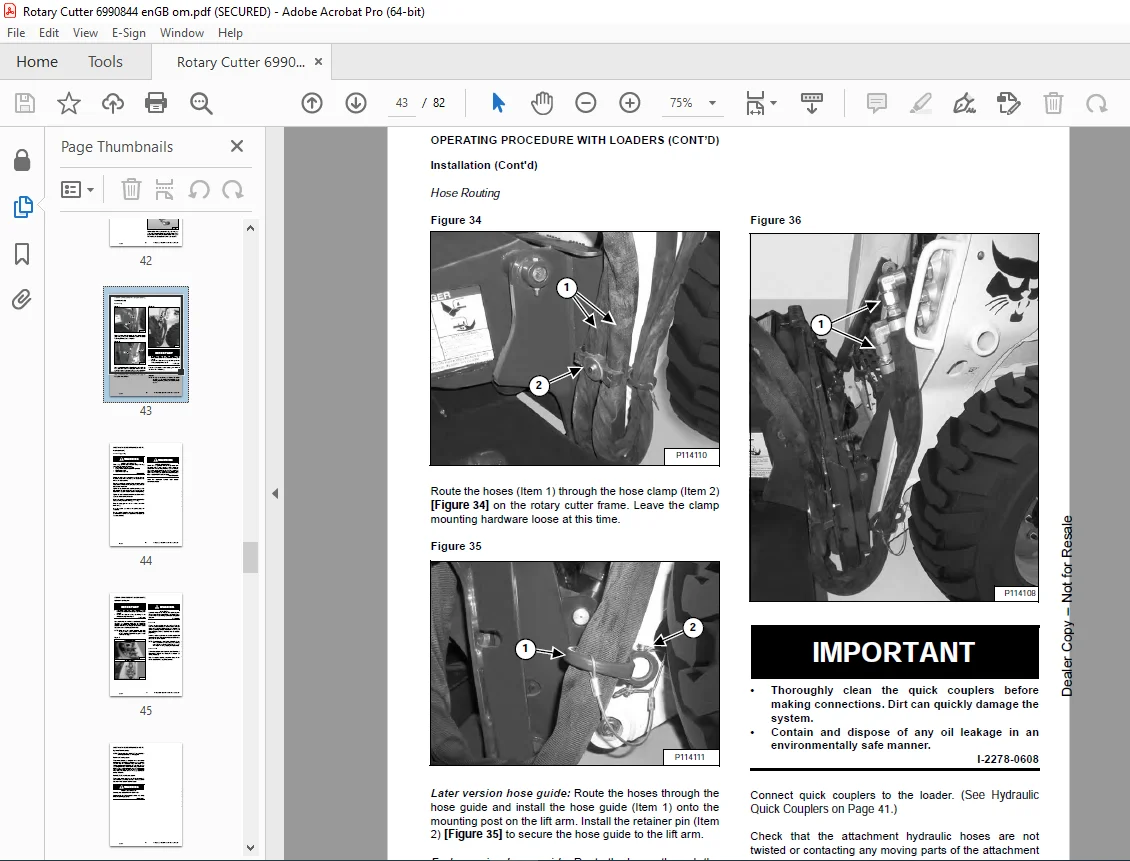

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
BOBCAT 66 66HF 72 72HF 80 Rotary Cutter Operation & Maintenance Manual 6990844 PDF DOWNLOAD
(66) S/N B37K00101 & Above
(66HF) S/N B37600101 & Above
(72) S/N AYVY00101 & Above
(72HF) S/N B37500101 & Above
(80) S/N B37700101 & Above
CONTENTS……………………………………………. 5
OPERATOR SAFETY WARNINGS……………………………… 3
FOREWORD……………………………………………. 7
DECLARATION OF CONFORMITY…………………………. 9
BOBCAT COMPANY IS IS0 9001 CERTIFIED………………..11
SERIAL NUMBER LOCATION…………………………….13
Attachment Serial Number……………………….13
DELIVERY REPORT…………………………………..13
ATTACHMENT IDENTIFICATION………………………….14
FEATURES AND ACCESSORIES…………………………..15
Standard Items………………………………..15
Optional Items………………………………..15
SAFETY AND TRAINING RESOURCES………………………….17
SAFETY INSTRUCTIONS……………………………….19
Safe Operation Is The Operator’s Responsibility…..19
Safe Operation Needs A Qualified Operator………..19
Use Safety Rules………………………………20
Avoid Silica Dust……………………………..20
FIRE PREVENTION…………………………………..21
Maintenance…………………………………..21
Operation…………………………………….21
Electrical……………………………………21
Hydraulic System………………………………21
Fueling………………………………………21
Starting……………………………………..21
Spark Arrester Exhaust System…………………..21
Welding And Grinding…………………………..22
Fire Extinguishers…………………………….22
PUBLICATIONS AND TRAINING RESOURCES…………………23
ATTACHMENT SIGNS (DECALS)………………………….24
Pictorial Only Safety Signs…………………….25
OPERATING INSTRUCTIONS………………………………..27
DAILY INSPECTION………………………………….29
Attachment Mounting Frame………………………29
Rotary Cutter…………………………………29
Bob-Tach……………………………………..31
Checking The Blade Shut-Off Device………………33
OPERATING PROCEDURE WITH LOADERS……………………34
Approved Loader Models And Requirements………….34
Entering And Exiting The Loader…………………36
Installation………………………………….37
Hydraulic Quick Couplers……………………….45
Hydraulic Flow Information……………………..46
Control Functions……………………………..47
Operation With The Loader………………………48
Removal………………………………………51
LIFTING THE ATTACHMENT…………………………….53
Procedure…………………………………….53
TRANSPORTING THE ATTACHMENT ON A TRAILER…………….53
Fastening…………………………………….53
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER….54
Loading And Fastening………………………….54
PREVENTIVE MAINTENANCE………………………………..55
TROUBLESHOOTING…………………………………..59
Chart………………………………………..59
SERVICE SCHEDULE………………………………….60
Description…………………………………..60
Chart………………………………………..60
LUBRICATION………………………………………61
Lubrication Points…………………………….61
MOTOR CARRIER LUBRICATION………………………….62
Checking And Adding Oil………………………..62
Removing And Replacing Oil……………………..62
COVER……………………………………………63
Removal And Installation……………………….63
CLEANING THE ROTARY CUTTER…………………………64
REMOVAL AND INSTALLATION OF BLADE…………………..65
Procedure(s)………………………………….65
REMOVAL AND INSTALLATION OF CHAIN SHIELD…………….68
Procedure(s)………………………………….68
REMOVAL AND INSTALLATION OF SKID SHOE……………….68
Procedure…………………………………….68
REMOVAL AND INSTALLATION OF RUBBER STOPS…………….69
Procedure…………………………………….69
SPECIFICATIONS……………………………………….71
ROTARY CUTTER SPECIFICATIONS……………………….73
Dimensions……………………………………73
Performance…………………………………..74
WARRANTY…………………………………………….75
WARRANTY…………………………………………77
ALPHABETICAL INDEX……………………………………79
Questions? Email us: [email protected]
https://vimeo.com/843768493?share=copy
DESCRIPTION:
BOBCAT 66 66HF 72 72HF 80 Rotary Cutter Operation & Maintenance Manual 6990844 PDF DOWNLOAD
FOREWORD
SAFETY INSTRUCTIONS
Use Safety Rules:
- Read and follow instructions in the machine and the attachment’s Operation & Maintenance Manual before operating.
- Check for underground lines before operating the attachment (if applicable).
- Hazard control and accident prevention depend on the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of equipment.
- Ensure that the Bob-Tach™ levers are in the locked position and the wedges are fully engaged into the holes of the attachment (if applicable).
- Verify that the attachment is securely fastened to the machine.
- Ensure all machine controls are in the NEUTRAL position before starting the machine.
- Operate the attachment only from the operator’s position.
- Follow the instructions in the Operation & Maintenance Manual for operating the attachment.
- When learning to operate the attachment, do it at a slow rate in an area clear of bystanders.
- DO NOT allow personnel to be in the work area when operating the machine and attachment.
- The attachment must be used ONLY on approved machines. Consult your Bobcat dealer for an updated list of approved attachments for each machine model.
- DO NOT modify equipment or add attachments that are not approved by the manufacturer.
- DO NOT make any adjustments or repairs on the machine or attachment while the engine is running.
- Keep shields and guards in place and replace them if damaged.
Avoid Silica Dust:
- Cutting or drilling concrete containing sand or rock containing quartz can lead to exposure to silica dust.
- Use a respirator, water spray, or other means to control dust.
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
