Bobcat 6TB Backhoe Operation & Maintenance Manual SN A91400101 & Above – PDF DOWNLOAD

Description

Bobcat 6TB Backhoe Operation & Maintenance Manual SN A91400101 & Above – PDF DOWNLOAD

FILE DETAILS:

Bobcat 6TB Backhoe Operation & Maintenance Manual SN A91400101 & Above – PDF DOWNLOAD

Language : English
Pages :106
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Bobcat 6TB Backhoe Operation & Maintenance Manual SN A91400101 & Above – PDF DOWNLOAD

WARNINGS FOR BACKHOE OPERATION 3
CONTENTS 5
FOREWORD 7
BOBCAT COMPANY IS ISO 9001 CERTIFIED 9
SERIAL NUMBER LOCATION 10
Attachment Serial Number 10
Manual Storage 10
DELIVERY REPORT 10
IDENTIFICATION AND MACHINE SIGNS (DECALS) 11
FEATURES AND ACCESSORIES 12
Standard Items 12
Options And Accessories 12
Buckets Available 12
SAFETY & TRAINING RESOURCES 13
SAFETY INSTRUCTIONS 15
Safe Operation Is The Operator’s Responsibility 15
Safe Operation Needs A Qualified Operator 15
Use Safety Rules 16
Call Before You Dig 16
Avoid Silica Dust 16
Compact Tractor Requirements And Capabilities 17
FIRE PREVENTION 18
Maintenance 18
Operation 18
Electrical 18
Hydraulic System 18
Fueling 18
Starting 18
Spark Arrester Exhaust System 18
Welding And Grinding 19
Fire Extinguishers 19
PUBLICATIONS AND TRAINING RESOURCES 20
ATTACHMENT SIGNS (DECALS) 21
OPERATING INSTRUCTIONS 23
INITIAL SETUP 25
Assembly 25
DAILY INSPECTION 26
6TB Backhoe Mounting Frame 26
Front 6TB Backhoe Mounting Brackets 26
Rear 6TB Backhoe Mounting Brackets 26
OPERATING PROCEDURE WITH COMPACT TRACTORS 27
Approved Compact Tractor Models And Requirements 27
Machine / Attachment Setup 28
Entering And Exiting The Compact Tractor 29
Entering And Exiting The Backhoe 30
Installation 31
Hydraulic Quick Couplers 35
Control Functions 36
Operation With The Compact Tractor 37
Removal 48
LIFTING THE BACKHOE 51
Procedure 51
TRANSPORTING THE BACKHOE ON A TRAILER 51
Fastening 51
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 52
Loading And Fastening 52
PREVENTIVE MAINTENANCE 53
MAINTENANCE SAFETY 55
TROUBLESHOOTING 57
Chart 57
LUBRICATING THE ATTACHMENT 58
Lubrication Locations 58
REMOVAL AND INSTALLATION OF BUCKET TEETH 60
Procedure 60
ATTACHMENT STORAGE AND RETURN TO SERVICE 61
Storage 61
Return To Service 61
MACHINE SIGN TRANSLATIONS 63
MACHINE SIGN TRANSLATIONS 65
Warning (7152889) 65
Warning (7152890) 66
Warning (7152893) 67
Danger (7152891) 68
Danger (7152892) 69
SPECIFICATIONS 71
(6TB BACKHOE) ATTACHMENT SPECIFICATIONS 73
Dimensions 73
Performance 74
Controls 74
Hydraulic System 74
WARRANTY 75
WARRANTY 77
INSTALLATION INSTRUCTIONS 79
ESTIMATED INSTALLATION TIME: 1 1/2 HRS * 81
HYDRAULIC CONNECTIONS SPECIFICATIONS 98
CUSTOMER PACKING LIST 99
(Kit # 7151803) Backhoe Mounting Kit 99
(Kit # 7151804) Backhoe Mounting Kit 101
(Kit # 7164648) Backhoe Mounting Kit 103
ALPHABETICAL INDEX 105

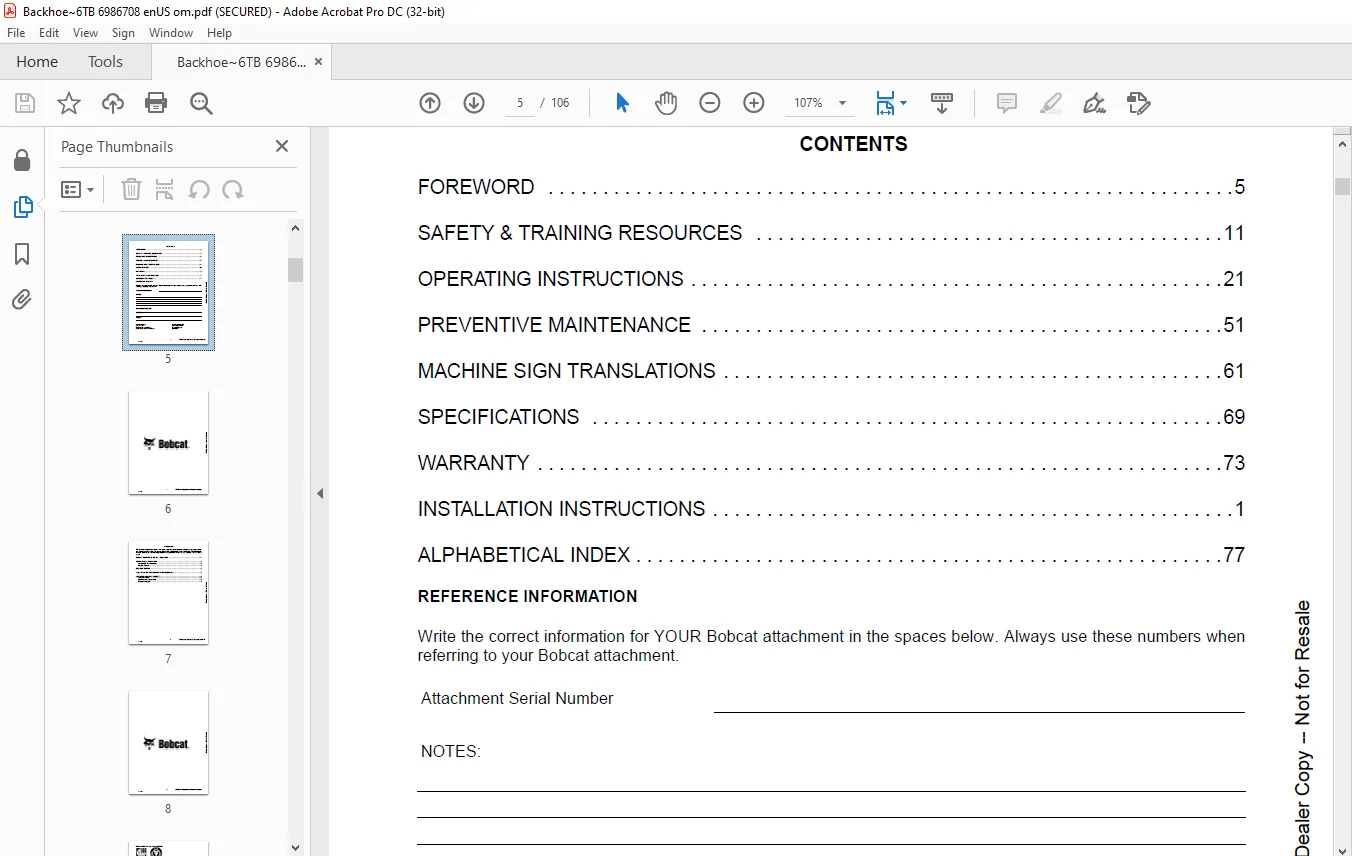

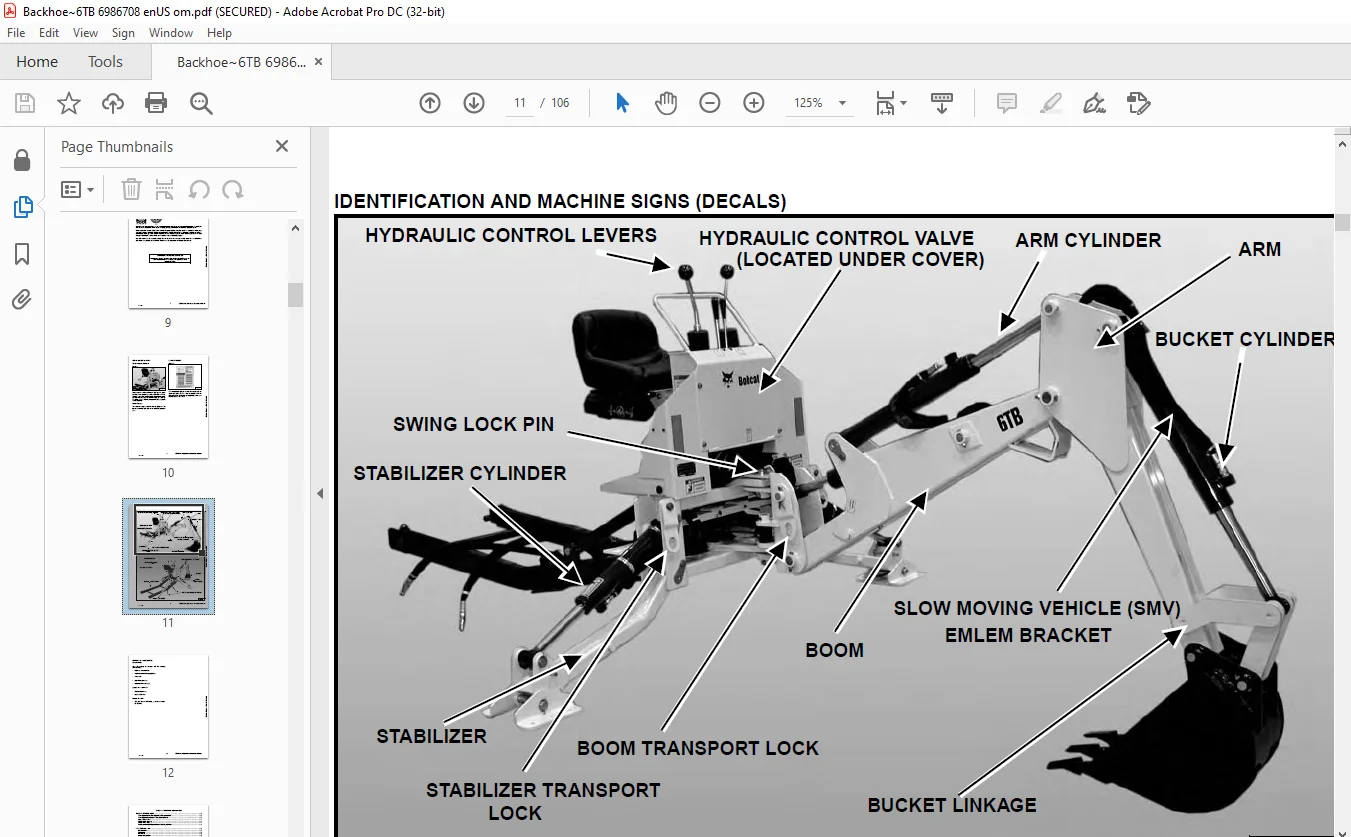

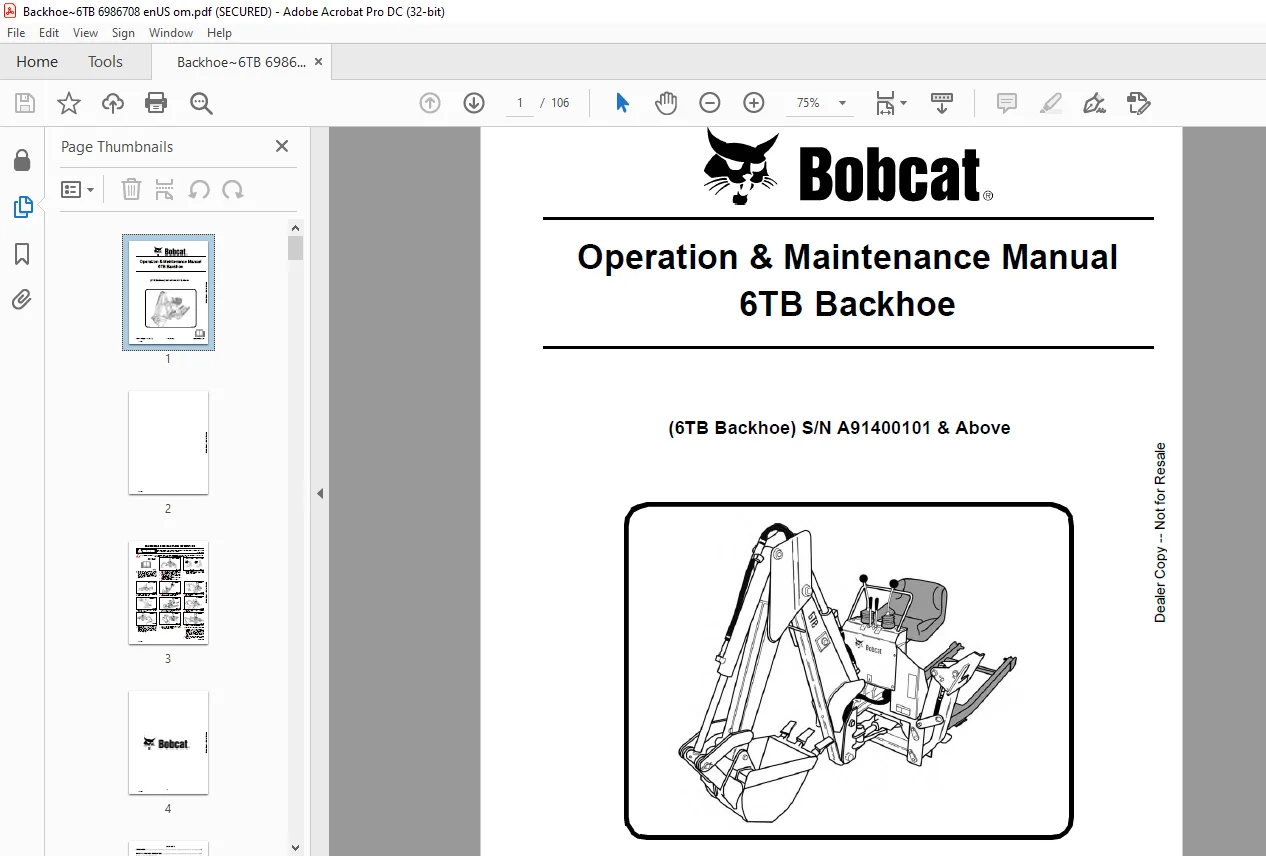

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Bobcat 6TB Backhoe Operation & Maintenance Manual SN A91400101 & Above – PDF DOWNLOAD

FOREWORD

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat attachment. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT ATTACHMENT. If you have any questions, see your Bobcat dealer. This manual may illustrate options and accessories not installed on your Bobcat attachment.

SAFETY INSTRUCTIONS

Operator must have instructions before operating the machine. Untrained operators can cause injury or death.

Safe Operation Needs A Qualified Operator

For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or coordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.

A Qualified Operator Must Do The Following:

Understand the Written Instructions, Rules and Regulations

• The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
• Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. Regulations may apply to local driving requirements or use of a Slow Moving Vehicle (SMV) emblem. Regulations may identify a hazard such as a utility line.

Have Training with Actual Operation

•  Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
• The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.

Know the Work Conditions

• Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
• The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
• Know the location of any underground lines. Call local utilities or the TOLL FREE phone number found in the Call Before You Dig section of this manual.
• Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, and hearing protection are required for some work. See your Bobcat dealer about Bobcat safety equipment for your machine.

SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules

• Read and follow instructions in the machine and the attachment’s / implement’s Operation & Maintenance Manual before operating.
• Check for underground lines before operating attachment / implement (if applicable).
• In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
• Check that the attachment mounting pins and hardware are installed correctly and securely fastened (if equipped).
• Check that the loader is securely installed to the compact tractor using the correct pins and hardware.
• Check that the Bob-Tach® levers are in the locked position and the wedges are fully engaged into the mounting holes of the attachment (if applicable).
• Check that the implement is securely fastened to the machine.
• Depress brake pedals (or make sure parking brake is engaged) and make sure all the machine controls are in the NEUTRAL position before starting the machine. • Always start the machine from the operator’s seat.
• Operate the attachment / implement according to the Operation & Maintenance Manual.
• When learning to operate the attachment / implement, do it at a slow rate in an area clear of bystanders.
• DO NOT permit personnel to be in the work area when operating the machine and attachment / implement.
• The attachment / implement must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments / implements for each machine model.
• DO NOT modify equipment or add attachments / implements that exceed manufacturer’s specifications.
• DO NOT make any adjustments or repairs on the machine or attachment / implement while the engine is running.
• Keep shields and guards in place. Replace if damaged.

Customer Support: [email protected]

https://vimeo.com/843459315?share=copy

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
