Bobcat 963 Loader Operation & Maintenance Manual 6900878 – PDF DOWNLOAD

Description

Bobcat 963 Loader Operation & Maintenance Manual 6900878 – PDF DOWNLOAD

FILE DETAILS:

Bobcat 963 Loader Operation & Maintenance Manual 6900878 – PDF DOWNLOAD

Language : English
Pages : 120
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Bobcat 963 Loader Operation & Maintenance Manual 6900878 – PDF DOWNLOAD

(S/N 562215001 & Above)
(S/N 516515001 & Above)

FOREWORD:

This Operation & Maintenance Manual was written to give the owner/operator instructions on the safe operation and maintenance of the Bobcat loader. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR LOADER. If you have any questions, see your Bobcat loader dealer. This manual may illustrate loaders with additional options and accessories not installed on your loader.

SAFETY INSTRUCTIONS FOR BOBCAT SKID–STEER LOADERS AND ATTACHMENTS:
SAFETY IS THE OPERATOR’S RESPONSIBILITY:

All Bobcat loaders and attachments are designed to give maximum safety, but no machine design can prevent operator error
or carelessness.

• The Bobcat skid–steer loader is highly maneuverable and compact. It is rugged and useful under a wide variety of conditions. This presents an operator with hazards associated with off highway, rough terrain applications, common with Bobcat loader usage.
• The Bobcat loader has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill or cause illness so use the loader with adequate ventilation. The loader has a spark arrestor exhaust system or muffler which is required for operation in certain areas. The dealer explains the capabilities and restrictions of the Bobcat loader and attachments for each application.
• The dealer demonstrates the safe operation according to Bobcat instructional materials, which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for a Rated Operating Capacity (some have restricted lift heights) and secure fastening to the Bobcat loader. The user must check with the dealer, or Bobcat literature, to determine safe loads of materials of specified densities for the loader–attachment combination.

The following publications and training materials provide information on the safe use and maintenance of the Bobcat loader and attachments:
• The Delivery Report is used to assure that complete instructions have been given to the new owner and that the Bobcat
loader and attachment is in safe operating condition.
• The Operation & Maintenance Manual delivered with the Bobcat loader or attachment gives operating information as well
as routine maintenance and service procedures. It is a part of the machine and can be stored in a container provided
inside the cab of the loader. Replacement Operation & Maintenance Manuals can be ordered from your Bobcat dealer.
• Machine signs (decals) instruct on the safe operation and care of your Bobcat loader or attachment. The signs and their
locations are shown in the Operation & Maintenance Manual. Replacement signs are available from your Bobcat dealer.
• An Operator’s Handbook is fastened to the operator cab of the loader. Its brief instructions are convenient to the operator.
The Handbook is available from your dealer in an English edition or one of many other languages. See your Bobcat dealer
for more information on translated versions.
• The Safety Manual delivered with the Bobcat loader gives general safety information.
• Operator Training Courses are available from your local Bobcat dealer. They provide information for safe and efficient
operation of the Bobcat loader and some attachments. The courses are available in English and Spanish versions.
• Service Safety Training Courses are available from your Bobcat dealer. They provide information for safe and correct
service procedures.

TABLE OF CONTENTS:

Bobcat 963 Loader Operation & Maintenance Manual 6900878 – PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3

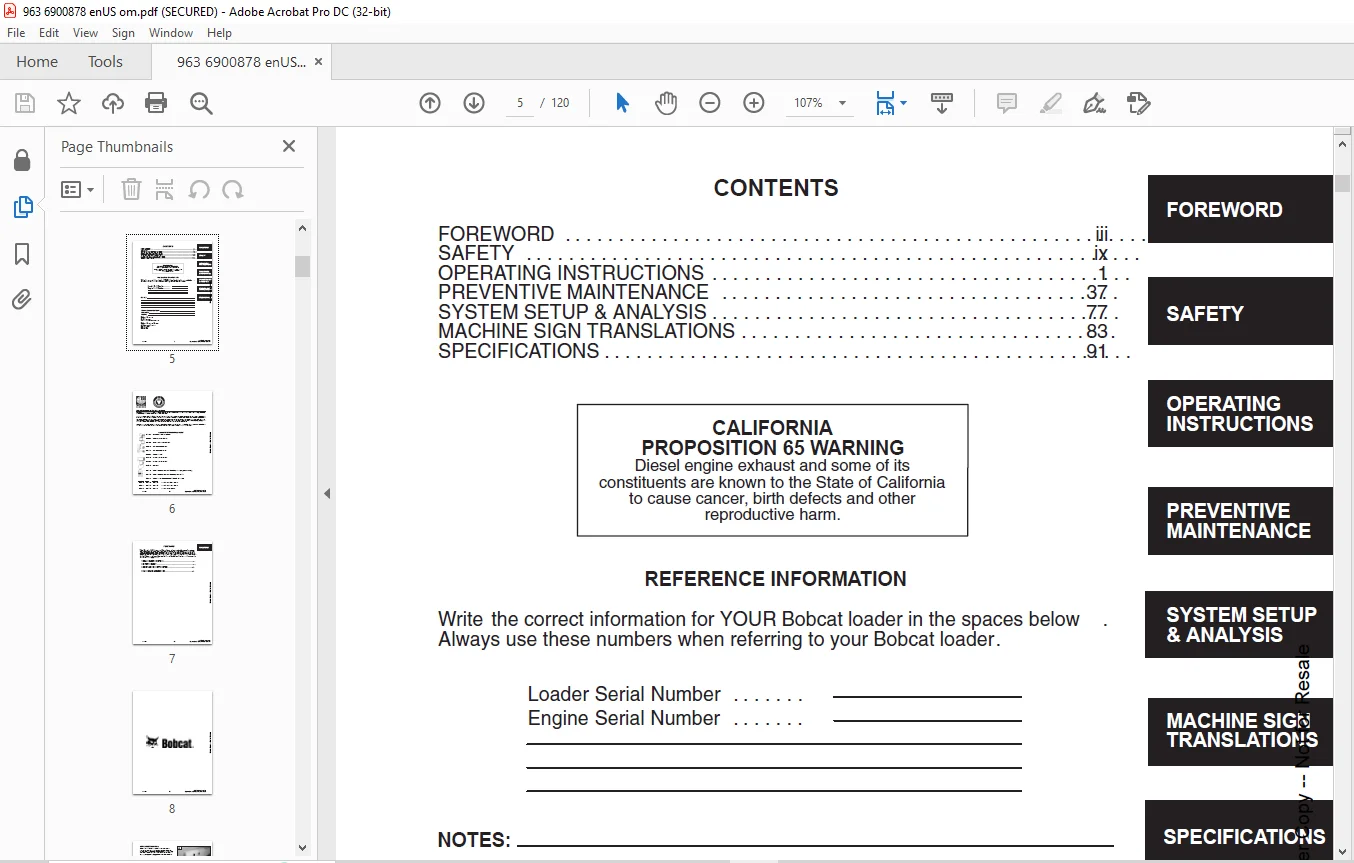

CONTENTS 5
REFERENCE INFORMATION 5
BOBCAT COMPANY IS ISO 9001 CERTIFIED 6
REGULAR MAINTENANCE ITEMS 6
FOREWORD 7
SERIAL NUMBER LOCATIONS 9
LOADER SERIAL NUMBER 9
ENGINE SERIAL NUMBER 9
DELIVERY REPORT 9

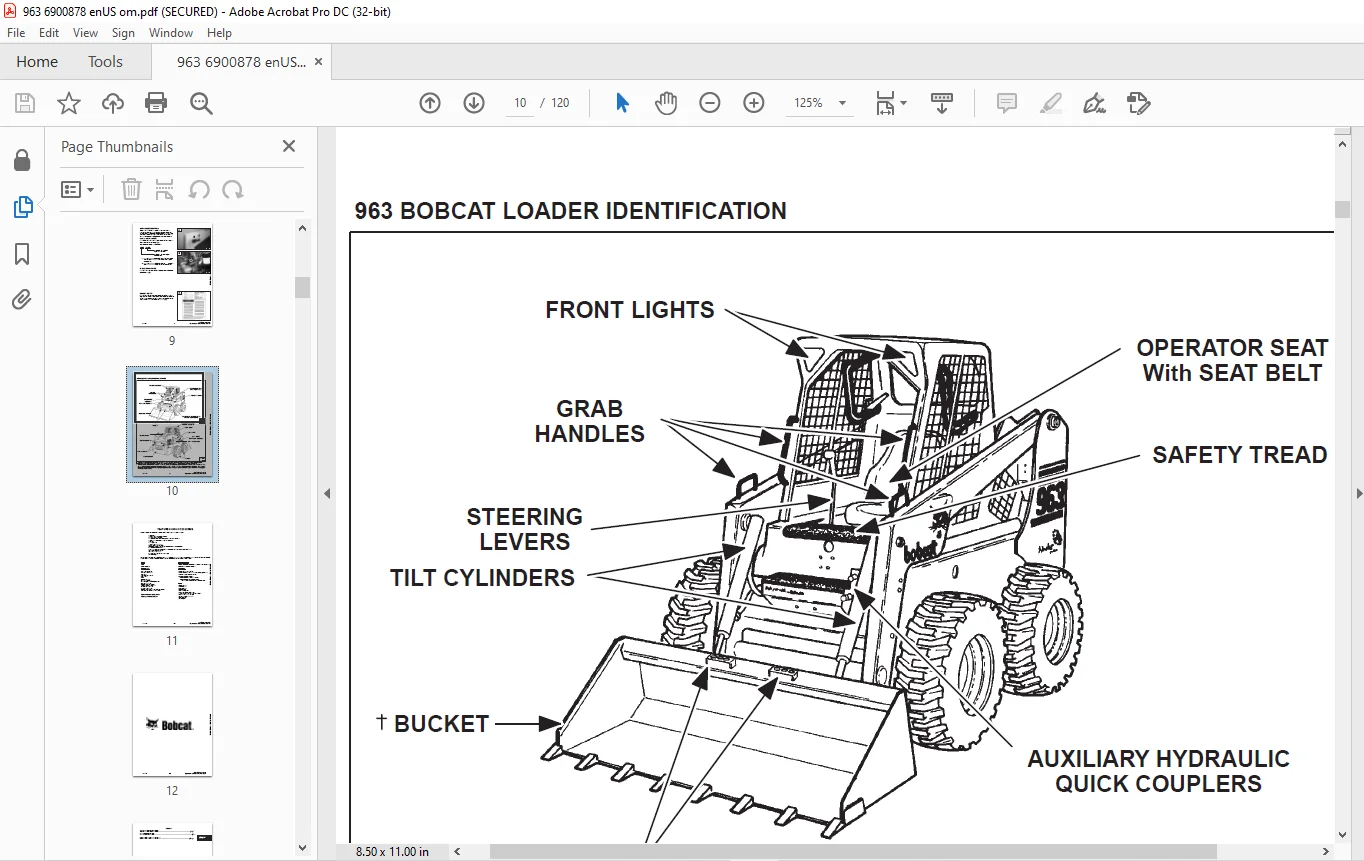

963 BOBCAT LOADER IDENTIFICATION 10
FEATURES AND ACCESSORIES 11
SAFETY 13
SAFETY INSTRUCTIONS FOR BOBCAT SKID–STEER LOADERS AND ATTACHMENTS 15
SAFETY IS THE OPERATOR’S RESPONSIBILITY 15
BEFORE OPERATING THE BOBCAT LOADER 16
SAFE OPERATION NEEDS A QUALIFIED OPERATOR * 16
FIRE PREVENTION 17
MACHINE SIGNS (DECALS 18
OPERATING INSTRUCTIONS 21
INSTRUMENT PANEL IDENTIFICATION 23
Left Panel – Standard and Deluxe Instrument Panels 23
Right Panel – Standard Instrument Panel (With Key Switch) 24
Right Panel – Deluxe Instrument Panel (With Keyless Start) 25
Option and Field Accessory Panels (If Equipped) 26
Cab Light 27
LIFT ARM BY–PASS CONTROL 27
TRACTION LOCK OVERRIDE 27
ENGINE SPEED CONTROL 28
TWO–SPEED CONTROL 28
PARKING BRAKE (Early Models) 28
PARKING BRAKE (Later Models) 28
STEERING LEVERS 29
STOPPING THE BOBCAT LOADER 29
SEAT BAR RESTRAINT SYSTEM 30
HYDRAULIC CONTROLS 31
Foot Pedals 31
Advanced Hand Controls (AHC) (If Equipped) 31
Quick Couplers 32
Releasing Hydraulic Pressure (Loader andAttachment) 32
Attachment Auxiliary Hydraulic Controls (If Equipped) 33
Auxiliary Hydraulics Button 33
FRONT Auxiliary Hydraulics Operation 33
REAR Auxiliary Hydraulics Operation 33
Secondary Front Auxiliary Hydraulics (If Equipped) 34
Attachment Control Device (ACD) (If Equipped) 35
Bucket Position Valve Operation (If Equipped) 35
DAILY INSPECTION 36
Daily Inspection and Maintenance: 36
PRE–STARTING PROCEDURE 37
STARTING THE ENGINE 39
Standard Instrument Panel (With Key Switch) 39
Deluxe Instrument Panel (With Keyless Start) 40
Cold Temperature Starting 41
Cold Start System (If Equipped) 41
Warming the Hydraulic/Hydrostatic System 41
STOPPING THE ENGINE 41
MONITORING THE DISPLAY PANEL 42
ATTACHMENTS AND BUCKETS 43
Hand Lever Bob–Tach 44
Installing The Bucket Or Attachment 44
Removing The Bucket Or Attachment 45
Power Bob–Tach 46
Installing The Bucket Or Attachment 46
Removing The Bucket Or Attachment 47
OPERATING PROCEDURE 48
Filling the Bucket (Foot Pedals) 49
Filling the Bucket (Advanced Hand Controls) 49
Emptying the Bucket (Foot Pedals) 50
Emptying the Bucket (Advanced Hand Controls) 50
Leveling the Ground (Using Lift Arms in Float Position) (Foot Pedals) 50
Leveling the Ground (Using Lift Arms in Float Position) (Advanced Hand Controls) 50
Digging Into the Ground (Foot Pedals) 51
Digging Into the Ground (Advanced Hand Controls) 51
Backfilling (Foot Pedals) 51
Backfilling (Advanced Hand Controls) 51
PARKING THE BOBCAT LOADER 52
TRANSPORTING THE BOBCAT LOADER 53
TOWING THE LOADER 54
LIFTING THE LOADER 55
Two–Point Lift Kit 55
PREVENTIVE MAINTENANCE 57
MAINTENANCE SAFETY 59
SERVICE SCHEDULE 61
LIFT ARM SUPPORT DEVICE 62
Engaging The Lift Arm Support Device 62
Disengaging The Lift Arm Support Device 63
OPERATOR CAB 64
Raising The Operator Cab 64
Lowering The Operator Cab 65
Emergency Exit 66
SEAT BAR RESTRAINT SYSTEM (FOOT PEDALS) 67
Inspecting the Seat Bar 67
Maintaining the Seat Bar 67
SEAT BAR RESTRAINT SYSTEM ADVANCED HAND CONTROLS (AHC) and ADVANCECONTROL SYSTEM (ACS) 68
Inspecting the Seat Bar 68
Maintaining the Seat Bar 68
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 69
Inspecting The BICS™ Controller 69
Inspecting Deactivation Of The Auxiliary HydraulicsSystem (Engine STOPPED – Key ON) 69
Inspecting The Seat Bar Sensor (Engine RUNNING) 69
Inspecting The Traction Lock (Engine RUNNING) 69
Inspecting The Lift Arm By–Pass Control 69
Additional Inspection For Loaders With AdvancedHand Controls (AHC) and Advanced Control System(ACS) 69
REAR DOOR 70
Opening And Closing The Rear Door 70
REAR GRILL 71
AIR CLEANER SERVICE 72
Replacing Filter Element 72
FUEL SYSTEM 74
Fuel Specifications 74
Filling the Fuel Tank 74
Fuel Filters 75
Removing Air From The Fuel System 76
ENGINE LUBRICATION SYSTEM 77
Checking Engine Oil 77
Replacing Oil And Filter 78
ENGINE COOLING SYSTEM 79
Cleaning The Cooling System 79
Replacing The Coolant 80
ALTERNATOR BELT 81
Adjusting The Alternator Belt 81
ELECTRICAL SYSTEM 82
Description 82
Cleaning Battery Terminals 82
Fuse Location 82
Using A Booster Battery (Jump Starting) 83
Removing And Installing The Battery 84
HYDRAULIC/HYDROSTATIC SYSTEM 85
Checking And Adding Fluid 85
Replacing The Hydraulic/Hydrostatic Filters 85
Replacing The Hydraulic Fluid 86
Breather Cap 87
SPARK ARRESTOR MUFFLER 88
TIRE MAINTENANCE 89
Wheel Nuts 89
Tire Rotation 89
Tire Mounting 89
FINAL DRIVE TRANSMISSION (CHAINCASE) 90
Checking And Adding Oil 90
DRIVE BELT 91
Adjusting The Drive Belt 91
LUBRICATING THE BOBCAT LOADER 92
PIVOT PINS 93
BOB–TACH 94
Hand Lever Bob–Tach Inspection And Maintenance 94
Power Bob–Tach (Option) Inspection and Maintenance 95
SYSTEM SETUP AND ANALYSIS 97
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 99
Troubleshooting Chart 99
DELUXE INSTRUMENTATION SERVICE CODES 100
DELUXE INSTRUMENTATION PANEL SETUP 101
Deluxe Panel Upgrade 101
Icon Identification 101
Deluxe Panel Setup 101
Passwords 102
Changing the Password 102
MACHINE SIGN TRANSLATIONS 103
SERVICE SCHEDULE – 6807348 105
WARNING – 6579510 107
WARNING – 6579528 108
WARNING – 6577754 108
WARNING – 6803932 108
DANGER – 6702302 108
DANGER – 6702301 108
DANGER * 6717343 109
WARNING – 6715944 109
SPECIFICATIONS 111
963 SKID–STEER LOADER SPECIFICATIONS 113
Dimensional Specifications 113
Performance Specifications 113
Engine 113
Loader Controls 113
Drive System 113
Hydraulic System 113
Electrical System 113
Capacities 113
BOBCAT COMPANY APPROVED ATTACHMENTS & ACCESSORIES 114
ADDITIONAL PUBLICATIONS AND TRAINING MATERIALS 117
WARRANTY 119

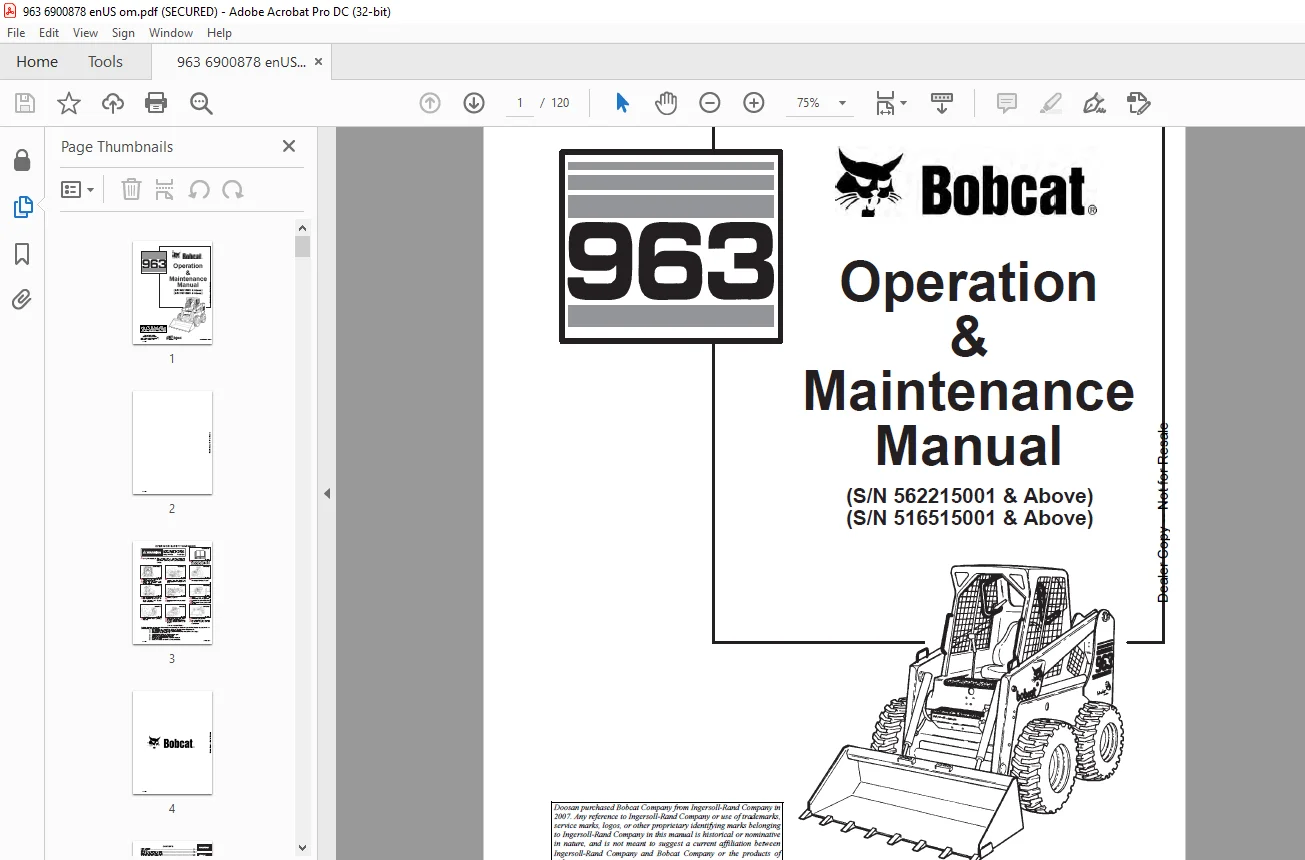

IMAGES PREVIEW OF THE MANUAL:
