Bobcat B850 B950 Hydraulic Breaker Operation & Maintenance Manual – PDF DOWNLOAD

Description

Bobcat B850 B950 Hydraulic Breaker Operation & Maintenance Manual – PDF DOWNLOAD

FILE DETAILS:

Bobcat B850 B950 Hydraulic Breaker Operation & Maintenance Manual – PDF DOWNLOAD

Language : English
Pages : 80
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Bobcat B850 B950 Hydraulic Breaker Operation & Maintenance Manual – PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3
CONTENTS 5
BOBCAT COMPANY IS ISO 9001:2000 CERTIFIED 6
FOREWORD 7
SERIAL NUMBER LOCATION 9
DELIVERY REPORT 9

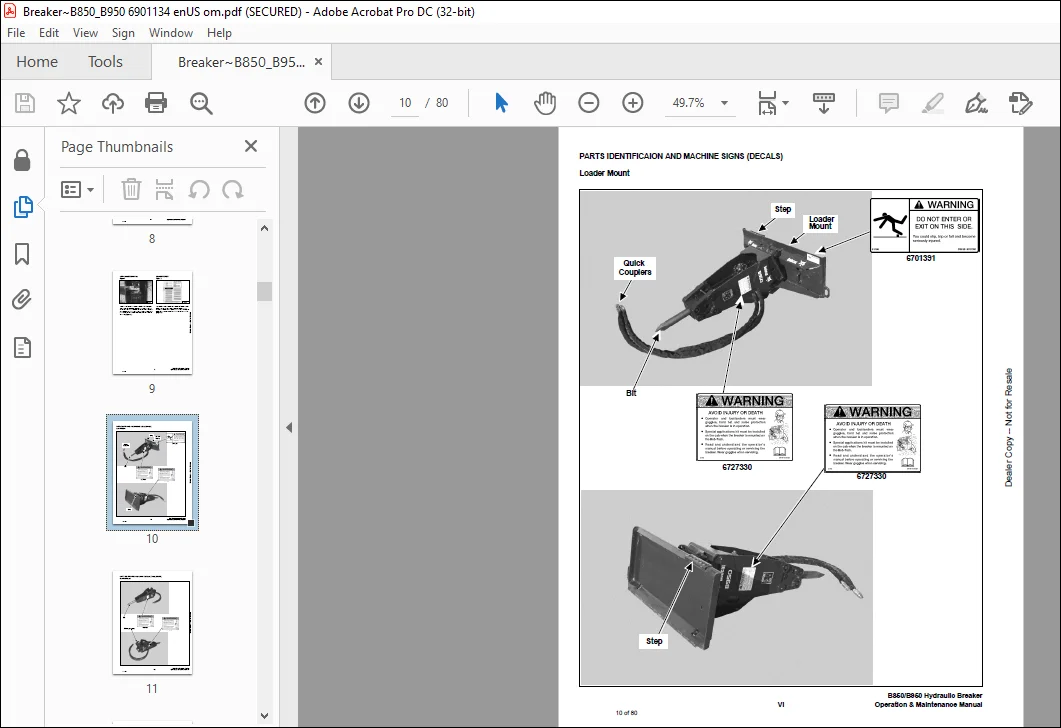

PARTS IDENTIFICAION AND MACHINE SIGNS (DECALS) 10
Loader Mount 10
Excavator Mount 11
SAFETY 13
SAFETY INSTRUCTIONS 15
Safe Operation Is The Operator’s Responsibility 15
Safe Operation Needs A Qualified Operator 15
Use Safety Rules 16
Fire Prevention 17
OPERATING INSTRUCTIONS 19
OPTIONS 21
HOSE INSTALLATION 21
HYDRAULIC BREAKER INSTALLATION & REMOVAL ON LOADERS 22
Installing The Hydraulic Breaker 22
Flush Face Couplers 25
Relieving Hydraulic Pressure 27
Removing The Hydraulic Breaker 29
Installing The Hydraulic Breaker On The Loader Mount 30
ENTERING AND EXITING THE LOADER 32
OPERATING THE HYDRAULIC BREAKER ON LOADERS 33
Auxiliary Hydraulics 33
Electric Auxiliary Hydraulic Controls 33
Breaker Operation 34
HYDRAULIC BREAKER INSTALLATION & REMOVAL ON EXCAVATORS 36
Flush Face Couplers 36
Installing The Hydraulic Breaker Using The Bolt-On- X-Change 37
Removing The Hydraulic Breaker From The Excavator With The Bolt On X-Change 39
Installing the Hydraulic Breaker Using The X-Change System 40
Removing The Hydraulic Breaker From The Excavator With The X-Change System 41
ENTERING AND EXITING THE EXCAVATOR 42
OPERATING THE HYDRAULIC BREAKER ON EXCAVATORS 43
Auxiliary Hydraulics 325, 328, 331 and 334 Excavators 43
Auxiliary Hydraulics 337, 341, 430 and 435 Excavators 45
Breaker Operation 46
TRANSPORTING THE HYDRAULIC BREAKER 48
Lifting The Hydraulic Breaker 48
Fastening The Hydraulic Breaker To The Transport Vehicle 50
PREVENTIVE MAINTENANCE 53
TROUBLESHOOTING 55
NITROGEN CHAMBER 56
HP And MP Charging Information 56
Checking The HP Nitrogen Chamber Charge Pressure 57
Discharging The HP Nitrogen Chamber 59
Charging The HP Nitrogen Chamber 59
Checking The MP Nitrogen Chamber Charge Pressure 61
Discharging The MP Nitrogen Chamber 63
Charging The MP Nitrogen Chamber 64
BREAKER BIT 66
Removal 66
Installation 67
BREAKER LUBRICATION 68
INSPECTION 69
Hand Lever Bob-Tach Inspection 69
Power Bob-Tach Inspection 70
Loader Mount Inspection 71
Excavator Mount Inspection 71
Weekly Inspection 71
STORAGE PROCEDURES 73
SPECIFICATIONS 75
SPECIFICATIONS 77
ADDITIONAL PUBLICATIONS 78
WARRANTY 79

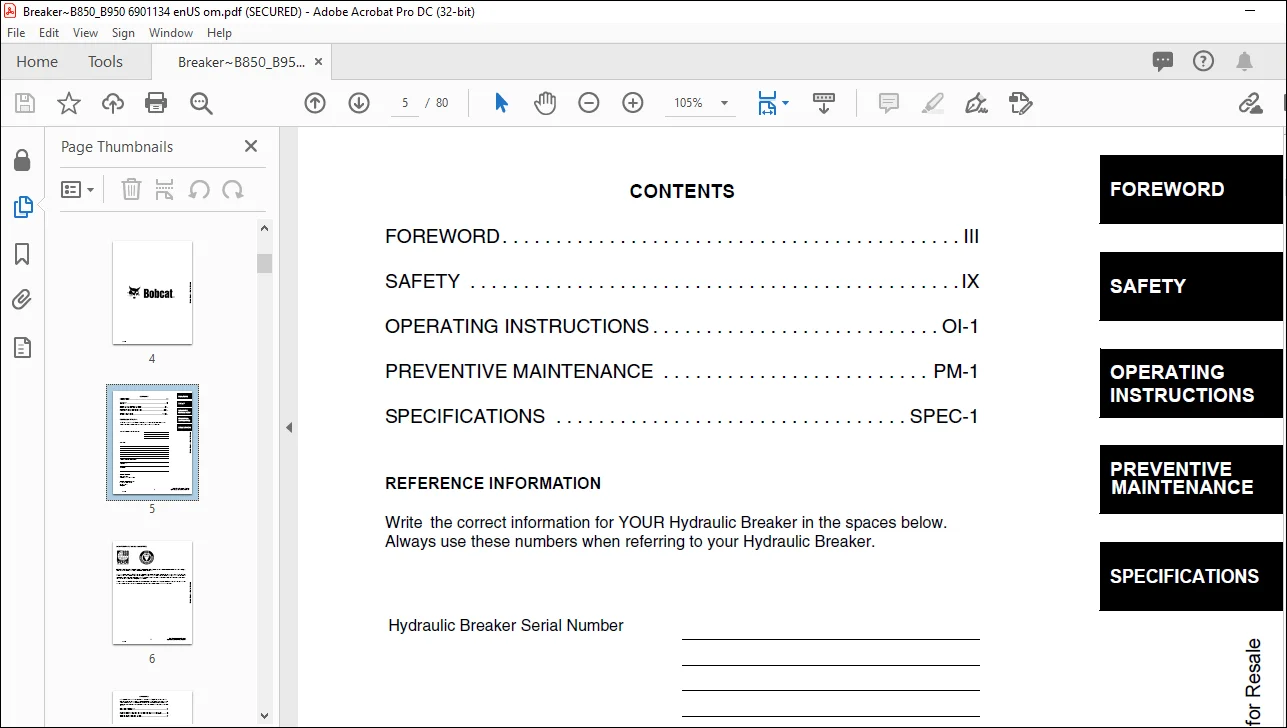

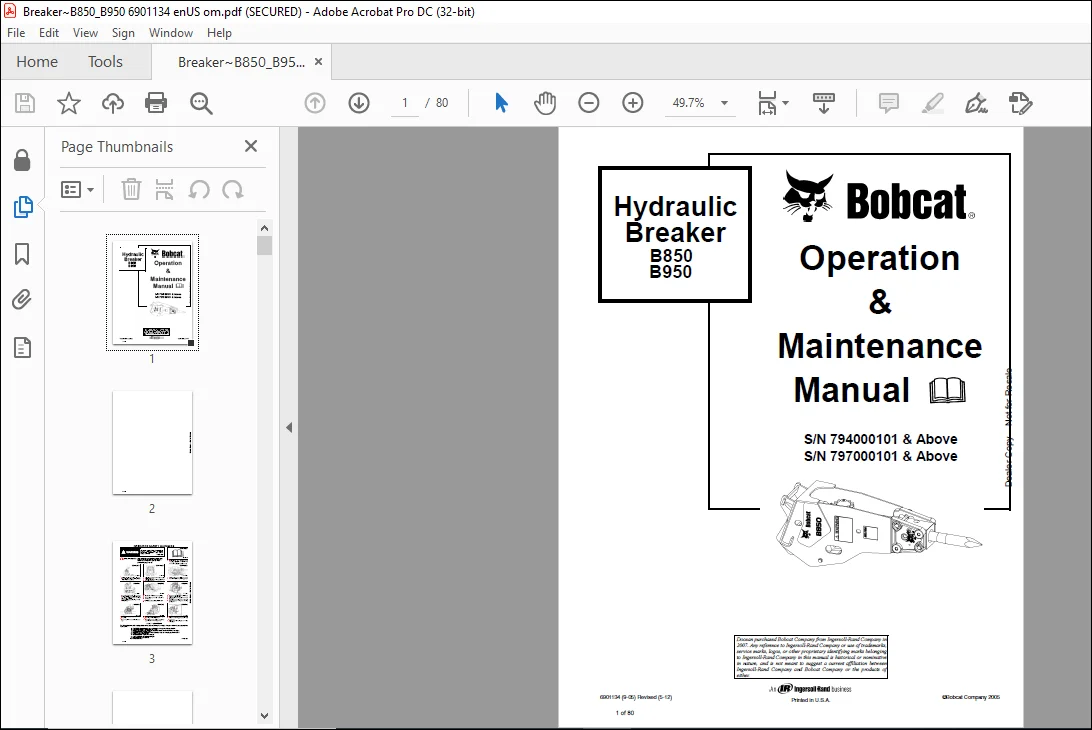

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Bobcat B850 B950 Hydraulic Breaker Operation & Maintenance Manual – PDF DOWNLOAD

FOREWORD

S/N 794000101 & Above
S/N 797000101 & Above

This Operation & Maintenance Manual was written to give the owner/operator instructions on the safe operation and maintenance of the Hydraulic Breaker. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR Hydraulic Breaker. If you have any questions, see your Bobcat dealer.

SAFETY INSTRUCTIONS

Operator must have instructions before operating the machine. Untrained operators can cause injury or death.

Safe Operation Needs A Qualified Operator

For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or coordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.

A Qualified Operator Must Do The Following:

Understand the Written Instructions, Rules and Regulations

• The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
• Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. Regulations may apply to local driving requirements or use of a Slow Moving Vehicle (SMV) emblem. Regulations may identify a hazard such as a utility line.

Have Training with Actual Operation

•  Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
• The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.

Know the Work Conditions

• Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
• The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
• Know the location of any underground lines. Call local utilities or the TOLL FREE phone number found in the Call Before You Dig section of this manual.
• Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, and hearing protection are required for some work. See your Bobcat dealer about Bobcat safety equipment for your machine.

SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules

• Read and follow instructions in the machine and the attachment’s / implement’s Operation & Maintenance Manual before operating.
• Check for underground lines before operating attachment / implement (if applicable).
• In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
• Check that the attachment mounting pins and hardware are installed correctly and securely fastened (if equipped).
• Check that the loader is securely installed to the compact tractor using the correct pins and hardware.
• Check that the Bob-Tach® levers are in the locked position and the wedges are fully engaged into the mounting holes of the attachment (if applicable).
• Check that the implement is securely fastened to the machine.
• Depress brake pedals (or make sure parking brake is engaged) and make sure all the machine controls are in the NEUTRAL position before starting the machine. • Always start the machine from the operator’s seat.
• Operate the attachment / implement according to the Operation & Maintenance Manual.
• When learning to operate the attachment / implement, do it at a slow rate in an area clear of bystanders.
• DO NOT permit personnel to be in the work area when operating the machine and attachment / implement.
• The attachment / implement must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments / implements for each machine model.
• DO NOT modify equipment or add attachments / implements that exceed manufacturer’s specifications.
• DO NOT make any adjustments or repairs on the machine or attachment / implement while the engine is running.
• Keep shields and guards in place. Replace if damaged.
