Bobcat Backhoe 607 607 709 709 709FDS 709FDS Operation & Maintenance Manual – PDF DOWNLOAD

Description

Bobcat Backhoe 607 607 709 709 709FDS 709FDS Operation & Maintenance Manual – PDF DOWNLOAD

FILE DETAILS:

Bobcat Backhoe 607 607 709 709 709FDS 709FDS Operation & Maintenance Manual – PDF DOWNLOAD

Language : English
Pages :112
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Bobcat Backhoe 607 607 709 709 709FDS 709FDS Operation & Maintenance Manual – PDF DOWNLOAD

(607) S/N 775002278 & Above
(607) S/N A5CW00101 & Above
(709) S/N 270007245 & Above
(709) S/N A54M00101 & Above
(709FDS) S/N 584101444 & Above
(709FDS) S/N A5F300101 & Above

FOREWORD

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat backhoe. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT BACKHOE. If you have any questions, see your Bobcat dealer.

SAFETY INSTRUCTIONS

Operator must have instructions before operating the machine. Untrained operators can cause injury or death.

Safe Operation Needs A Qualified Operator

For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or coordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.

A Qualified Operator Must Do The Following:

Understand the Written Instructions, Rules and Regulations

• The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
• Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. Regulations may apply to local driving requirements or use of a Slow Moving Vehicle (SMV) emblem. Regulations may identify a hazard such as a utility line.

Have Training with Actual Operation

•  Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
• The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.

Know the Work Conditions

• Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
• The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
• Know the location of any underground lines. Call local utilities or the TOLL FREE phone number found in the Call Before You Dig section of this manual.
• Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, and hearing protection are required for some work. See your Bobcat dealer about Bobcat safety equipment for your machine.

SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules

• Read and follow instructions in the machine and the attachment’s / implement’s Operation & Maintenance Manual before operating.
• Check for underground lines before operating attachment / implement (if applicable).
• In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
• Check that the attachment mounting pins and hardware are installed correctly and securely fastened (if equipped).
• Check that the loader is securely installed to the compact tractor using the correct pins and hardware.
• Check that the Bob-Tach® levers are in the locked position and the wedges are fully engaged into the mounting holes of the attachment (if applicable).
• Check that the implement is securely fastened to the machine.
• Depress brake pedals (or make sure parking brake is engaged) and make sure all the machine controls are in the NEUTRAL position before starting the machine. • Always start the machine from the operator’s seat.
• Operate the attachment / implement according to the Operation & Maintenance Manual.
• When learning to operate the attachment / implement, do it at a slow rate in an area clear of bystanders.
• DO NOT permit personnel to be in the work area when operating the machine and attachment / implement.
• The attachment / implement must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments / implements for each machine model.
• DO NOT modify equipment or add attachments / implements that exceed manufacturer’s specifications.
• DO NOT make any adjustments or repairs on the machine or attachment / implement while the engine is running.
• Keep shields and guards in place. Replace if damaged.

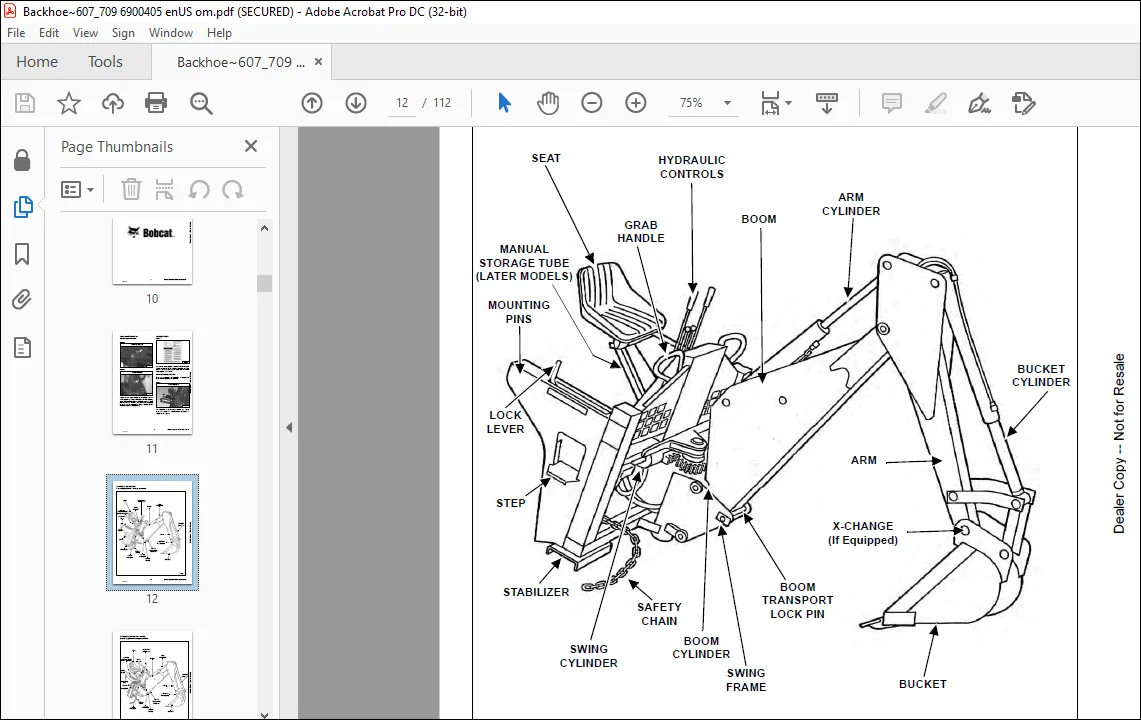

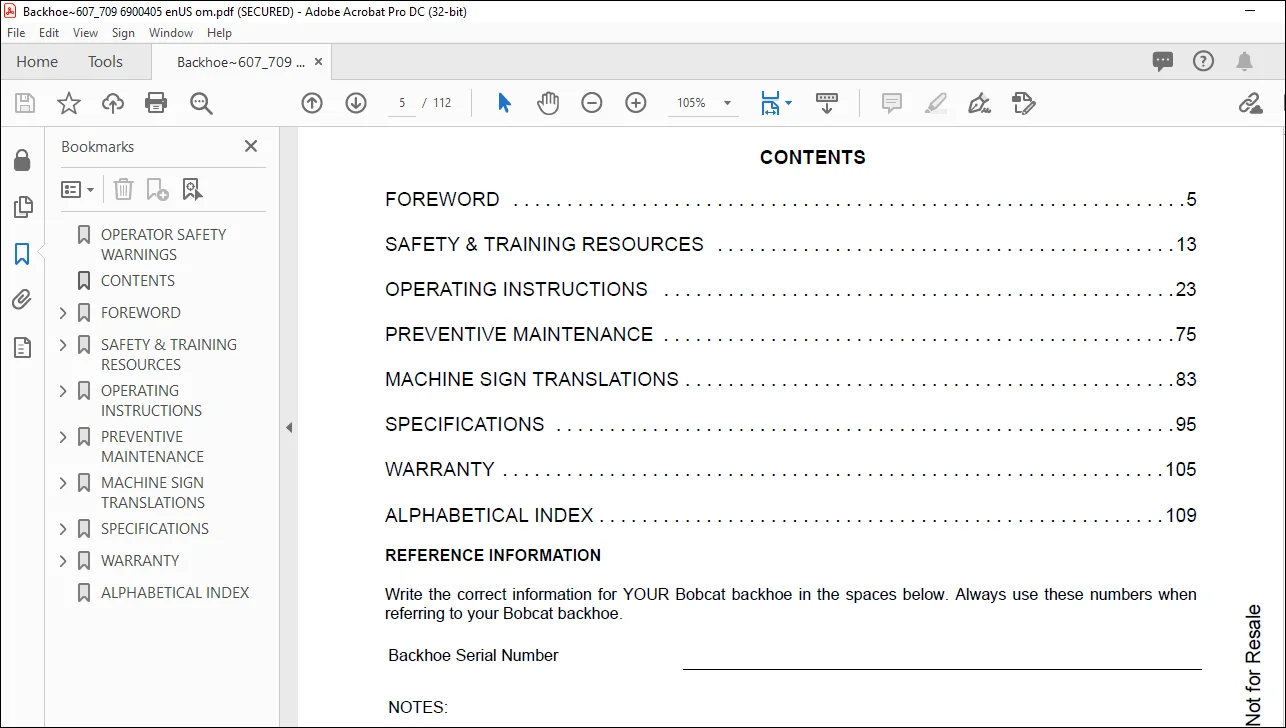

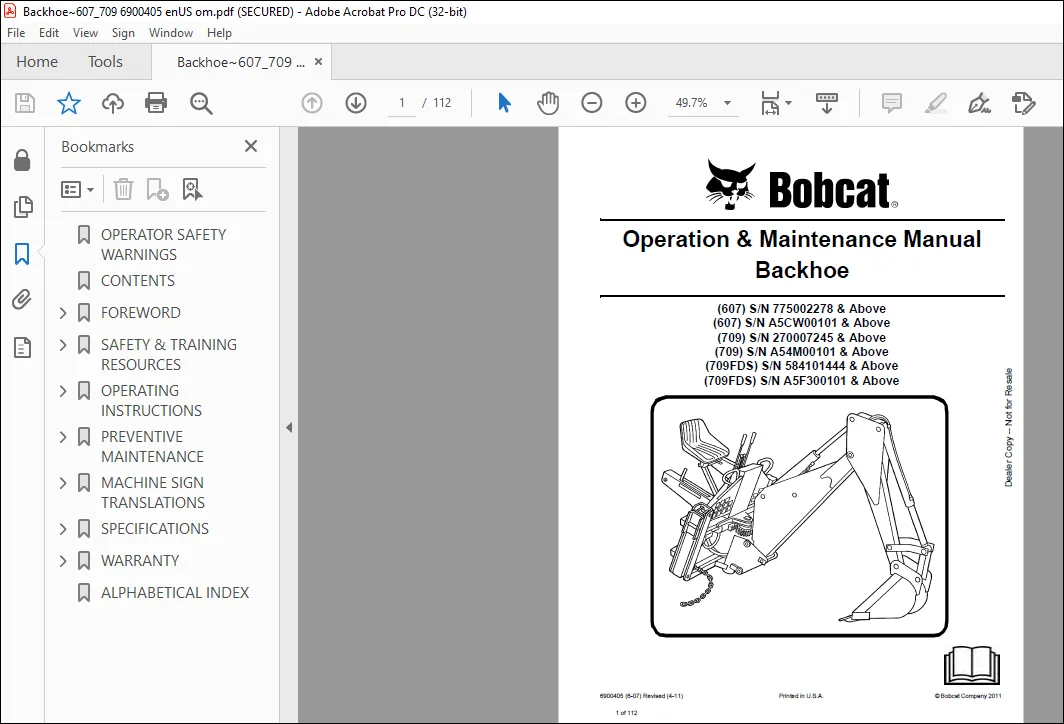

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat Backhoe 607 607 709 709 709FDS 709FDS Operation & Maintenance Manual – PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3
CONTENTS 5
FOREWORD 7
BOBCAT COMPANY IS IS0 9001 CERTIFIED 9
SERIAL NUMBER LOCATION 11
Attachment Serial Number 11
DELIVERY REPORT 11
MANUAL STORAGE LOCATION 11
ATTACHMENT IDENTIFICATION 12
Backhoe Equipped With Telescoping Stabilizers 12
Backhoe Equipped With Outrigger Stabilizers 13
FEATURES AND ACCESSORIES 14
Options And Accessories 14
SAFETY & TRAINING RESOURCES 15
SAFETY INSTRUCTIONS 17
Safe Operation Is The Operator’s Responsibility 17
Safe Operation Needs A Qualified Operator 17
Use Safety Rules 18
Call Before You Dig 18
Avoid Silica Dust 18
FIRE PREVENTION 19
Maintenance 19
Operation 19
Electrical 19
Hydraulic System 19
Fueling 19
Starting 19
Spark Arrestor Exhaust System 19
Welding And Grinding 20
Fire Extinguishers 20
PUBLICATIONS AND TRAINING RESOURCES 21
ATTACHMENT SIGNS (DECALS) 22
Backhoe Equipped With Telescoping Stabilizers 22
Backhoe Equipped With Outrigger Stabilizers 23
OPERATING INSTRUCTIONS 25
INITIAL SETUP 27
Backhoe Mounting Kit 27
Seat Adjustment 27
DAILY INSPECTION 28
Attachment Mounting Frame 28
Bob-Tach 29
X-Change™ 31
Pin-On Attachment 32
OPERATING PROCEDURE WITH LOADERS 33
Approved Loader Models And Requirements 33
Machine / Attachment Setup 35
Entering And Exiting The Loader 36
Installation 37
Hydraulic Quick Couplers 50
Control Functions 51
Operation With The Loader 52
Removal 65
LIFTING THE BACKHOE 74
Procedure 74
TRANSPORTING THE BACKHOE ON A TRAILER 74
Fastening The Backhoe To The Transport Vehicle 74
TRANSPORTING THE BACKHOE AND MACHINE ON A TRAILER 75
Loading And Fastening 75
PREVENTIVE MAINTENANCE 77
TROUBLESHOOTING 79
LUBRICATING THE ATTACHMENT 80
Lubrication Locations 80
ATTACHMENT STORAGE AND RETURN TO SERVICE 83
Storage 83
Return To Service 83
MACHINE SIGN TRANSLATIONS 85
MACHINE SIGN TRANSLATIONS 87
Warning (6535259) 87
Warning (6596513) 88
Warning (6596591) 89
Warning (6714911) 90
Warning (6714920) 91
Warning (7166144) 92
Mounting (6714915) 93
X-Change (6818059) 96
SPECIFICATIONS 97
607 BACKHOE SPECIFICATIONS 99
Dimensions 99
Hydraulic Specifications 100
Transport 100
Operational 101
Lift Capacities 101
709 BACKHOE SPECIFICATIONS 102
Dimensions 102
Hydraulic Specifications 103
Transport 103
Operational 104
Lift Capacities 104
BUCKET SPECIFICATIONS 105
WARRANTY 107
WARRANTY 109
ALPHABETICAL INDEX 111
